LiveU Video Return Server Basic

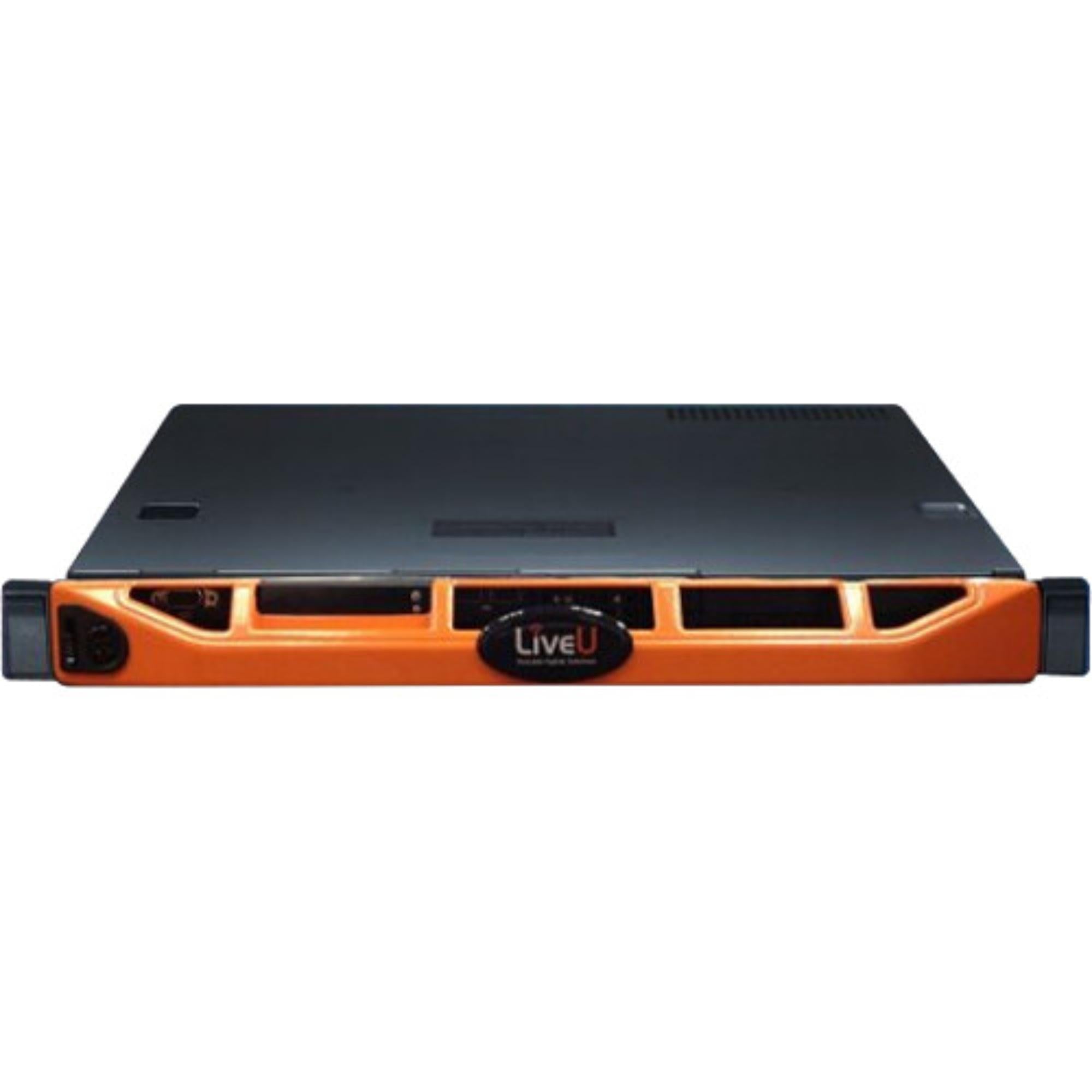

LiveU Video Return Server Basic is designed for production teams that need to monitor a LiveU live broadcast feed with very low delay. According to the source material, this is a 1 RU Video Return Server solution with 2 SDI inputs and support for monitoring live feeds with near-zero / sub-second delay.

For field crews, return video matters because operators need to know what is actually being sent back from the production side. This server can serve field units or external monitors, and one feed can serve up to 20 units, making it useful for teams that need shared return monitoring across multiple positions.

Highlights

• 1 RU Video Return Server solution
• Compatible with LiveU field units
• Monitor live feeds with near-zero / sub-second delay
• 1 feed can serve up to 20 units
• 2 x SDI inputs with two-way audio return
• Integrates with LiveU Central Management

Quick Specs & Uses

• Product type: Video Return Server solution
• Rack size: 1 RU
• Compatibility: LiveU field units
• Video input: 2 x BNC (3G-SDI) Female
• Video output: 1 x RJ45 Female
• Embedded audio: LAN (RJ45) / SDI
• Expansion slots: No
• Reclocking: No
• Monitoring capacity: 1 feed can serve up to 20 units
• License note: Requires separate return licenses

Why It Helps

In live production, return monitoring is not a luxury. Field operators need to see program, confidence, or production-side video without waiting on a delayed stream. A sub-second return path helps the crew react faster and stay aligned with what the control side is seeing.

The 1 RU format also makes sense for rack-based production environments. With SDI inputs and RJ45 output, the server fits into a familiar broadcast signal chain while connecting into LiveU’s return video workflow.

System Characteristics

• Rackmount video return workflow for LiveU systems
• Two 3G-SDI BNC inputs for video feed input
• RJ45 output for network-based return distribution
• Two-way audio return support
• LiveU Central Management integration

What’s In The Box

• 1 x LiveU Video Return Server
