LiveU Matrix Transceiver with 2 x Channels

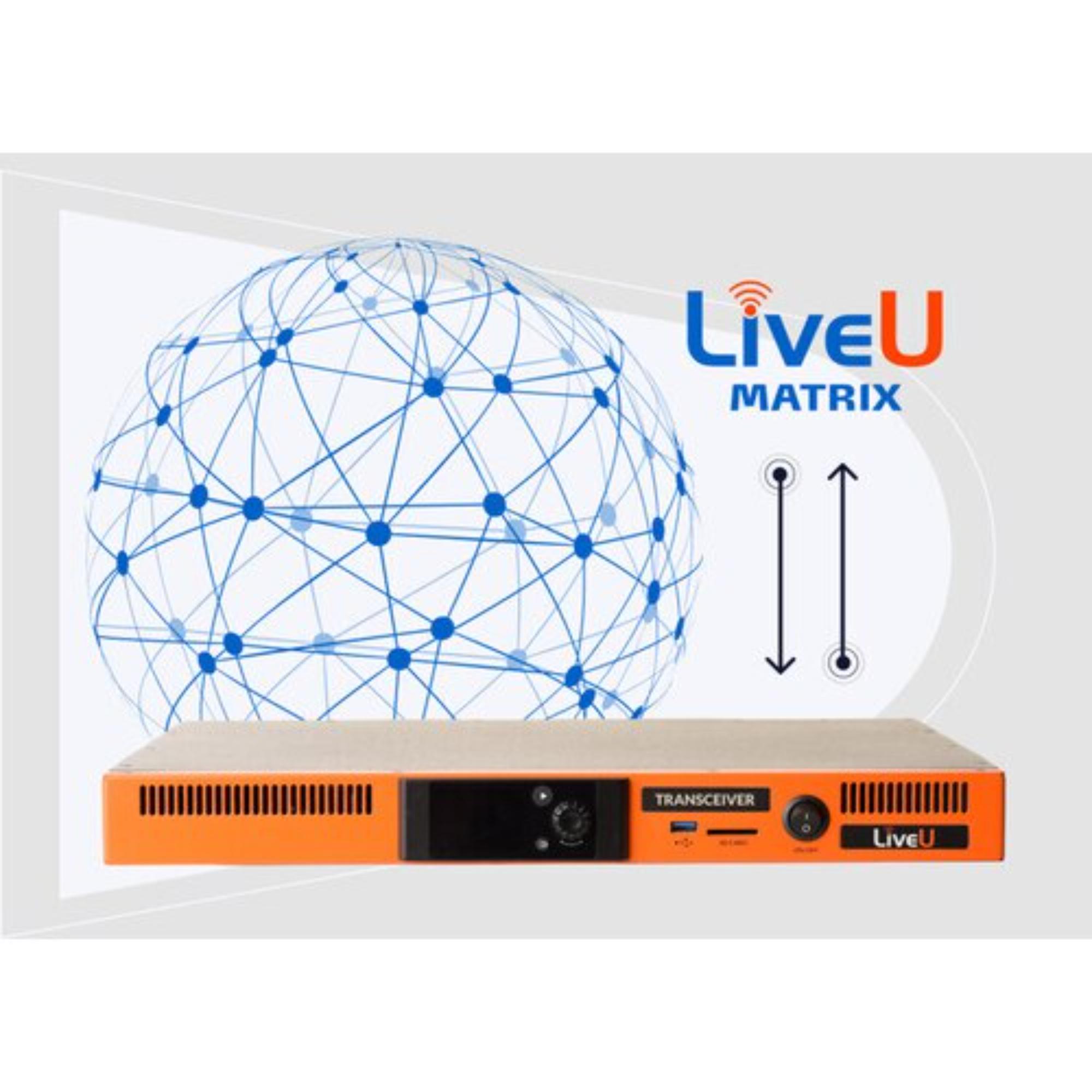

LiveU Matrix Transceiver with 2 x Channels is a 1 RU rackmount transceiver designed for LiveU Matrix workflows. According to the source material, it provides encoding and decoding of video through 3G-SDI to wired IP or wired IP to 3G-SDI.

The unit includes 2 x 3G-SDI inputs, 2 x 3G-SDI outputs, and 2 x RJ45 input/output ports. For production teams working inside a LiveU Matrix environment, this gives a clean rack-based way to move between SDI and IP video paths.

Highlights

• Encoder / decoder for LiveU Matrix
• 2 x SDI inputs / outputs up to 1080p60
• 1 RU rackmount unit
• Software upgradeable to 4 channels
• Ethernet network connectivity

Quick Specs & Uses

• Product type: Matrix transceiver
• Rack size: 1 RU
• Channels: 2
• Antenna I/O: 2 x RP-SMA female
• Video I/O: 2 x BNC 3G-SDI input, 2 x BNC 3G-SDI output
• Network I/O: 2 x RJ45 input/output
• Embedded audio: LAN (RJ45) / SDI / Wireless
• Audio I/O: No
• Power I/O: 1 x proprietary 12 VDC input
• Wi-Fi: No
• Bluetooth: Yes
• Cellular support: No
• IP video: H.264 / H.265, 1280 x 720 to 1920 x 1080 at 24p, 25p, 30p, 50p, 60p
• IP audio: AAC-LC
• Input power: 12 VDC, 100 to 240 VAC, 50 / 60 Hz
• Dimensions: 17.2 x 11 x 1.7" / 436 x 280 x 44 mm
• Weight: 11.0 lb / 5.0 kg

Why It Helps

Matrix workflows often need clean movement between SDI equipment and IP distribution. This transceiver gives operators a rackmount point for both encoding and decoding, which helps keep signal conversion organized inside a control room, mobile unit, or remote facility.

The two-channel setup is useful for smaller deployments, while the software upgrade path to four channels gives the system room to grow if the workflow expands later.

System Characteristics

• Rackmount SDI/IP transceiver for LiveU Matrix environments
• Two-channel encode/decode workflow
• 3G-SDI input and output support
• Ethernet-based network connectivity
• Software upgrade path to 4 channels

What’s In The Box

• 1 x LiveU Matrix Transceiver with 2 x Channels
