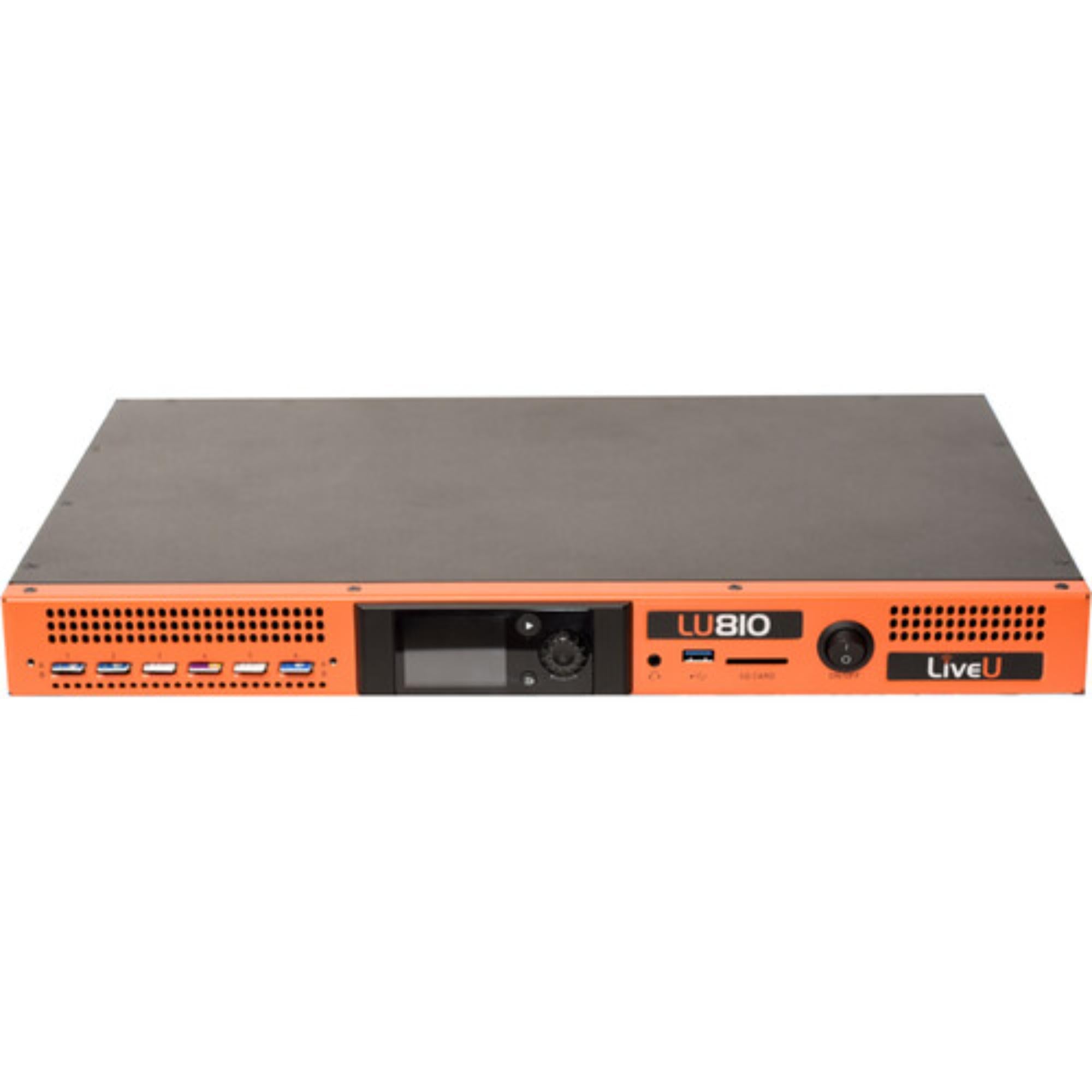

LiveU LU810 Professional HEVC Multi-Camera Rackmount Encoder

LiveU LU810 Professional HEVC Multi-Camera Rackmount Encoder is built for productions that need rackmount HEVC encoding from multiple camera sources. According to the source material, this 1 RU rackmount server provides H.265 / H.264 encoding and supports network transmission of up to 4 SDI cameras through 1 x 12G-SDI and 3 x 3G-SDI inputs.

The LU810 is designed for mobile or remote facility workflows where low-latency transport and multiple camera inputs need to stay in one compact rack unit. It works with the LiveU Central Cloud Platform, supports dual Ethernet ports, dual-band Wi-Fi, and includes local monitoring through an HDMI output.

Highlights

• 1 RU rackmount HEVC server
• Transmit 4-camera SDI input
• H.265 / H.264 up to 20 Mb/s transmission
• Supports up to 1080p60 HD video I/O
• 16-channel audio support
• Dual Ethernet ports and dual-band Wi-Fi
• Works with LiveU Central Cloud Platform

Quick Specs & Uses

• Product type: HEVC multi-camera rackmount encoder
• Rack size: 1 RU
• Video input: 1 x BNC 12G-SDI input, 3 x BNC 3G-SDI inputs
• Monitor output: 1 x HDMI monitor output
• Antenna I/O: 2 x RP-SMA female
• Audio I/O: 1 x 1/8" / 3.5 mm headphone / line output, 1 x Mini-XLR monitor / line output
• Embedded audio: HDMI / LAN (RJ45) / SDI / Wireless
• Network I/O: 2 x RJ45 10/100 Mb/s Ethernet input / output
• Other I/O: 2 x USB-A 2.0 inputs
• Media slot: Single SD / SDHC / SDXC slot, supports recording
• Wireless: Wi-Fi 5 (802.11ac), dual-band 2.4 & 5 GHz
• Bluetooth: Yes
• IP video: H.264 / H.265, 1280 x 720 to 1920 x 1080 at 24p, 25p, 30p, 50p, 60p
• IP audio: AAC-LC
• Transport protocol: TCP/IP
• Input power: 12 to 19 VDC, 100 to 240 VAC, 50 / 60 Hz
• Power consumption: 50 W
• Battery: No
• Status display: Yes
• Operating conditions: 23 to 113°F / -5 to 45°C
• Dimensions: 17.2 x 11 x 1.7" / 436 x 280 x 44 mm
• Weight: 11.0 lb / 5.0 kg

Why It Helps

For remote production and mobile facilities, keeping four camera inputs in one rackmount encoder simplifies the signal path. Instead of treating each camera feed as a separate transmission problem, the LU810 brings multiple SDI inputs into one LiveU workflow.

The 1 RU form factor also matters in production vans and compact racks where space is limited. With SDI, HDMI monitoring, Ethernet, Wi-Fi, SD recording support, and LiveU Central integration in one unit, operators get a cleaner control point for low-latency field contribution.

System Characteristics

• Rackmount multi-camera encoding system for LiveU production workflows
• HEVC / H.264 transmission up to 20 Mb/s
• Four SDI camera input workflow using 12G-SDI and 3G-SDI
• Low-latency LRT transport support
• LiveU Central Cloud Platform integration
• Designed for mobile operation

What’s In The Box

• 1 x LiveU LU810 HEVC Multi-Camera Encoding Server
• 1 x Power Adapter
