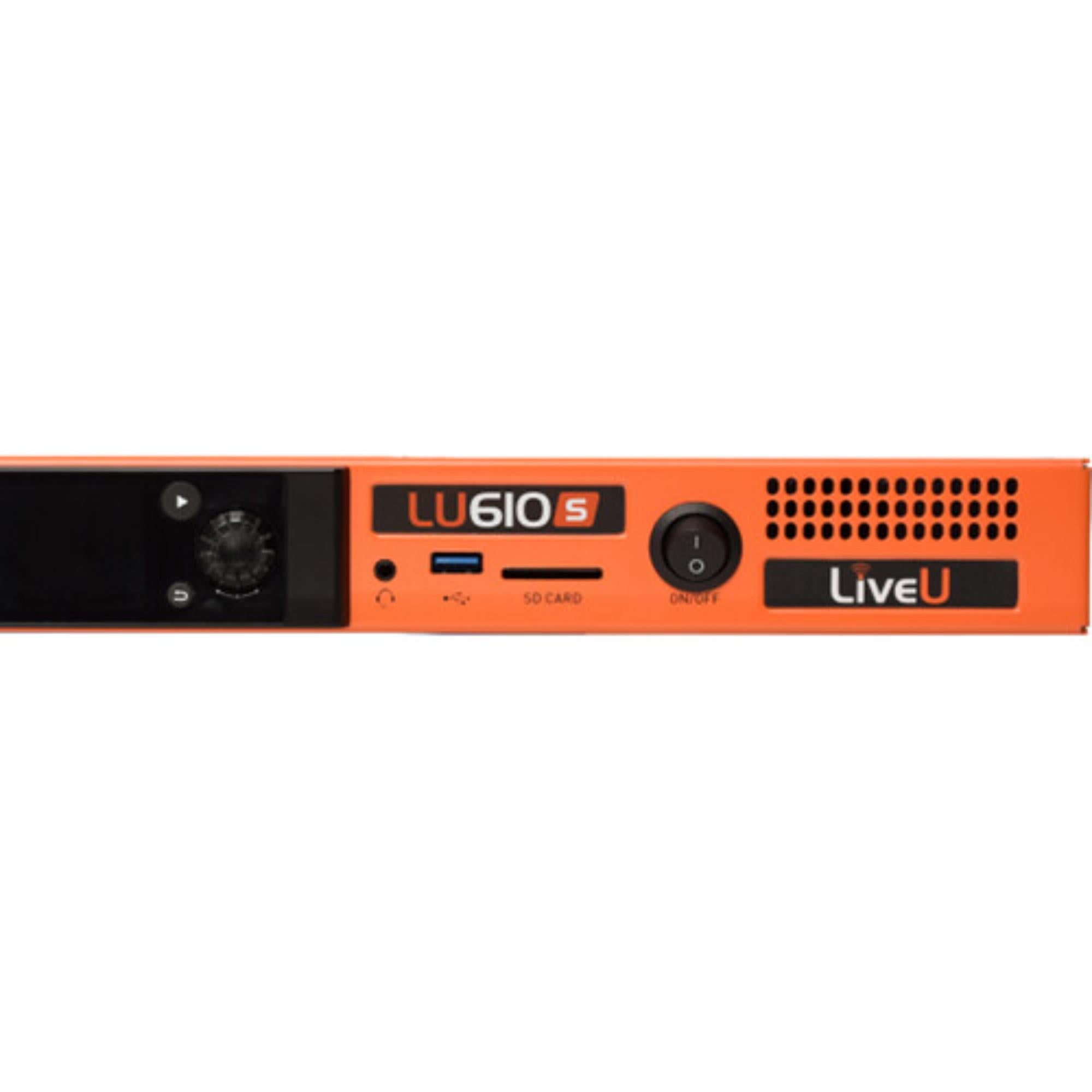

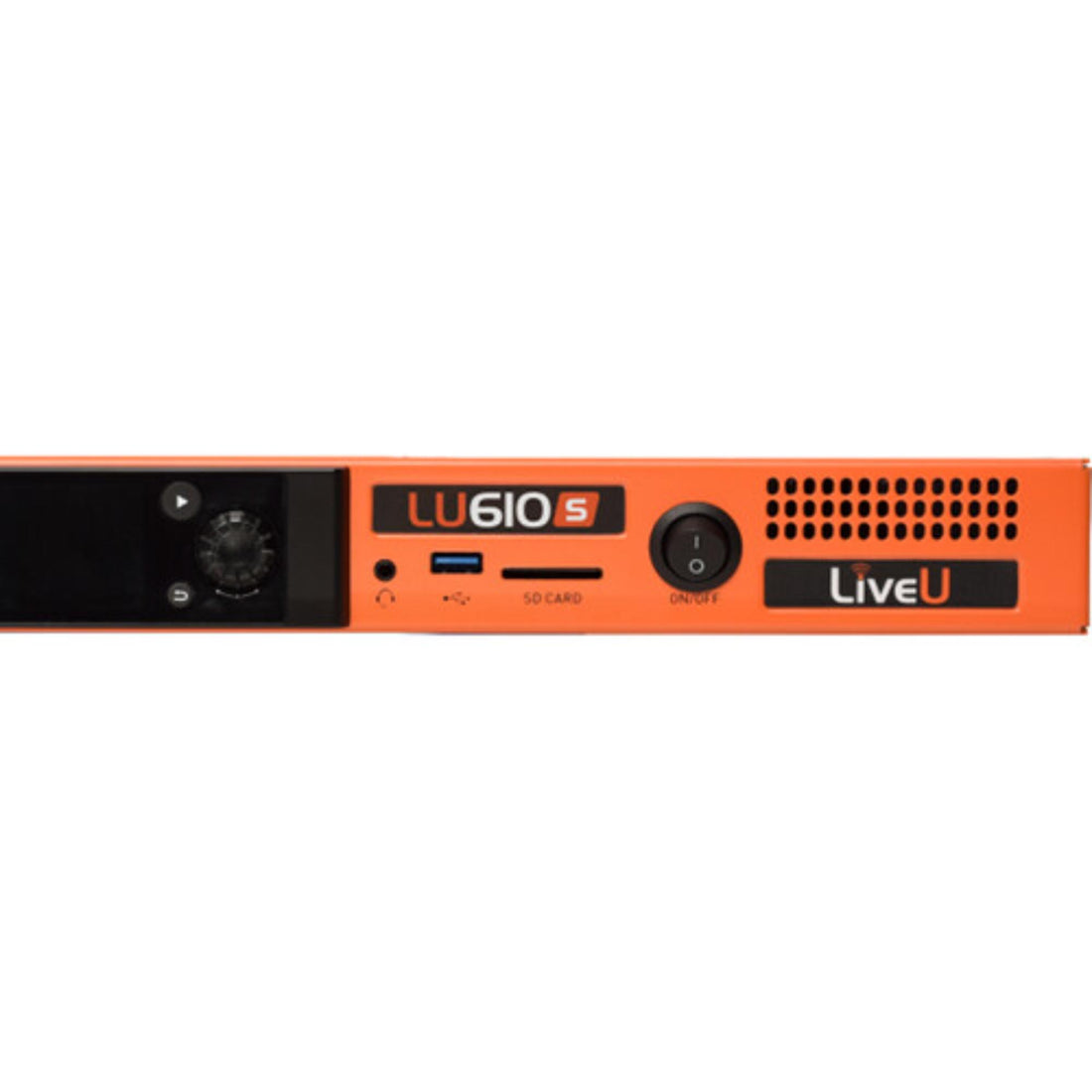

LiveU LU610S Professional HEVC Single Camera Rackmount Encoder

LiveU LU610S Professional HEVC Single Camera Rackmount Encoder is built for remote facility and mobile production workflows that need reliable single-camera contribution. According to the source material, this 1 RU rackmount encoder provides H.265 / H.264 encoding and wired network transmission for one video input through 3G-SDI or HDMI.

The LU610S supports up to 1080p60 HD video I/O and works with the LiveU Central Cloud Platform. For operators, the value is straightforward: SDI or HDMI comes into the encoder, the unit handles low-latency transport, and the workflow stays organized in a rack-friendly format.

Highlights

• 1 RU rackmount encoder
• Transmit SDI / HDMI input with 2-channel audio
• H.265 / H.264 up to 8 Mb/s transmission
• Supports up to 1080p60 video I/O
• Dual Ethernet ports and low-latency LRT
• Dual-band Wi-Fi, SD slot, and HDMI output
• Works with LiveU Central Cloud Platform

Quick Specs & Uses

• Product type: HEVC single-camera rackmount encoder
• Rack size: 1 RU
• Video input: 1 x BNC 3G-SDI input, 1 x HDMI 2.0 input
• Monitor output: 1 x HDMI monitor output
• Antenna I/O: 2 x RP-SMA female
• Embedded audio: HDMI / LAN (RJ45) / SDI / Wireless
• Audio I/O: 1 x 1/8" / 3.5 mm headphone / line output, 1 x Mini-XLR monitor / line output
• Power I/O: 1 x proprietary 12 VDC input
• Other I/O: 2 x USB-A 2.0 inputs, 2 x RJ45 10/100 Mb/s Ethernet input / output
• Media slot: Single SD / SDHC / SDXC slot, supports recording
• Wireless: Wi-Fi 5 (802.11ac), dual-band 2.4 & 5 GHz
• Bluetooth: No
• Cellular support: No
• IP video: H.264 / H.265, 1280 x 720 to 1920 x 1080 at 24p, 25p, 30p, 50p, 60p
• IP audio: AAC-LC
• Input power: 12 to 19 VDC, 100 to 240 VAC, 50 / 60 Hz
• Battery: No
• Power consumption: 35 W
• Status display: Yes
• Environmental resistance: No
• Operating conditions: 23 to 113°F / -5 to 45°C
• Dimensions: 17.2 x 11 x 1.7" / 436 x 280 x 44 mm
• Weight: 11.0 lb / 5.0 kg

Why It Helps

Single-camera contribution is often about keeping the signal path simple. With SDI and HDMI input options, the LU610S can sit in a rack, take the camera or program feed, and handle LiveU transport without turning the setup into a pile of adapters.

The 1 RU design is also useful in production vans, remote kits, and small rack builds. It keeps the encoder secured, easy to cable, and easier to troubleshoot when the crew needs to move quickly.

System Characteristics

• Rackmount single-camera encoding system for LiveU production workflows
• HEVC / H.264 transmission up to 8 Mb/s
• SDI and HDMI input support
• Low-latency LRT transport support
• LiveU Central Cloud Platform integration
• Designed for mobile operation

What’s In The Box

• 1 x LiveU LU610S HEVC Encoding Server
• 1 x Power Adapter
