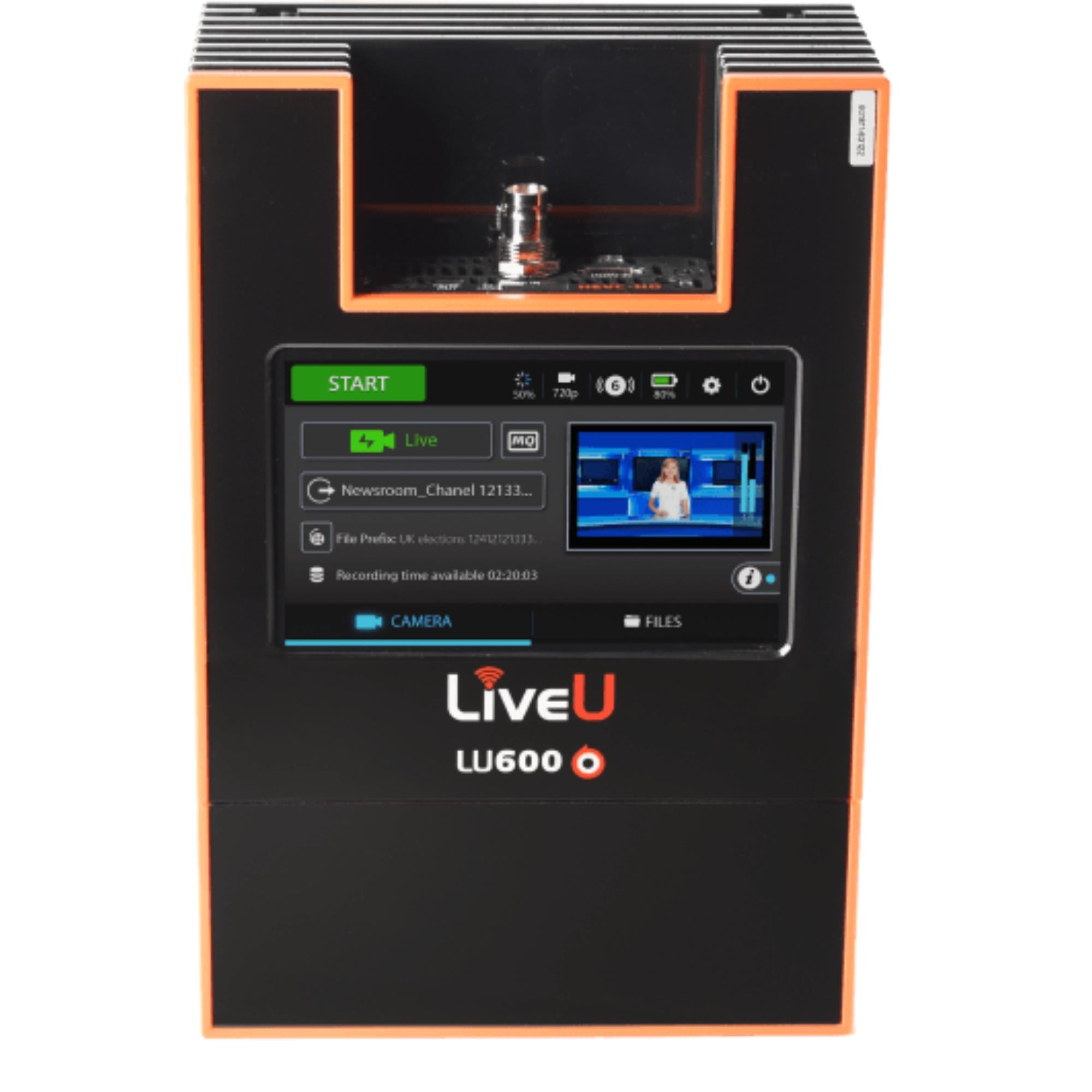

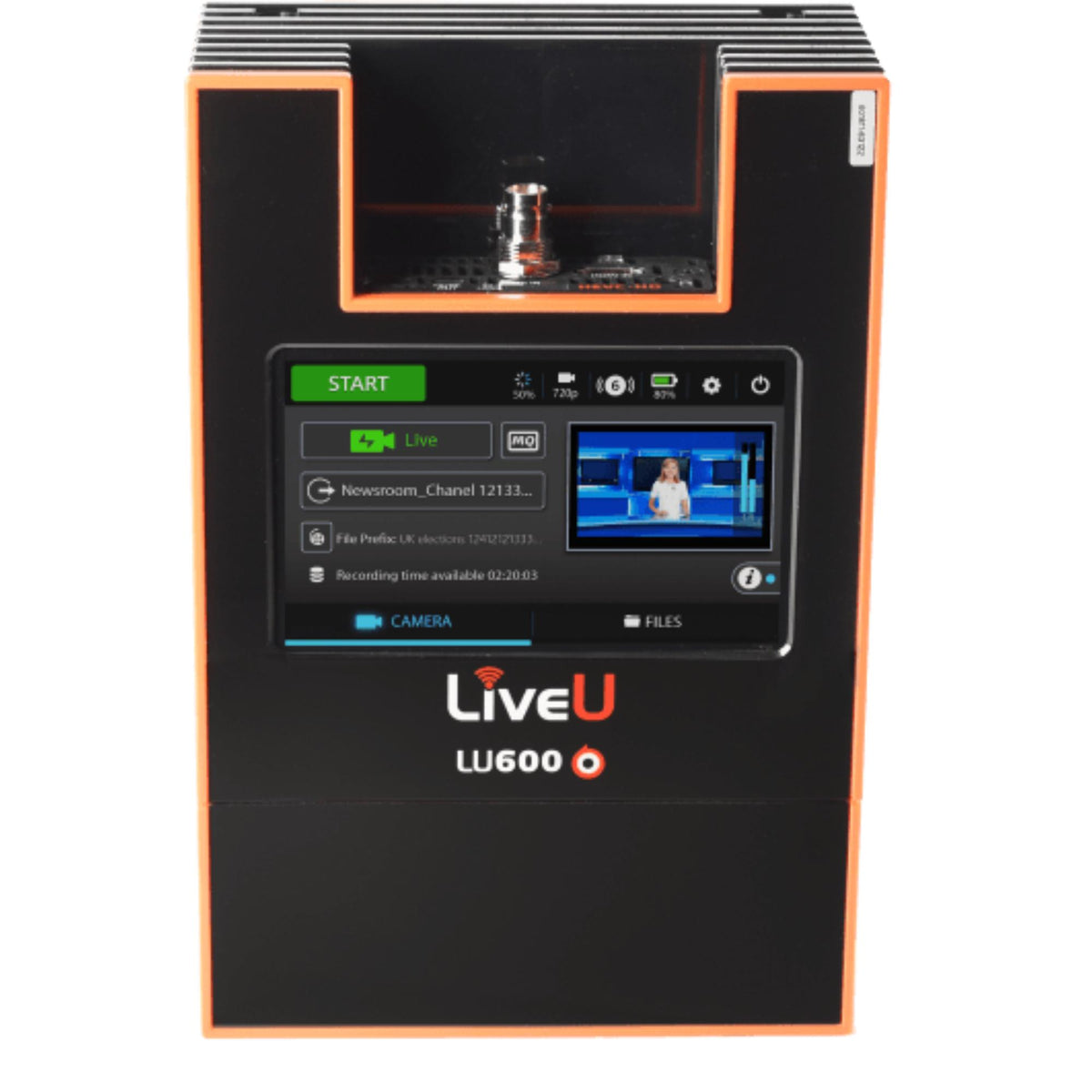

LiveU LU600 with HEVC HD

LiveU LU600 with HEVC HD is a portable broadcast streaming encoder built for remote camera locations and field contribution. According to the source material, it supports H.265 / H.264 encoding, Wi-Fi, Ethernet, and cellular streaming, and can transmit up to 1080p60 video at 20 Mb/s.

The unit includes 3G-SDI and HDMI camera inputs, up to 8 internal 4G LTE modems, and support for dual SIM and bonding workflows. For field operators, that means the LU600 can carry video from location back to production while also supporting return video, local recording, and remote production tools.

Highlights

• Portable broadcast streaming encoder
• Transmit up to 1080p60 video at 20 Mb/s
• Up to 8 internal 4G LTE modems
• 3G-SDI and HDMI camera inputs
• Wi-Fi, Ethernet, and cellular streaming
• 5" capacitive touchscreen
• H.265 / HEVC, H.264, AAC-HE / LC encoding

Quick Specs & Uses

• Product type: Portable broadcast streaming encoder
• Video support: Up to 1080p60
• Bandwidth support: Up to 20 Mb/s
• Video inputs: 3G-SDI and HDMI
• Streaming paths: Wi-Fi, Ethernet, cellular
• Internal modems: Up to 8 x 4G LTE modems
• Encoding: H.265 / HEVC, H.264, AAC-HE / LC
• Audio channels: 4
• Battery life: 4 hours
• Local storage: MicroSD card slot
• Display: 5" capacitive touchscreen
• Return workflow: Video return from studio to field
• Support: Dual SIM and bonding support

Why It Helps

For field contribution, the LU600 is useful because it combines encoding, network bonding, monitoring, and field usability in one portable unit. Instead of building a separate encoder, modem, and return-video setup from loose parts, the operator gets a purpose-built LiveU field workflow.

The HEVC support is important when bandwidth is tight. According to the source material, HEVC can deliver the same video quality as H.264 while using about half the bandwidth, or it can improve quality when the original H.264 bitrate is maintained.

The LU600 also supports “Live & Store” mode, allowing the crew to go live while simultaneously recording a high-quality local file. That is practical for field jobs where the live path matters, but a clean recorded copy may still be needed later.

System Characteristics

• Portable LiveU field encoder for remote broadcast contribution
• Adaptive bitrate cellular transmission
• Video return for current program feeds and teleprompting information
• Tally light support for field reporters and camera operators
• Audio Connect for cloud-based field communication workflows
• IP Pipe support for remote control of supported network-based equipment

What’s In The Box

• 1 x Unit
• 1 x LU600 Power Adapter
• 1 x LU600 Backpack
• 1 x Remote Control
• 1 x SDI Cable Pigtail 240mm
• 1 x HDMI Cable Pigtail 250mm
• 1 x UHDMI Cable HDMI-A-F 250mm
• 1 x SDI Cable 2.2m
• 1 x LiveU LIMITED WARRANTY Note
