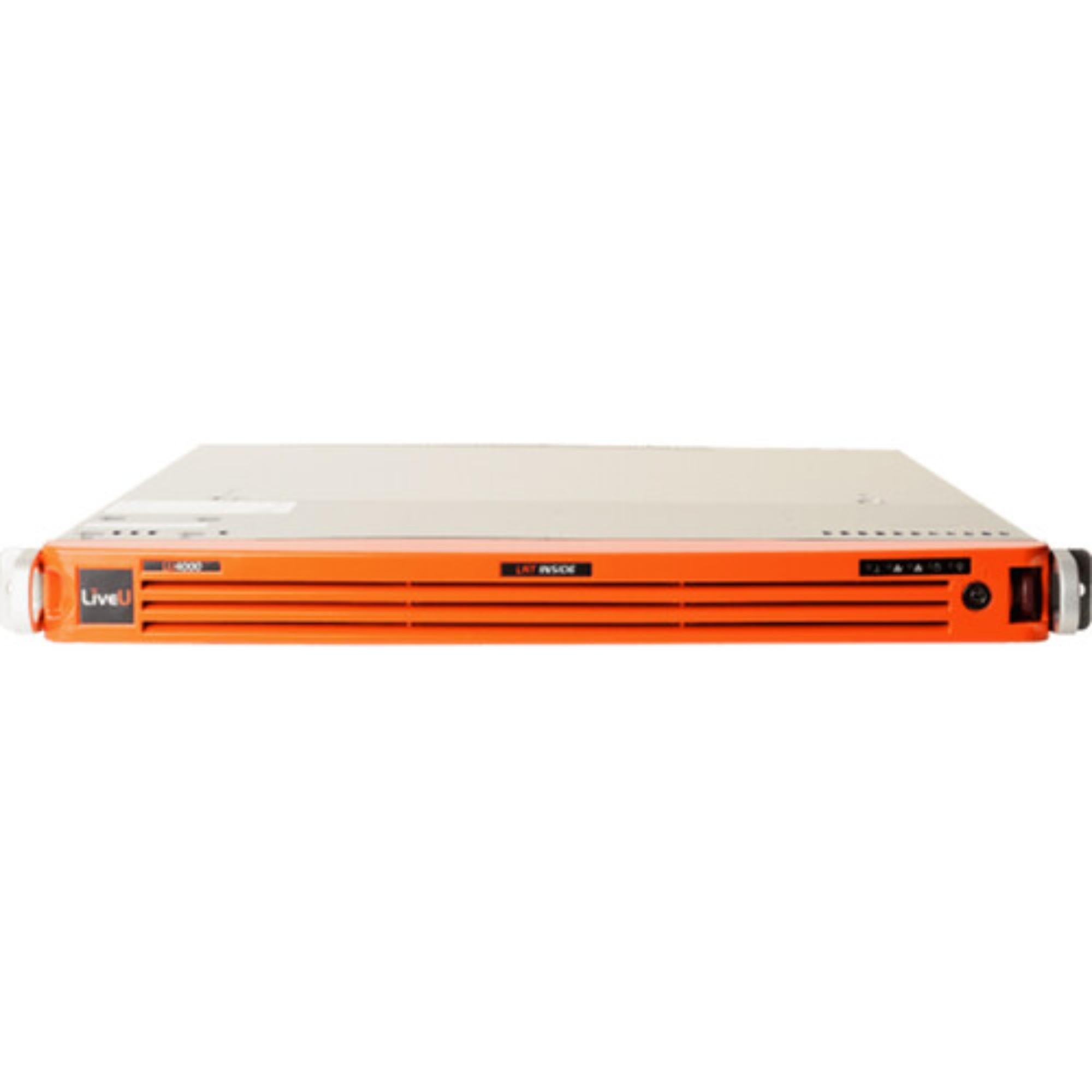

LiveU LU4000 Single Output 4K or Quad HD Server

LiveU LU4000 Single Output 4K or Quad HD Server is designed for studio-side decoding and distribution of LiveU video feeds. According to the source material, this 1 RU 4K / Quad HD decoder server supports HEVC / H.264 decoding from wired Ethernet for 4K60 video distribution through either 1 x 12G-SDI output or up to 4 x 3G-SDI outputs.

For a control room or remote facility, this gives engineers a clean rackmount handoff point for LiveU feeds. The server receives H.264 video, then outputs through SDI/IP so the feed can move into the rest of the production chain without relying on a loose software-only decode setup.

Highlights

• 1 RU 4K / Quad HD decoder server
• Output: 1 x 12G-SDI or 4 x 3G-SDI feed
• Receive H.264 video and output via SDI / IP
• Dual Gigabit Ethernet ports
• LiveU LRT, RTMP, NDI, and MPEG-TS support
• Designed for studio operation
• Works with LiveU Central Cloud Platform

Quick Specs & Uses

• Product type: Single output 4K / Quad HD decoder server
• Rack size: 1 RU
• Video output: 4 x BNC 3G-SDI output, 1 x BNC 12G-SDI output
• Embedded audio: LAN (RJ45) / SDI / Wireless
• Audio I/O: No
• Power I/O: 1 x proprietary 12 VDC input
• Other I/O: 2 x RJ45 Gigabit Ethernet input / output
• Wi-Fi: No
• Bluetooth: No
• Mobile app compatible: No
• Cellular support: No
• IP video: H.264, 1280 x 720 to 3840 x 2160 at 24p, 25p, 30p, 50p, 60p
• Transport protocol: TCP/IP
• Input power: 100 to 240 VAC, 50 / 60 Hz
• Environmental resistance: No

Why It Helps

A 4K or Quad HD decoder server is useful when the studio needs a proper hardware endpoint for incoming LiveU feeds. Instead of treating the feed like a temporary computer stream, the LU4000 gives the engineering team SDI outputs that fit into a normal broadcast signal chain.

The output flexibility is the key point. One 12G-SDI output can support a 4K workflow, while four 3G-SDI outputs give the facility a Quad HD-style output path for supported production routing.

System Characteristics

• Rackmount LiveU decoder server for studio-side workflows
• Single 12G-SDI or quad 3G-SDI output design
• H.264 IP video decoding up to 3840 x 2160
• Dual Gigabit Ethernet connectivity
• LiveU Central Cloud Platform integration
• LiveU LRT, RTMP, NDI, and MPEG-TS workflow support

What’s In The Box

• 1 x LiveU LU4000 Single Output 4K / Quad HD Decoder Server
• 1 x Power Supply
