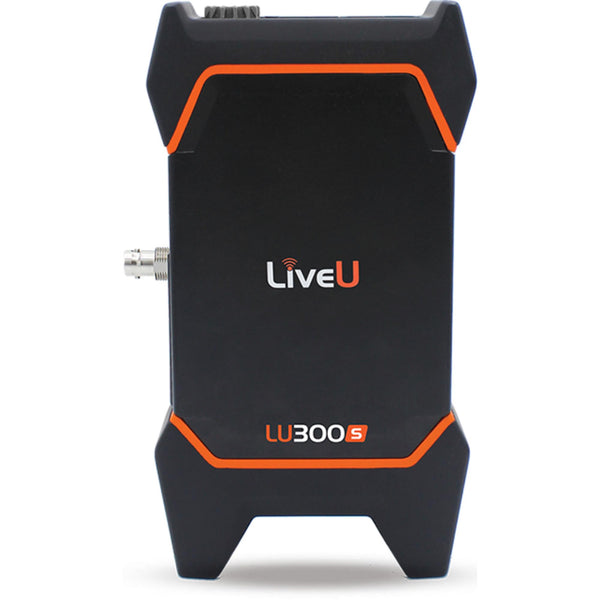

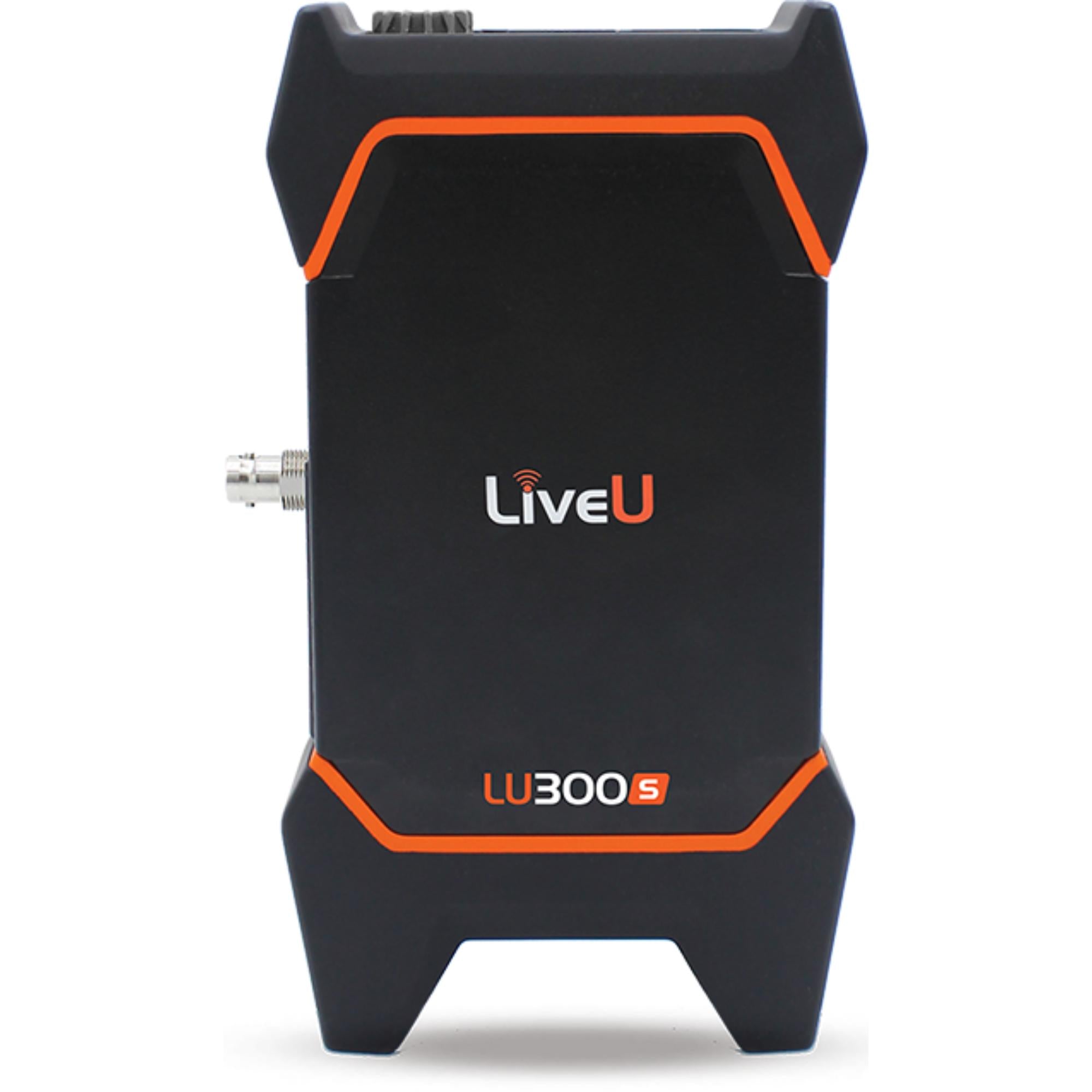

LiveU LU300S Encoder Only HEVC Video Transmit Unit

LiveU LU300S Encoder Only HEVC Video Transmit Unit is a compact field encoder for portable live streaming and broadcast contribution. According to the source material, it supports 4Kp60 10-bit HDR, H.265 / HEVC, H.264, and video interfaces including 12G / 3G / HD / SD-SDI and HDMI 2.0.

This version is listed as the encoder-only package, with 1 x LiveU LU300S Encoder included. For crews that already have their own power, carrying, modem, or cable setup, an encoder-only configuration keeps the purchase focused on the core transmission unit.

Highlights

• Encoder-only LU300S field unit
• Up to 4Kp60 10-bit HDR transmission
• H.265 / HEVC and H.264 encoding
• 12G / 3G / HD / SD-SDI and HDMI 2.0 video interfaces
• Up to 8 audio channels
• Local 2.2" display with rotating jog control

Quick Specs & Uses

• Product type: HEVC video transmit encoder
• Package type: Encoder only
• Video resolutions: 4Kp60/50/25/30/24, 1080p50/60/25/30/24, 1080i50/60, 720p50/60, PAL, NTSC
• Video interfaces: 12G / 3G / HD / SD-SDI and HDMI 2.0
• Video encoder: H.265 / HEVC, H.264, 10-bit / HDR
• Audio encoder: AAC-HE / LC, up to 8 audio channels
• Simultaneous bonding: Up to 6 network links
• Power sources: 3-hour internal battery, DC input 12V to 19V, AC/DC adapter, or external battery
• Local control: 2.2" display with rotating jog
• Remote control: Web-based control from smartphone, laptop, tablet, or web browser
• Interfaces: 2 x USB 2.0, micro USB, RJ45 Ethernet, 3.5mm in/out audio jack, microSD card, SIM cards
• Wireless interfaces: Wi-Fi 802.11 a/b/g/n/ac support with internal MIMO antennas
• Dimensions: 112.5 x 203 x 54.5mm / 4.4 x 8 x 2.1"
• Weight: 955g / 2.1 lb with two internal modems and battery
• Temperature: Operating -5C to +45C / 23F to 113F

Why It Helps

An encoder-only LU300S is useful when the production team already has the rest of the kit built out. Instead of buying another full accessory package, the crew can add or replace the core encoder and keep using existing power, modem, cable, and carry options.

The technical value is still the same LU300S workflow: compact HEVC contribution, SDI / HDMI input options, local monitoring, remote control, and bonded network operation for field streaming.

System Characteristics

• Portable HEVC field transmission encoder
• LiveU Reliable Transport (LRT™) with adaptive bitrate, FEC, and lost packet recovery algorithms
• Local and remote monitoring with video preview and network status information
• Remote production tools including Tally Light, Audio Connect, and IP Pipe
• Designed for compact mobile broadcast workflows

What’s In The Box

• 1 x LiveU LU300S Encoder
