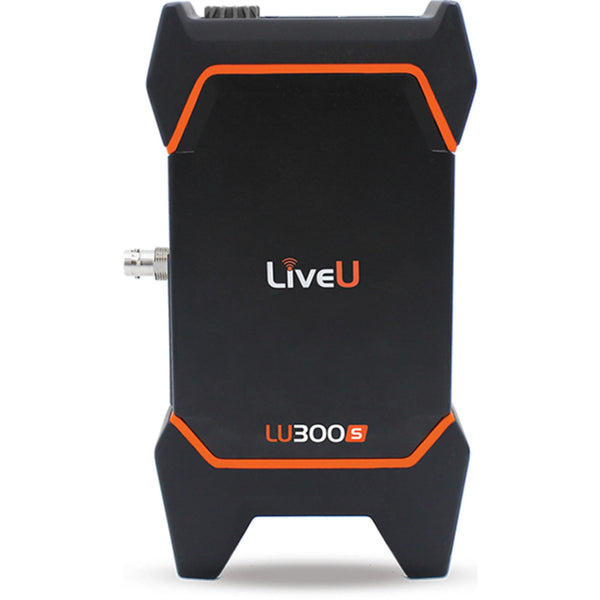

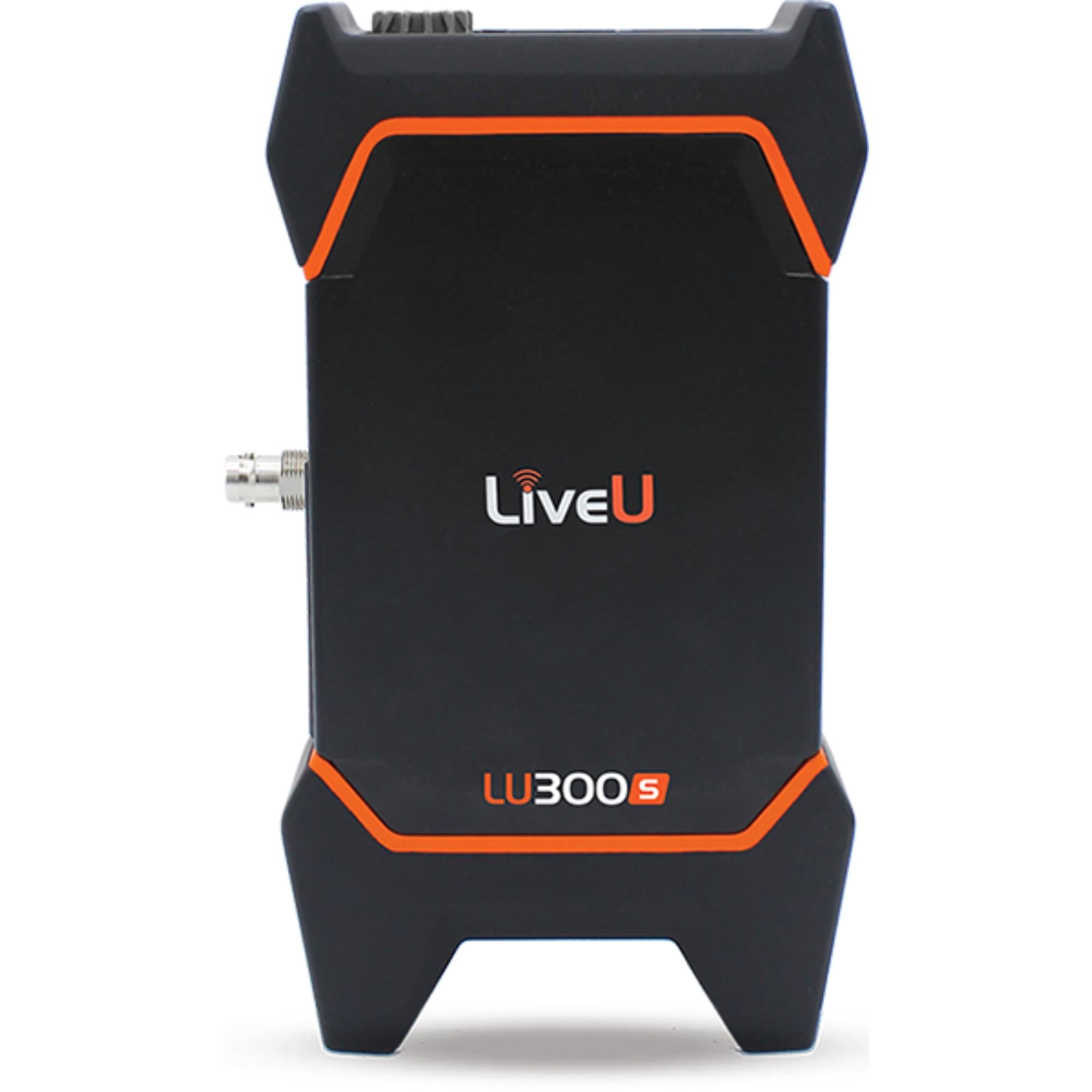

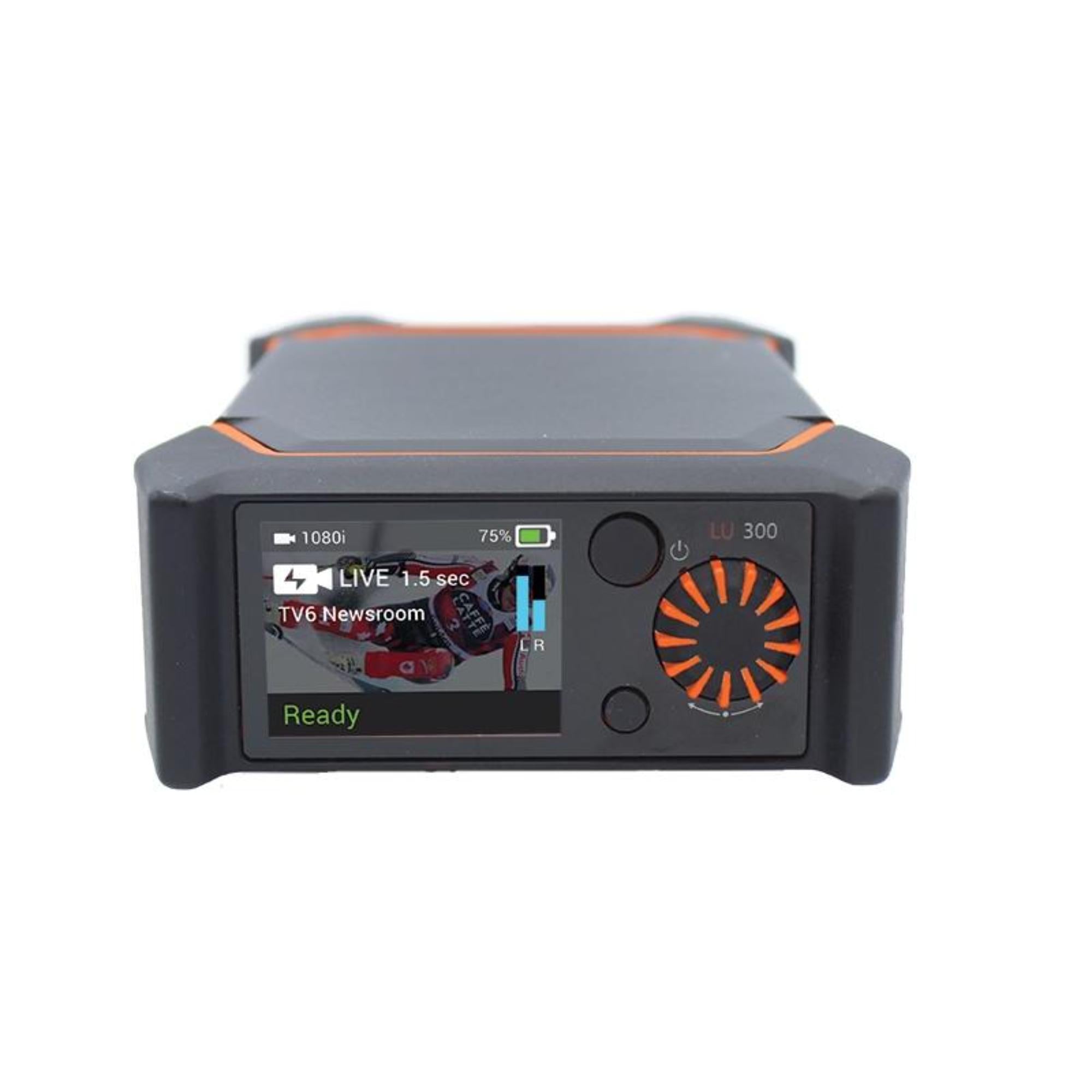

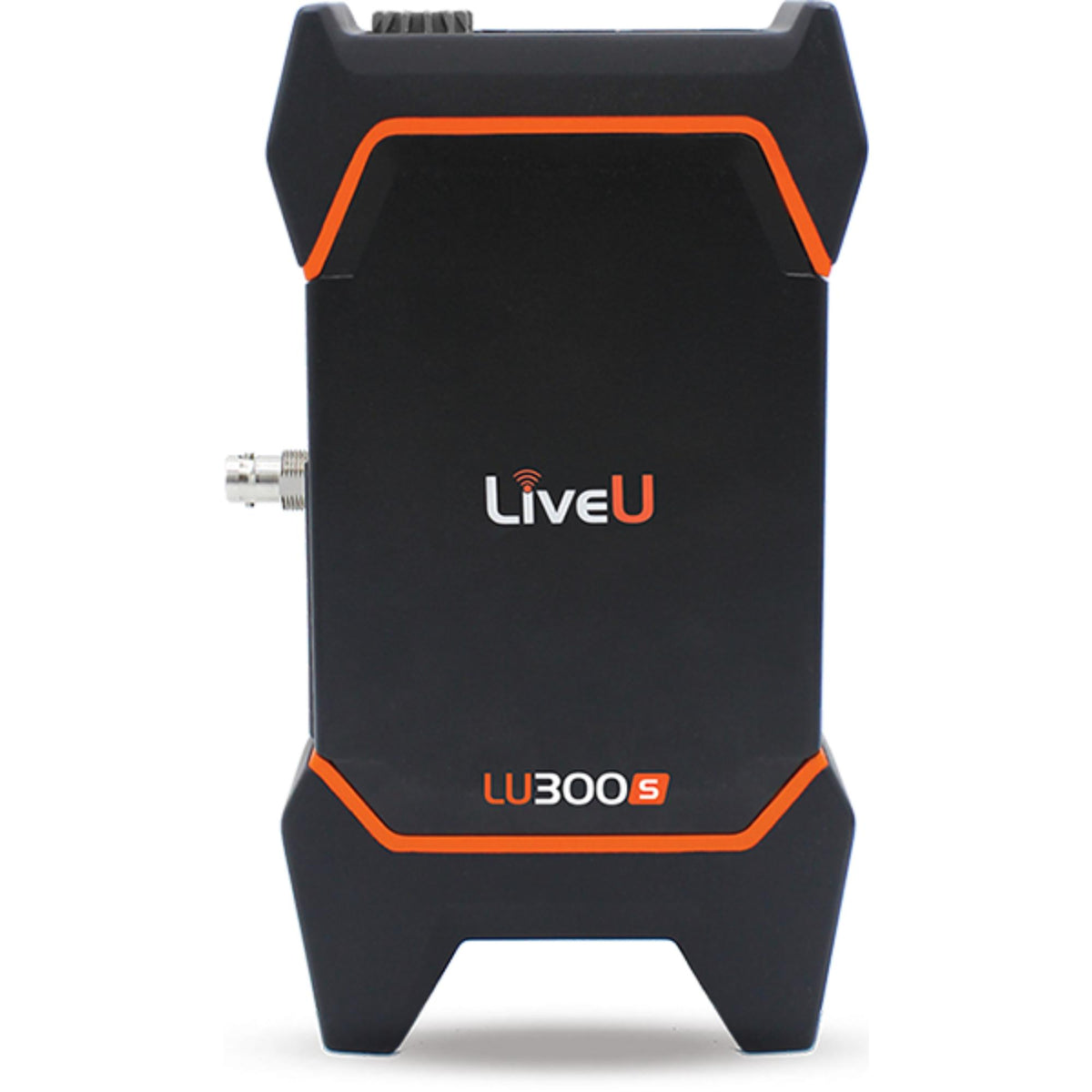

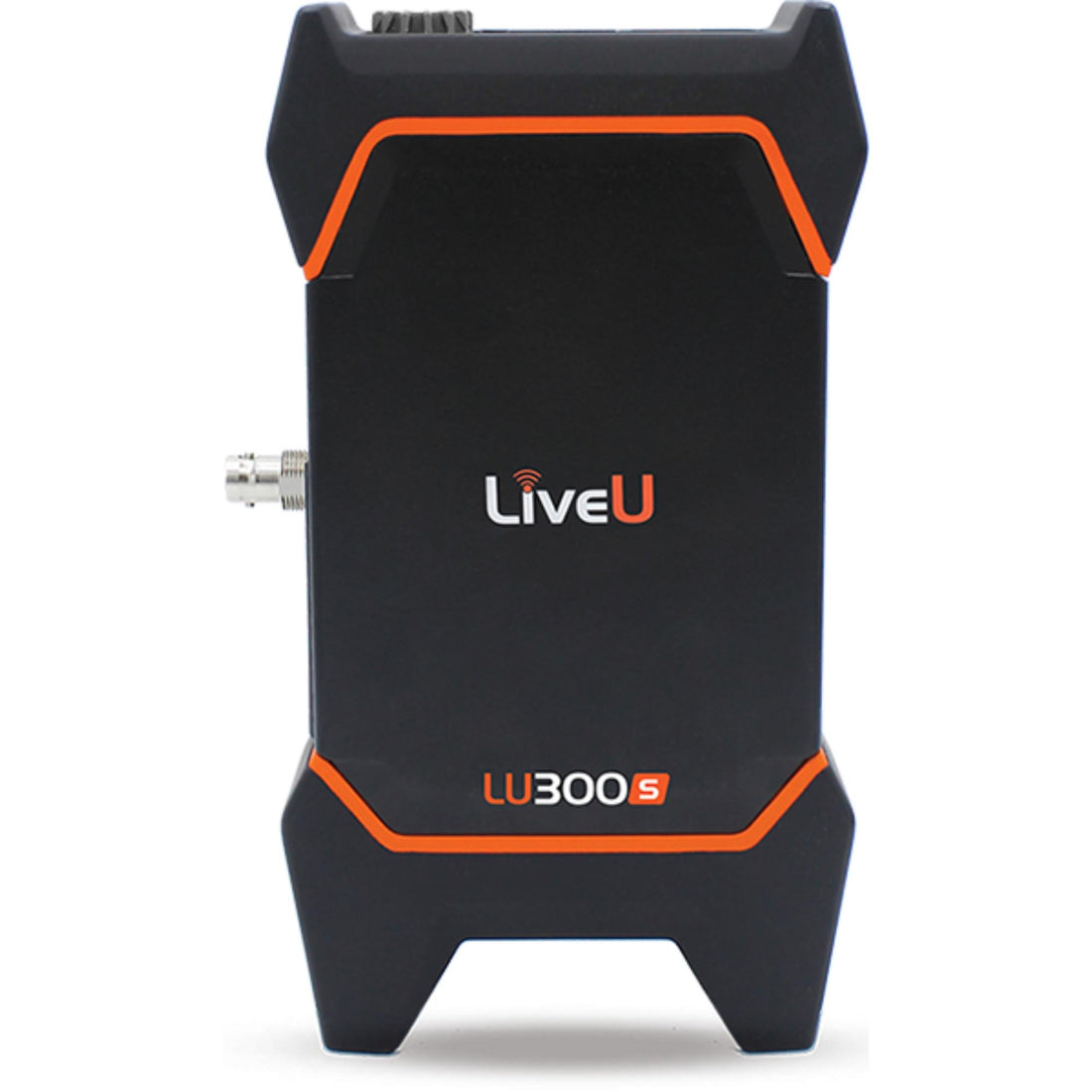

LiveU LU300S Encoder Field Unit with 5G Modems (Gold Mount)

LiveU LU300S Encoder Field Unit with 5G Modems (Gold Mount) is a compact portable field unit for live streaming and broadcast contribution. According to the source material, it supports 4K 10-bit HDR, 5G / 4G LTE cellular support, Wi-Fi, LAN, and LiveU’s cloud-based production workflow.

The unit includes a Gold Mount battery plate and 2 external 5G modems for Verizon and AT&T. For field crews, this gives the LU300S a portable setup that can move between locations while still supporting SDI, HDMI, cellular, Wi-Fi, and Ethernet paths.

Highlights

• Compact LU300S field encoder for mobile live streaming
• 4K 10-bit HDR transmission support
• 5G / 4G LTE cellular support
• Gold Mount battery plate
• 3G-SDI and HDMI 2.0 input
• Includes 2 external 5G modems

Quick Specs & Uses

• Product type: LU300S encoder field unit
• Video I/O: 1 x BNC 3G-SDI input, 1 x HDMI 2.0 input
• Network I/O: 1 x RJ45 LAN input / output
• USB I/O: 2 x USB-A 2.0 output, 1 x Micro-USB firmware input
• Audio I/O: 1 x 1/8" / 3.5 mm headphone output
• Embedded audio: HDMI
• Media slot: microSD / microSDHC UHS-II, up to 512 GB
• Battery type: Gold Mount
• Wireless: Wi-Fi and Bluetooth
• Cellular support: 5G NR / 4G LTE via unspecified SIM type
• IP video: H.264 / H.265, 3840 x 2160
• Transport protocol: TCP/IP
• Environmental protection: No

Why It Helps

The LU300S is useful when a crew needs a small field encoder that can still handle serious contribution work. SDI, HDMI, Wi-Fi, LAN, and cellular support give operators several ways to build the transmission path around the location they are working in.

The Gold Mount setup is practical for mobile production because it lets the unit fit into a battery workflow that many camera and field teams already use. That keeps the power side easier to plan before going live.

System Characteristics

• Portable 5G field transmission unit
• Supports LiveU remote production workflow
• Designed for on-the-go production
• Supports cloud-based management, distribution, and orchestration workflows
• Suitable for compact live broadcast field kits

What’s In The Box

• 1 x LiveU LU300S Encoder Field Unit with 5G Modems (Gold Mount)
• 2 x External 5G Modem (Verizon and AT&T)
• 1 x Gold Mount Battery Plate
• 1 x Carry Pouch
• 1 x AC/DC Power Adapter
• 1 x Power Cable (4.9')
• 1 x BNC Cable
• 2 x USB Cable
