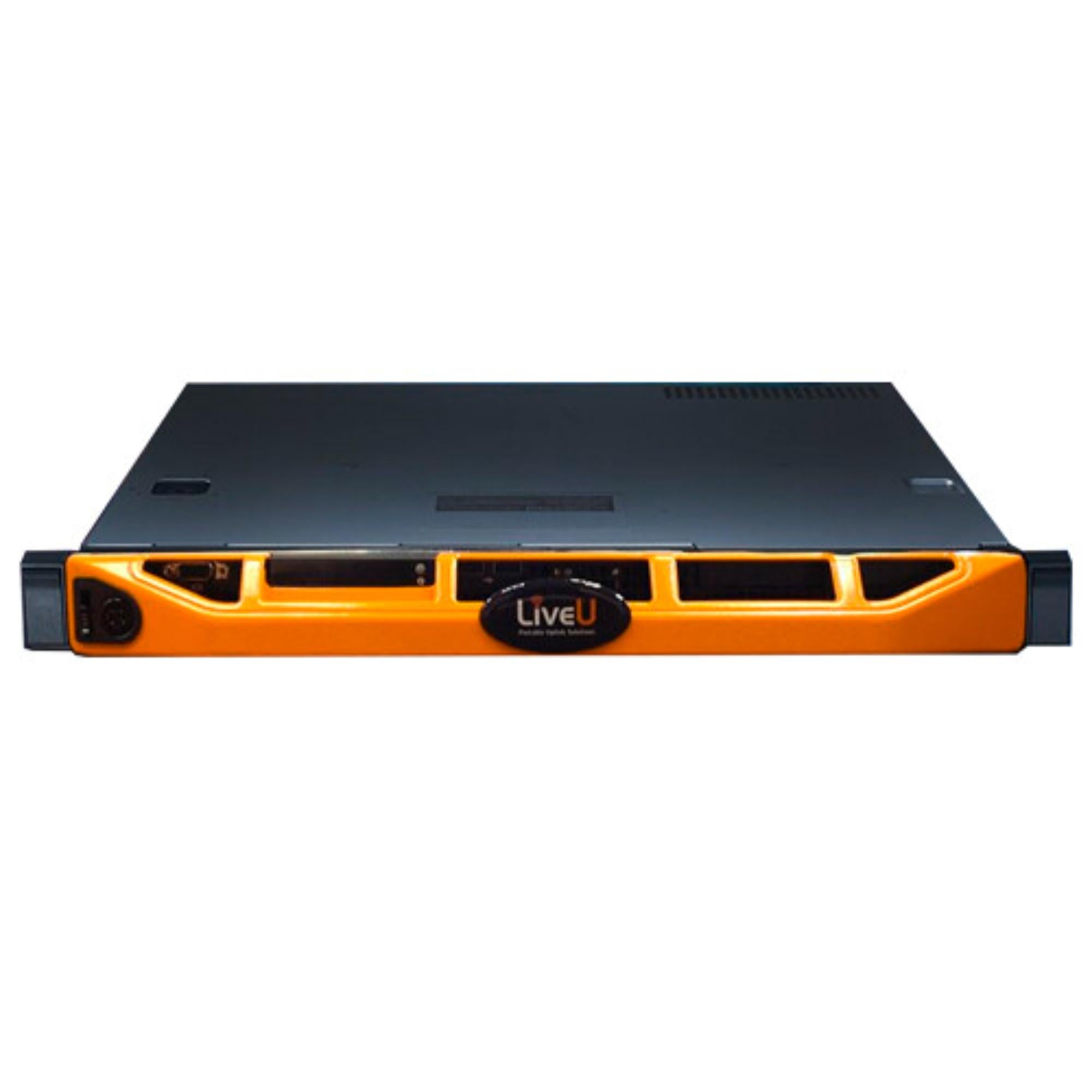

LiveU LU2000 Dual HD Output Server

LiveU LU2000 Dual HD Output Server is designed for studio-side decoding and video distribution in LiveU workflows. According to the source material, this 1 RU rackmount server provides HEVC / H.264 decoding via wired Ethernet and video distribution through two SDI outputs.

For a control room or remote facility, the job is simple: receive the LiveU feed, decode it, and hand it off cleanly to the production chain. With 2 x BNC 3G-SDI outputs, the LU2000 Dual HD Output Server gives operators two SDI paths for downstream equipment.

Highlights

• 1 RU rackmount HEVC / H.264 server
• Receive and output video feeds via 2 x SDI
• Supports HEVC / H.264, LiveU Matrix, RTMP, and NDI
• Dual Ethernet ports with low-latency LRT
• Designed for studio operation
• Works with LiveU Central Cloud Platform

Quick Specs & Uses

• Product type: Dual HD output decoder server
• Rack size: 1 RU
• Inputs / outputs: 2 x BNC, 3G-SDI / HD-SDI / SD-SDI / NDI
• Video outputs: 2 x BNC 3G-SDI female
• Audio inputs: No
• Audio outputs: No
• Expansion slots: No
• Input video format: Wireless, 1080p 24/25/30/50/60 fps, 1080i 50/60 fps, 720p 24/25/30/50/60 fps
• Output video format: SDI, 1080p up to 60 fps
• Video IP decoding: H.264, MPEG2, NDI, RTMP
• HDR support: Not specified by manufacturer
• Tally light: Yes
• Wireless: Yes
• Power consumption: 110 to 240 VAC
• Dimensions: 17.2 x 14.5 x 1.7" / 437 x 369 x 43 mm
• Weight: 16.49 lb / 7.48 kg

Why It Helps

A dual-output decoder is useful when the same LiveU feed needs to feed more than one destination in the studio. One SDI output might go to a switcher, while the second can be routed to a monitor, router, recorder, or backup path.

The 1 RU rackmount format keeps the system in a familiar broadcast layout. Instead of depending on a loose computer-based decode path, the LU2000 gives the team a dedicated hardware point for receiving LiveU feeds and delivering SDI to the rest of the facility.

System Characteristics

• Rackmount LiveU decoder server for studio-side workflows
• Dual SDI output design for video distribution
• HEVC / H.264 decode workflow
• LiveU Matrix, RTMP, and NDI support
• LiveU Central Cloud Platform integration
• Low-latency LRT workflow support

What’s In The Box

• 1 x LiveU LU2000 Dual HD Output Decoder Server
