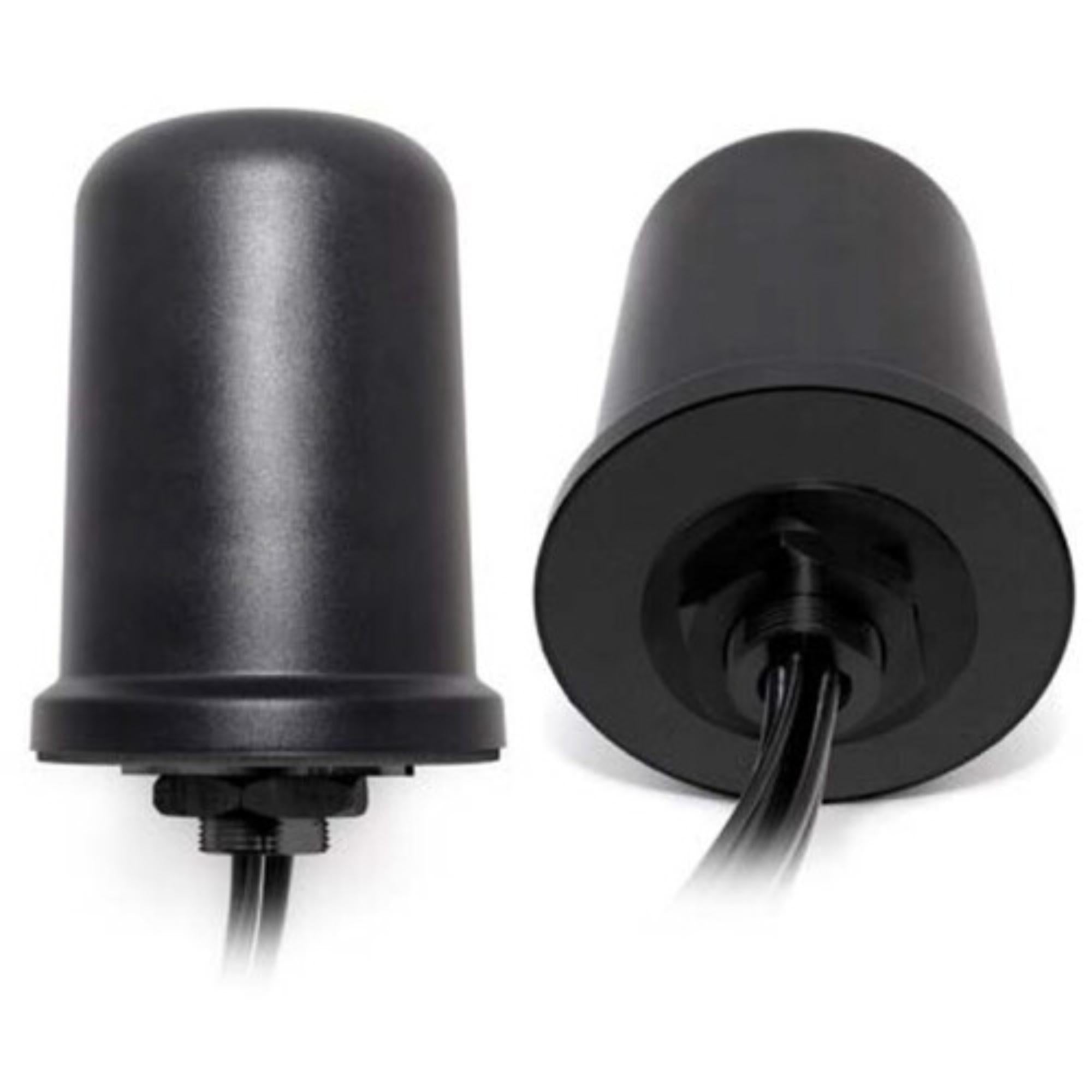

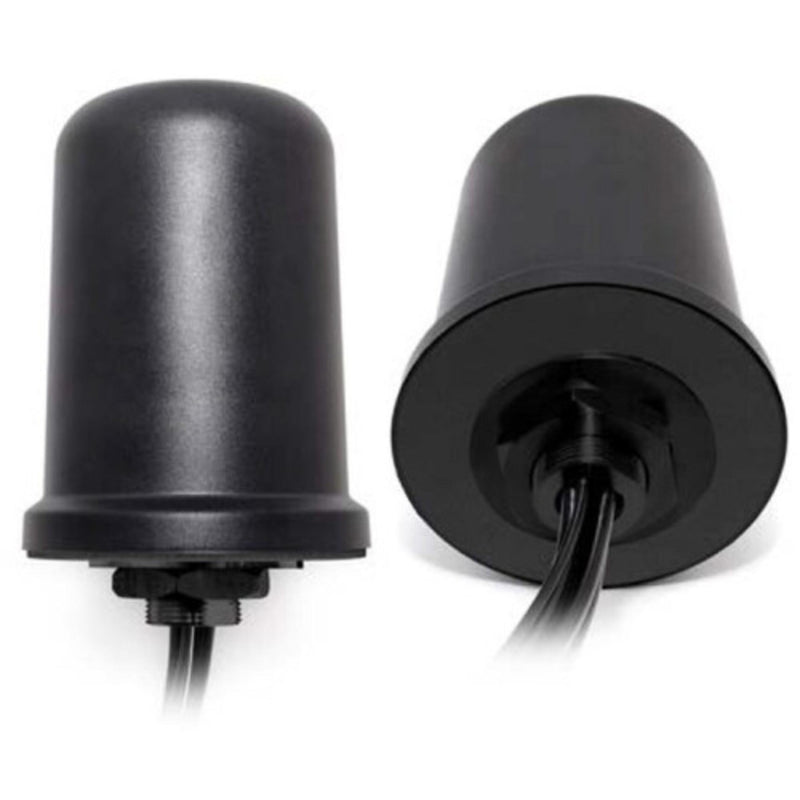

LiveU External 3G/4G/5G Quad Antenna

LiveU External 3G/4G/5G Quad Antenna is a high-performance external antenna for LiveU setups that need stronger modem antenna placement. According to the source material, it supports up to 4 modems and houses 4 internal independent antennas.

The antenna uses 4 SMA connectors, one for each modem connection. It is also listed with an IP67 rating, making it suitable for outdoor use when the LiveU unit has an external antenna port.

Highlights

• Screw-mount antenna for LiveU workflows
• Supports up to 4 modems
• 4 internal independent antennas
• 4 SMA connectors for modem connection
• IP67 rating for outdoor use

Quick Specs & Uses

• Product type: External quad antenna
• Network support: 3G / 4G / 5G
• Modem support: Up to 4 modems
• Antenna design: 4 internal independent antennas
• Connector type: 4 x SMA connectors
• Mounting: Screw-mount antenna
• Rating: IP67
• Compatibility note: Suitable for LiveU units with an external antenna port

Why It Helps

Cellular performance often depends on where the antennas are placed. In a field setup, an external quad antenna can give the modem side of the LiveU workflow a cleaner antenna position instead of relying only on the unit’s immediate placement.

The four independent antennas and four SMA connections also make the setup easier to understand from an engineering point of view: each modem connection gets its own antenna path, which is useful when building a more organized multi-modem live transmission kit.

System Characteristics

• External antenna housing for multi-modem LiveU use
• 3G / 4G / 5G antenna support
• Four-modem connection workflow
• SMA-based modem connectivity
• IP67-rated outdoor-ready design

What’s In The Box

• 1 x LiveU External 3G/4G/5G Quad Antenna
