Product Highlights
- 5-Inch Touchscreen With Live Preview
- Joystick With Zoom And Focus Control
- Six Programmable Keys For Quick Control
- Controls Up To 100 PTZ Cameras With PoE Support
- NDI, VISCA, ONVIF And Pelco Protocol Support
){kind=link}
Lilliput K2-N Touch Screen PTZ Camera Controller (NDI Version)
- SKU:
- K2-N
- MPN:
- K2-N
Product Inquiry Form
Description
Product Overview

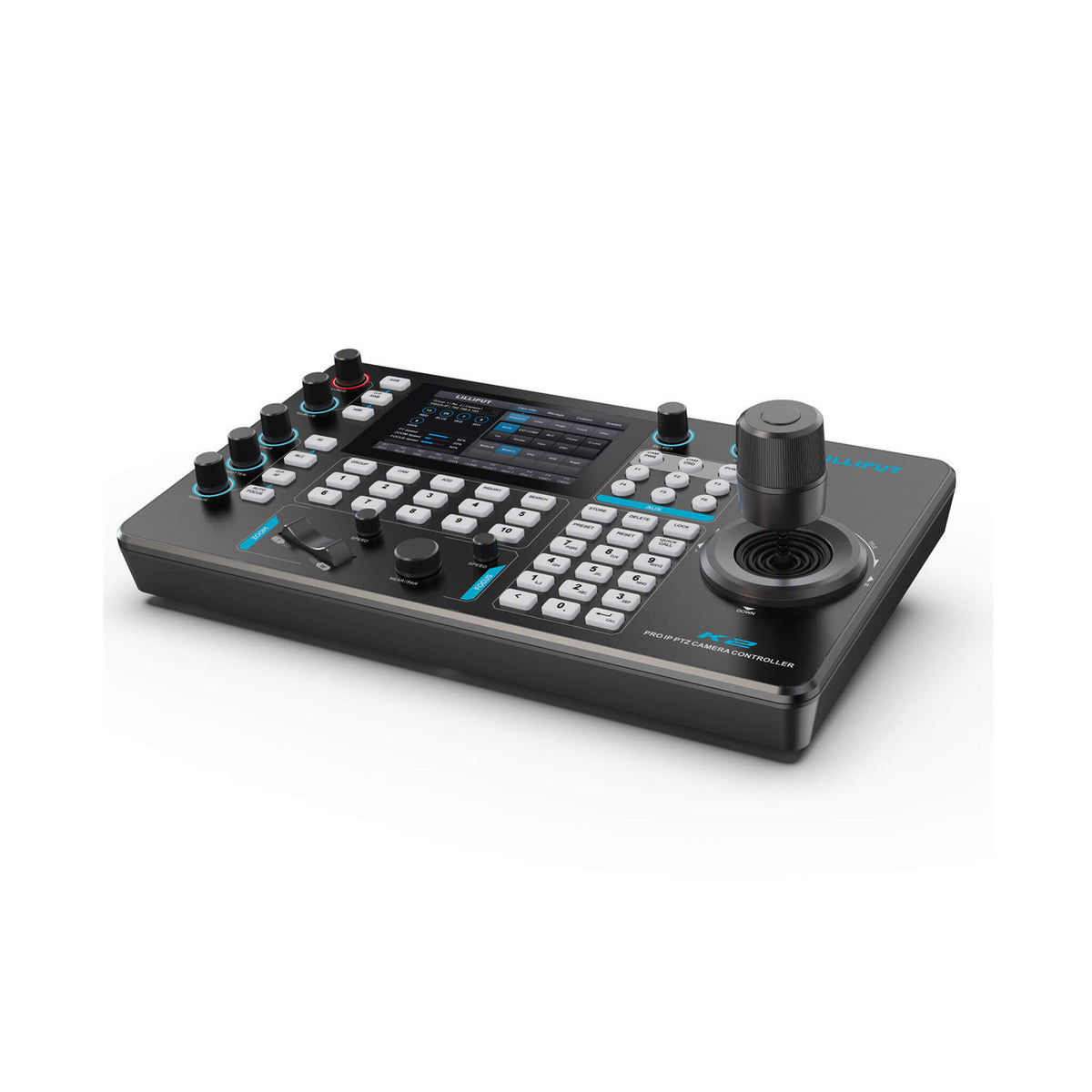

The Lilliput K2-N Touch Screen PTZ Camera Controller is the NDI-equipped version of Lilliput’s hardware camera control surface. It combines a 5-inch touch display, 4D joystick and dedicated adjustment knobs for directing PTZ cameras through IP or serial interfaces. The K2-N specifically supports NDI|HX and NDI|HX2 alongside ONVIF and VISCA over IP.
The Lilliput K2-N is an NDI-enabled PTZ camera controller available from Coremicro. It supports up to 100 camera addresses, up to 255 camera presets, PoE+ or 7–24V DC power, and IP/serial control interfaces. Manufacturer warranty length and current MSRP should be confirmed before publication.

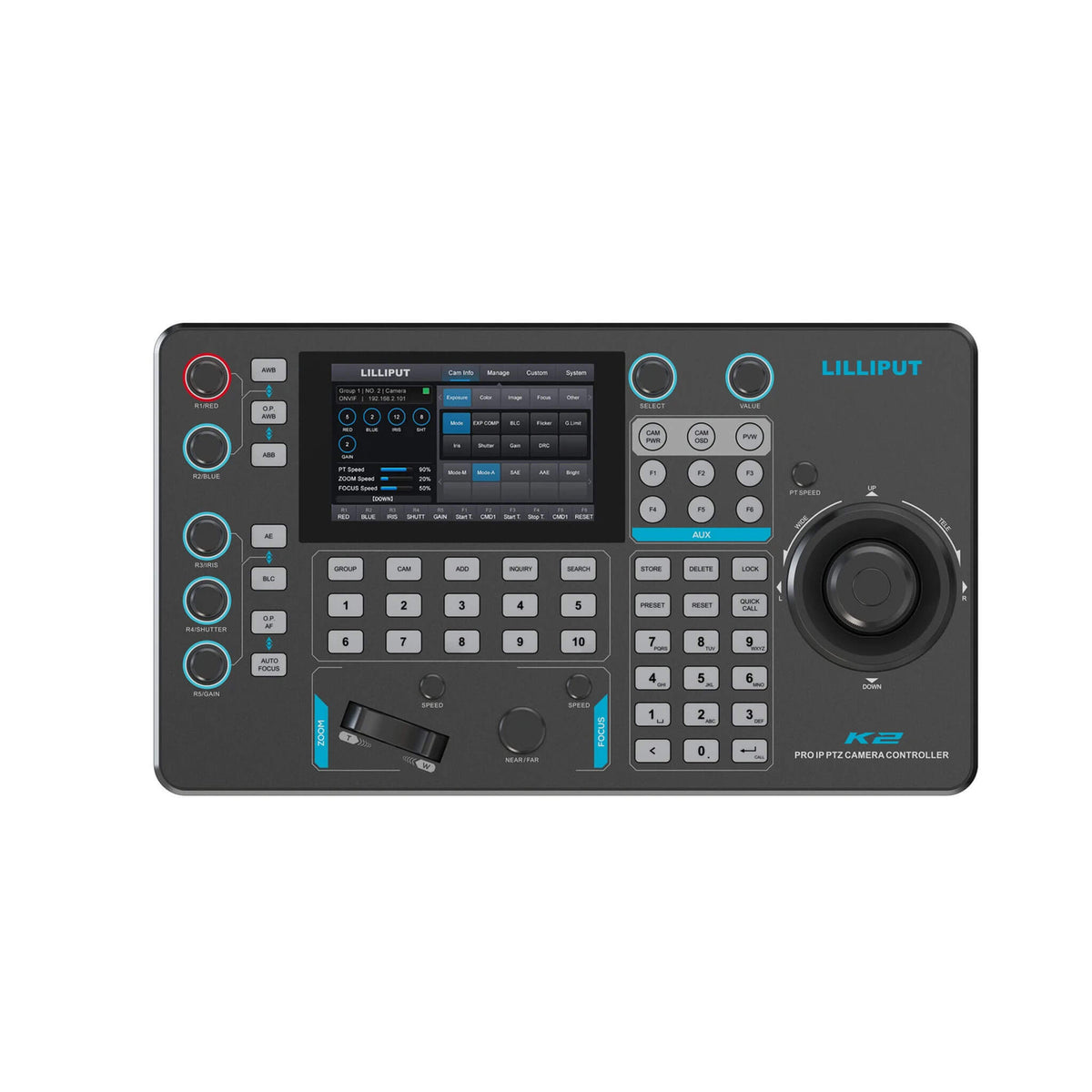

Manage cameras from a 5-inch touch display
The integrated touchscreen offers a local interface for reviewing supported camera feeds and navigating controls. Operators can work with camera groups and presets during production without relying entirely on a separate computer.

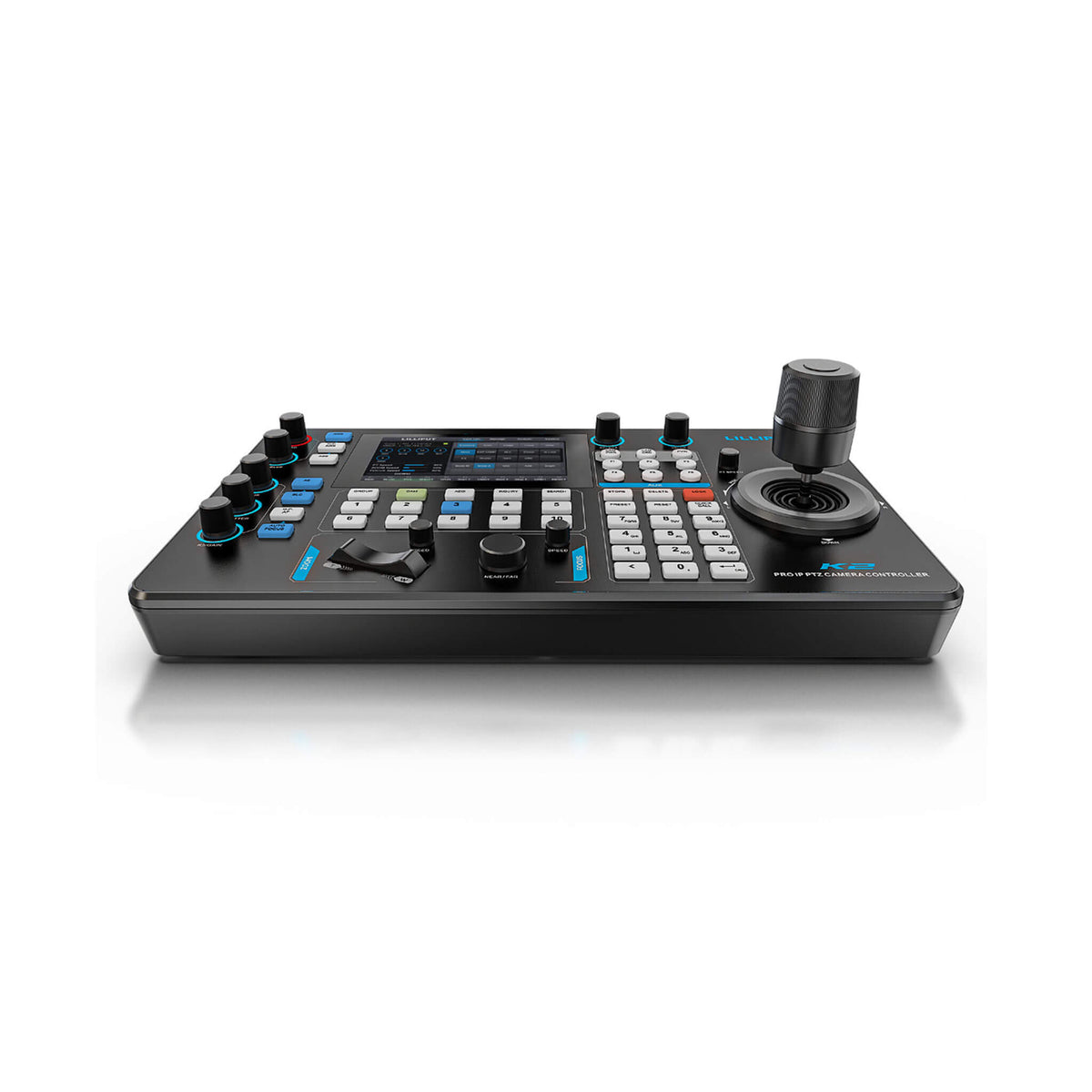

Dedicated joystick for fluid PTZ camera movements
The 4D joystick gives operators hands-on pan, tilt, and zoom control. Dedicated rotary controls provide quick access to iris, shutter speed, gain, exposure and white balance where supported by the camera.
Organize as many as 100 camera addresses
Arrange camera addresses in 10 groups with up to 10 cameras per group. The system supports up to 255 preset positions for switching rapidly between prepared framing choices.
NDI|HX and NDI|HX2 on the K2-N
The K2-N NDI edition supports NDI|HX and NDI|HX2 alongside ONVIF and VISCA over IP. Preview and control features depend on the capabilities and configuration of each connected camera.
IP and serial connections for mixed installations

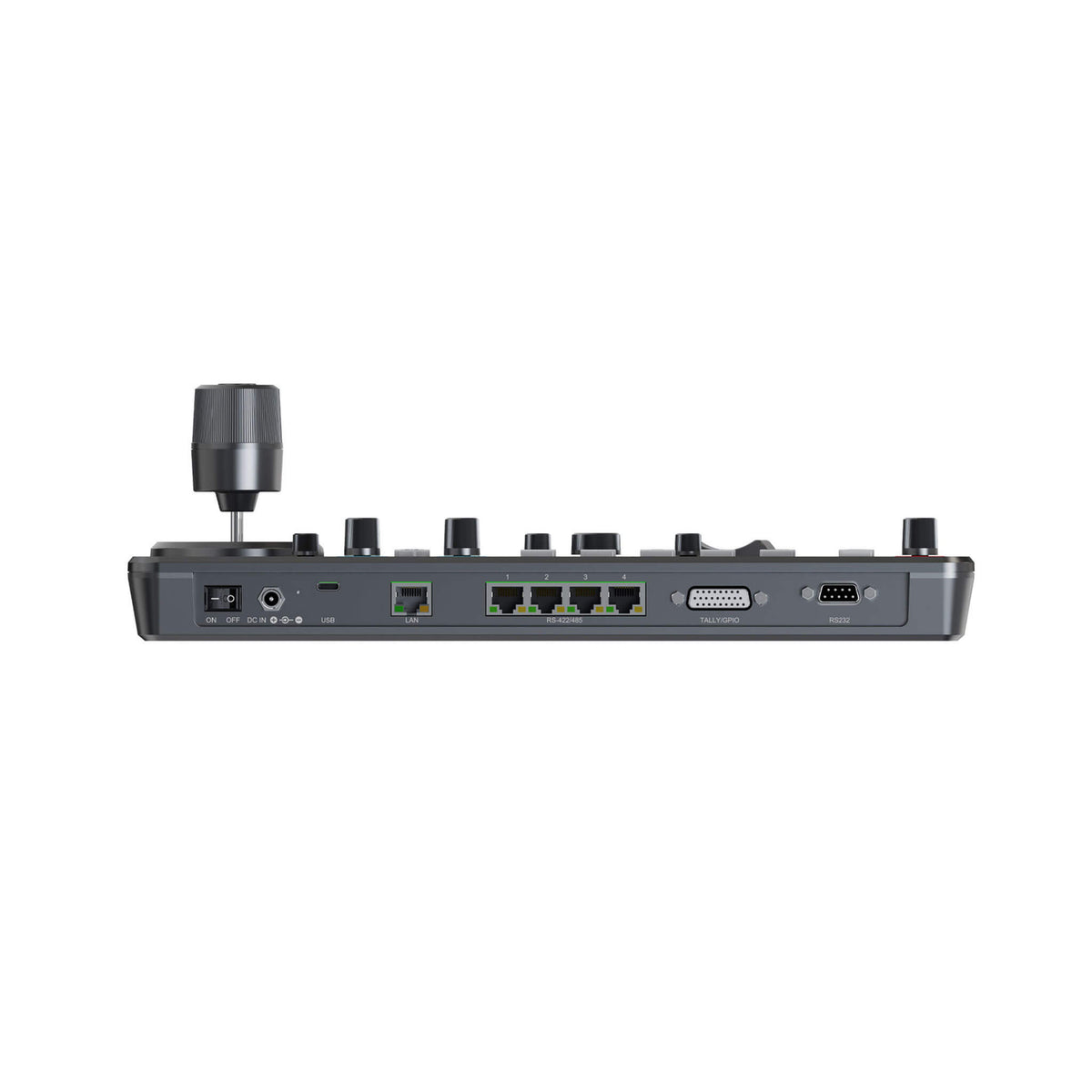

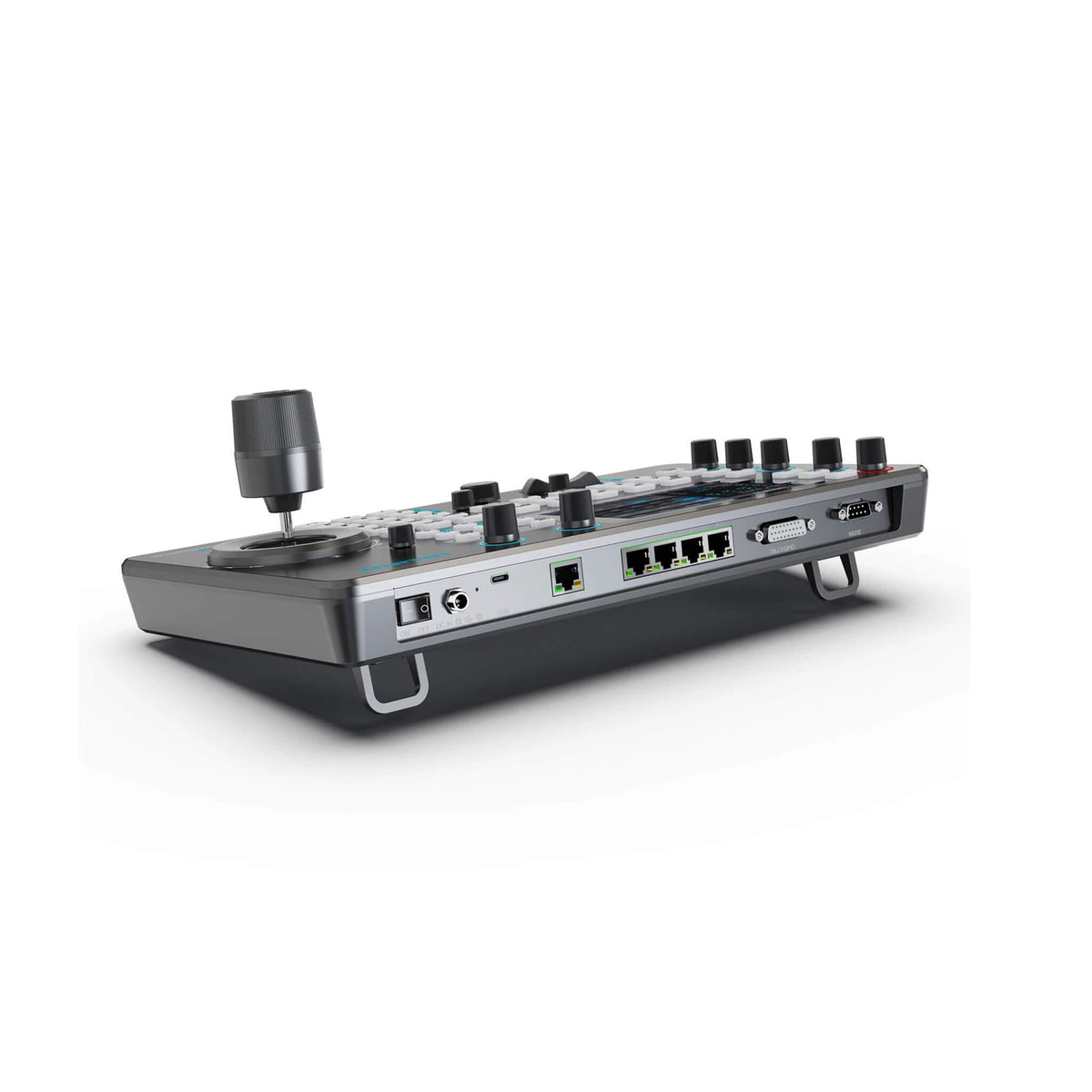

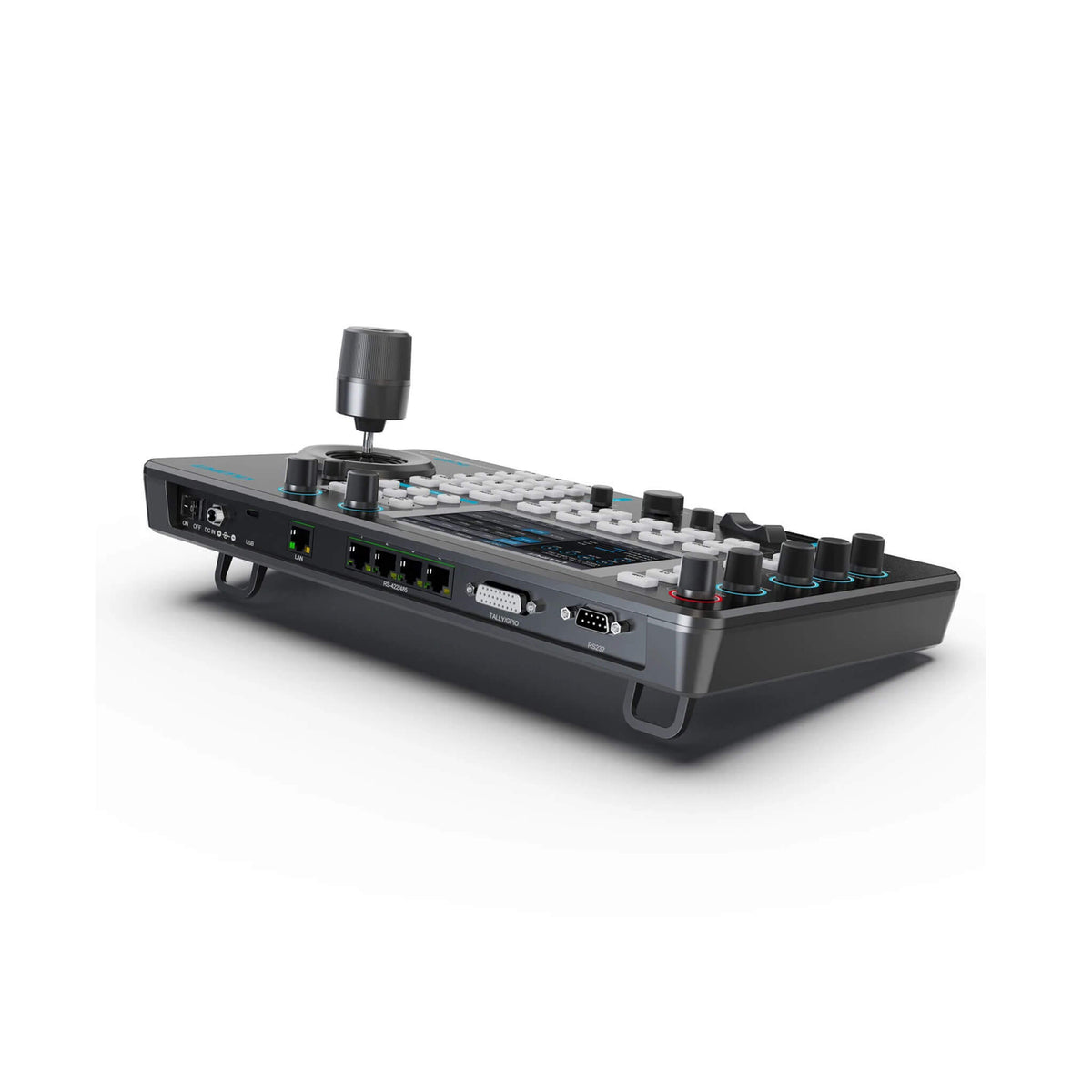

The controller provides one RJ45 IP port, one RS-232 port, four RS-422/RS-485 ports, tally connectivity and a USB-C upgrade port. Supported serial camera protocols are VISCA, PELCO-D and PELCO-P.
PoE+ or DC powering for flexible deployment
Power the K2-N using PoE+ or a 7–24V DC supply. Lilliput specifies power consumption below 8W, helping simplify power planning at a production desk or control station.
Broadcast studio PTZ camera control
Recall consistent angles across live studio sets.
House of worship camera operation
Move between pulpit, musicians and congregation shots.
Lecture hall PTZ production
Prepare camera positions for lecturers and audience views.
Conference room camera direction
Adjust framing for presenters and panel discussions.
Live event video workflows
Coordinate camera positions during staged performances.
Telemedicine camera positioning
Support controlled PTZ framing in medical communication environments.
| Specification | Detail |
|---|---|
| Model | K2-N — NDI edition |
| Control protocols | NDI|HX, NDI|HX2, ONVIF, VISCA over IP |
| Serial protocols | VISCA, PELCO-D, PELCO-P |
| Touchscreen | 5 inches |
| Joystick | 4D, pan/tilt/zoom |
| Camera grouping | 10 groups, up to 10 cameras per group |
| Camera addresses | Up to 100 |
| Camera presets | Up to 255 |
| RJ45 IP connection | 1 × RJ45 (manufacturer sources disagree on Ethernet speed) |
| Serial connections | 1 × RS-232; 4 × RS-422/RS-485 |
| Other connections | 1 × tally; 1 × USB-C for firmware upgrade |
| Serial baud rates | 2400, 4800, 9600, 19200, 38400, 115200 bps |
| Power | PoE+ or DC 7–24V |
| Power consumption | Less than 8 W |
| Operating temperature | −20°C to 60°C |
| Storage temperature | −20°C to 70°C |
| Dimensions without joystick | 340 × 195 × 49.5 mm |
| Dimensions with joystick | 340 × 195 × 110.2 mm |
| Net weight | 1730 g |
| Gross weight | 2360 g |
Does the Lilliput K2-N include NDI support?
The Lilliput K2-N includes NDI|HX and NDI|HX2 functionality. This is the NDI version, not the standard K2.
How many cameras can the K2-N PTZ controller manage?
The K2-N PTZ controller supports up to 100 camera addresses across 10 groups of up to 10 cameras.
Can the K2-N use PoE+ power?
The K2-N supports PoE+ and 7–24V DC powering; the manufacturer rates power use below 8W.
Which camera control protocols work with the K2-N?
The K2-N supports NDI|HX, NDI|HX2, ONVIF and VISCA over IP, plus VISCA, PELCO-D and PELCO-P for serial control.
What is the difference between Lilliput K2-N and K2?
The K2-N is the NDI-equipped variant of the K2 controller family. The manufacturer lists NDI as an option on its general K2 page, while its manual identifies NDI|HX and NDI|HX2 for the NDI version.
Is Coremicro an authorized Lilliput dealer?
Coremicro identifies itself as an authorized professional AV equipment reseller. Contact Coremicro to confirm Lilliput-specific authorization and the applicable manufacturer warranty.
Plan Your K2-N NDI PTZ Camera System
Ask the Coremicro team about K2-N NDI compatibility, camera protocols and integration. Contact us to confirm authorized Lilliput dealer status and support terms for your installation.
