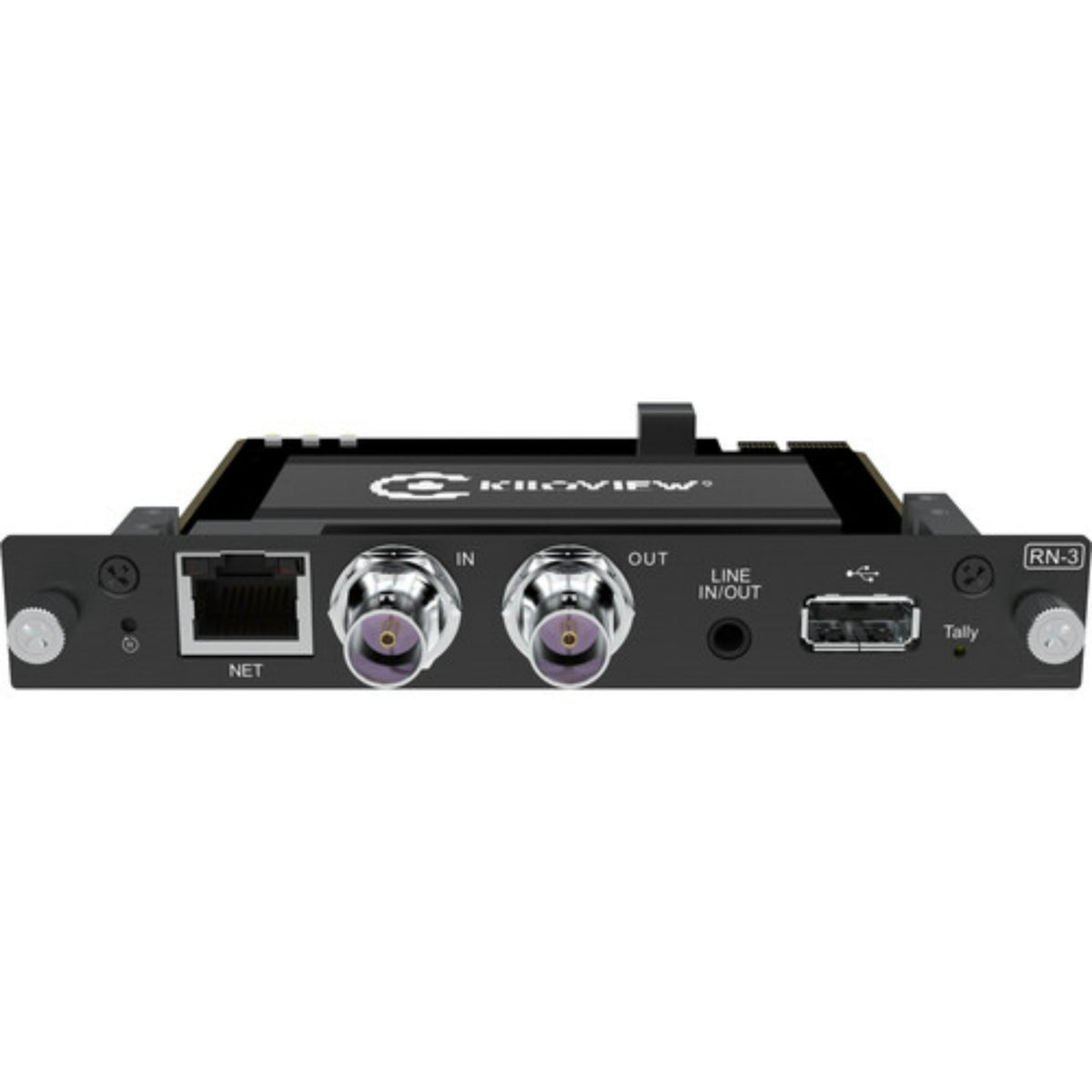

Kiloview RN-3 3G-SDI NDl Encoding/Decoding Card

Kiloview RN-3 3G-SDI NDl Encoding/Decoding Card is a 3G-SDI encoding/decoding card built for Kiloview’s RU01 and RU03 chassis. In a rack workflow, it functions as a clean bridge between SDI I/O and NDI High Bandwidth transport, with predictable format support and practical controls for monitoring and integration.

Highlights

• RU01 / RU03 compatible chassis module for scalable rack builds
• 3G-SDI input + 3G-SDI output, with the output used for decoding or loop-out during encoding
• NDI HB streaming with SpeedHQ profiles SHQ0 and SHQ2
• 1080p and 720p support across common frame rates, plus interlaced formats
• Audio, PTZ control, and intercom support are built into the module feature set

Quick Specs & Uses

• Input/output formats: 1920×1080p and 1280×720p up to 60/59.94 fps (plus additional listed rates)
• Interlaced support: 1080i60, 576i50, 480i59.94
• Color: YCbCr 4:2:0 / 4:2:2, 8-bit
• Audio: 3.5mm line in/line out, NDI Audio, AAC-LC, 48 kHz; up to 16ch encode / 8ch decode
• Networking: 1× 1GbE for NDI HB transport

Why It Helps

If you’re building a chassis-based NDI rack, RN-3 keeps the SDI edge simple: one SDI in, one SDI out, and NDI HB on the network. The format list is clear, the audio behavior is defined, and the control hooks (PTZ and intercom) are there when your workflow needs them.

System Notes

• This card is designed for RU01 and RU03 chassis installation
• PTZ control is supported via USB-to-serial (RS-232/RS-485/RS-422) and network protocols (Sony Visca, Pelco-D/P)
• Management can be web-based or centralized via the KiloLink Server Pro
• Input loss alert supports a default image and a custom PNG at 1920×1080 or 1280×720
• Size/weight: 148.65×132.00×19.20 mm, 160 g

What’s In The Box

RN-3 module card only. Chassis and cables are not included.
