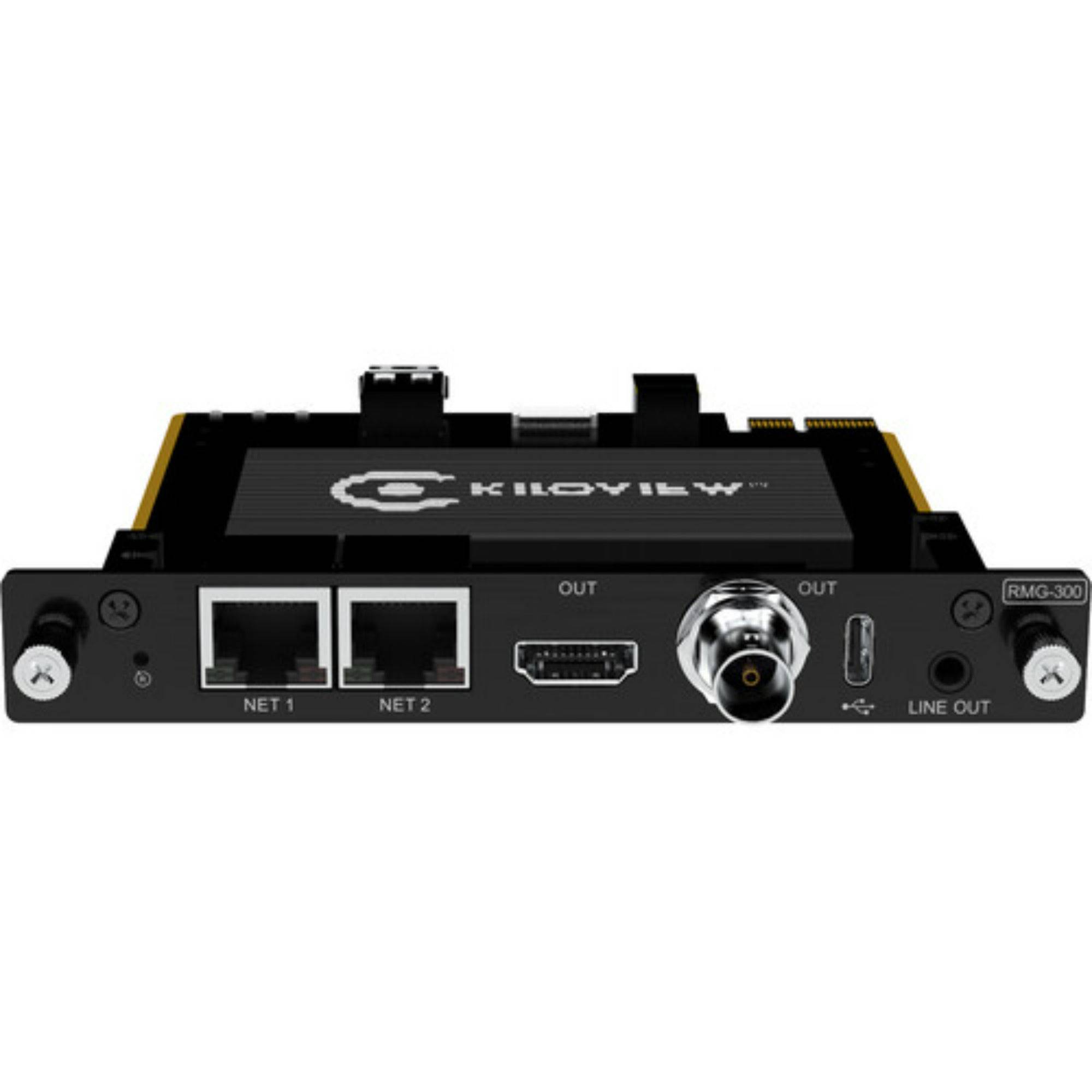

Kiloview RMG-300 V2 4K HDMI & 3G-SDl Media Gateway Card

Kiloview RMG-300v2 4K HDMI & 3G-SDI Media Gateway Card is a high-density Media Gateway and IP-to-Baseband Decoder. It is engineered for professional broadcast environments that require the simultaneous management, decoding, and redistribution of multiple IP video streams. It supports both 3G-SDI and HDMI 2.0 outputs, allowing the same unit to serve broadcast baseband workflows and 4K display monitoring.

Highlights

• Dual decode outputs via 3G-SDI (up to 1080p60) and HDMI 2.0 (up to 4Kp60)
• High stream density with support for up to 16× 1080p30 or 1× 4Kp60 decode
• Broad protocol support including NDI HX2/HX3, SRT, RTMP(S), HLS, RTP, and RTSP
• Multi-view layouts with custom grid options up to 16 simultaneous sources
• Dual Gigabit Ethernet ports for network flexibility and traffic separation

Quick Specs & Uses

• Decoding formats: H.264 up to Level 5.2 and H.265 up to Level 5.1
• Decode capacity: 16× 1080p30, 9× 1080p60, 4× 4Kp30, or 1× 4Kp60 streams
• Audio decoding: AAC, MPEG-4, MPEG-2, G.711, Opus, and LPCM
• Audio outputs: 4-channel SDI embed, 2-channel HDMI embed, and 3.5mm line-out
• Protocol conversion: up to 9-channel simultaneous 1080p transcoding

Why It Helps

Decoding is often where IP workflows start to sprawl. RMG-300 v2 keeps that under control by combining multi-stream decode, multi-view monitoring, and redistribution in a single platform. It is well-suited for control rooms, monitoring walls, and IP-to-baseband handoff points where stream counts change frequently.

System Characteristics

• Custom multi-view layouts reduce the need for external monitoring processors.
• Custom background images and OSD overlays help maintain clean outputs during source changes.
• Dual Ethernet ports support bandwidth management or segmented network designs.
• Web-based control and KiloLink Server Pro simplify centralized operation
• Analog line-out enables local audio confidence monitoring alongside SDI and HDMI embeds

What’s In The Box

Package contents vary by configuration. Please refer to the Specifications tab for the exact included items.
