Kiloview RF02 Unified Media Center Bundle with Media Gateway and (4x2) Rackmount Cards

Kiloview RF02 Unified Media Center Bundle with Media Gateway and (4x2) Rackmount Cards is built as centralized infrastructure for high-density IP video systems where control, switching, and service expansion need to live in one place. It combines a dedicated controller module, an integrated Layer-3 managed switch, and a rear service-card architecture designed for encoding, decoding, media gateway, and bonding workloads.

Highlights

• Controller and switch in one chassis, built around an 8-core ARM64 platform so control and traffic stay tightly coupled

• 120Gbps switching capacity with VLAN and QinQ support for segmented or multi-tenant networks

• Up to 18 service card slots, allowing you to scale encoding, decoding, media gateway, or bonding as the system grows

• Redundant, hot-swappable power supplies designed for systems that are expected to stay online

• Standard 2RU form factor that drops cleanly into broadcast racks and data-center environments


Quick Specs & Uses

• Main controller: 8-core ARM64 CPU, 12GB DDR4, 128GB EMMC running Linux 5.10 with KiloLink Server Pro RF
• Management: Web UI and Web/HTTP API for system-level control
• Switching: Layer-3 managed switch with 18× adaptive copper ports plus 10GbE uplinks
• Expansion: Up to 18 rear service cards with 25W per-slot power budget
• Connectivity: 10GbE SFP+ optical and 10GbE RJ45 ports for backbone integration

Why It Helps

In real facilities, scale is rarely the problem — coordination is. This chassis brings compute, switching, and service expansion into a single frame so engineers can deploy, grow, and maintain IP video systems without spreading critical functions across multiple standalone devices. The result is fewer interconnects, cleaner topology, and a system that behaves like infrastructure instead of a collection of boxes.

System Characteristics

• Rear plug-in card design allows mixing and matching of service types in one chassis
• Slot-level power budget supports higher-draw service cards up to 25W
• Layer-3 switching with VLAN and QinQ supports segmented and multi-tenant networks
• Active fan cooling with automatic temperature control maintains thermal stability
• Redundant power supplies reduce downtime risk in continuous-operation environments

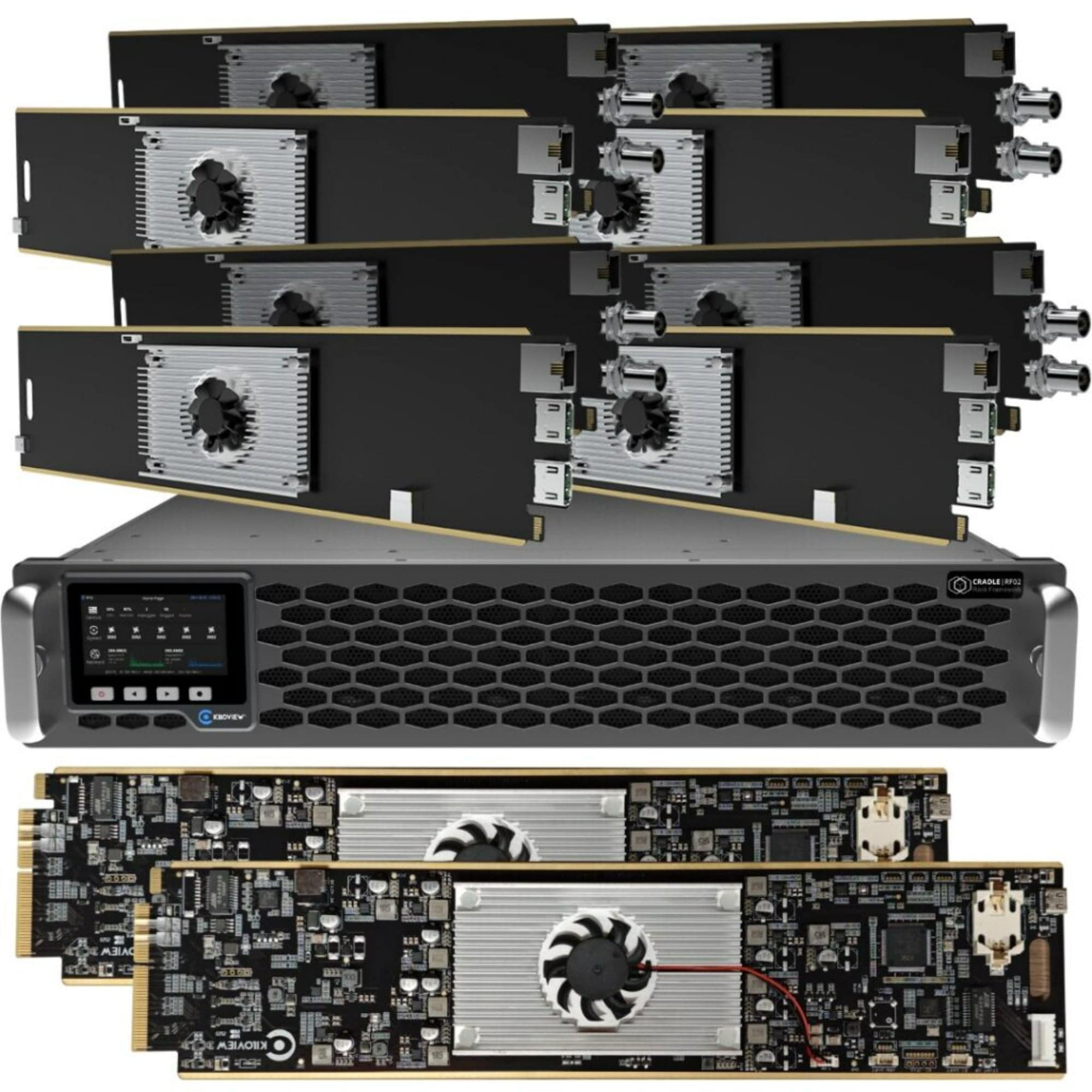

What’s In The Box

• 1x RF02 2RU structured and advanced rack-mounted frame (with redundant power supply)
• 2x FMG400 Media Gateway Service Card
• 4x FN50 4K Bi-directional NDI & 12G SDI Conversion cards
• 4x FN60 4K Bi-directional NDI & 4KP60 HDMI Conversion cards

Trusted Seller

Coremicro supports modular IP video infrastructure with real system-level deployment experience and U.S.-based technical support.
