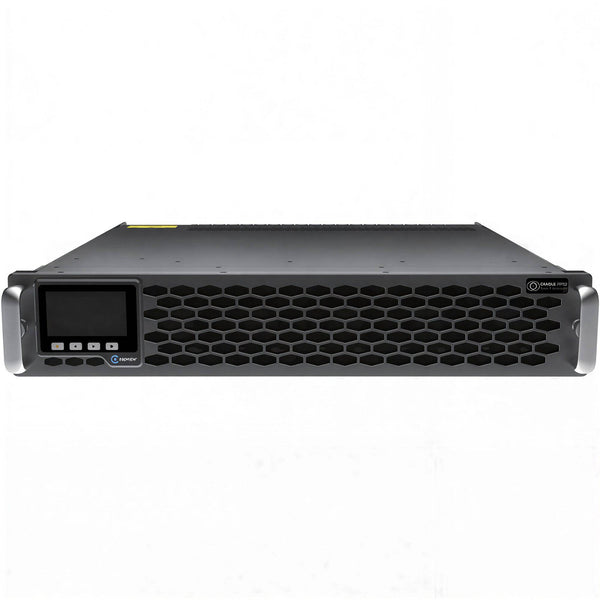

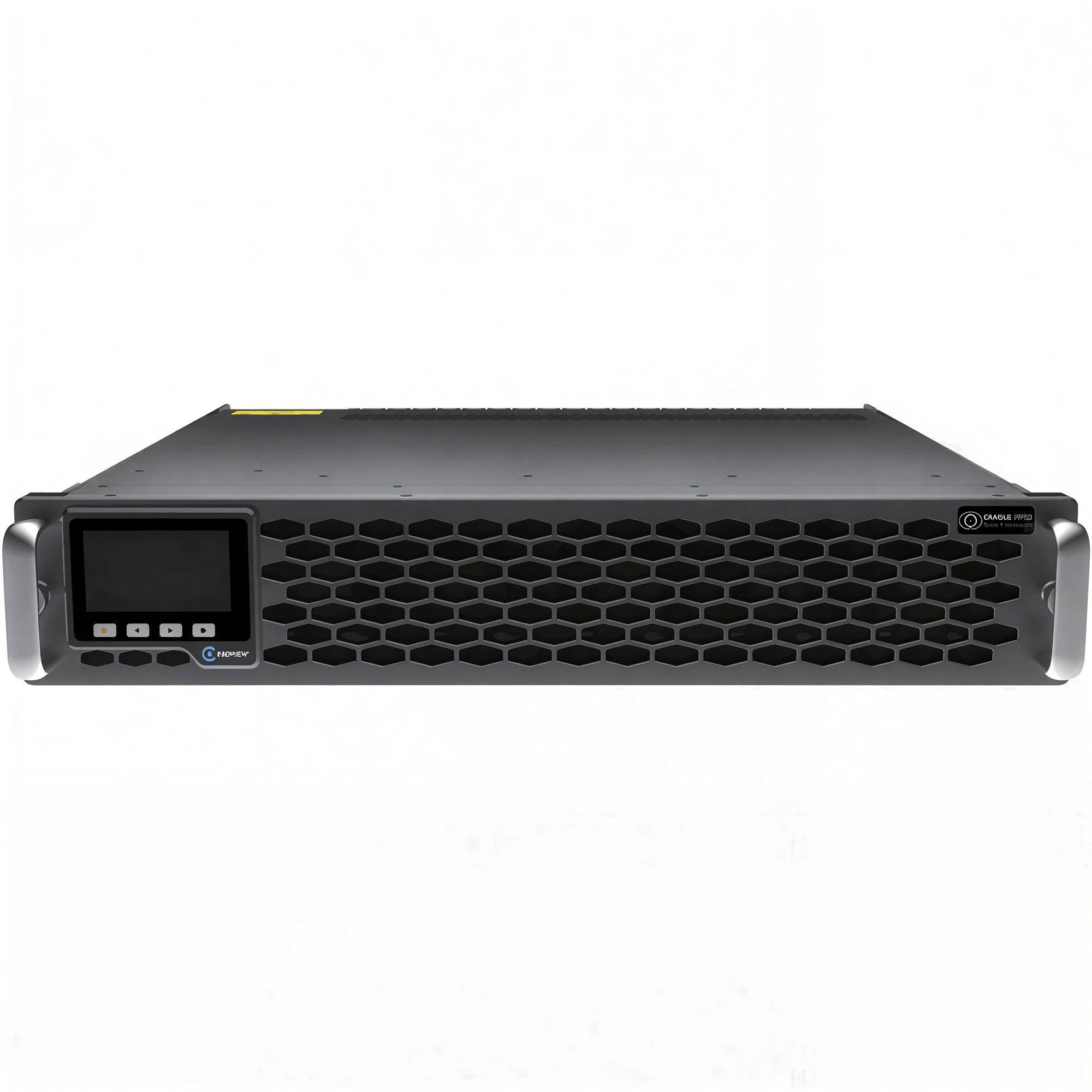

Kiloview RF02 Cradle Modular Media Platform (2 RU)

This modular 2RU chassis platform is built as centralized infrastructure for high-density IP video systems where control, switching, and service expansion need to live in one place. It combines a dedicated controller module, an integrated Layer-3 managed switch, and a rear service-card architecture designed for encoding, decoding, media gateway, and bonding workloads.

Highlights

• Controller and switch in one chassis, built around an 8-core ARM64 platform so control and traffic stay tightly coupled

• 120Gbps switching capacity with VLAN and QinQ support for segmented or multi-tenant networks

• Up to 18 service card slots, allowing you to scale encoding, decoding, media gateway, or bonding as the system grows

• Redundant, hot-swappable power supplies designed for systems that are expected to stay online

• Standard 2RU form factor that drops cleanly into broadcast racks and data-center environments


Quick Specs & Uses

• Main controller: 8-core ARM64 CPU, 12GB DDR4, 128GB EMMC running Linux 5.10 with KiloLink Server Pro RF
• Management: Web UI and Web/HTTP API for system-level control
• Switching: Layer-3 managed switch with 18× adaptive copper ports plus 10GbE uplinks
• Expansion: Up to 18 rear service cards with 25W per-slot power budget
• Connectivity: 10GbE SFP+ optical and 10GbE RJ45 ports for backbone integration

Why It Helps

In real facilities, scale is rarely the problem — coordination is. This chassis brings compute, switching, and service expansion into a single frame so engineers can deploy, grow, and maintain IP video systems without spreading critical functions across multiple standalone devices. The result is fewer interconnects, cleaner topology, and a system that behaves like infrastructure instead of a collection of boxes.

System Characteristics

• Rear plug-in card design allows mixing and matching of service types in one chassis
• Slot-level power budget supports higher-draw service cards up to 25W
• Layer-3 switching with VLAN and QinQ supports segmented and multi-tenant networks
• Active fan cooling with automatic temperature control maintains thermal stability
• Redundant power supplies reduce downtime risk in continuous-operation environments

What’s In The Box

Main chassis with controller module. Service cards are sold separately and installed based on configuration.
