Kiloview RE-3 4K Multi-interface NDI Encoding Card

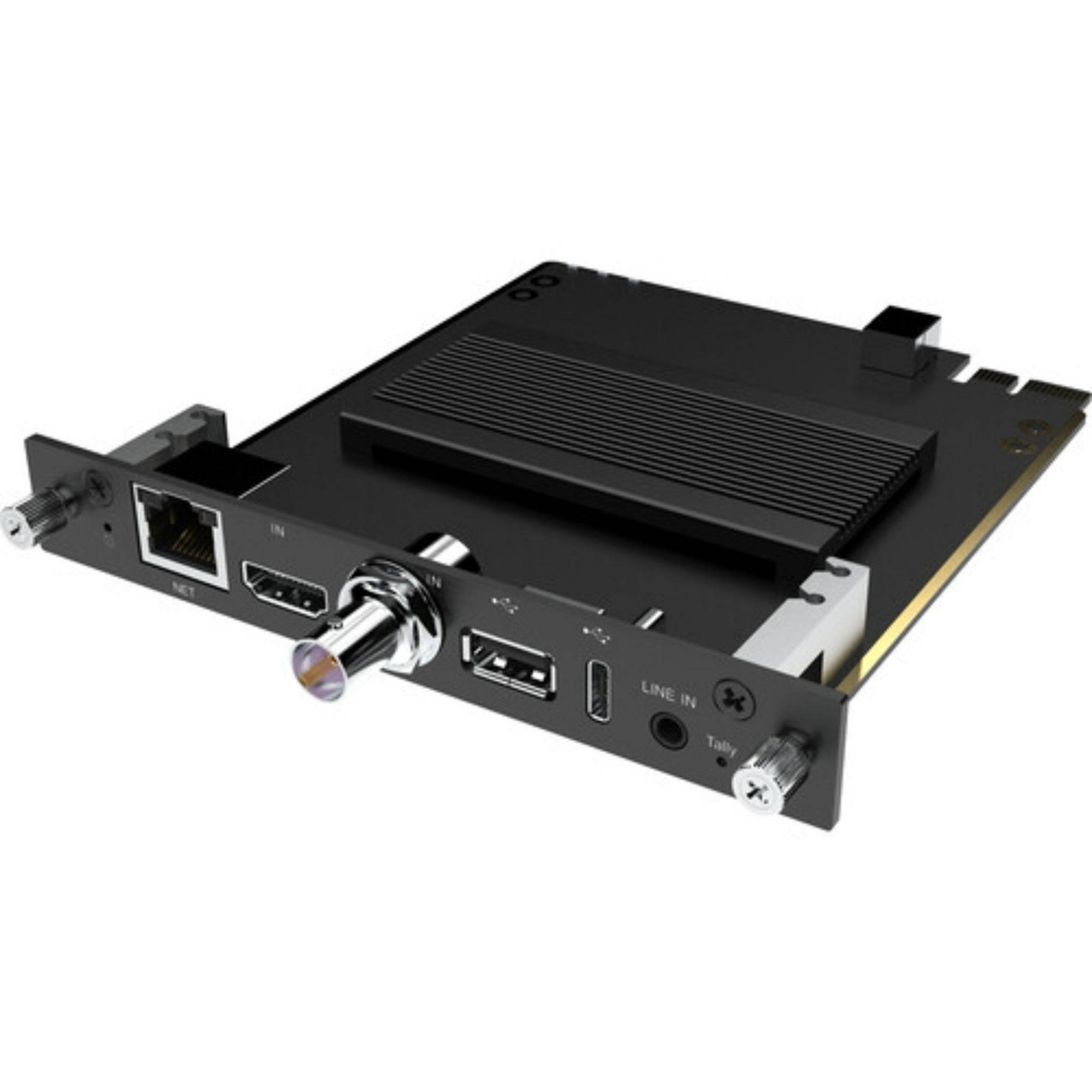

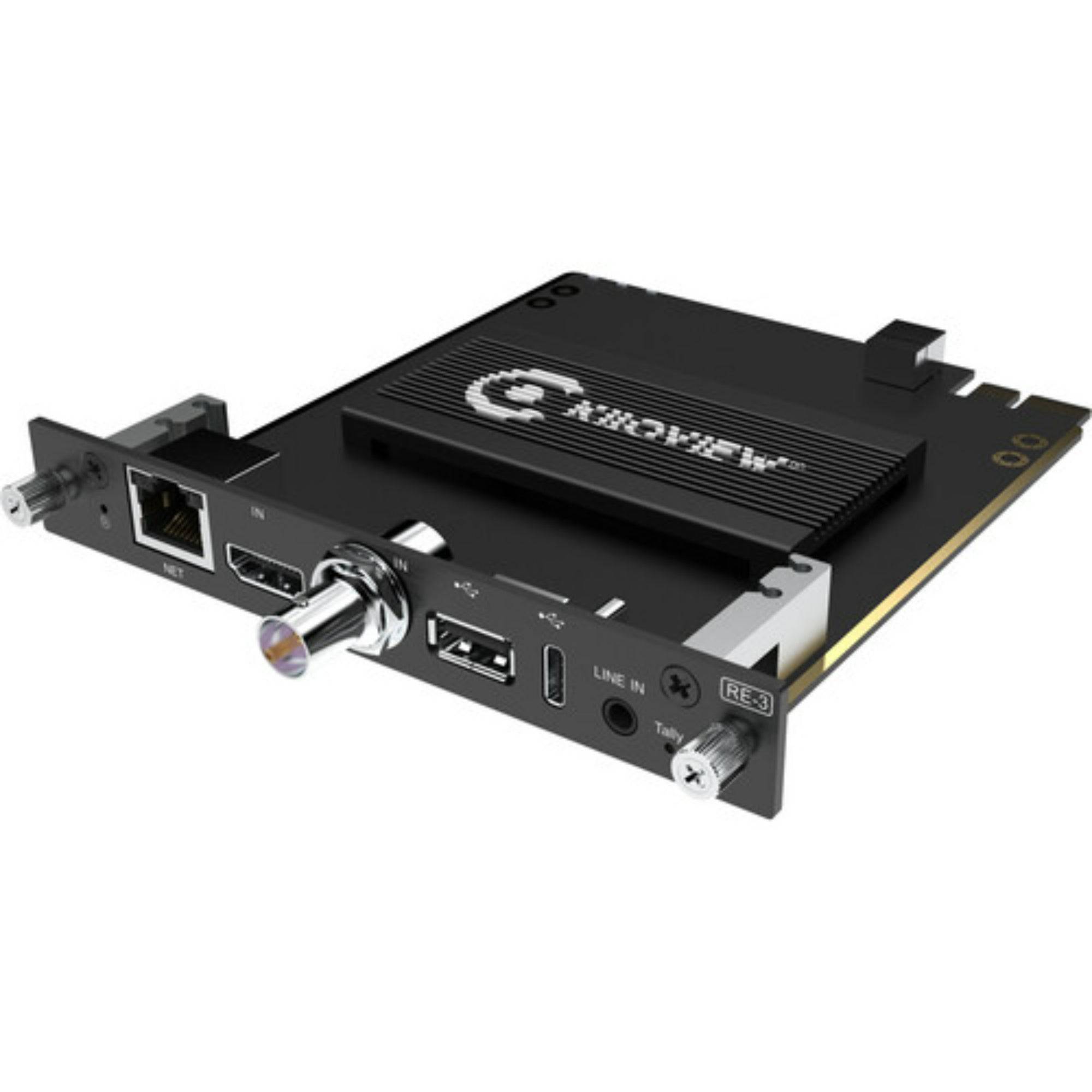

Kiloview RE-3 4K Multi-interface NDI Encoding Card is a chassis-based encoder module for the RU01 and RU03 platforms that’s built for mixed-source workflows. It accepts 3G-SDI, HDMI, and USB video, then pushes your program out over the streaming protocol that actually fits the job — whether that’s NDI HX on a LAN, SRT for reliability, or RTMP/RTMPS for common platform ingest.

The practical win is flexibility without rebuilding the rack every time a source changes. SDI cameras, HDMI devices, or a USB source can all land on the same module, and you still get time alignment tools like NTP/system-time SEI timecode plus signal-protection features like a No Video screen or a custom PNG when a feed drops.

Highlights

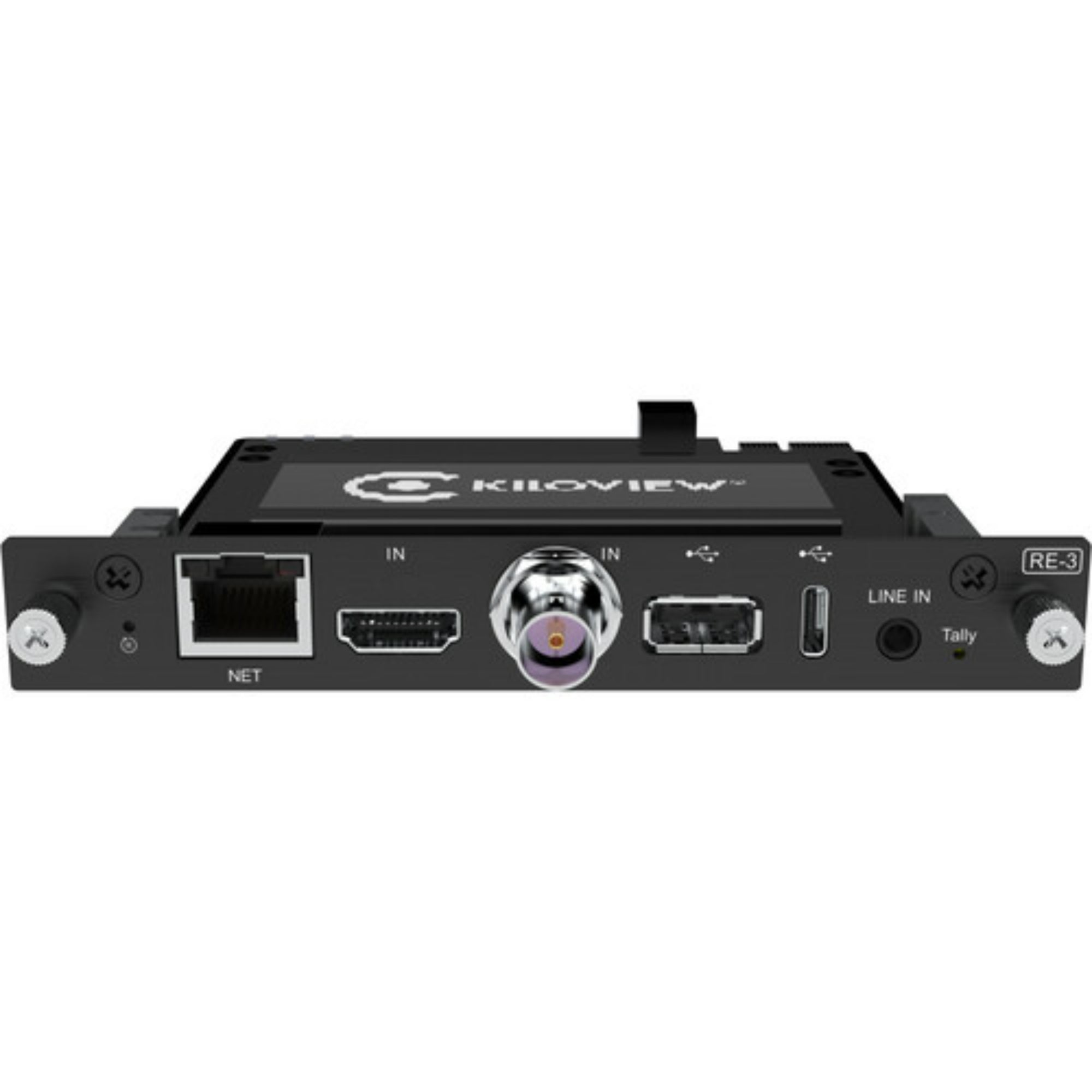

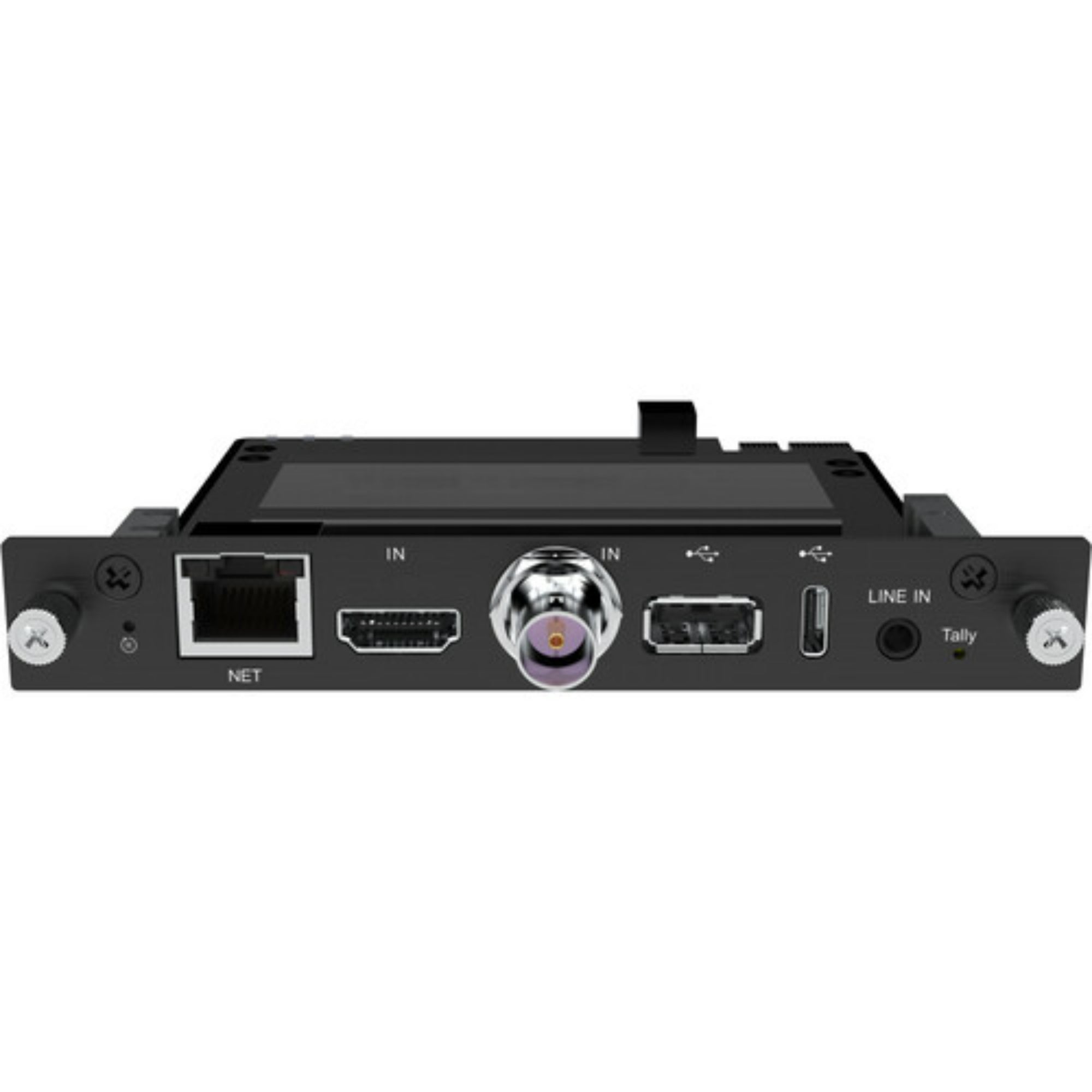

• Multi-input ingest via 3G-SDI, HDMI 1.4b, and USB for mixed equipment environments.
• H.264 / H.265 encoding to balance compatibility and bandwidth efficiency
• Protocol coverage includes NDI HX2/HX3, SRT, RTMP/RTMPS, HLS, WHIP, TS over UDP, and RTSP
• Audio flexibility with 4-channel embedded audio (SDI/HDMI/USB) plus 3.5mm line-in
• Gigabit Ethernet (10/100/1000 RJ45) for stable IP transport and control

Quick Specs & Uses

• 3G-SDI (SMPTE 424M) with compatibility for HD-SDI (292M) and SD-SDI (259M)
• HDMI input supports up to 3840×2160 at 30 fps, plus common HD/SD formats
• Pre-encoding processing: rotation, mirroring, and cropping
• Sync behavior: SEI timecode synchronized to NTP or system time
• Signal handling: automatic No Video screen or custom PNG on source or stream loss

Why It Helps

In real builds, problems usually show up at the seams: a source drops, timing drifts, or someone swaps a camera, and the workflow gets messy. RE-3 is designed to keep those seams clean. You get multiple ingest options, multiple delivery protocols, and operational controls that make the output behave like a dependable rack component instead of a fragile endpoint.

System Characteristics

• REC-RUN start/stop support over the SDI interface for synchronized recording behavior
• OSD overlays allow user-defined text and image graphics
• PTZ control paths include USB-to-Serial (RS-232/RS-485/RS-422) and IP protocols (Sony VISCA, Pelco-D, Pelco-P)
• UVC PTZ compatibility is supported for applicable USB workflows
• Management via web UI or centralized control using KiloLink Server Pro

Physical & Environmental

• Operating temperature: −20°C to +45°C
• Dimensions: 148.65 × 132.00 × 19.20 mm
• Weight: 160 g
• Power: supplied by the chassis

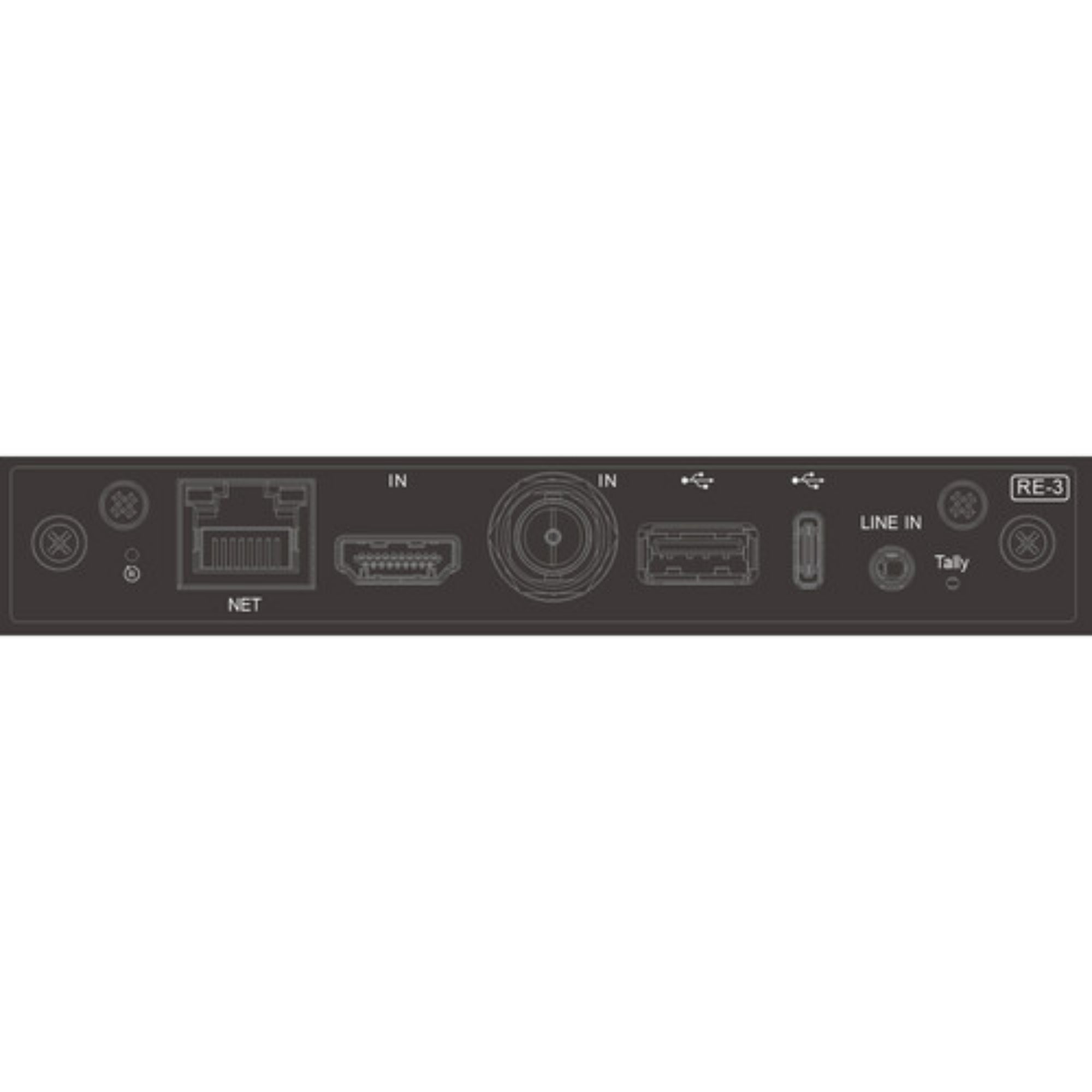

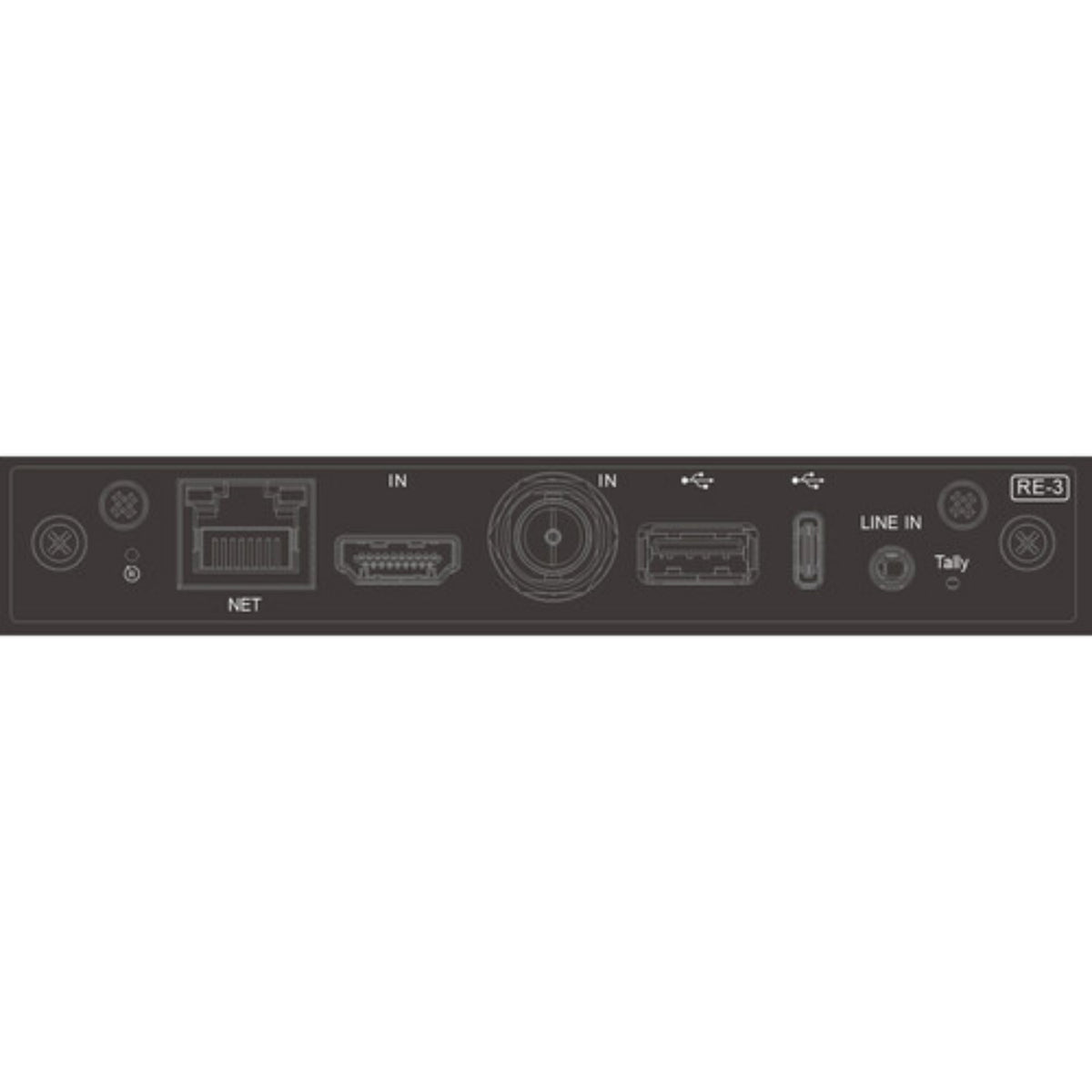

• USB ports: 1× USB 2.0 Type-C, 1× USB 2.0 Type-A
