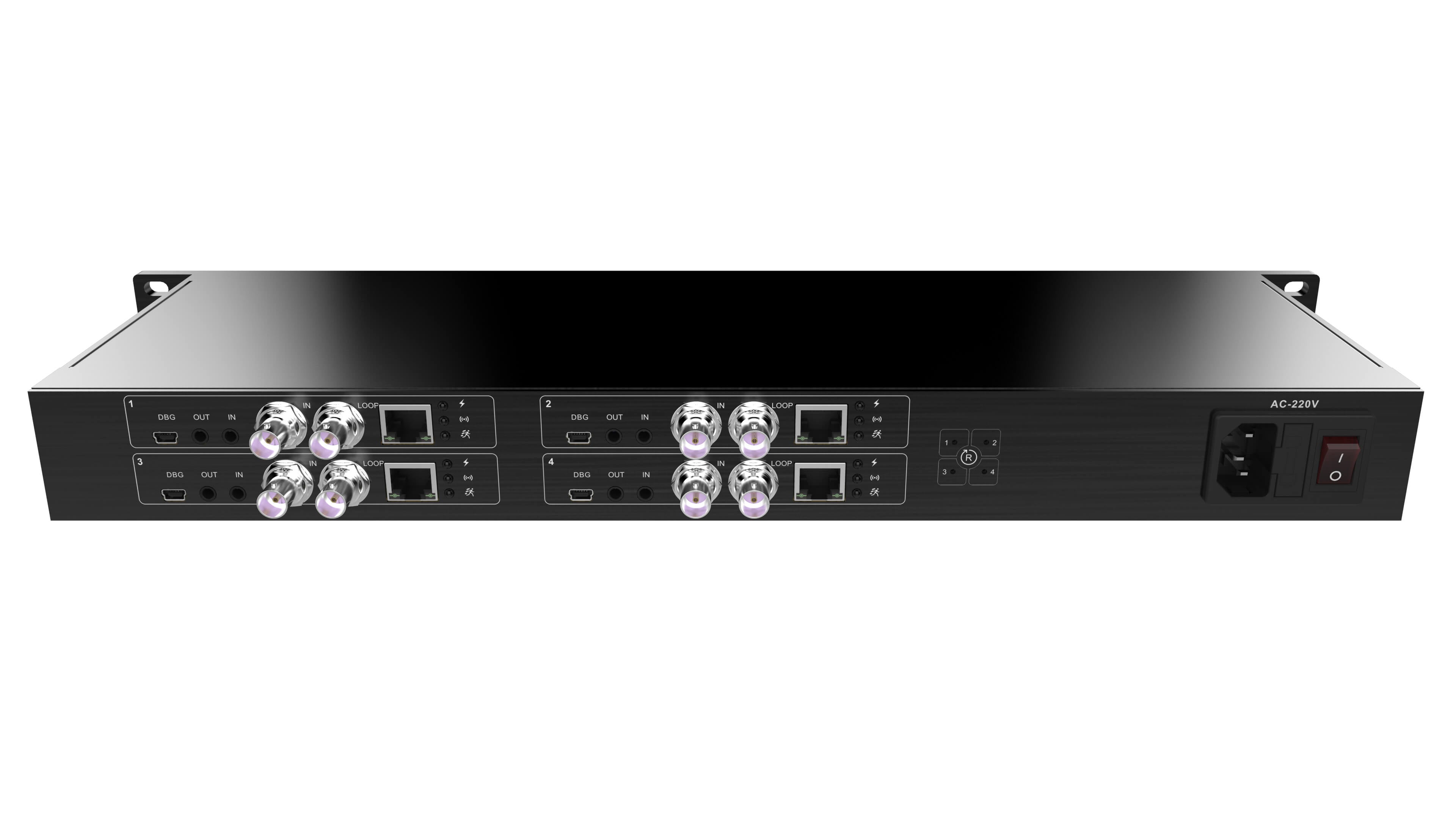

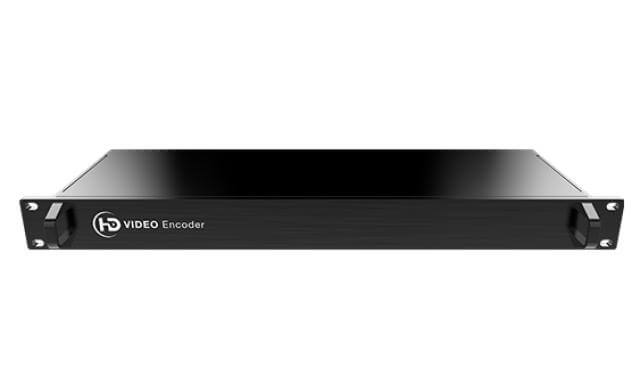

Kiloview Quad SDI Video Encoding Module (1U Rack-Mount)

The U4-SD Rack-Mounted Encoder is an integrated quad SDI video encoding module in a 1U rack-mount frame. Supporting RTP/ RTSP/ RTMP/ HLS/ TS/ Onvif/ SIP and SRT through wired network to realize remote video transmission / live broadcast. The rack-mounted video encoder is applied to transmit/ live broadcast multiple video signals simultaneously. It has multi-interfaces, high integration and can be mounted in the cabinet which is specially designed for various video engineering project.

Highly integrated, low power consumption, stable operation.

• It can integrate 3U multi-channels SDI/ HDMI video encoding module, and supports up to 4-channels in 1U rack. SDI encoding module and HDMI encoding module can be integrated into the same rack for customization.

• Advanced low-power consumption design (20w only for 4 channels at full load), together with built-in intelligent cooling device, it can ensure stable operation, makes 24h continuous working available.

High bandwidth adaptability, it can transmit high-definition, low-latency image without padding even under a low-bandwidth network environment.

• With branded chips solution together with video dynamic noise reduction and image enhancement technology, it can realize good encoding image under low bit transmission.

• Good video image can be achieved at 1Mbps@720p, 1.5Mbps@1080p network. In the normal scene, 1Mbps@720p, 1.5Mbps@1080p can get high quality video quality.

• Advanced video buffering technology and FEC technology ensures video encoding delay ≤ 67ms★ and transmission stable without non-padding.

• Adjustable bit rate from 64kbit/s～40Mbit/s.

Powerful streaming media service function, all types of streaming media protocol supported.

• RTP/ RTSP/ RTMP/ HLS/ TS/ Onvif/ SIP/ NDI (Customization available) and some other streaming media protocols supported for live broadcast on Facebook, YouTube, Ustream, Twitch, Wowza etc or security platform / NVR system.

• SRT supported to ensure secure and reliable transmission.

• Dual stream output, the main code rate up to 1080p60Hz, and the sub-stream supports 720p 60Hz video encoding, output resolution can be self-defined.

• Powerful streaming media service function, all types of streaming media protocol supported.

• Open API programming, SDK provided for second development.

• Customization service available based on client's needs.
