Product Highlights
- 4K60 HDMI NDI conversion
- NDI encode and decode
- PoE powered connectivity
- PTZ control and tally
Kiloview N40 Plus UHD 4K HDMI / NDI Bidirectional Converter
- SKU:
- N40 PLUS
- MPN:
- N40 PLUS
Ships in 1-3 Business Day
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Product Inquiry Form
Description
Product Overview
The Kiloview N40 Plus from Kiloview is a compact 4K HDMI NDI converter for NDI High Bandwidth encoding and decoding up to 4Kp60. It handles HDMI input, HDMI decode output or encode loop-through, Gigabit Ethernet with PoE, tally, PTZ control, audio, and browser-based management in a camera-mountable chassis. For teams planning to buy the N40 Plus, the value is consolidation — fewer single-purpose boxes in live production, remote production, and fixed AV systems. One small converter, cleaner camera-side wiring.
4K HDMI NDI Bidirectional Converter for 4K60
A 4K HDMI NDI bidirectional converter lets one unit work on either side of the network. In encode mode, HDMI video up to 3840 × 2160p60 becomes an NDI High Bandwidth stream; in decode mode, an NDI High Bandwidth source is converted back to HDMI. SpeedHQ processing supports SHQ0 and SHQ2, with 8-bit YCbCr 4:2:0 or 4:2:2 color handling. The unit operates in selectable encode or decode modes.
HDMI Loop-Through NDI Encoder for Local Monitoring
An HDMI loop-through NDI encoder keeps a local display available while the source is being sent over IP. The HDMI output serves as the decoder output when receiving NDI and as a loop-through output when encoding HDMI, so the same connector changes role with the operating mode. The unit supports 4Kp60, 1080p, 1080i, and 720p source families listed by Kiloview. That is useful when a camera feed needs both network distribution and a nearby confidence monitor.
NDI Decoder with LCD Tally and Source Switching

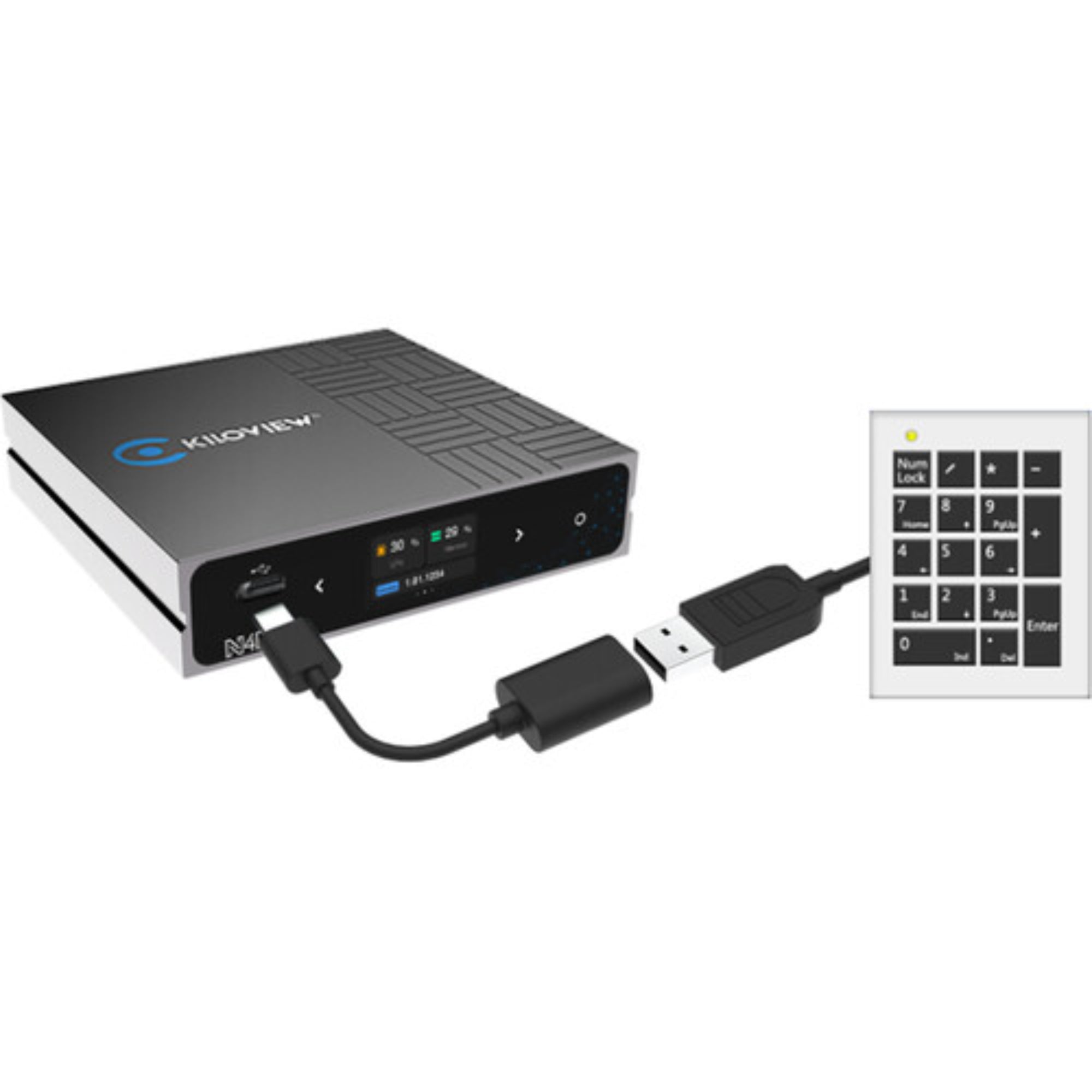

An NDI decoder with LCD tally gives operators useful status without opening a browser for every check. The N40 Plus adds a 1.14-inch LCD with touch buttons, front tally indication, and a rear tally LED. In decode workflows, sources can be prepared for direct switching from the web interface, while a USB keypad can recall numbered NDI presets. For multi-camera live production, the tally and control functions reduce the amount of separate camera-side hardware.
PTZ Control NDI Converter for Multi-Camera Production
A PTZ control NDI converter can move video and camera-control duties through the same compact endpoint. Kiloview supports USB-to-serial control using RS-232, RS-485, or RS-422, plus network control with Sony VISCA and Pelco-D/P protocols. That makes the unit practical for conference rooms, education AV, and house of worship systems where a camera position may need IP video conversion and PTZ access together. USB connectivity also supports keypad-based control workflows.
PoE NDI Video Converter for Camera-Side Deployment
A PoE NDI video converter simplifies installation when power and network data can share one Ethernet cable. The N40 Plus also accepts USB PD fast charging and a 5–18V input range, giving mobile crews several ways to power the converter from common production sources. Maximum power consumption is 6W, and the 100 × 95 × 23 mm chassis includes a cold shoe adapter for direct camera-area mounting. It fits naturally into flypacks, venue production, and compact streaming rigs.
NDI Audio and Intercom for Live Production
NDI audio and intercom functions keep communication and program audio close to the video endpoint. The converter carries two-channel NDI audio with channels selectable from as many as 16 mapped inputs or outputs, fixed at 48 kHz, and includes a 3.5 mm line input/output. USB headset expansion supports group communication through Kiloview Intercom System. If a video input is lost, the output can display the default NO INPUT SIGNAL graphic or a custom 1920 × 1080 or 1280 × 720 PNG instead of an unexplained blank screen.
Video
4Kp60 · 1080p · 1080i · 720p
Protocol
NDI High Bandwidth · SpeedHQ SHQ0 · SHQ2
Network
1 × Gigabit Ethernet · PoE
Control
Web · KiloLink Server Pro · USB · PTZ
NDI High Bandwidth Converter for Low-Latency 4K IP Video
An NDI High Bandwidth converter is intended for production networks where picture quality and response time matter more than aggressive compression. The N40 Plus moves up to 4Kp60 through a single Gigabit Ethernet interface and supports PoE, keeping camera-side network wiring straightforward.
Web-based control handles device setup and source management, with centralized management available through KiloLink Server Pro. For broadcast workflow design, sports production, or multi-room AV installation, the key planning point is bandwidth: NDI High Bandwidth should be engineered on a Gigabit network with appropriate switching capacity.
NDI Converter for Sports Broadcasting
Mount the converter near an HDMI camera, power it over PoE, and send the feed to the production network without a separate encoder rack. Tally and PTZ control help keep a small sports broadcasting crew coordinated while the local HDMI loop-through can feed nearby monitoring.
4K HDMI NDI Converter for House of Worship
A house of worship can place HDMI cameras around the room and bring them onto an NDI network without long dedicated HDMI runs back to the booth. Decoder mode can also return an NDI source to an HDMI confidence display, overflow room, or production monitor using the same hardware platform.
NDI Decoder for Corporate Event Monitoring
In corporate events, decoder mode can turn a network source into HDMI for a confidence monitor, backstage display, or secondary room. Preset source switching and visual loss alerts help operators change destinations quickly while keeping a recognizable output on screen when an upstream feed disappears.
Broadcast Engineers
Use one endpoint for 4K HDMI-to-NDI encoding, NDI-to-HDMI decoding, tally, audio, and control.
Sports Broadcasting
Add compact camera-side IP conversion where PoE, tally, and PTZ access reduce field wiring.
House of Worship
Move HDMI cameras and monitor feeds across an NDI network for multi-camera church streaming.
Corporate AV
Deploy flexible encode or decode endpoints for meeting rooms, event spaces, and distributed displays.
Education AV
Connect classroom cameras and HDMI displays to NDI-based lecture capture and campus production systems.
Remote Production
Place compact NDI endpoints near cameras or monitoring stations when rack space is limited.
Kiloview Support
Kiloview provides technical support, product registration, and warranty-extension programs. Eligible products registered during the standard warranty period can receive one additional year of warranty coverage under Kiloview terms; contact Coremicro for current coverage details before deployment.
| Specification | Detail |
|---|---|
| Model | N40 Plus |
| Video Resolution — Input | 3840 × 2160p at 60/59.94/50/30/29.97/25/24/23.98 fps; 1920 × 1080p at 60/59.94/50/30/29.97/25/24/23.98 fps; 1920 × 1080i at 60/59.94/50 fps; 1280 × 720p at 60/59.94/50/30/29.97/25/24/23.98 fps |
| Video Resolution — Output | 3840 × 2160p at 60/59.94/50/30/29.97/25/24/23.98 fps; 1920 × 1080p at 60/59.94/50/30/29.97/25/24/23.98 fps; 1920 × 1080i at 60/59.94/50 fps; 1280 × 720p at 60/59.94/50/30/29.97/25/24/23.98 fps |

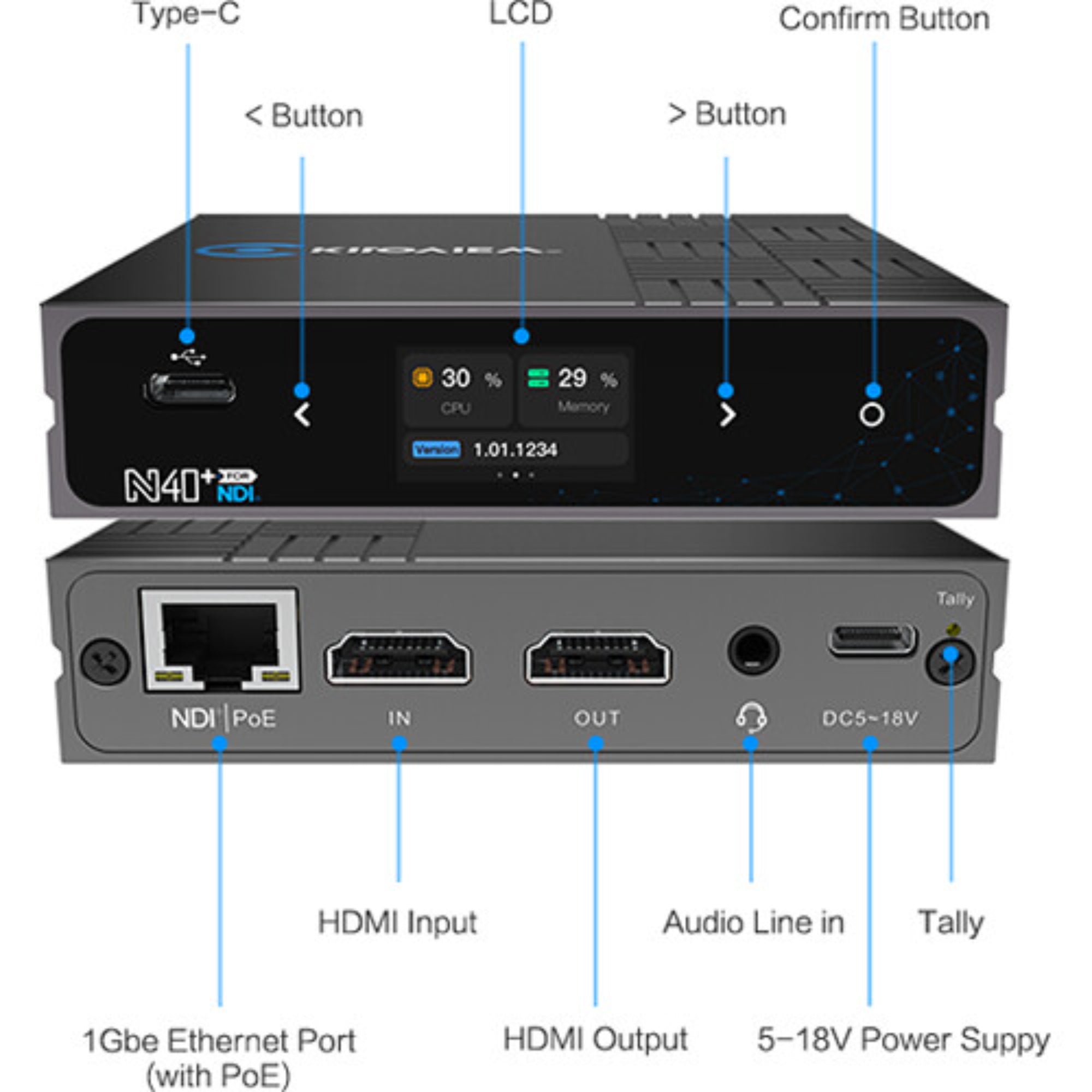

| Video Port | 1 × 4Kp60 HDMI input; 1 × 4Kp60 HDMI output for decoding or loop-out for encoding |
| Video Encoding and Decoding | SpeedHQ NDI: SHQ0, SHQ2 |
| Streaming Protocols | NDI High Bandwidth |
| Interlaced Video Support | 1080i60 interlaced input and 1080i60 interlaced output encoding |
| Color Space | NDI High Bandwidth encoding and decoding: YCbCr 4:2:0, 4:2:2 |
| Color Depth | 8-bit |
| Audio Port | 1 × 3.5 mm line in/line out |
| Audio Encoding and Decoding | NDI Audio; additional audio formats and channels available through custom development |
| Audio Channels | Encoding: 2 channels selectable from up to 16 input channels; decoding: 2 channels selectable from up to 16 output channels |
| Audio Sampling | 48 kHz fixed |
| Network Port | 1 × 1000 Mbps Ethernet port with PoE support |

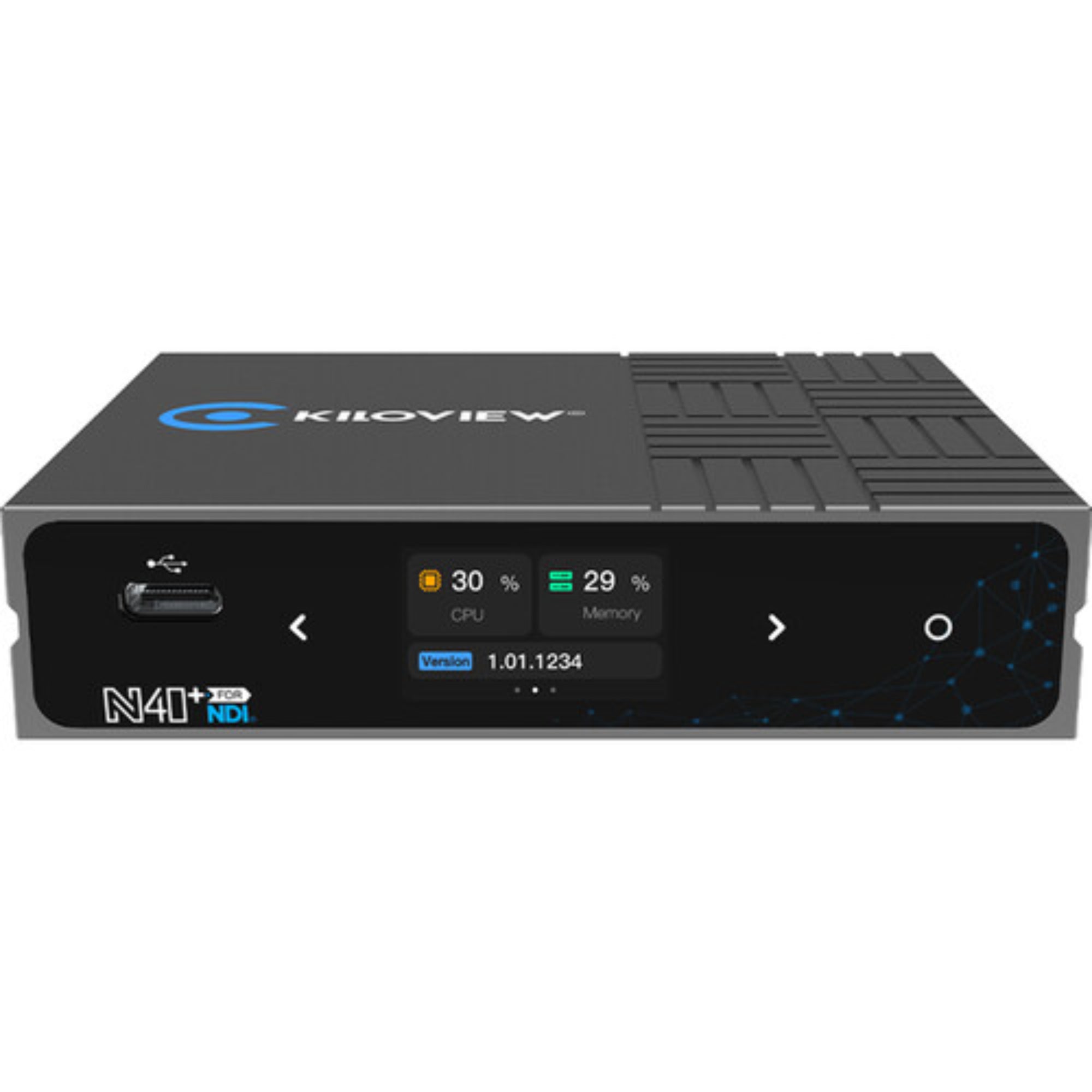

| Physical Controls | 1.14-inch LCD with touch buttons |
| Management | Web-based control or centralized management via KiloLink Server Pro |
| Tally | Front-panel LCD tally indicator and rear tally LED |
| Voice Intercom | USB headset expansion or group calls via Kiloview Intercom System |
| Video Input Loss Alerts | Default NO INPUT SIGNAL image on HDMI disconnect; custom 1920 × 1080 or 1280 × 720 PNG display supported |
| PTZ Control | USB-to-serial RS-232/RS-485/RS-422 and network protocols including Sony VISCA and Pelco-D/P |
| USB Port | 1 × USB 3.0 Type-C |
| Mounting | Cold shoe adapter |
| Power Supply | USB PD fast charging, 5–18V wide-range input, and PoE |
| Power Consumption | 6W maximum |
| Weight | 260 g |
| Dimensions | 100 × 95 × 23 mm |
| Working Temperature | -20°C to 55°C / -4°F to 131°F |
Buy the N40 Plus 4K HDMI NDI Converter with Workflow Support
Coremicro is an authorized Kiloview dealer for professional NDI converters used in broadcast, live events, house of worship, corporate AV, and remote production. Contact us for current N40 Plus pricing and to confirm network bandwidth, HDMI format, PTZ protocol, PoE, and platform compatibility before ordering.
