Kiloview Kilolink Station All-in-One Hardware Bonding Receiver & Device Management Platform

Kiloview KiloLink Station is the kind of hardware that makes sense when a wireless bonding workflow needs to be received, managed, and monitored from one dedicated platform instead of being split across a server build and extra software layers. Broadfield describes it as an all-in-one hardware bonding receiver and device management platform that integrates the capabilities of KiloLink Server Pro into a compact half-1U appliance. In practical terms, that gives crews a cleaner way to handle multi-unit wireless contribution, centralized control, and IP or SDI output workflows from one box.

Highlights

• All-in-one hardware bonding receiver with centralized device management
• Supports up to 8 P3 or P3 Mini units simultaneously for multi-device contribution workflows
• Standard Edition for IP workflows and Pro Edition with 4x 3G-SDI outputs
• 1x 4K HDMI 2.0b output for monitoring in multiview or single-output mode
• Supports NDI HX, SRT, RTMP, RTP/RTSP, UDP, and HLS for flexible protocol integration

Quick Specs & Uses

• Product type: hardware bonding receiver and device management platform
• Memory: 16GB DDR4
• Storage: 128GB eMMC
• Video decoding: H.264 / H.265
• Audio decoding: AAC
• Bonding performance: up to 8 x P3 units simultaneously
• Video output: 4x 3G-SDI on Pro Edition up to 1080p60
• HDMI output: 1x 4K HDMI up to 4Kp60
• Multiview: up to 4-way split screen

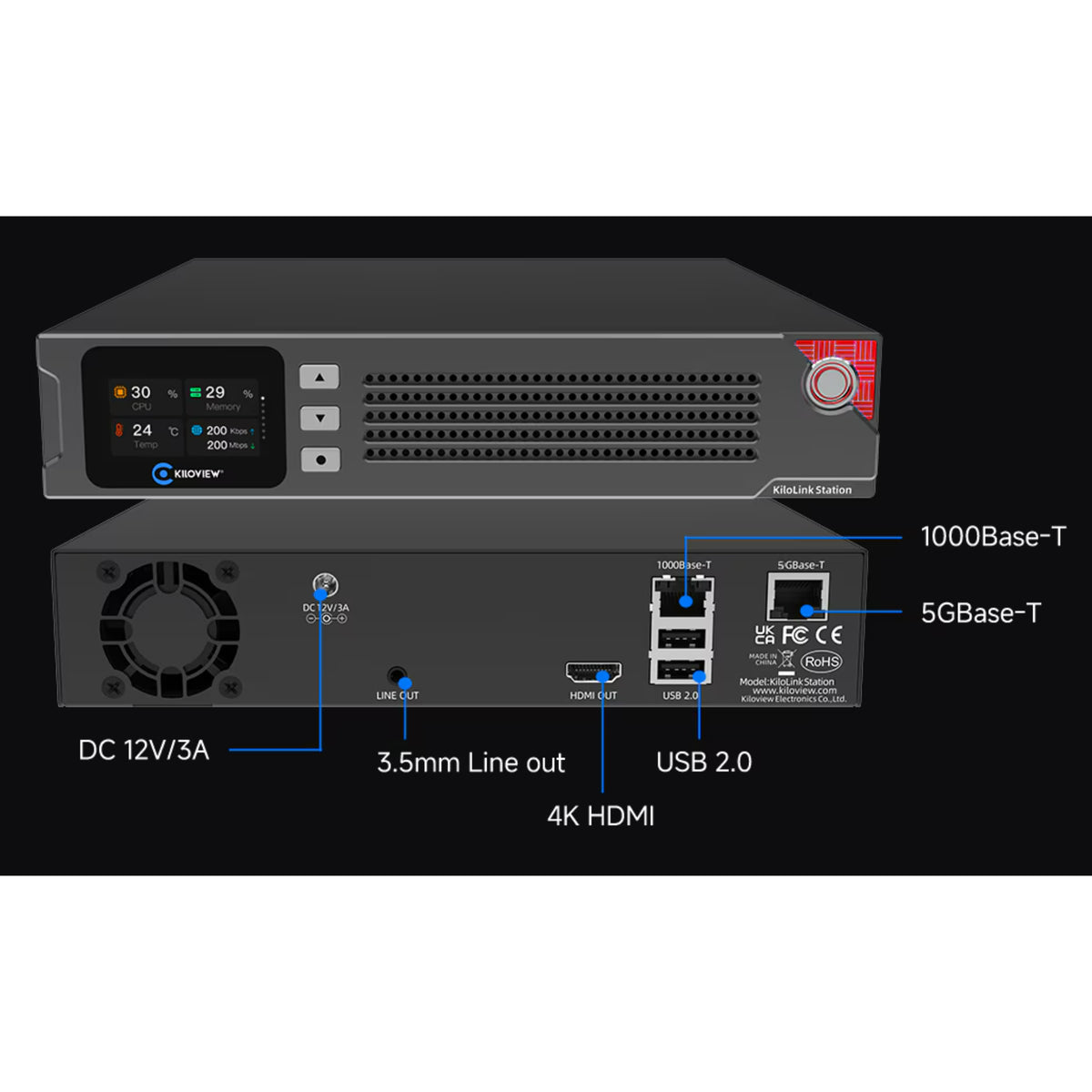

• Network: 1x 5GbE RJ45 and 1x 1GbE RJ45
• Management: web-based UI
• Power input: DC 12V 3A
• Power consumption: ≤ 12W
• Dimensions: 220 × 231.45 × 44 mm
• Weight: approximately 1780 g for Standard Edition

Why It Helps

Bonding workflows get more complicated fast when the receiver, control platform, and monitoring path all live in different places. KiloLink Station helps simplify that. It is built to receive multiple bonded field units, manage them from one interface, and hand the resulting streams off through IP or SDI outputs depending on the edition. That makes it a practical fit for remote production, field contribution, education, and multi-camera live workflows where crews need less setup overhead and more operational control.

System Characteristics

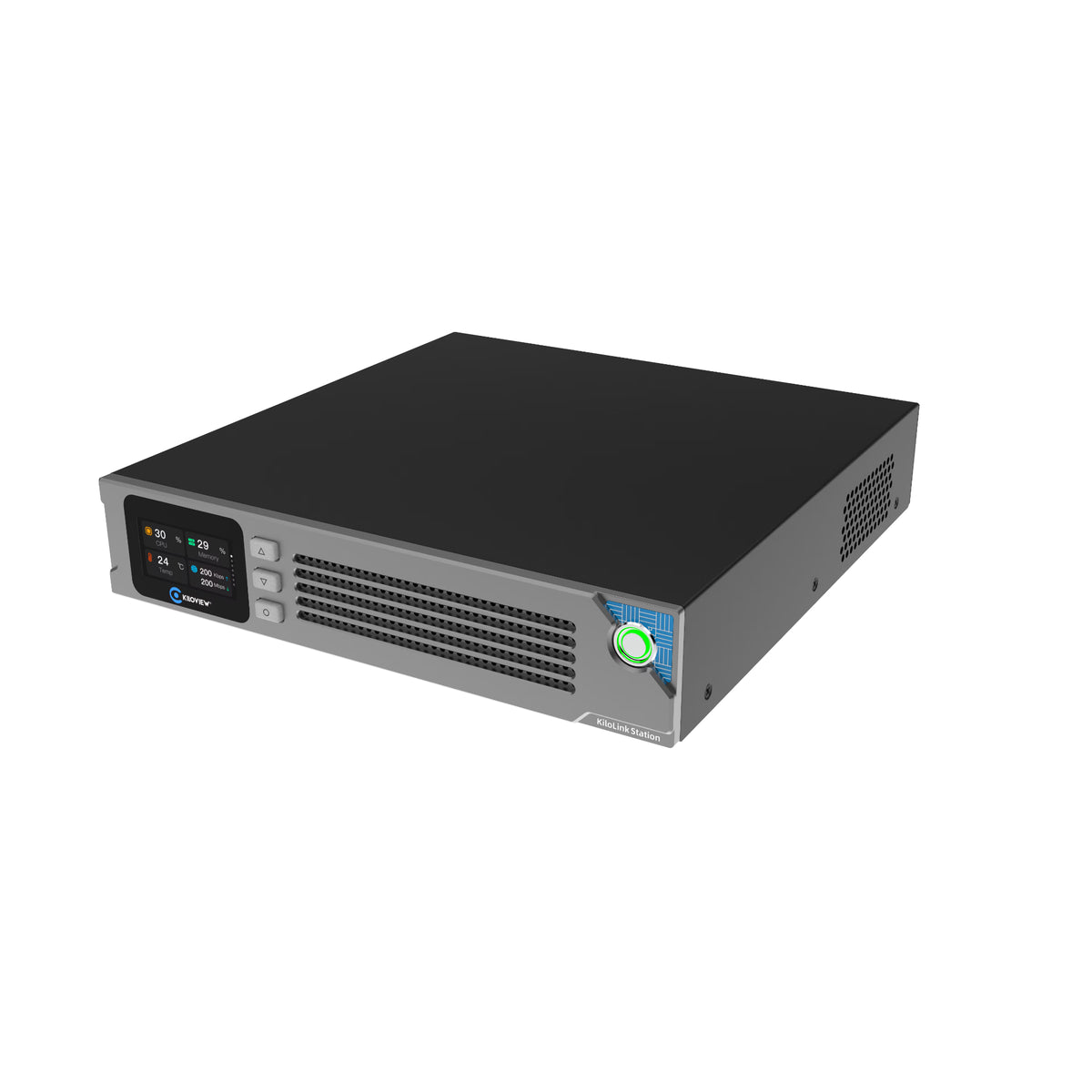

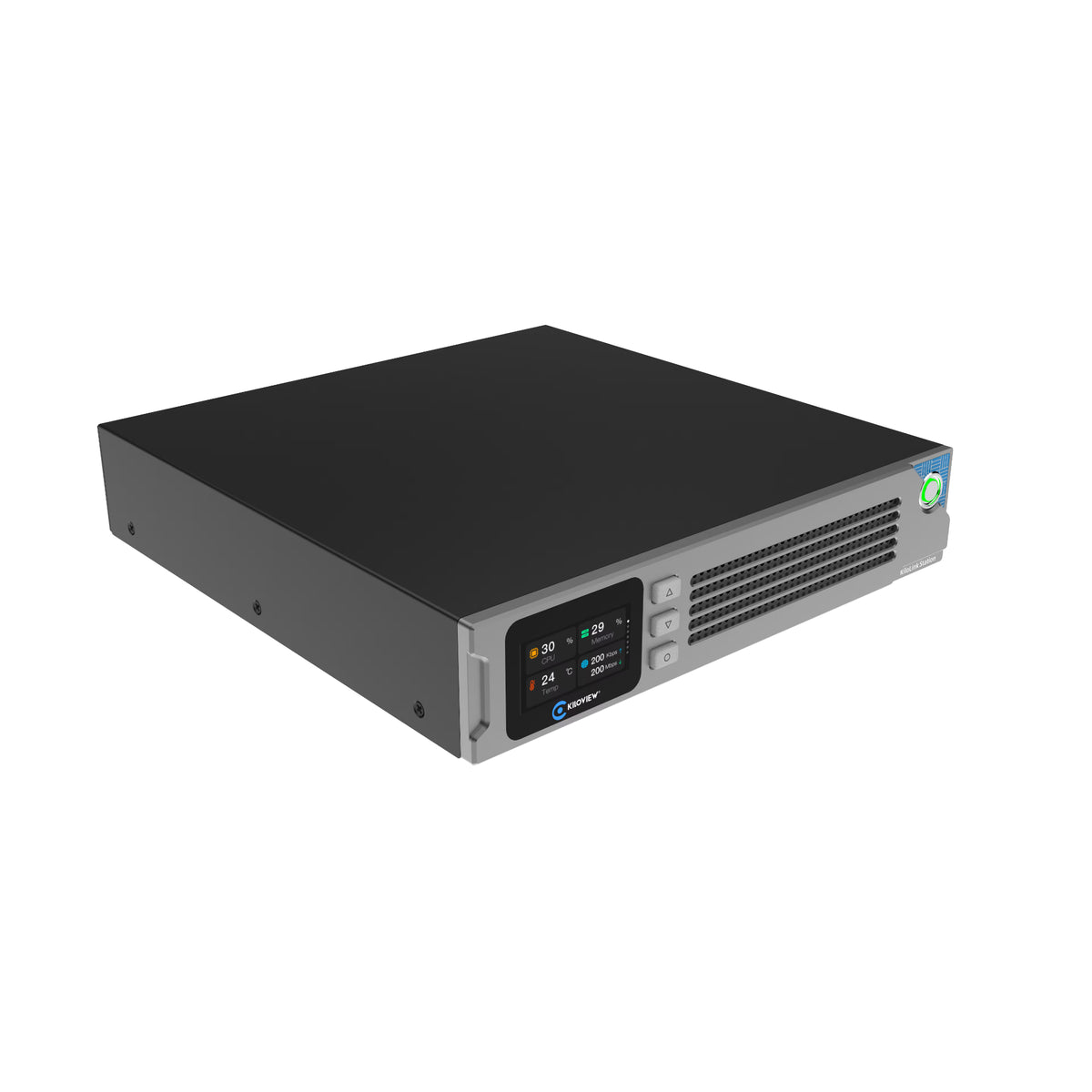

• Half-1U hardware design gives the system a cleaner footprint than a general-purpose server deployment
• Up to 8-channel bonding reception makes it suitable for multi-unit field contribution workflows
• Standard and Pro edition split allows buyers to match the platform to IP-only or SDI-integrated environments
• 5GbE and 1GbE networking provide dual-network connectivity for the platform
• Broad protocol support helps the receiver fit different streaming, transport, and production environments

What’s In The Box

Please refer to the Specifications tab for the exact included items.
