Kiloview FN-8 All-In-One Conversion Card

Kiloview FN-8 All-In-One Conversion Card is the kind of network conversion card that makes sense when HDMI sources, NDI workflows, streaming platforms, and PTZ control all need to live in the same system. It gives you dual HDMI connectivity, broad codec and protocol support, and the flexibility to move between traditional AV gear and IP-based production without piling on extra boxes.

Highlights

• Dual HDMI connectivity for practical ingest and conversion in computer-based and AV workflows
• Broad protocol support including NDI High Bandwidth, NDI HX2, NDI HX3, SRT, RTMP, RTSP, HLS, RTP, and TS-UDP
• 1080p and 720p support across common broadcast frame rates including 59.94, 29.97, and 23.98
• PTZ control ready with support for external camera control over IP protocols such as IP-VISCA
• Low power draw at ≤7W for efficient installation inside larger modular systems

Quick Specs & Uses

• Video input and output: 1920×1080 and 1280×720 at 60/59.94/50/30/29.97/25/24/23.98fps

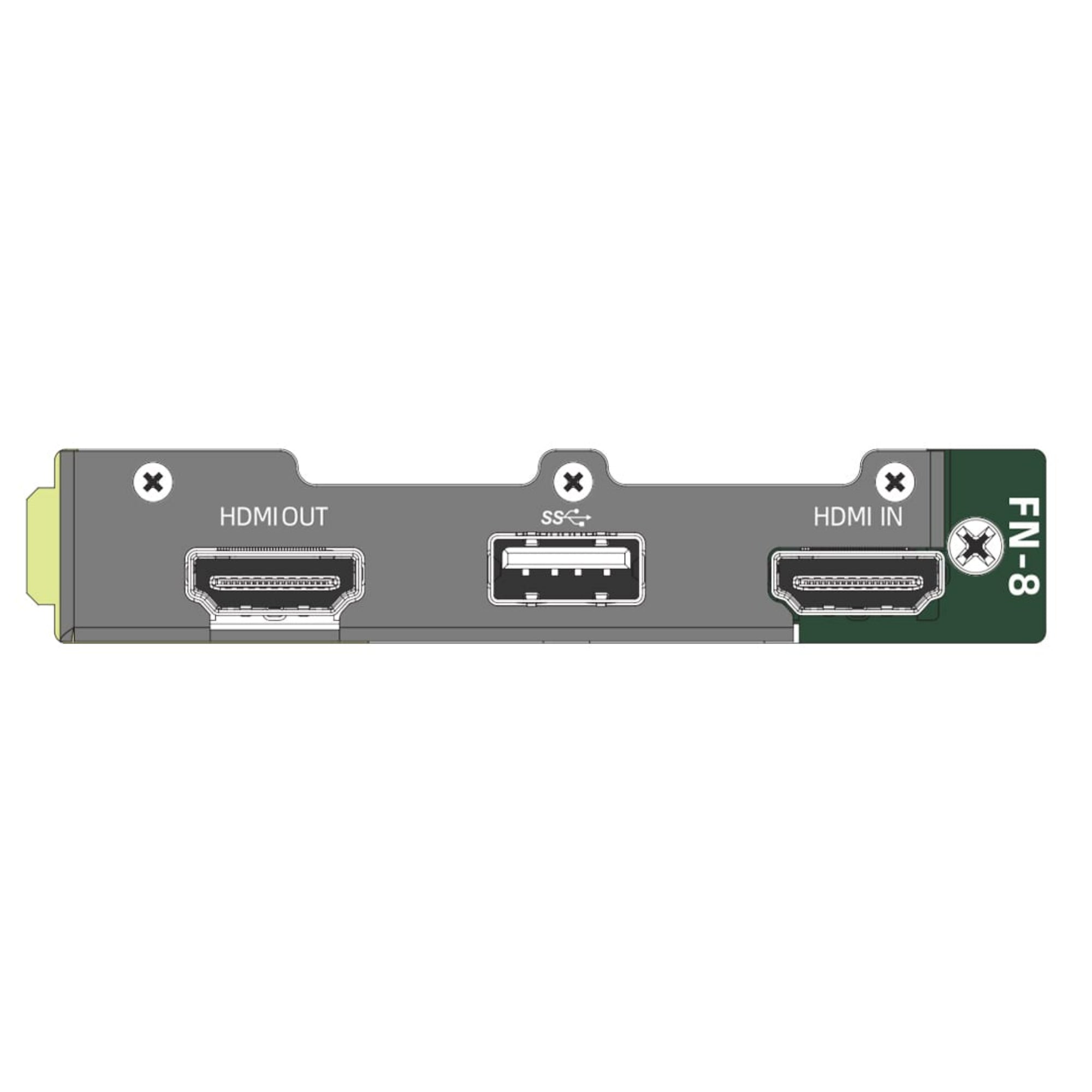

• Ports: 2× HDMI and 1× USB 3.0 Type-A
• Codecs: H.265 (HEVC), H.264 (AVC), and SpeedHQ (NDI)
• Color support: YCbCr 4:2:0, YCbCr 4:2:2, YUV 4:4:4, and RGB 4:4:4
• Audio formats: NDI Audio, AAC-LC, Opus, and G.711 a-Law/u-Law, with additional formats supported through software extension
• Network: 1 × PCIe Gigabit Ethernet (10/100/1000 Mbps, auto-negotiation)
• USB webcam input: supported
• Power: powered by RF02, with ≤7W power consumption
• Environmental: operating temperature -20°C to 45°C, storage temperature -20°C to 70°C

Why It Helps

The FN-8 is useful when your signal path starts with HDMI but your workflow does not stop there. It can bridge into NDI environments, support common streaming protocols, and keep PTZ control in play over the network. In practical terms, that means fewer separate devices, less cable clutter, and a cleaner handoff between AV, broadcast, and IP production layers.

System Characteristics

• Broadcast-friendly frame rates like 59.94, 29.97, and 23.98 are supported, which helps when the rest of the system already follows broadcast timing
• NDI High Bandwidth, HX2, and HX3 support gives you room to balance quality, latency, and bandwidth depending on the network
• Dual-channel audio encode/decode keeps the card practical for common stereo production and streaming workflows
• USB webcam input support helps when a workflow needs to connect traditional video systems with conferencing or software-based production tools
• Low power consumption makes it easier to scale multiple cards inside a larger frame without creating unnecessary thermal or power overhead

What’s In The Box

Please refer to your order configuration and the Specifications tab for the exact included items.
