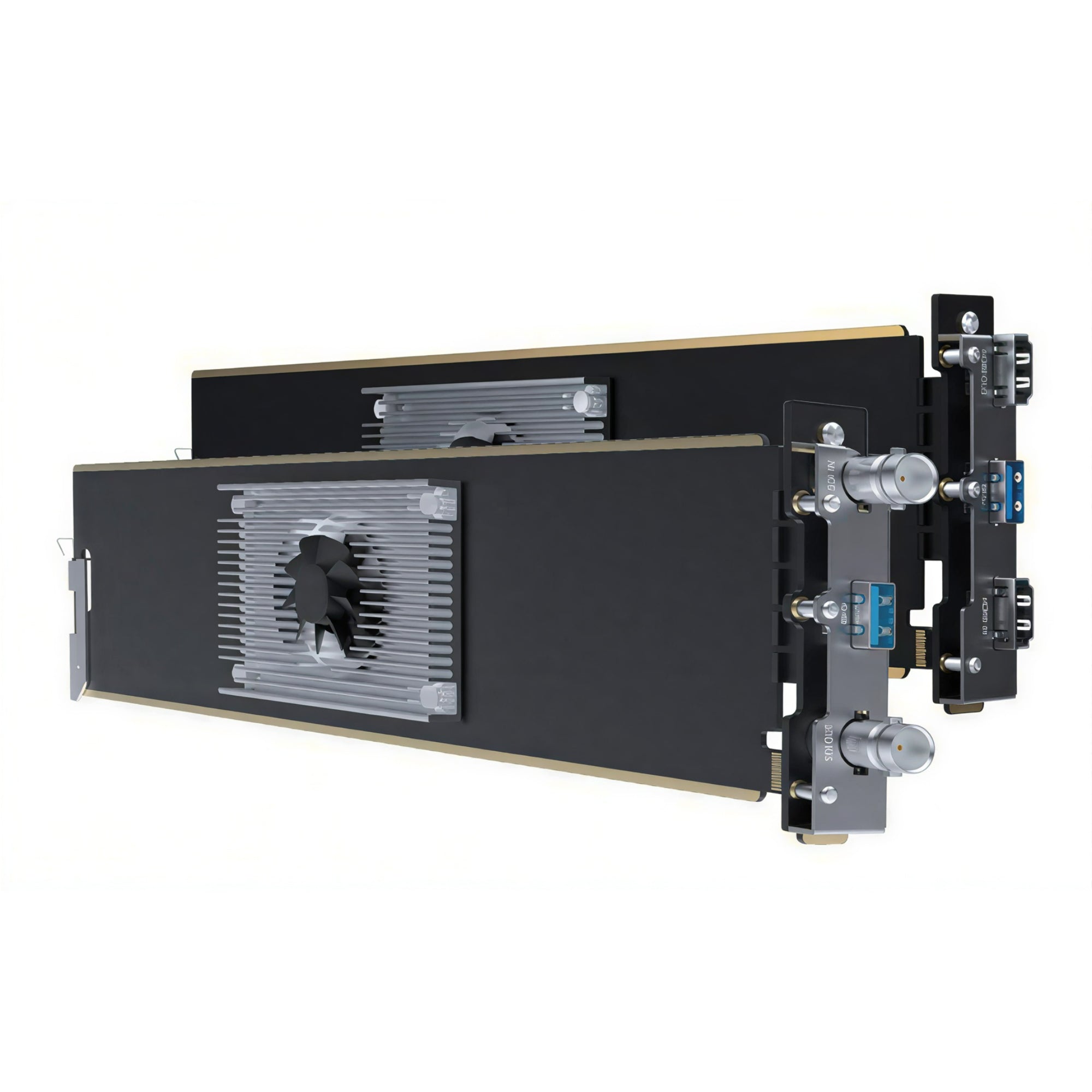

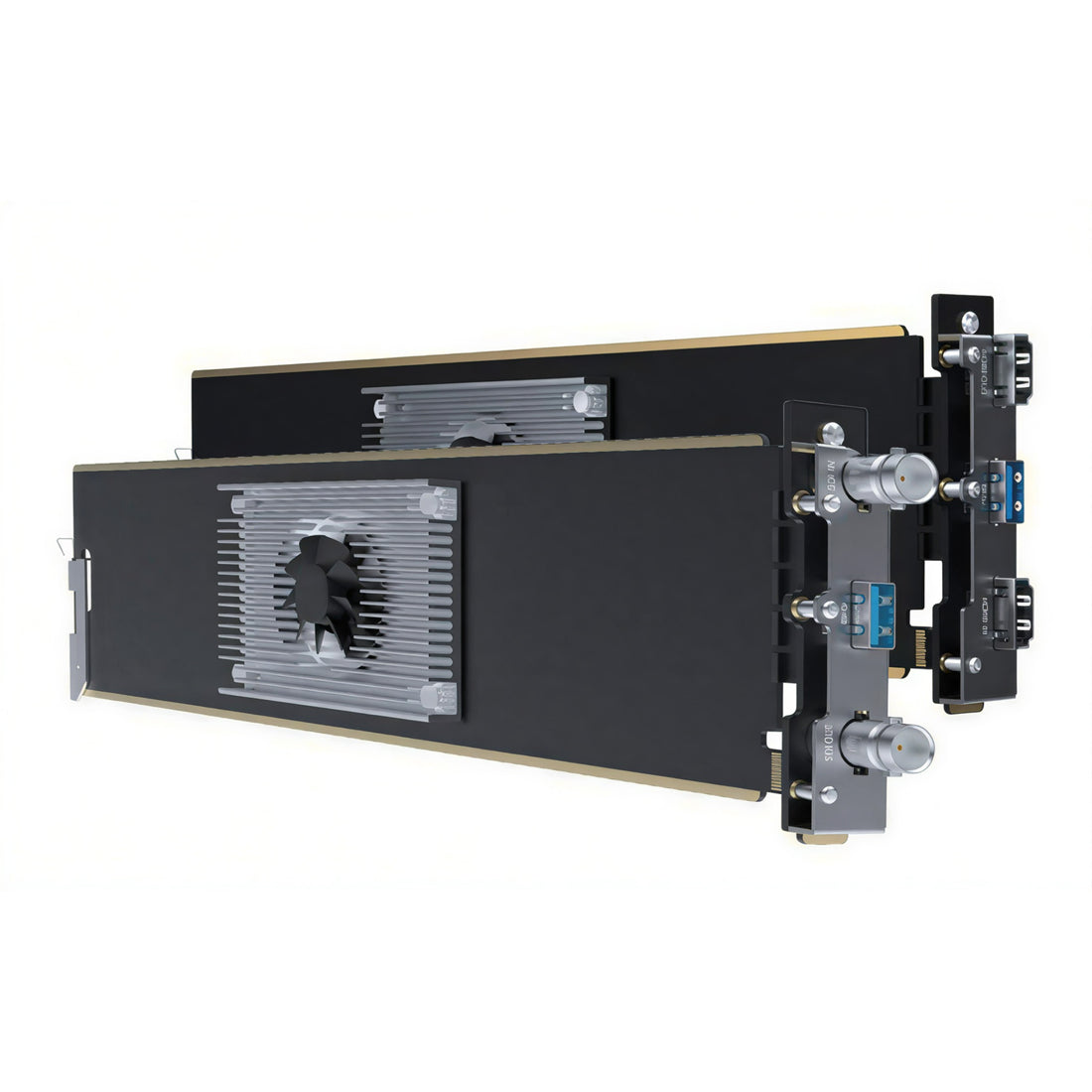

Kiloview FN-7 All-In-One Conversion Card

Kiloview FN-7 All-In-One Conversion Card is a compact network conversion card built for facilities that need SDI, NDI, and streaming protocols to live in the same workflow without turning signal routing into a science project. With dual 3G-SDI ports, broad protocol support, and practical PTZ control over IP, it is aimed at the kind of jobs where one card needs to do more than one trick.

Highlights

• Dual 3G-SDI connectivity for broadcast-style video ingest and conversion workflows
• Wide protocol support, including NDI High Bandwidth, NDI HX2, NDI HX3, SRT, RTMP, RTSP, HLS, RTP, and TS-UDP
• 1080p and 720p support across common broadcast frame rates, including 59.94, 29.97, and 23.98
• PTZ-ready control with support for external camera control over network protocols such as IP-VISCA
• Low power draw at ≤7W for efficient integration inside larger system frames

Quick Specs & Uses

• Video input and output: 1920×1080 and 1280×720 at 60/59.94/50/30/29.97/25/24/23.98fps

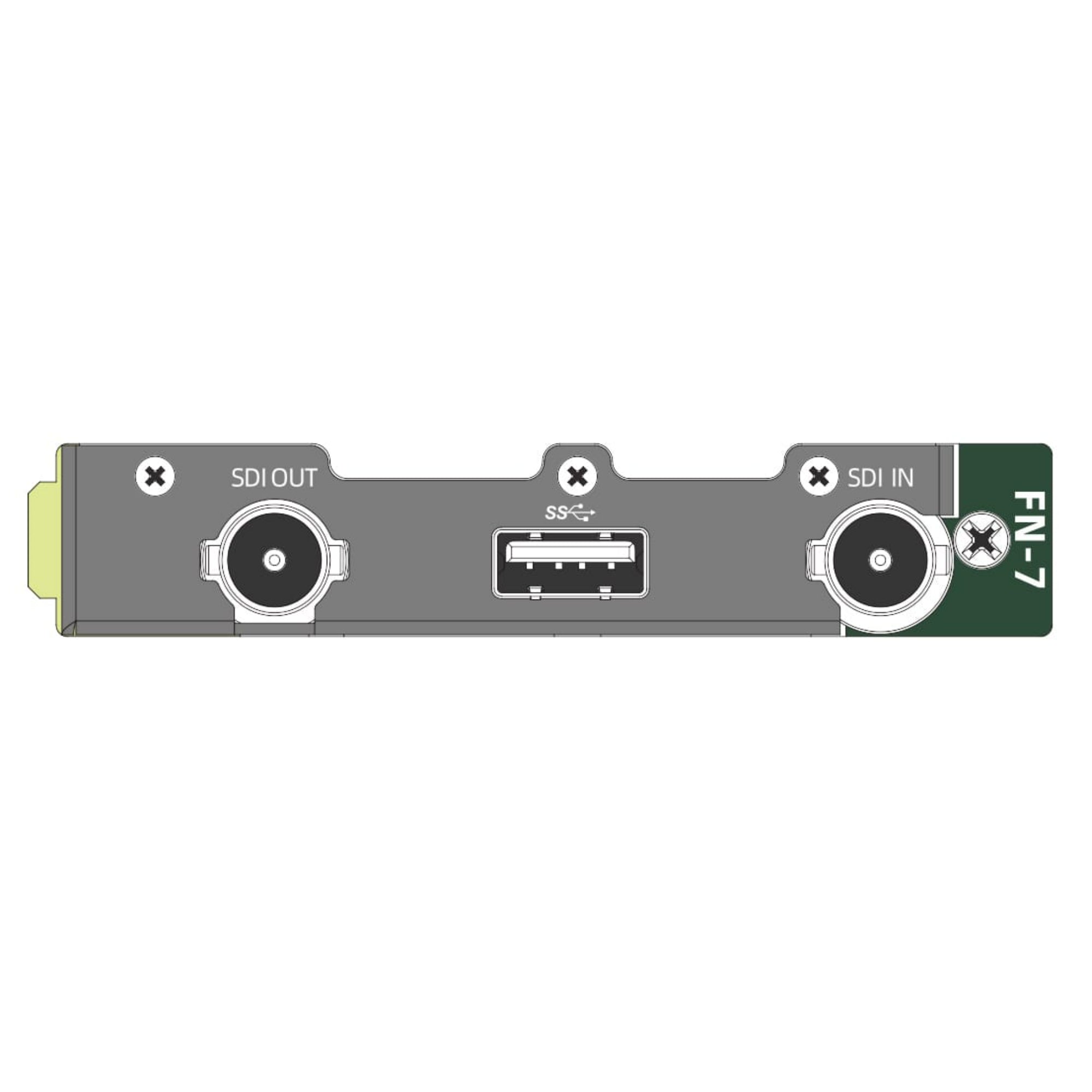

• Ports: 2× 3G-SDI and 1× USB 3.0 Type-A
• Codecs: H.265 (HEVC), H.264 (AVC), and SpeedHQ (NDI)
• Color support: YCbCr 4:2:0, YCbCr 4:2:2, YUV 4:4:4, and RGB 4:4:4
• Audio formats: NDI Audio, AAC-LC, Opus, and G.711 a-Law/u-Law, with additional formats supported through software extension
• Network: 1 × PCIe Gigabit Ethernet (10/100/1000 Mbps, auto-negotiation)
• USB webcam input: supported
• Power: powered by RF02, with ≤7W power consumption
• Environmental: operating temperature -20°C to 45°C, storage temperature -20°C to 70°C

Why It Helps

This card makes sense when your workflow has to cross between baseband video, NDI environments, and common streaming platforms without adding a stack of external boxes. In practical terms, it gives you the flexibility to move 3G-SDI sources into IP-based production paths, handle standard streaming protocols, and keep PTZ control in the same conversation instead of building it as a separate layer.

System Characteristics

• Broadcast-friendly frame rates like 59.94, 29.97, and 23.98 are supported, which matters when you are matching existing production standards.
• NDI High Bandwidth, HX2, and HX3 support gives you room to choose between higher quality and lower bandwidth workflows, depending on the network
• Dual-channel audio encode/decode keeps the card practical for common stereo production chains.
• USB webcam input support adds flexibility when a system has to bridge traditional AV and computer-based collaboration tools
• Low power consumption makes it easier to scale inside larger modular systems without creating a heat or power budget headache.

What’s In The Box

Please refer to your order configuration and the Specifications tab for the exact included items.
