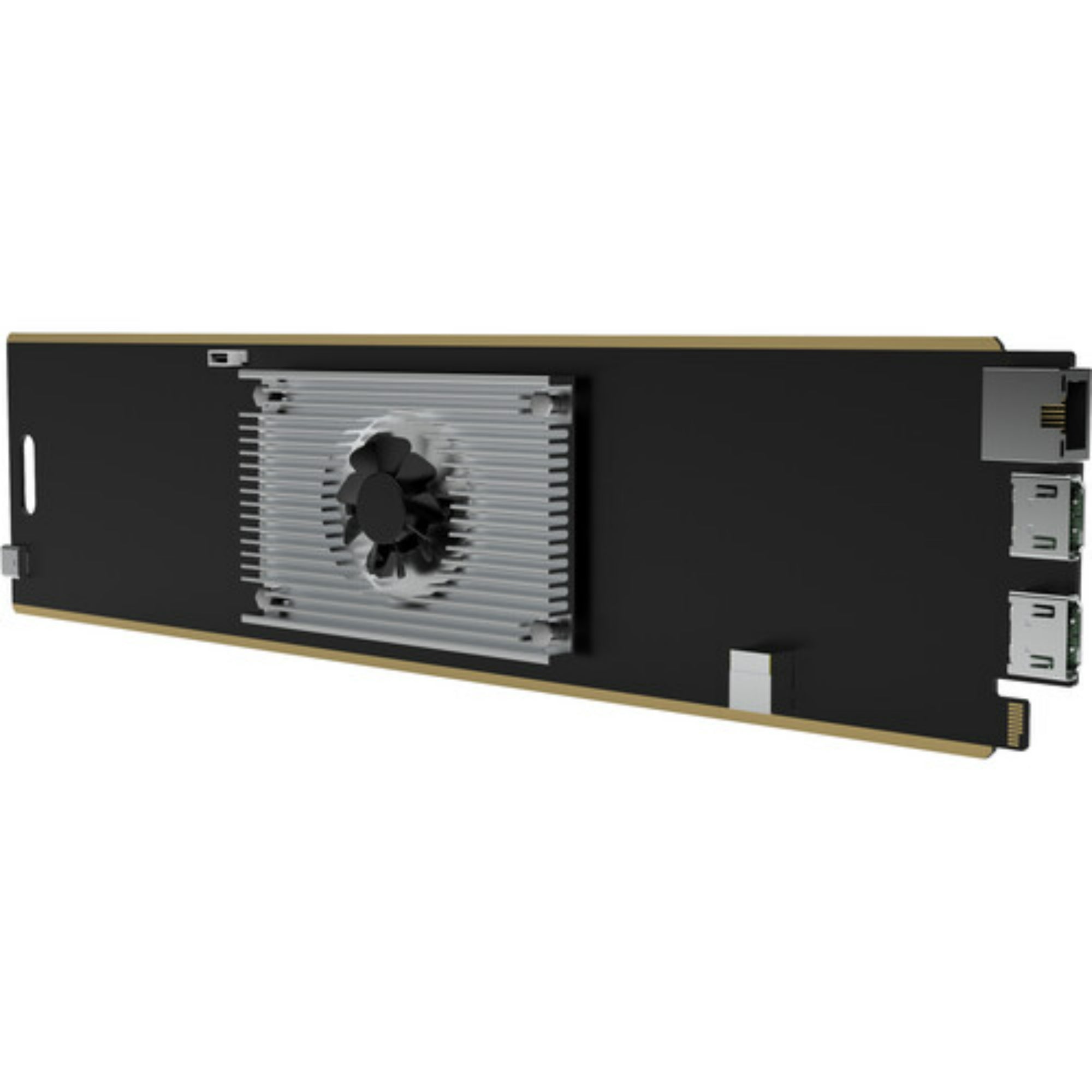

Kiloview FN-60 Rackmount Card for N60

Kiloview FN-60 Rackmount Card for N60 is an HDMI-based encoder/decoder designed for UHD IP video workflows where HDMI is the primary interface and you still need professional IP transport options. It supports up to 4Kp60 on both HDMI input and output, and bridges baseband video into IP using SpeedHQ (NDI), H.264, or H.265.

Highlights

• 4Kp60 HDMI input and HDMI output with output used for decoding or loop-out for encoding
• Codec flexibility with SpeedHQ (NDI), AVC (H.264), and HEVC (H.265)
• NDI and IP workflow support including NDI-H, NDI-HX2, NDI-HX3, plus SRT/RTSP/RTMP/HLS/UDP
• HDR support with 8-bit and 10-bit color depth options across NDI-HB/NDI-HX/NetStream
• Dual Gigabit Ethernet with Ethernet 2 reserved for internal/RF02 communication

Quick Specs & Uses

• UHD/HD formats: HDMI input and output up to 3840×2160p60 with common HD and 720p formats
• Interlaced support: Not supported (progressive-only workflows)
• Color handling: Encoding supports YCbCr 4:2:0 and 4:2:2; decoding supports YCbCr 4:2:2, YUV 4:4:4, and RGB 4:4:4
• Audio: NDI Audio and AAC-LC supported (plus other software expansion)
• Recording & control: NAS recording supported and network PTZ control supported

Why It Helps

FN-60 is the clean option when your world is HDMI but your distribution is IP. It keeps the signal path simple: one HDMI in, one HDMI out, and IP protocols available for contribution and delivery. In real deployments, that means fewer adapters, fewer workflow “workarounds,” and faster troubleshooting when something changes mid-show.

System Characteristics

• Designed for progressive UHD/HD pipelines (interlaced formats are not supported)
• Supports HDR plus 8-bit and 10-bit operation across NDI-HB, NDI-HX, and NetStream
• Dual Ethernet design includes a dedicated internal/RF02 communication interface
• NAS recording support enables centralized capture workflows
• Network PTZ control support fits IP camera control environments

What’s In The Box

FN-60 unit. Please refer to the Specifications tab for the exact included items.
