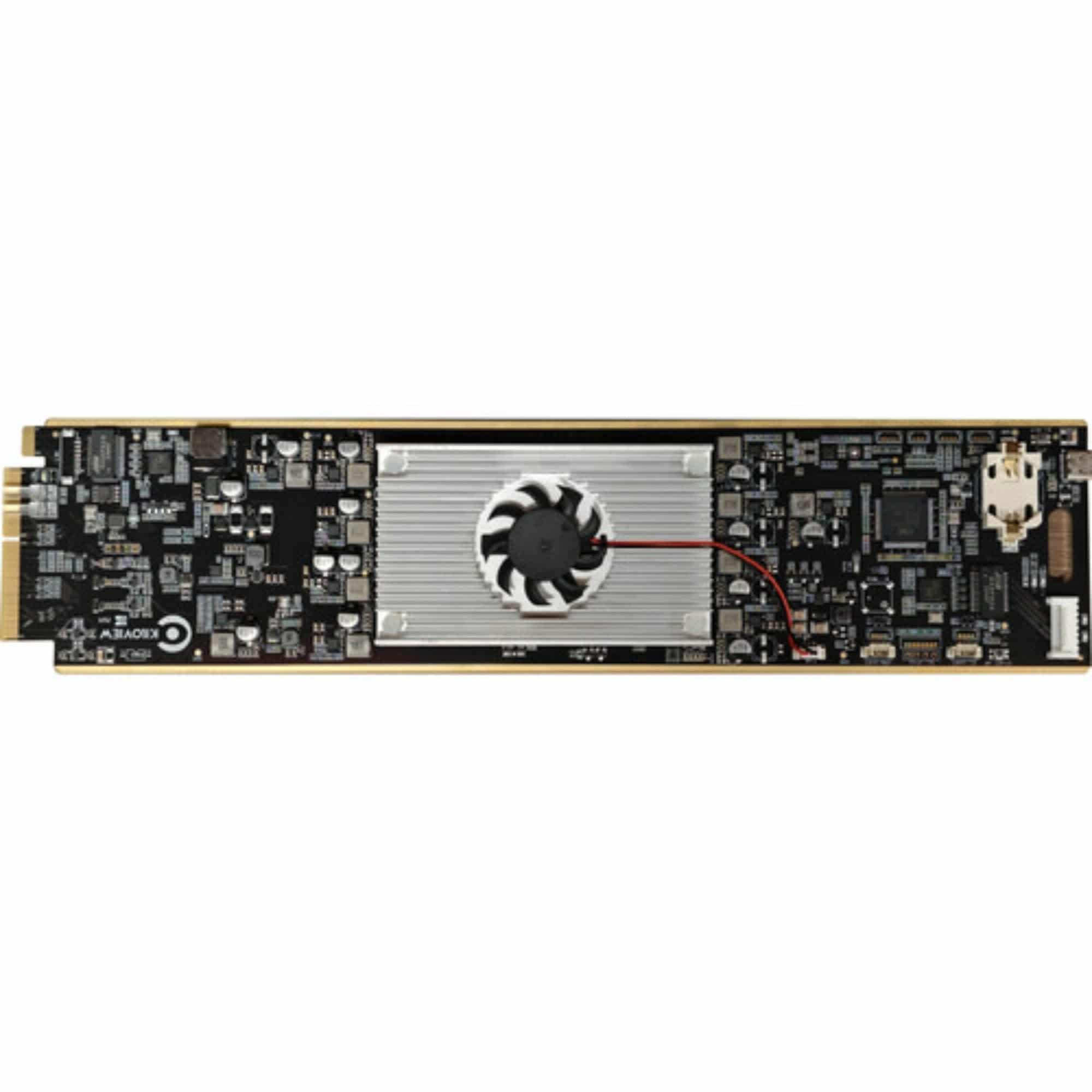

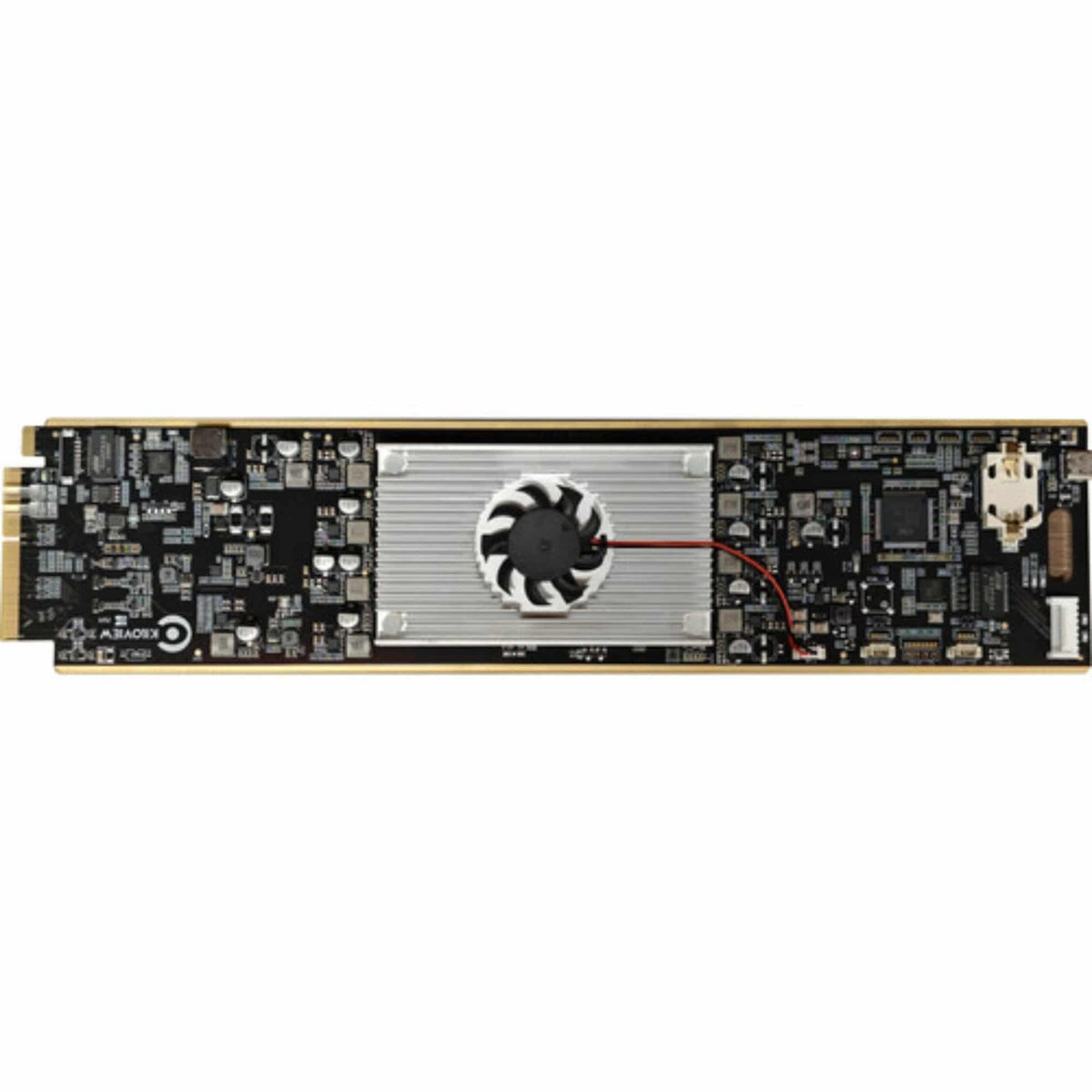

Kiloview FMG-400 Media Gateway Service Card

Kiloview FMG-400 is a compact IP video gateway built for situations where you need to ingest, decode, and convert between common production protocols without building a patchwork of single-purpose boxes. It supports NDI and NDI HX workflows alongside SRT, RTMP, RTSP, RTP, UDP, HLS, and is positioned for additional protocol conversion via customizable SIP/GB-T28281.

Highlights

• Wide protocol I/O including NDI, NDI HX, SRT, RTMP, RTSP, RTP, UDP, and HLS
• NDI SpeedHQ and H.264/H.265 handling with decoding support for SpeedHQ (NDI), AVC, and HEVC
• Defined encode performance up to 4Kp30 at 200 Mbps (H.264/H.265, Level 5.1 Main Tier)
• Multi-channel transcoding paths for cross-conversion and SHQ conversion use cases
• Remote management and control via Web UI plus Web/HTTP API

Quick Specs & Uses

• Encode performance: H.264/H.265 up to 4Kp30 200 Mbps (Level 5.1 Main Tier); ITU-T H.264 up to Level 5.2
• Transcoding: H.264/H.265 cross conversion up to 3× 1080p60 or 1× 4Kp30 output
• NDI conversion: SHQ to H.264/H.265 up to 3× 1080p60 or 1× 4Kp30 output
• Reverse conversion: H.264/H.265 to SHQ up to 1× 4Kp30 or 1× 1080p60 output
• Platform: Linux 5.10 with KiloLink Server RF version, 8-core ARM64 (Cortex A73 @ 1.8GHz), 12GB DDR4, 16GB EMMC

Why It Helps

In real production networks, the hardest part is not getting a stream to work once. It is keeping streams consistent as sources change, protocols differ, and delivery requirements stack up. FMG-400 is built around that reality: protocol flexibility, clear encode ceilings, and defined conversion modes so you can plan your pipeline instead of guessing where it breaks.

System Characteristics

• Grid support is listed up to 4-grid layouts, but is noted as unavailable in the current version (future update feature)
• Audio decode supports PCM, AAC, and G.711 with PCM sample range listed from 8k to 192kHz (8/16/24-bit)
• Thermal behavior includes active fan cooling with automatic temperature control
• Control plane supports Web UI management plus Web/HTTP API for integration
• The release note indicates final capabilities will be determined by the final official release

What’s In The Box

The package contents are not listed in the provided source. Please refer to the Specifications tab or official kit listing for included items.
