Product Highlights
- 4K HDMI and 3G-SDI Output
- Up to 12× 1080p60 Decodes
- NDI, SRT, RTMP Protocol Support
- 16-Window Hardware Multiview Monitoring
Kiloview FD-360 4K Multi-functional Decoding Card
- SKU:
- FD-360
- MPN:
- FD-360
Ships in 1-3 Business Day
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Product Inquiry Form
Description
Product Overview

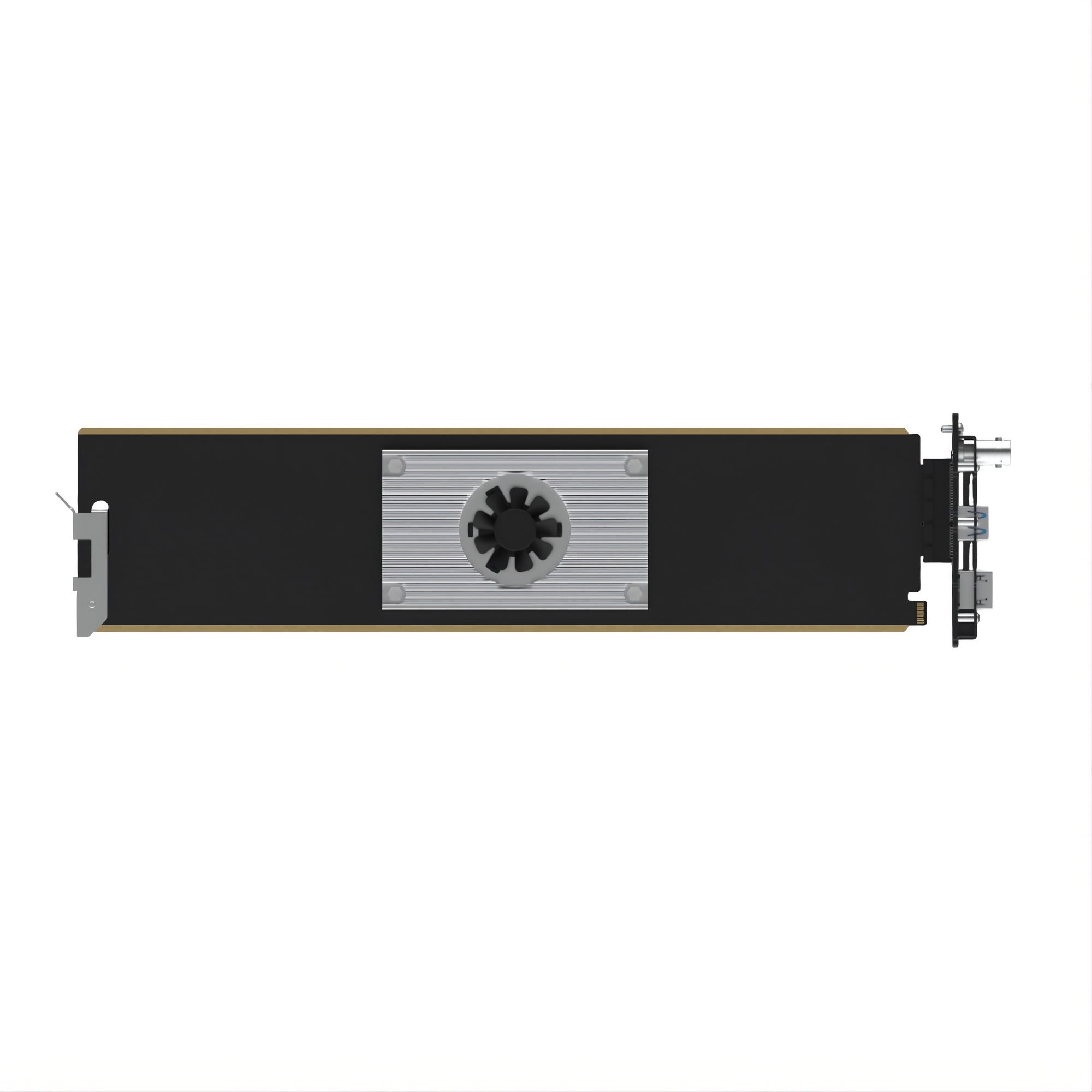

Kiloview FD-360 is a 4K multi-functional decoding card for high-density IP video decoding, multiview monitoring, processing, and baseband output in the RF02 platform. It handles H.264, H.265, NDI High Bandwidth, NDI HX, SRT, RTMP, RTSP, HLS, UDP, and RTP workflows while providing HDMI and 3G-SDI video output. Up to 12 channels of 1080p60 H.264/H.265 video can be decoded simultaneously, while the web interface supports up to 16 real-time preview windows. For broadcast, live production, streaming, and professional AV systems, the card consolidates network decoding and monitoring into a centrally managed rackmount architecture.
4K IP Video Decoder for Multi-Stream Production

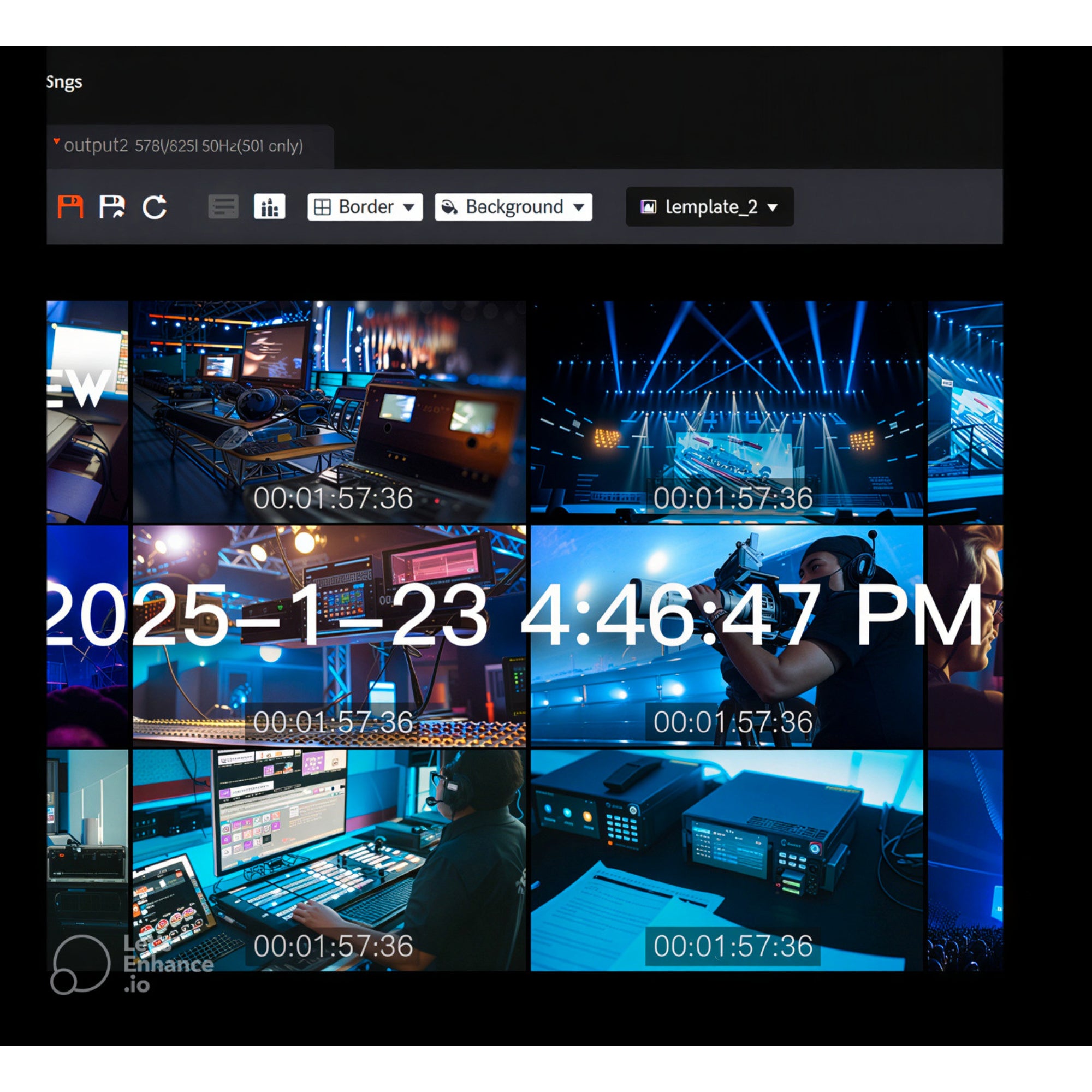

The 4K IP video decoder is designed for high-density network video workflows where several compressed sources need to be monitored or returned to baseband video. H.264 and H.265 decoding supports up to 12 channels of 1080p60 or up to two channels of 4K UHD at 60 fps. SpeedHQ NDI High Bandwidth decoding supports up to seven channels of 1080p60 or one 4K UHD source at 30 fps. This capacity fits multi-camera production, control-room monitoring, sports facilities, and centralized AV systems.
Multi-Protocol NDI Decoder for Hybrid IP Workflows

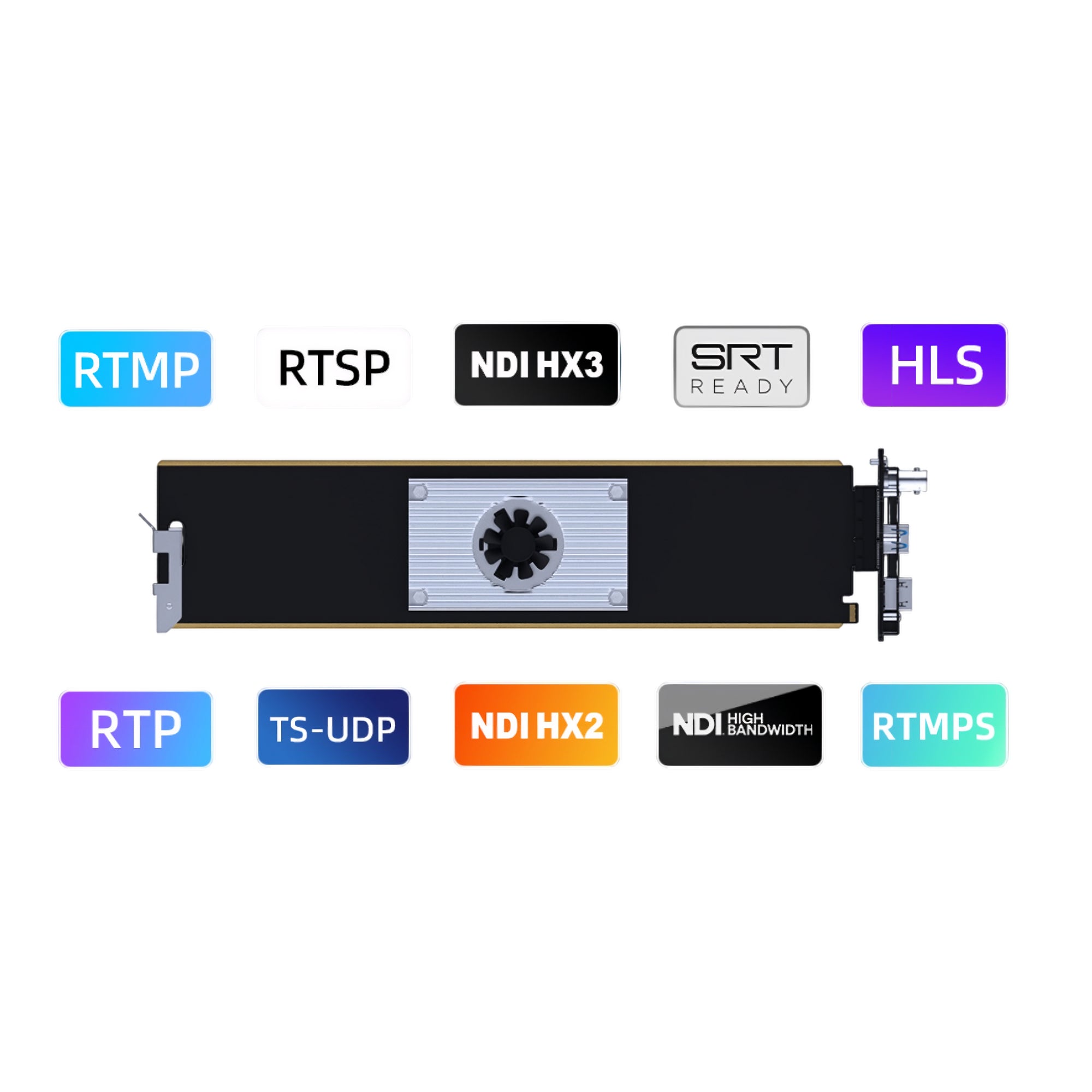

The multi-protocol NDI decoder supports production networks that combine several transport standards instead of relying on one IP format. Protocol compatibility includes NDI High Bandwidth, NDI HX, NDI HX3, SRT, RTMP, RTMPS, HLS, TS over UDP, RTP, and RTSP. Engineers can therefore decode LAN production feeds, remote contribution streams, and streaming-oriented sources through the same RF02-based hardware platform. This flexibility is useful for broadcast facilities, live events, remote production, and streaming studios.
Hardware NDI Multiviewer with 16-Window Preview

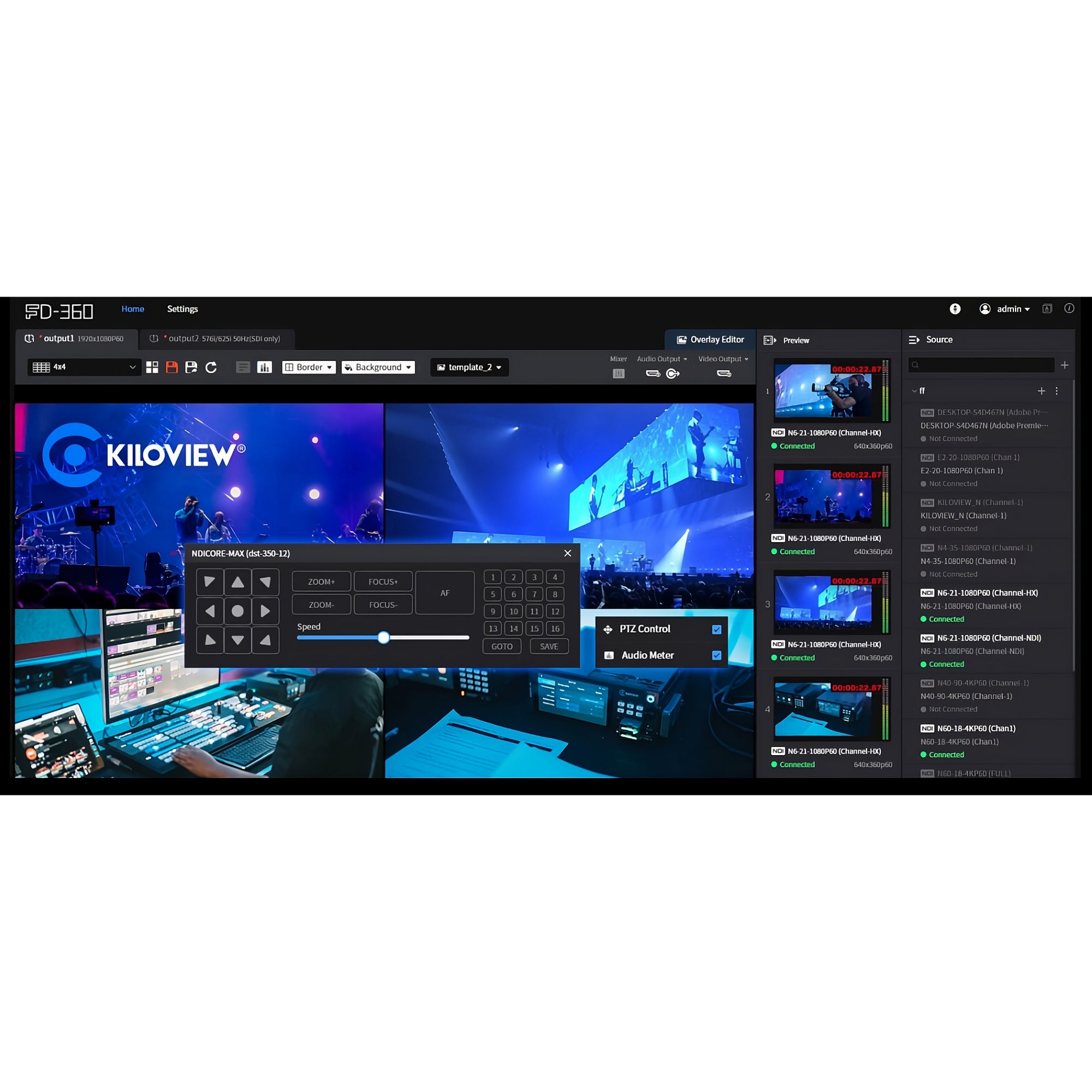

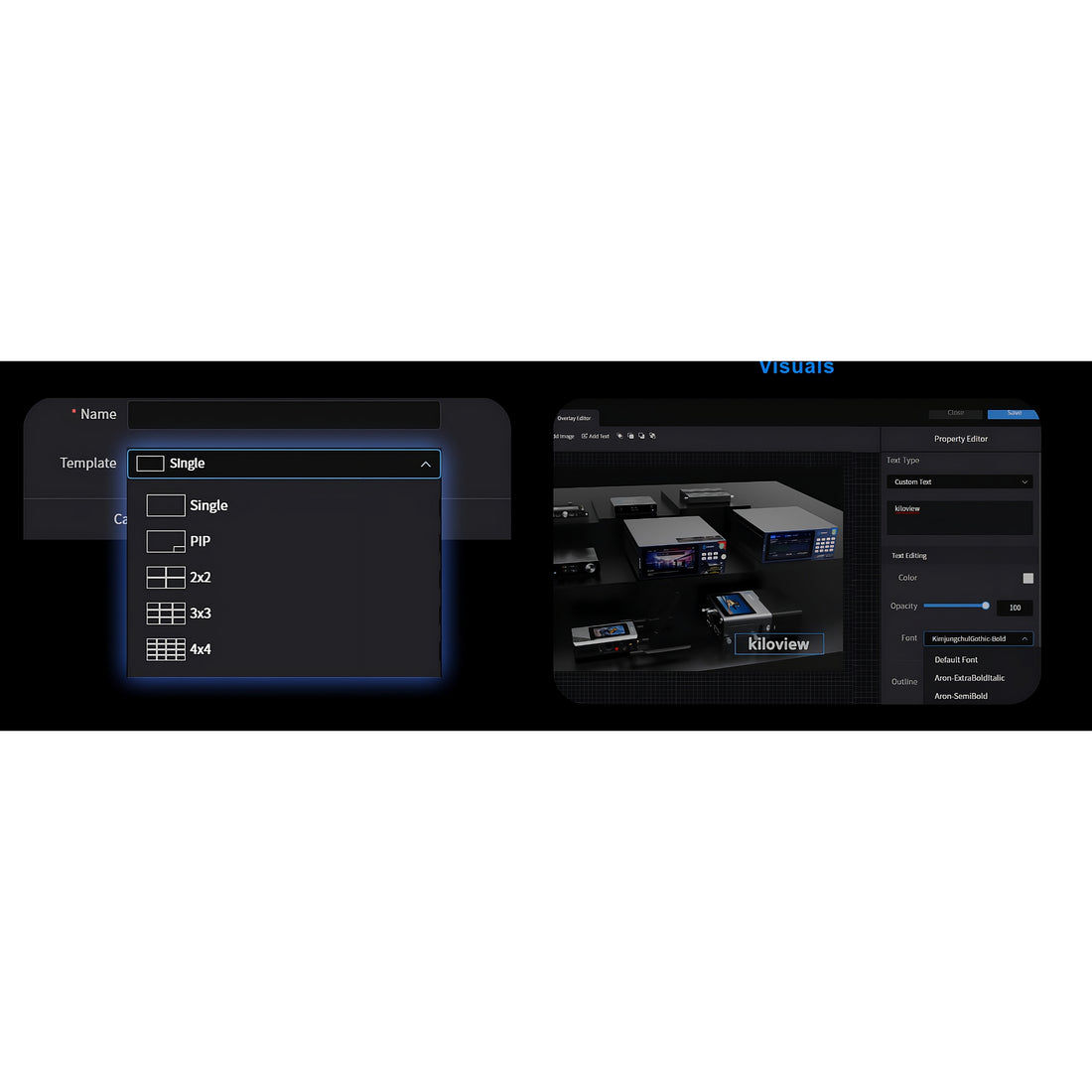

The hardware NDI multiviewer supports up to 16 real-time preview windows through the browser-based interface. Operators can monitor local and remote IP video streams, then switch a selected preview source to the corresponding physical output without adding a separate monitoring workstation. Flexible layouts support single-screen, split-screen, picture-in-picture, and customized multi-window configurations. VU meters and reverse PTZ control further consolidate routine monitoring and camera control tasks into the same interface.
4K HDMI and 3G-SDI Decoder Output

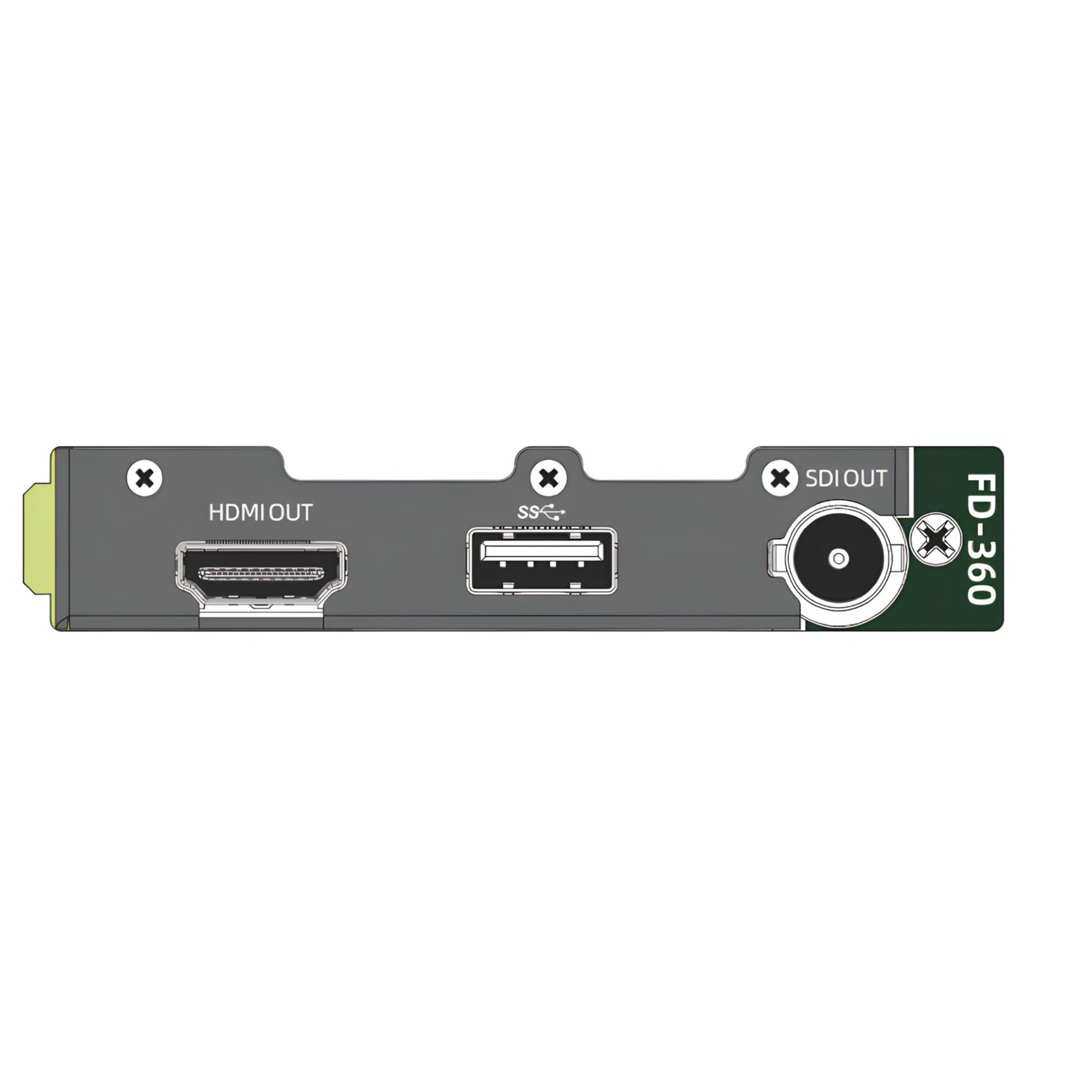

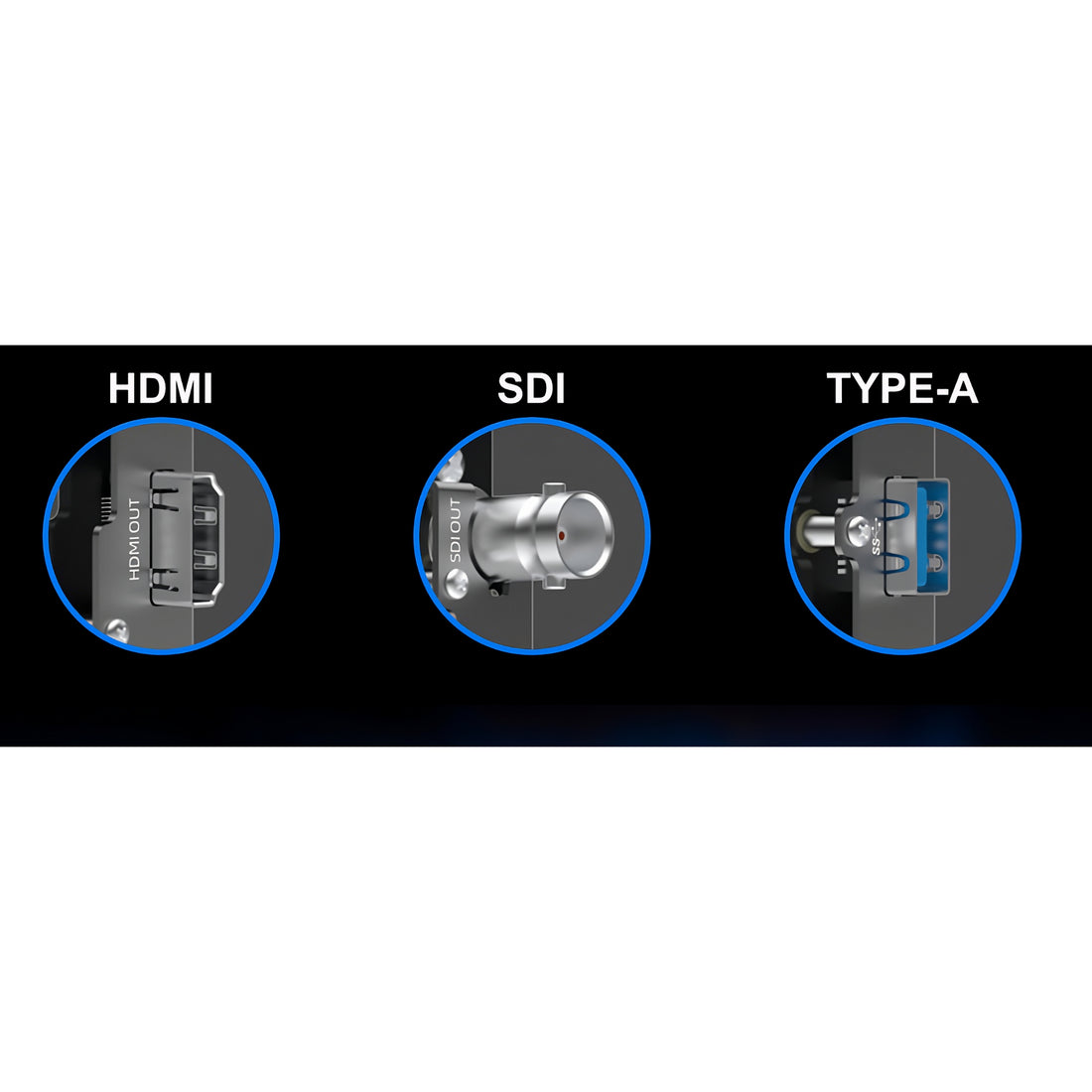

The HDMI and 3G-SDI decoder outputs convert network sources back into conventional production signals for downstream equipment. HDMI supports resolutions up to 3840×2160 at 60 Hz, while 3G-SDI supports up to 1920×1080 at 60 Hz. The outputs can carry identical or distinct decoded feeds, and parameters such as resolution, progressive or interlaced scanning, and frame rate can be adjusted for the destination. This provides a practical bridge to production switchers, SDI routing systems, UHD displays, confidence monitors, and presentation systems.
Multi-Channel Audio Decoding with Mixing and Gain
Multi-channel audio decoding is integrated into the same processing workflow as the video sources. Supported formats include AAC, MPEG-4, MPEG-2, G.711, Opus, LPCM, and NDI, with audio available through embedded HDMI or SDI output. The USB 3.0 Type-A connection can also support expanded analog audio interfaces for de-embedding. Source selection, audio mixing, and gain adjustment help operators manage monitoring and program audio without adding a separate audio decoder.
RF02 Decoding Card for Centralized Management
The RF02 decoding card integrates directly with Kiloview's Cradle Series RF02 to create a dense rackmount encoding and decoding environment. The RF02 internal network reduces external cabling and lets installed service cards operate within one managed platform. Centralized management supports real-time device monitoring, batch configuration, and upgrades. This approach is well suited to broadcast machine rooms, production trucks, campus AV systems, and installations where rack density and serviceability are priorities.
SRT and NDI Decoder for Broadcast IP Networks
An SRT and NDI decoder gives broadcast engineers a common hardware endpoint for production-network video and compressed contribution streams. NDI High Bandwidth and NDI HX address local IP production sources, while SRT provides another option for contribution and remote-production transport. RTMP, RTMPS, HLS, RTP, RTSP, and TS over UDP broaden compatibility with common streaming and network-video systems.
The FD-360 also supports RTMP Server operation, allowing an encoder to connect directly to the decoder without requiring an intermediate relay platform. Combined with HDMI and SDI output, this makes the card useful where IP transport is preferred between locations but conventional video connectivity is still required at the destination.
H.264/H.265 Decoding
Up to 12× 1080p60 or 2× 4K UHD 60 fps
NDI High Bandwidth
Up to 7× 1080p60 or 1× 4K UHD 30 fps
Video Outputs
HDMI up to 3840×2160 60 Hz · 3G-SDI up to 1080p60
Multiview
Custom 1/2/3/4/5/6/7/8/9/16-screen layouts
NDI Multiview Monitoring for Live Broadcast
Bring multiple NDI and IP sources into an RF02 deployment and monitor them through a customized browser-based multiview. A selected feed can then be routed to HDMI or 3G-SDI for a monitor, switcher, or downstream production system.
4K Decoder Output for Live Events
Decode network-delivered program, camera, or presentation feeds and return them to HDMI or SDI at the destination. This is useful when IP transport simplifies venue distribution but conventional AV interfaces are still required at displays and production positions.
IP Video Decoding for Centralized AV
Centralized facilities can decode network video for conference rooms, overflow spaces, monitoring positions, and presentation systems from the RF02 rack. Multi-protocol support helps accommodate mixed source types while keeping the decoding infrastructure consolidated.
Broadcast Engineers
For facilities that need dense IP and NDI decoding with SDI or HDMI handoff to existing broadcast infrastructure.
Live Production Teams
For crews managing multiple network feeds that require real-time preview, switching, and physical video output.
Sports Venues
For control rooms and production spaces that need to monitor several IP feeds through one rackmount platform.
Streaming Studios
For NDI, SRT, RTMP, and RTSP workflows that need hardware decoding without another dedicated computer.
Corporate AV Teams
For centralized conference, presentation, monitoring, and campus video distribution environments.
Systems Integrators
For RF02 deployments that require modular decoding, multiview monitoring, and mixed HDMI and SDI endpoints.
| Specification | Detail |
|---|---|
| Model | FD-360 |
| H.264/H.265 Decoding | Up to 12 channels of 1080p @ 30fps; up to 12 channels of 1080p @ 60fps; up to 2 channels of 4K UHD @ 60fps |
| SpeedHQ NDI High Bandwidth Decoding | Up to 7 channels of 1080p @ 60fps; up to 1 channel of 4K UHD @ 30fps |
| Video Port | 1× HDMI up to 3840×2160 @ 60Hz; 1× 3G-SDI up to 1920×1080 @ 60Hz |
| Video Decoding | H.265 HEVC; H.264 AVC; SpeedHQ NDI |
| Protocol Support | NDI High Bandwidth; NDI HX; HX3; SRT; RTMP; RTMPS; HLS; TS over UDP; RTP; RTSP |
| Multi-View Layouts | Custom 1/2/3/4/5/6/7/8/9/16-screen layouts |
| Audio Decoding | AAC; MPEG-4; MPEG-2; G.711; Opus; LPCM; NDI |
| Audio Output | HDMI/SDI embedding or expanded analog audio interfaces via USB 3.0 Type-A |
| Network Port | 1× adaptive PCI-E 10/100/1000 Mbps |
| OSD/Graphics Overlay | Custom background images plus text and graphics overlay |
| Management | Web-based control or KiloLink Server centralized management |
| Voice Intercom | Supports USB headsets and communication via Kiloview Intercom System KIS |
| PTZ Control | Reverse PTZ control support |
| USB Port | 1× USB 3.0 Type-A |
