Kiloview AVX24-4 Media HUB

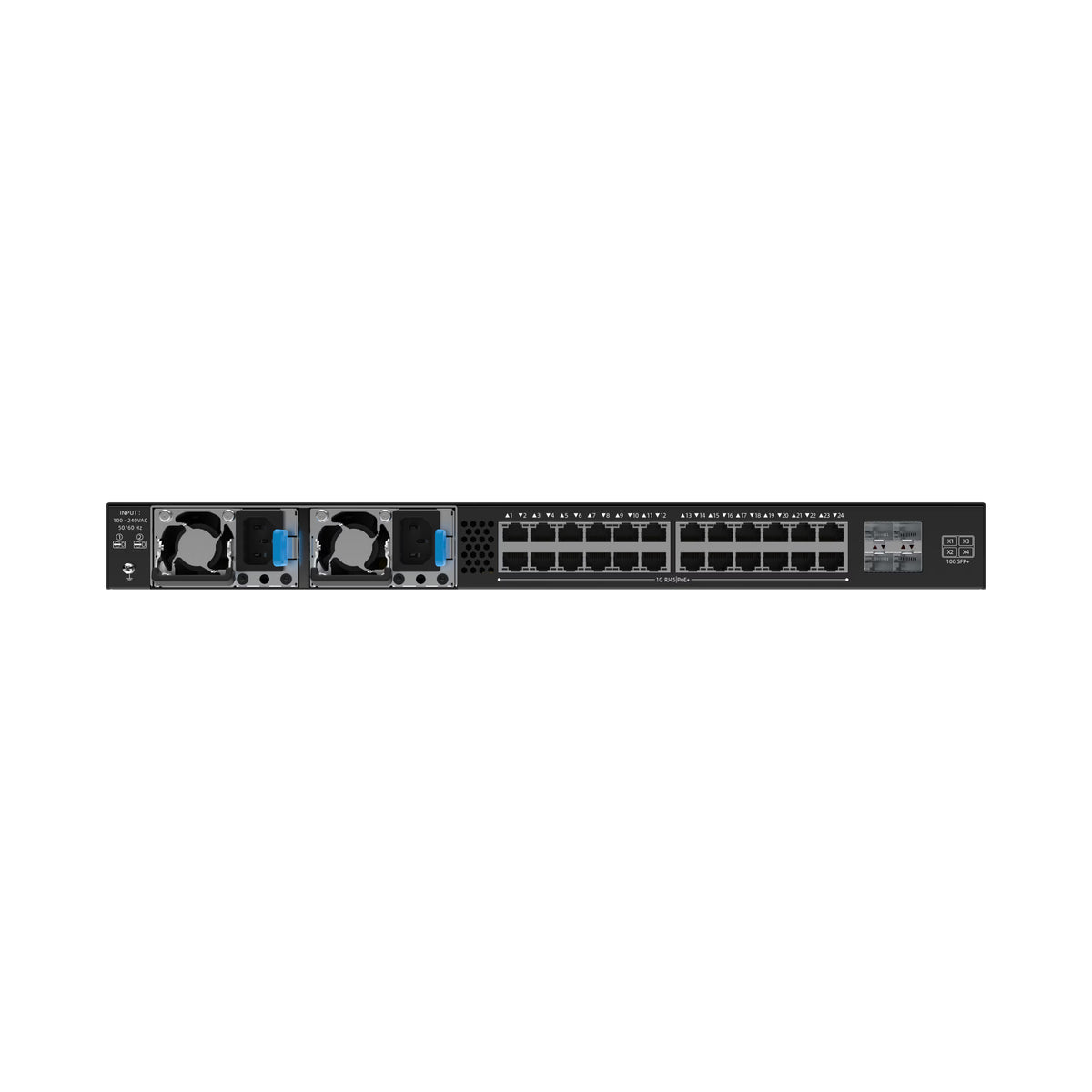

Kiloview AVX24-4 Media HUB is the kind of network core you build around when an AV-over-IP system needs real port density, powered endpoints, management access, and backbone bandwidth in one chassis. Based on the image source, it combines 24x RJ45 Gigabit ports with full PoE, 4x 10G SFP+, and dual redundant 920W hot-swappable power supplies, which makes it a strong fit for media networks where reliability and endpoint count both matter.

Highlights

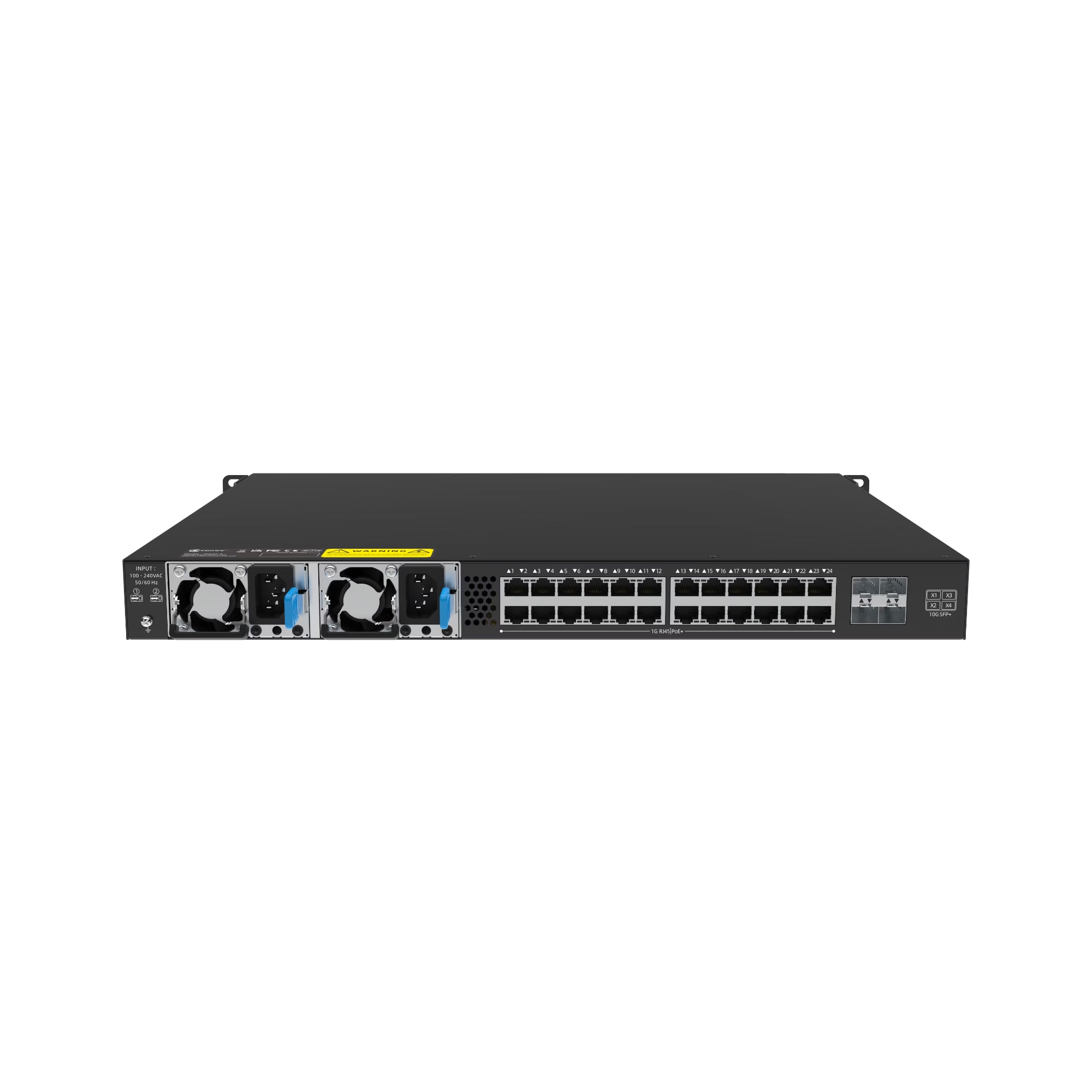

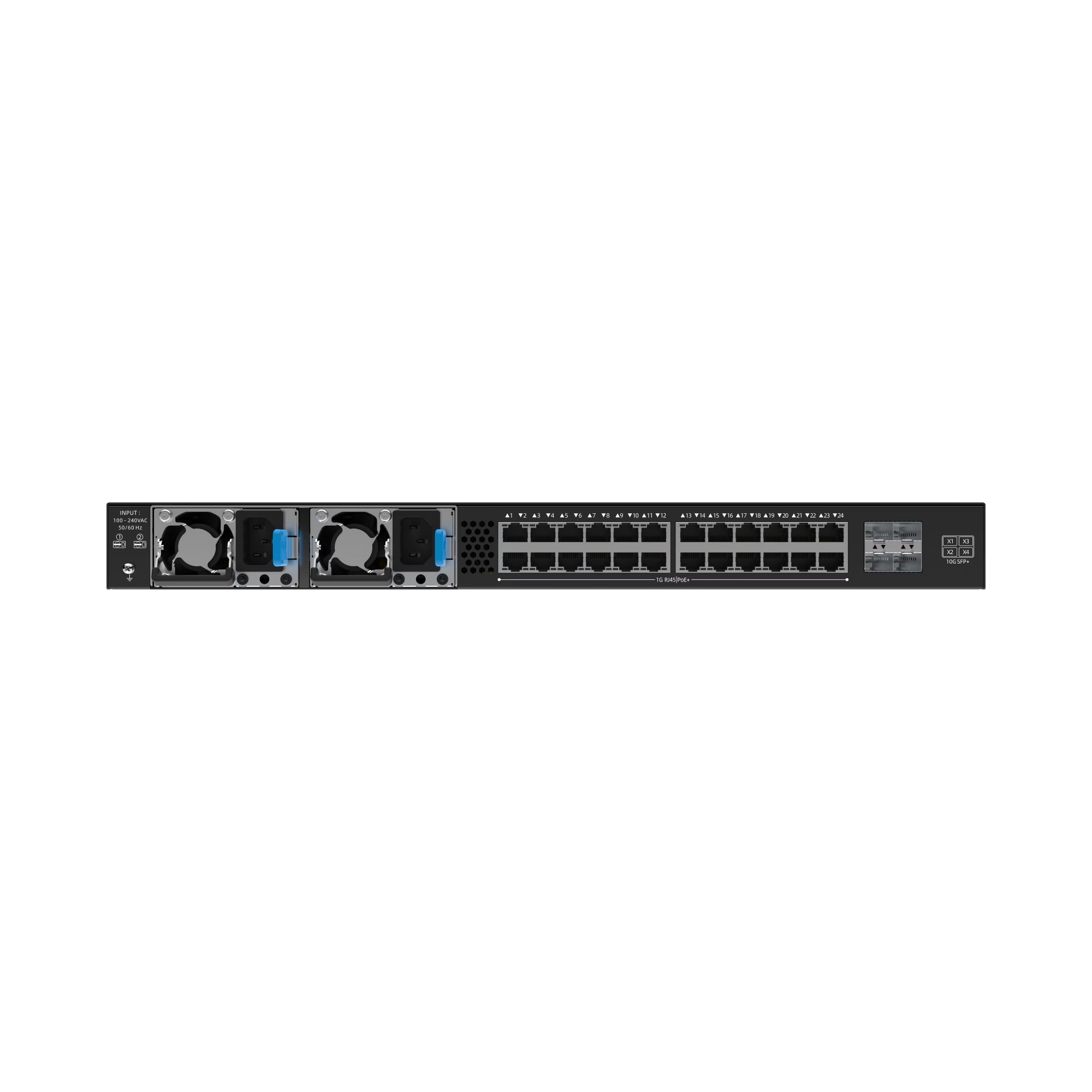

• 24x RJ45 Gigabit ports with full PoE for powered media and AV network devices
• 4x 10G SFP+ for uplink, aggregation, or higher-bandwidth network paths

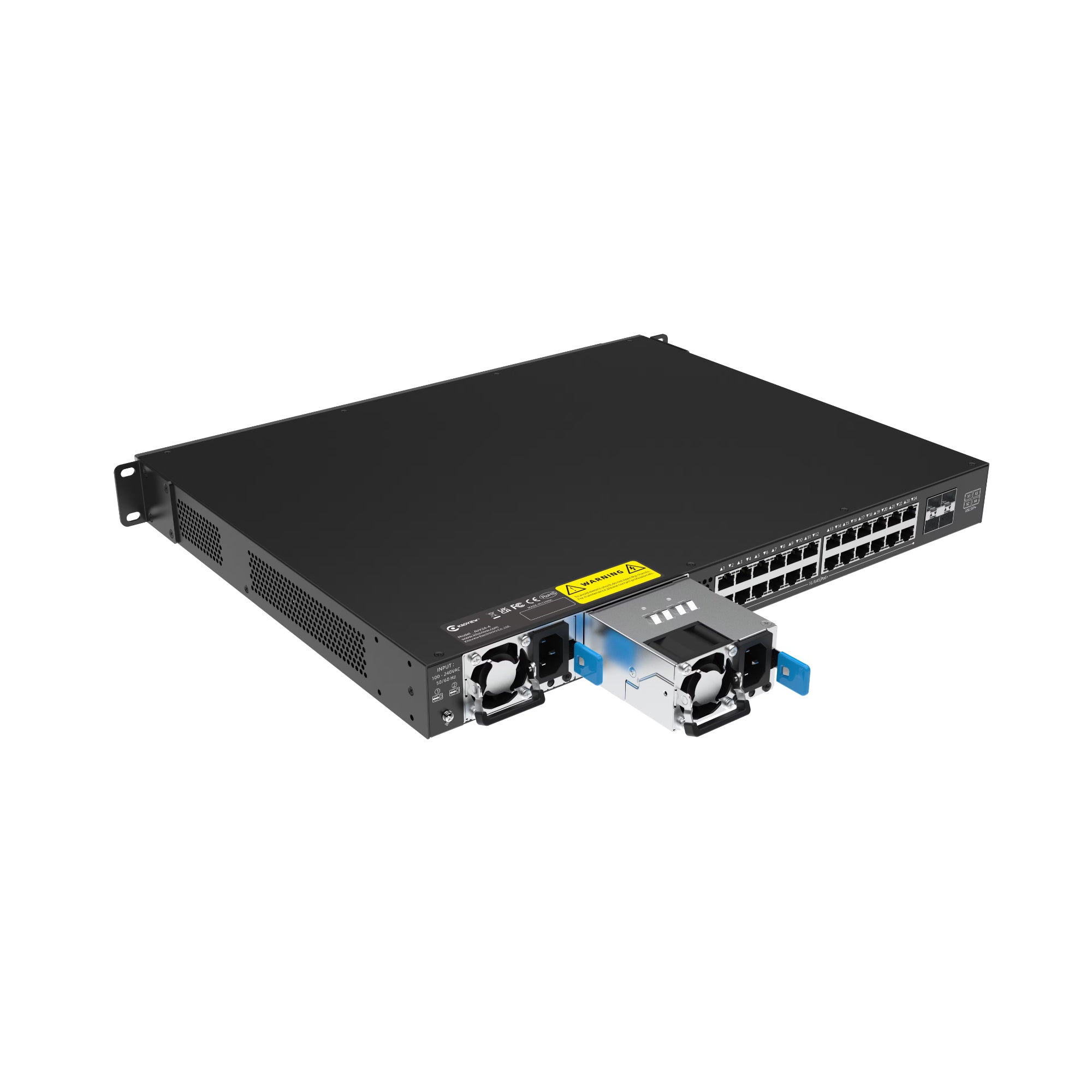

• Dual redundant 920W hot-swappable power supplies for better uptime and serviceability

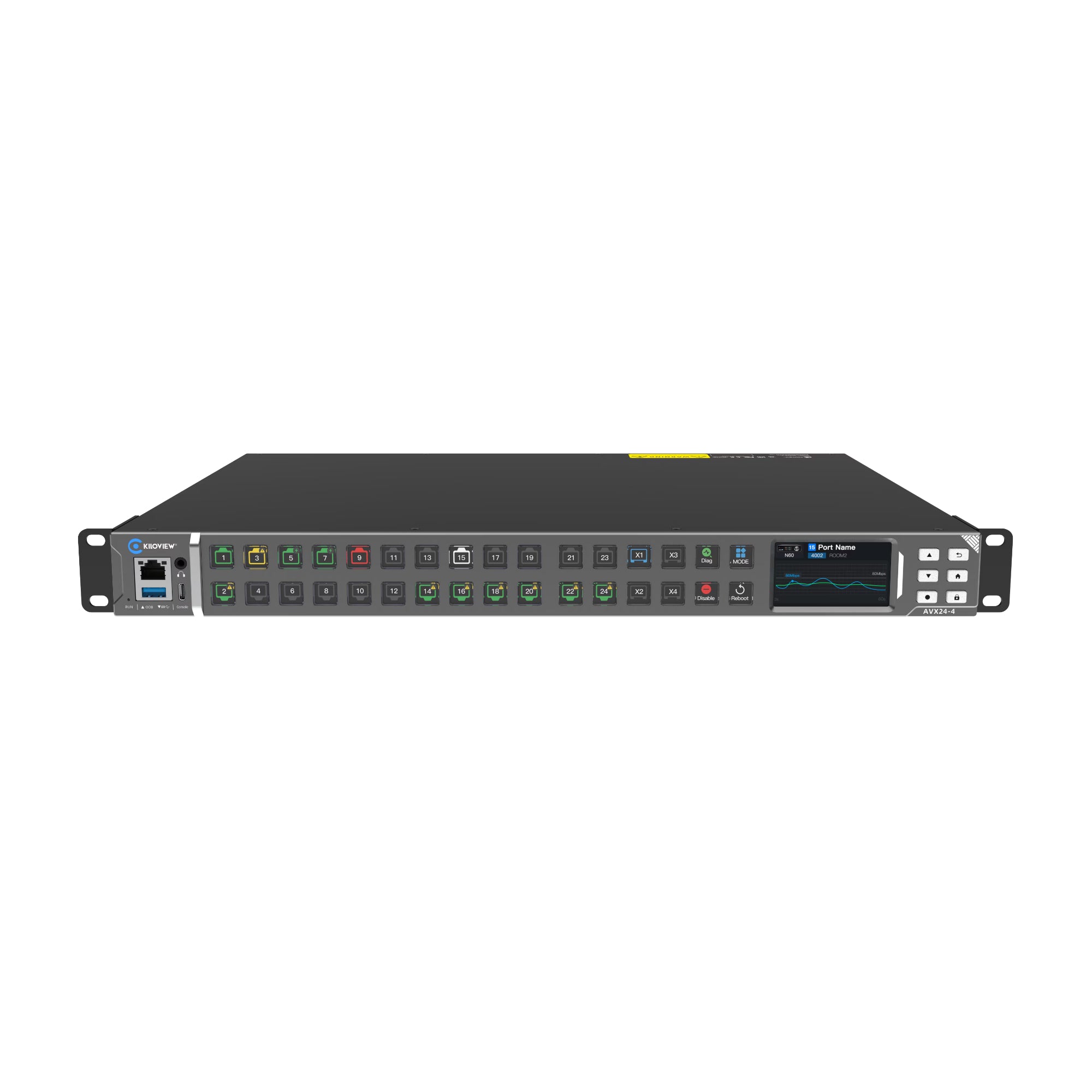

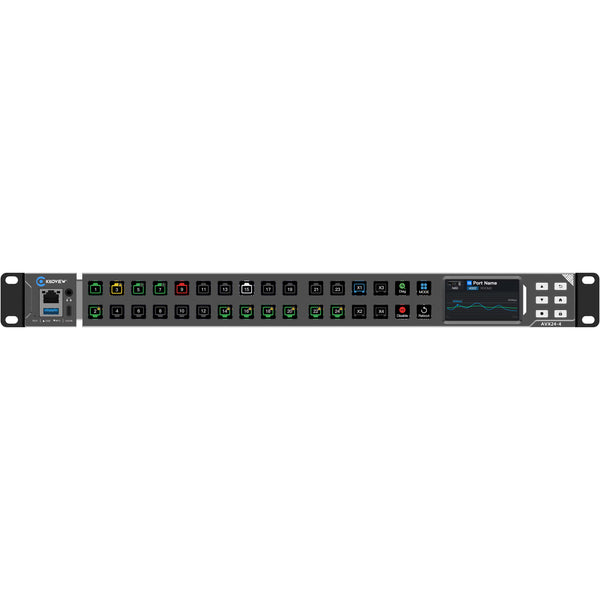

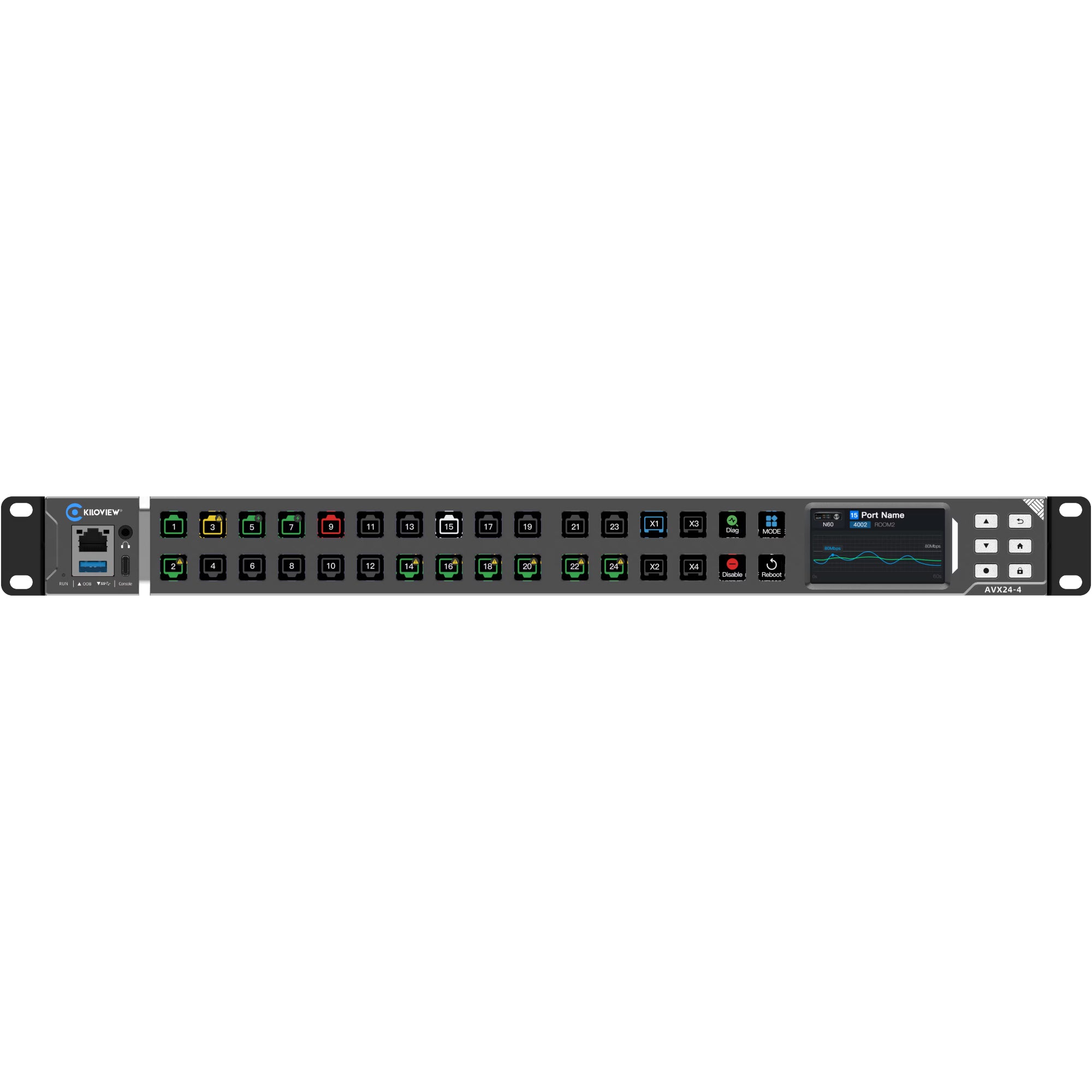

• 498 x 280 LCD screen with local keys and editable crystal buttons for direct front-panel control
• Managed platform with local console and HTTP/HTTPS web interface

Quick Specs & Uses

• Model: AVX24-4
• Display: 498 x 280 16:9 LCD screen
• Function keys: 6 standard keys including Up, Down, Confirm, Back, Home, and Lock
• Additional controls: 32 visual and editable crystal buttons
• USB ports: 1x USB 3.0 Type-C and 1x USB 3.0 Type-A
• Audio output: 1x 3.5 mm headphone out
• Management port: 1x RJ45 OOB out-of-band management port
• Network ports: 24x RJ45 Gigabit with full PoE IEEE 802.3at at 30W or greater
• Uplink ports: 4x 10G SFP+

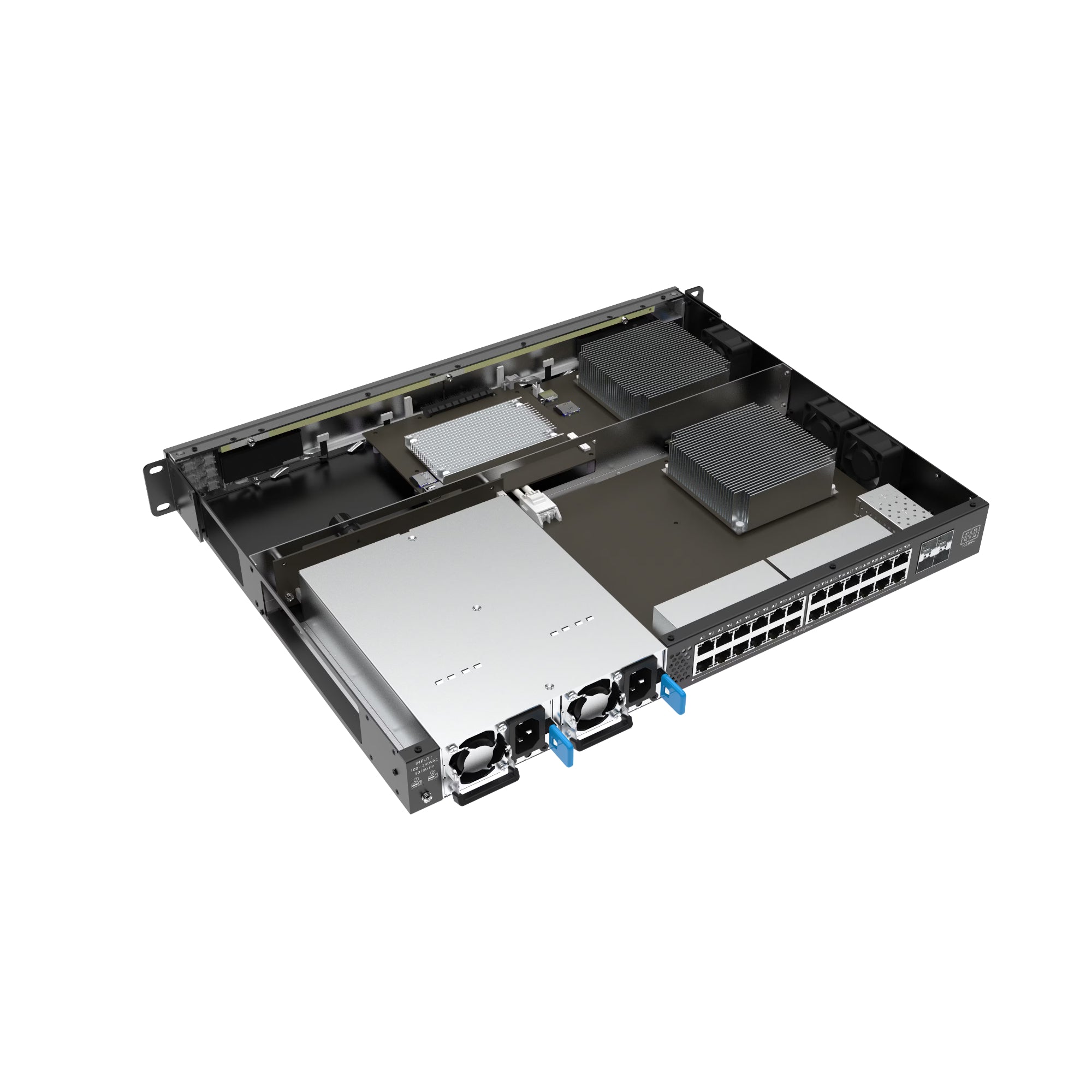

• Cooling: metal heatsink with active fan cooling
• Power supply: dual redundant 920W hot-swappable
• Management: local console and HTTP/HTTPS web interface
• MAC address table: 32K entries
• VLAN support: 4096
• Packet buffer: 32 MB
• Switching capacity: 226 Gbps
• Forwarding rate: 168.14 Mpps
• 1588 version: V2.1

Why It Helps

In larger AV-over-IP systems, the switch is not just another box in the rack. It becomes the backbone that everything depends on. The AVX24-4 brings together powered copper ports for endpoints, 10G uplinks for higher-bandwidth paths, local and browser-based management, and redundant hot-swappable power in one chassis. That makes it easier to build a cleaner and more resilient media network without patching together separate devices to cover basic infrastructure needs.

System Characteristics

• 24 full-PoE Gigabit ports make it easier to support powered AV endpoints from one central switch
• 4x 10G SFP+ give the chassis more backbone flexibility for aggregation or upstream network transport
• Dual hot-swappable 920W redundant power supports more uptime-focused installations
• Out-of-band management port adds a cleaner path for administration and network access
• IEEE 1588 v2.1 support positions the platform for timing-aware media network environments

What’s In The Box

Please refer to the Specifications tab for the exact included items.
