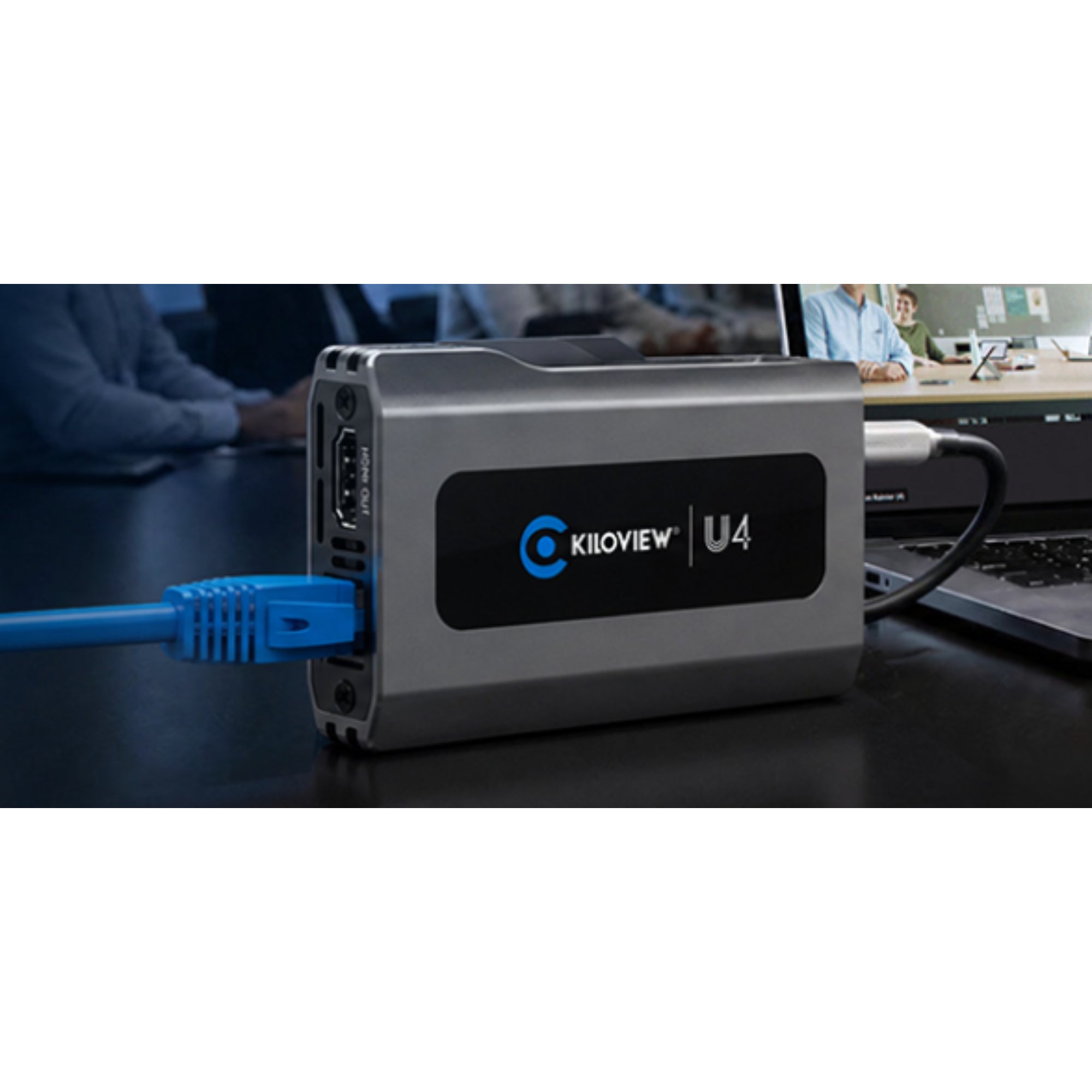

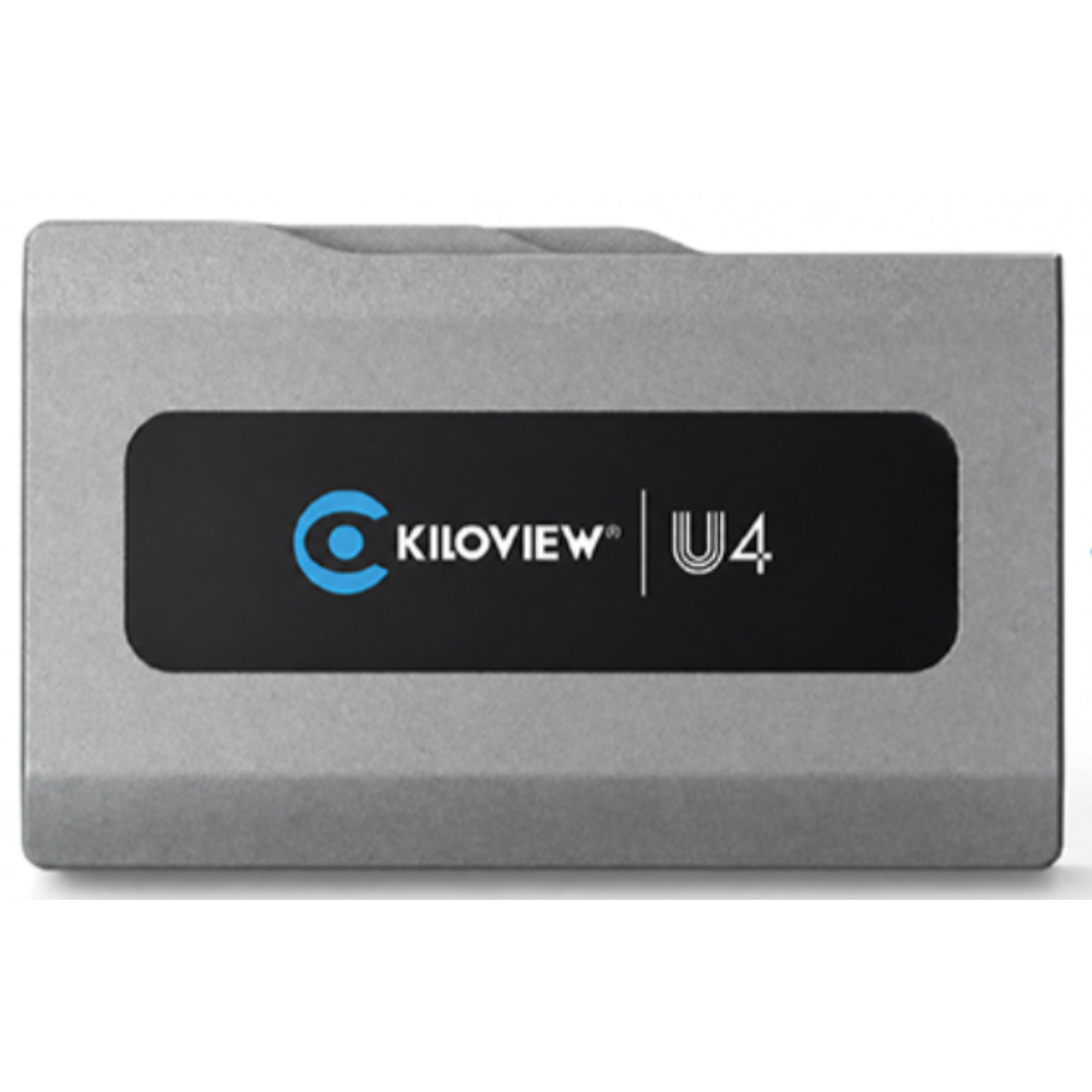

Kiloview U4 IP Video Dock

Kiloview U4 IP Video Dock is a compact network video decoder built for workflows that need to turn an IP video stream into a usable USB, HDMI, or DisplayPort output. It supports NDI High Bandwidth, NDI HX2, NDI HX3, SRT, RTSP, RTMP, UDP, RTP, HLS, and other common streaming protocols.

The U4 decodes NDI High Bandwidth, H.264, and H.265 video sources at resolutions up to 4K60. Its USB, HDMI, and DisplayPort connections carry the same decoded source, making it suitable for monitoring, USB video ingest, presentation displays, and compact IP production systems.

Highlights

• Up to 4K60 decoding for NDI, H.264, and H.265 video sources
• Broad protocol support including NDI High Bandwidth, HX2, HX3, SRT, RTSP, RTMP, UDP, RTP, and HLS
• USB UVC/UAC output at resolutions up to 4K60
• HDMI and DisplayPort output for direct display workflows
• Gigabit Ethernet with Web UI and KiloLink Server Pro management

Quick Specs & Uses

• Maximum decoding resolution: up to 4K60
• Supported codecs: H.264 and H.265
• NDI support: High Bandwidth, HX2, and HX3
• Video outputs: USB UVC/UAC, HDMI 2.1, and DisplayPort Alt Mode
• Network connection: 1x Gigabit RJ45 Ethernet

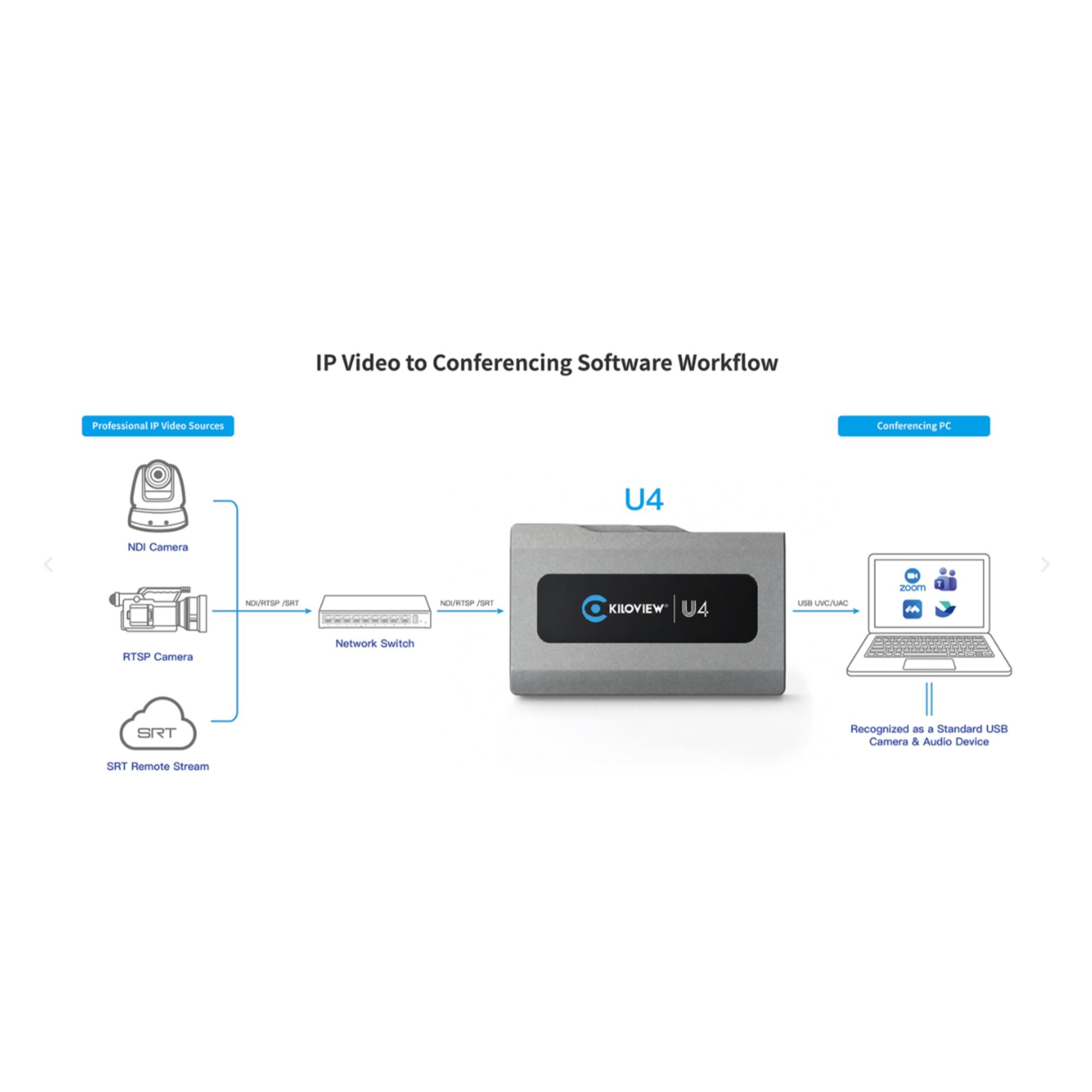

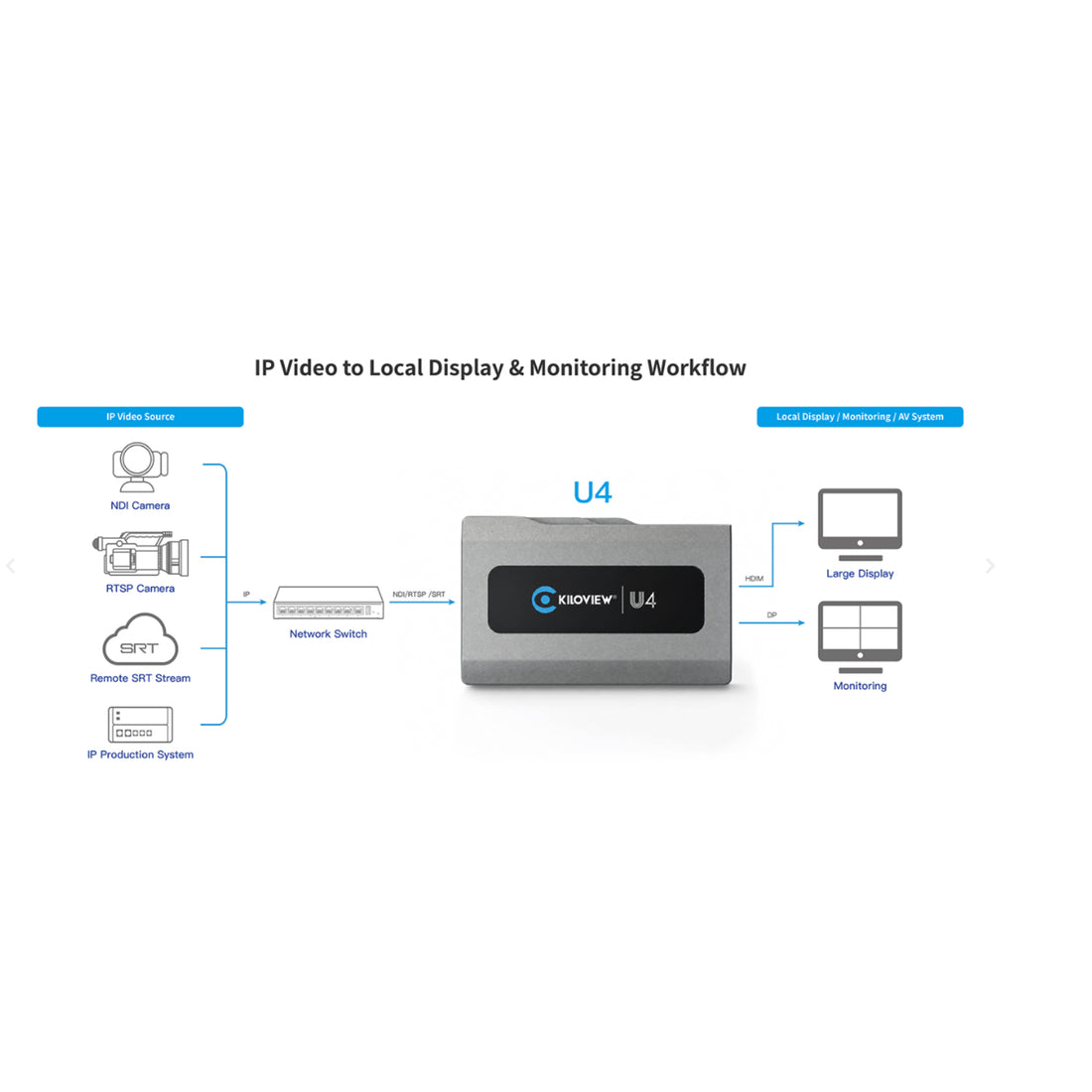

• Typical uses: IP video monitoring, USB ingest, streaming, remote production, and fixed AV systems

Why It Helps

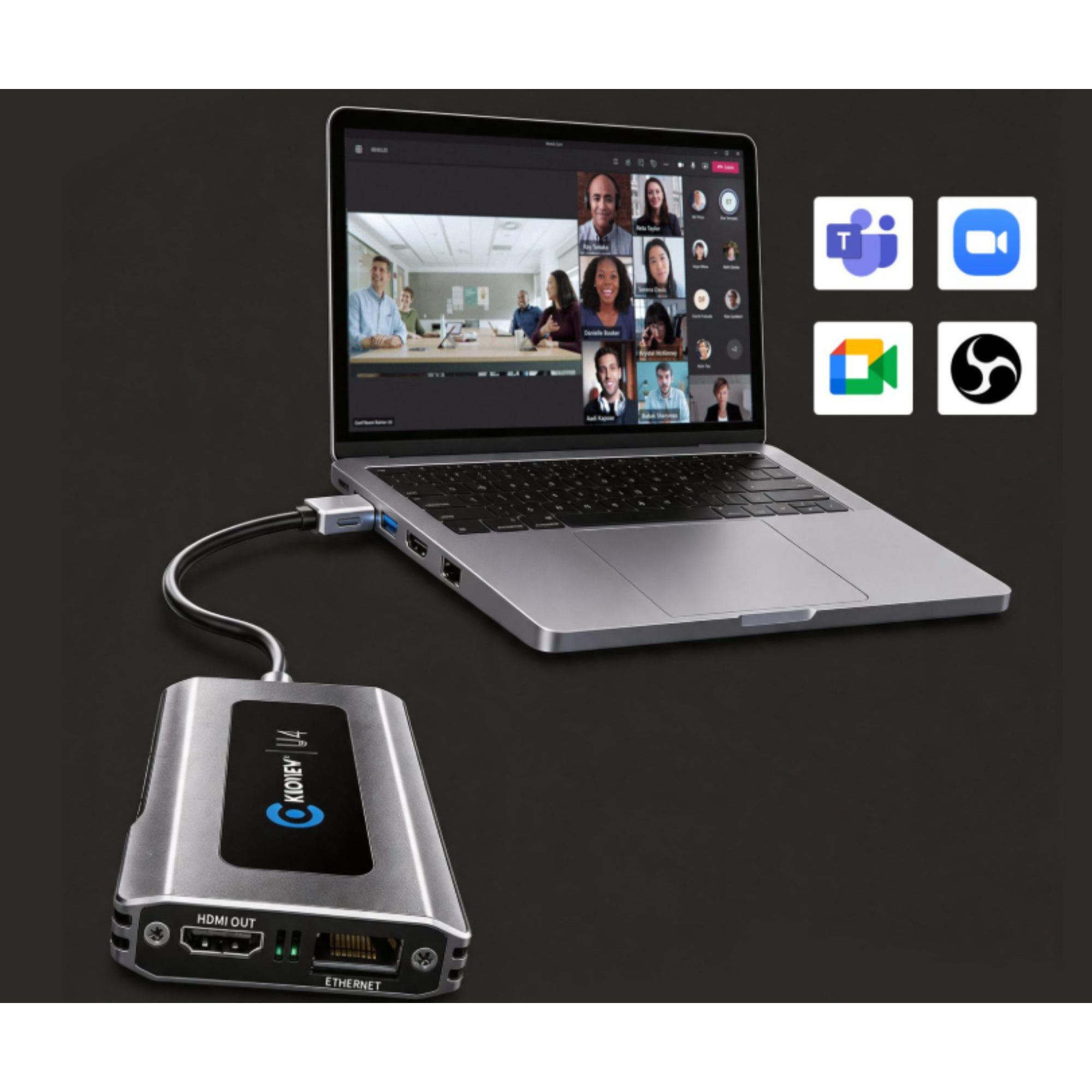

The U4 provides a direct way to bring a network video source into a conventional monitor, display, or USB computer workflow. It can reduce the need for a dedicated decoding workstation at every destination and makes it easier to place video endpoints around a facility.

Video Output Notes

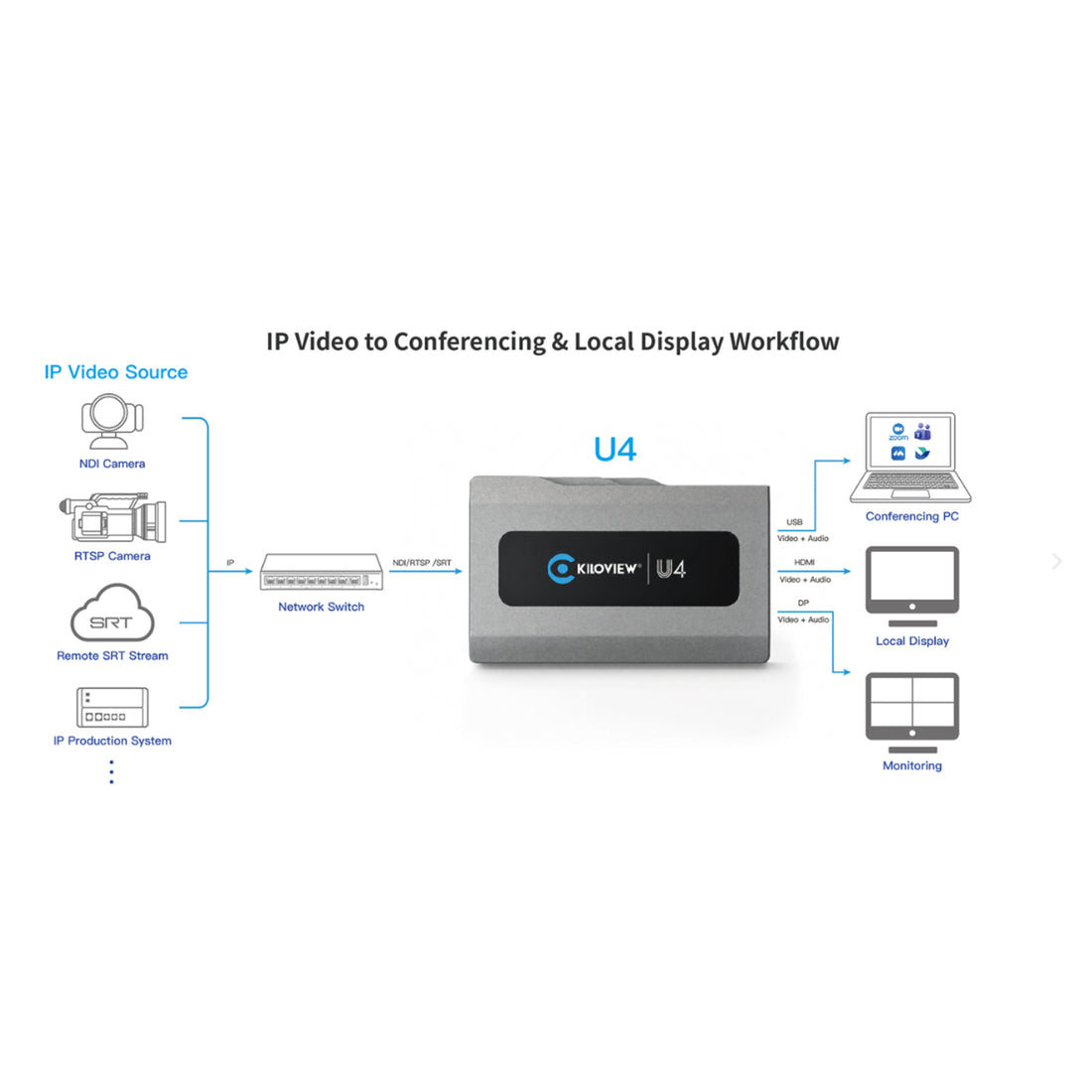

USB, HDMI, and DisplayPort carry the same decoded source. They are not independent decoder channels. HDMI and DisplayPort each support up to 4K60, but they cannot both output 4K60 simultaneously. When both are connected, only one 4K output is supported.

Network & Management

• Ethernet: 1x RJ45, 10/100/1000 Mb/s Base-T
• DHCP: supported
• Local management: Web UI
• Centralized management: KiloLink Server Pro
• USB networking: supports a USB virtual network adapter

Power & Connections

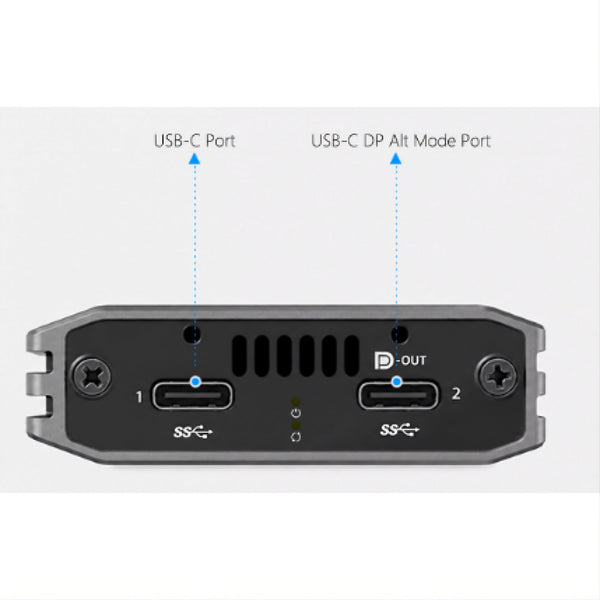

• USB-C: 2x USB 3.0 Type-C ports
• HDMI: 1x HDMI 2.1 output
• DisplayPort: output through USB-C DisplayPort Alt Mode
• Power input: dual USB-C input support
• USB Power Delivery: up to 25W
• Indicators: power/running LED and warning/error LED

Firmware & Recovery

Firmware can be updated through the Web UI or remotely through KiloLink Server Pro. The U4 also supports a forced USB flash-drive update for system recovery.

System Characteristics

• NDI High Bandwidth, HX2, and HX3 support
• H.264 and H.265 decoding up to 4K60
• SRT, RTSP, RTMP, UDP, RTP, and HLS compatibility
• Same-source output through USB, HDMI, and DisplayPort
• Dimensions: 100 x 62 x 18 mm

What’s In The Box

1 x Kiloview U4 IP Video Dock
