JVC RM-LP5G Compact Joystick PTZ Controller

The JVC RM-LP5G Compact Joystick PTZ Controller offers precise multi-camera control in a streamlined, space-saving design. Built for studios, production spaces, and event workflows, it allows operators to control up to five PTZ cameras simultaneously using both serial and IP connections.

Equipped with RS-232, RS-422/485, and LAN network control, the RM-LP5G integrates seamlessly with professional PTZ setups. A large LED display shows key status information, connection settings, and protocol updates, while three smaller LED displays provide clear parameter values for exposure adjustments.

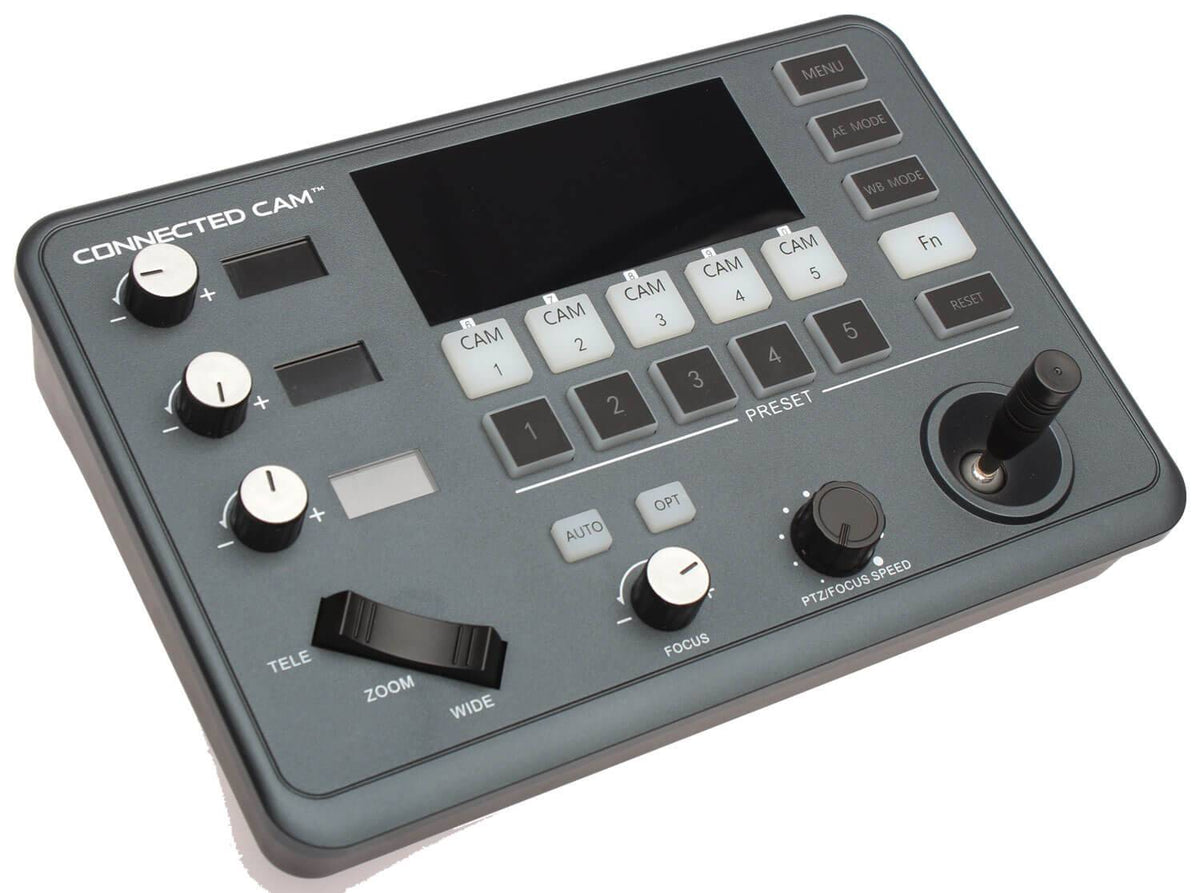

The intuitive interface features a 2-axis joystick for smooth pan and tilt movement, plus a dedicated zoom bridge key for fast and responsive zoom control. Operators can quickly switch between automatic exposure (AE) and white balance (WB) modes for real-time image adjustments. Customizable function keys make it easy to assign frequently used commands, tailoring the controller to your production workflow.

With support for VISCA, Pelco-P/D, and UDP protocols, the RM-LP5G ensures compatibility across a wide range of PTZ camera systems. Additional features such as 7-speed pan/tilt and zoom control, a 4-pin Phoenix terminal, and a DB-9 RS-232 connector give this compact controller the versatility to handle both simple and complex live production environments.

Whether in a broadcast control room, live event venue, or corporate AV setup, the JVC RM-LP5G provides the precision, flexibility, and reliability needed for professional multi-camera operation.

Feature Highlights

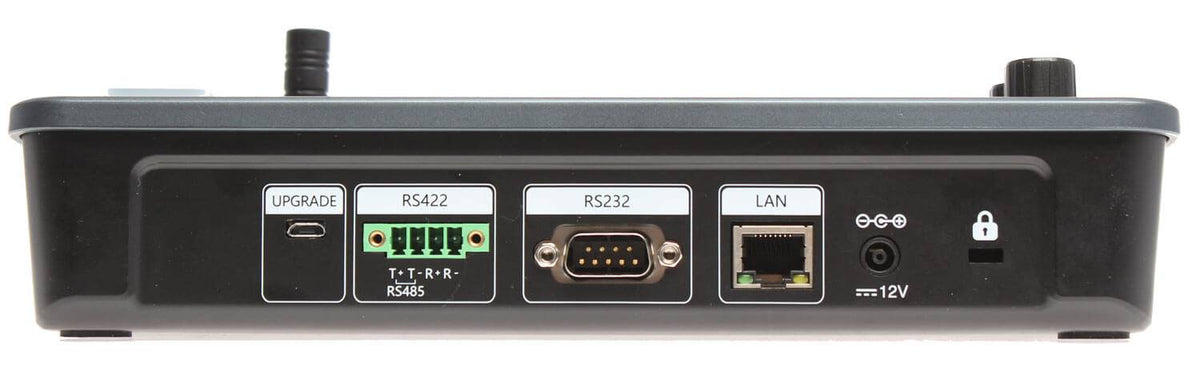

• 4-pin Phoenix terminal with serial control RS-422/485
• DB-9 connector with serial control RS-232
• Micro-USB to upgrade firmware
• VISCA, Pelco-P/D, and UDP communication protocols are supported.
• Four LED screens
• 7 speeds for pan, tilt, and zoom
• IP network connection via LAN interface
