Product Highlights
- Up to 165W total output
- Three USB-C PD charging ports
- USB-C1 supports 140W PD3.1
- 30W USB-A Quick Charge

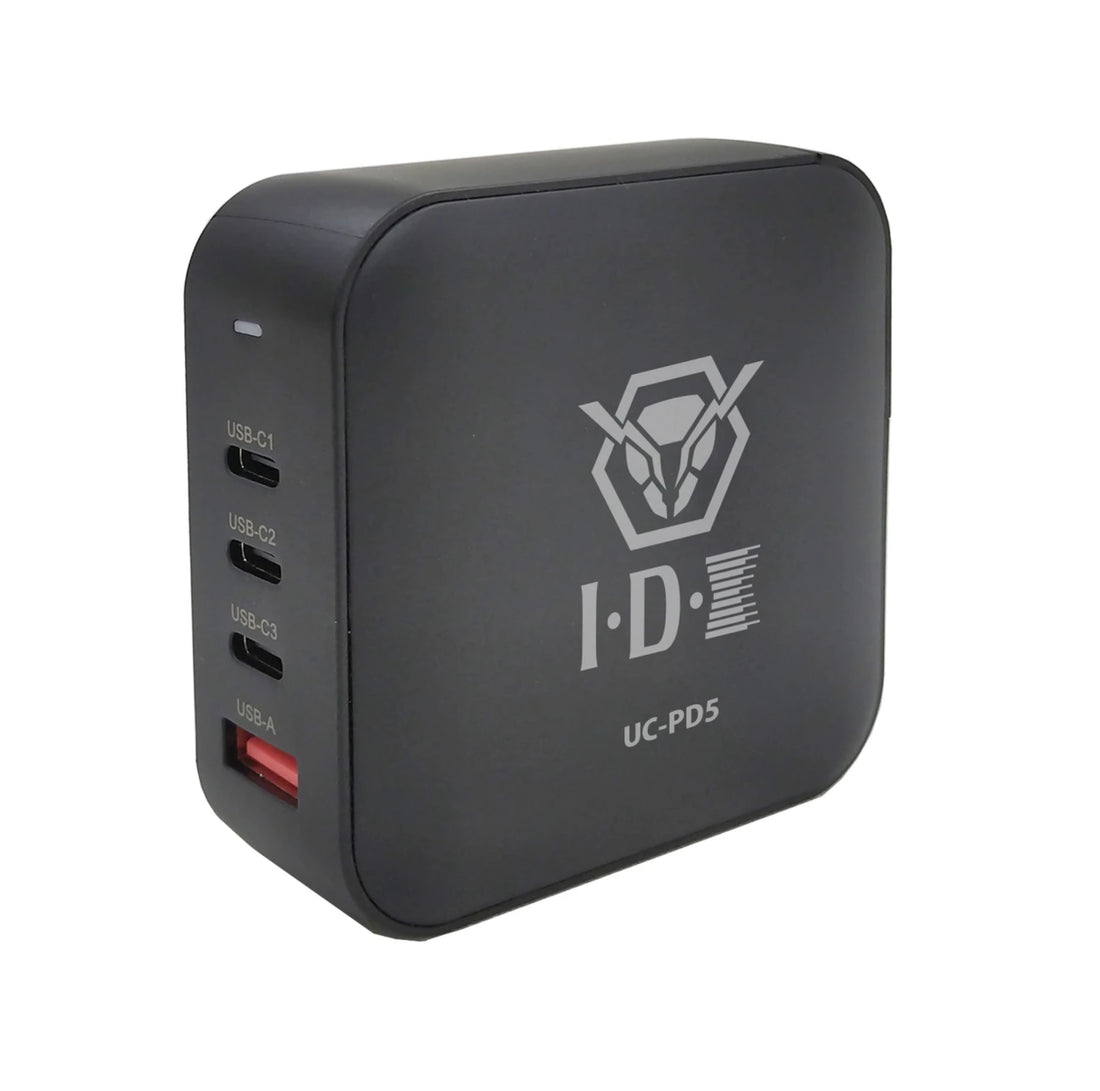

IDX System Technology UC-PD5 165W USB-PD Charger 3 USB-C 1 USB-A
- SKU:
- IDX-UC-PD5
- MPN:
- UC-PD5
Ships in 3-7 Business Day
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Product Inquiry Form
Description
Product Overview
The IDX System Technology IDX UC-PD5 USB-PD charger combines three USB-C Power Delivery ports and one USB-A Quick Charge port in a compact 165W desktop and travel charger. USB-C1 supports PD3.1 output up to 140W, while the other USB-C ports support up to 100W and 65W. It can charge compatible IDX batteries alongside laptops, tablets, and smartphones, making it useful for broadcast workflow, live production, and location kits. One charger keeps mixed USB power needs organized.
165W Multi-Port USB-C Charging
The IDX UC-PD5 USB-PD charger supplies up to 165W total across its charging outputs. Three USB-C ports handle USB Power Delivery while the USB-A port supports Quick Charge. This gives a small production kit one charging point for batteries and everyday USB devices.
140W PD3.1 Charging on USB-C1
USB-C1 supports PD3.1 with output up to 140W for a single connected device. USB-C2 supports up to 100W and USB-C3 supports up to 65W. The stepped port capacities help match higher-draw laptops or batteries with lower-draw accessories without carrying separate chargers.

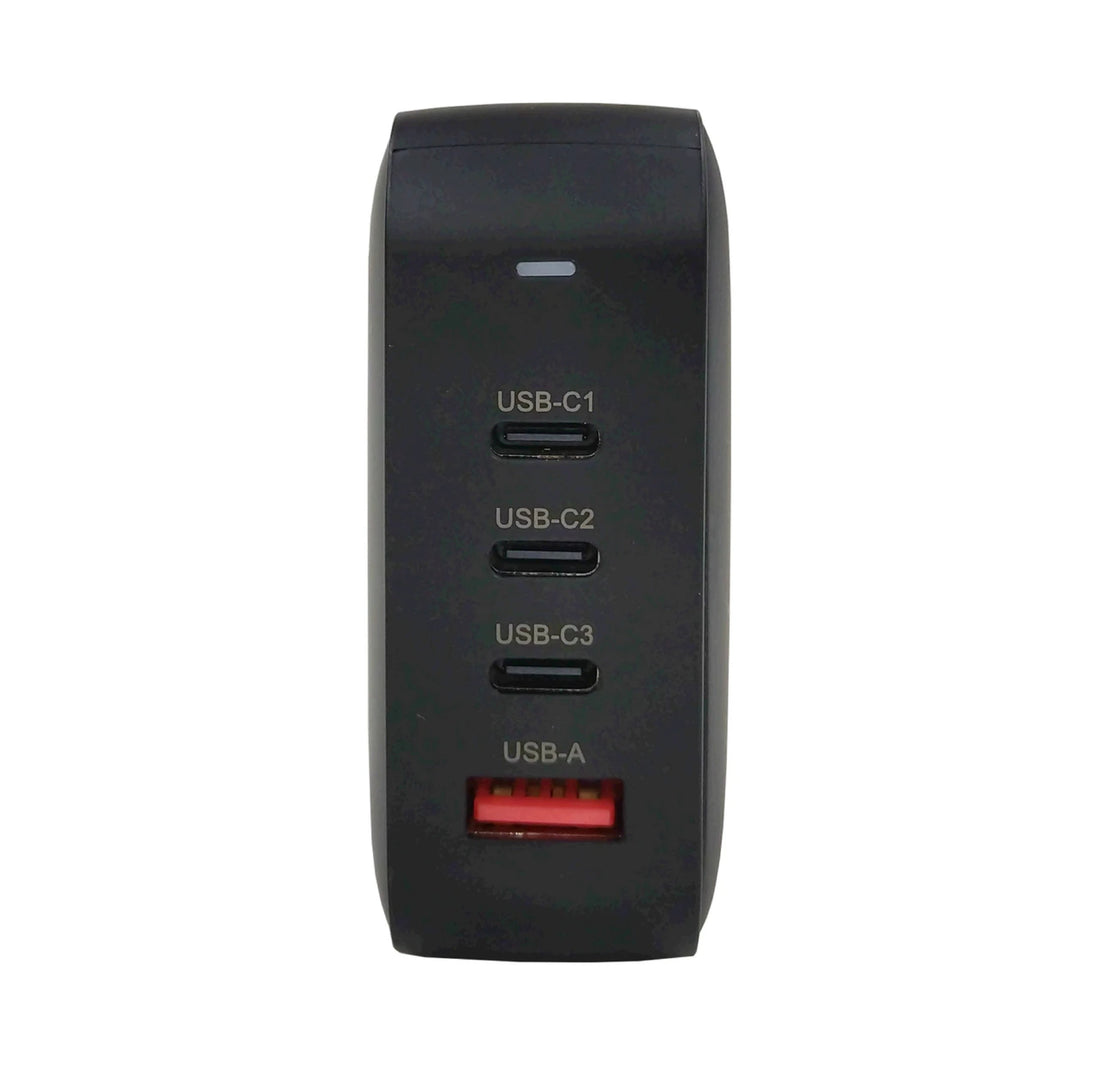

Three USB-C Ports for Simultaneous Charging
With two USB-C ports active, supported combinations can deliver up to 100W plus 65W. With all three USB-C ports active, the charger supports up to 65W plus 65W plus 30W. That is useful when preparing multiple compatible batteries before news gathering, sports broadcasting, or a live production call.
30W USB-A Quick Charge Output
The USB-A port supports up to 30W for Quick Charge compatible devices. It lets crews keep a legacy USB-A cable in the charging workflow while the three USB-C ports remain available for higher-power devices. Phones and other portable accessories can stay on the same charging station.
USB-C Charger for Compatible IDX Batteries

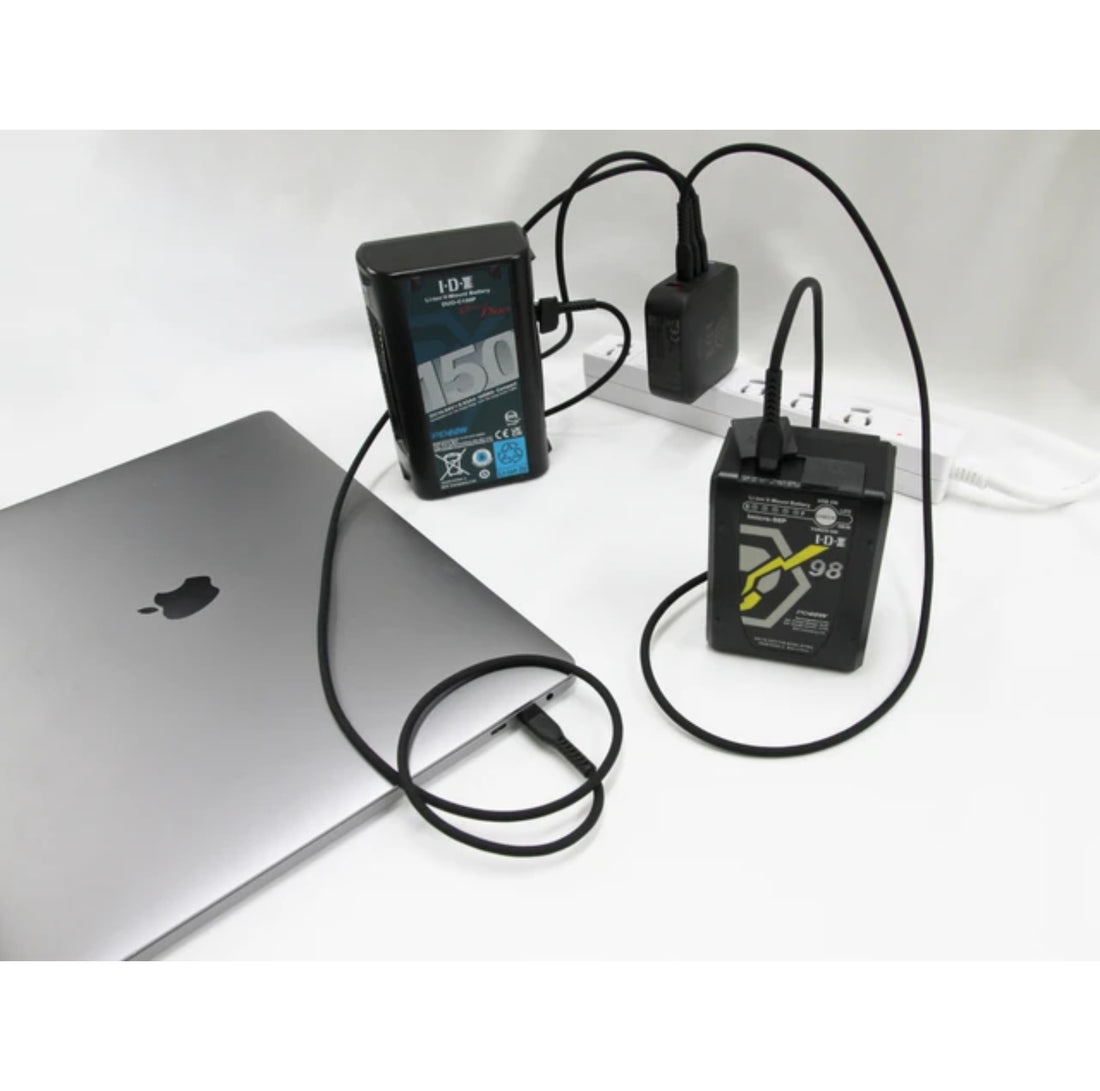

IDX lists compatibility with DUO-CP, Imicro-P, ZEN-CG, SB-UPD, SL-FPD, and HV B-Mount battery families. The same charger can also power USB PD laptops, smartphones, and tablets. For field production and corporate events, that reduces the number of dedicated charging blocks traveling with the kit.
Protected USB-PD Power for Production Kits

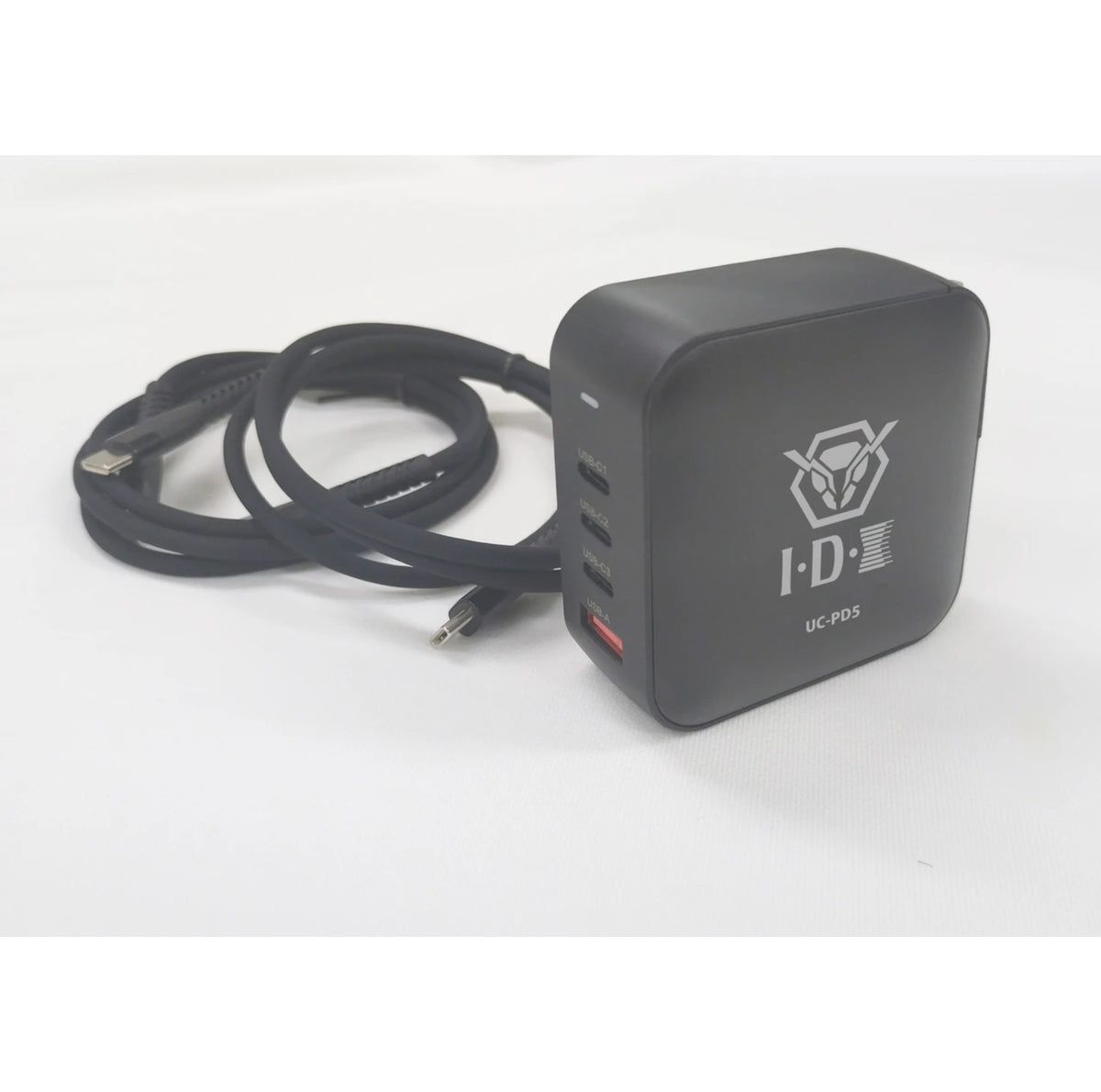

Built-in protection covers over-voltage, over-current, short circuit, and over-temperature conditions. The 100–240V AC input supports common travel power environments, and two approximately 39.37-inch USB-C PD3.1 cables rated up to 240W are included. The compact charger weighs 0.55 lb.
Broadcast Engineers
Centralize charging for compatible IDX batteries, laptops, and mobile devices around one compact AC-powered unit.
Live Production
Prepare multiple USB-C devices between rehearsals, shows, and venue production calls without packing several chargers.
News Gathering
Keep battery and mobile-device charging consolidated for compact field kits that move between locations.
Sports Broadcasting
Use the multi-port output to prepare supported batteries and support devices before long event days.
Corporate Events
Charge production batteries, laptops, tablets, and smartphones from a single portable charging station.
Content Creation
Consolidate USB-C and USB-A charging for smaller creator kits, travel cases, and mobile production setups.
IDX System Technology Support
The UC-PD5 includes a 2-year manufacturer warranty. Coremicro can help confirm battery compatibility, charging requirements, and the right USB-C PD workflow before deployment.
| Specification | Detail |
|---|---|
| Model | UC-PD5 |
| Total Output | Up to 165W |
| Input Voltage | AC 100–240V, 50/60Hz |
| USB-C1 Rated Output | DC 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A, 28V/5A; PPS 3.3–21V/5A; max 140W |
| USB-C2 Rated Output | DC 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A; PPS 3.3–21V/5A; max 100W |
| USB-C3 Rated Output | DC 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.25A; PPS 3.3–11V/5A; max 65W |
| USB-A Rated Output | DC 5V/3A, 9V/3A, 12V/2.5A, 20V/1.5A; max 30W |
| Charging Ports | 3 × USB Type-C, 1 × USB Type-A |
| Dual USB-C Charging | C1+C2, C1+C3, or C2+C3: up to 100W + 65W |
| Triple USB-C Charging | Up to 65W + 65W + 30W across three USB-C ports |
| Protection | Over-voltage, over-current, short circuit, over-temperature |
| Compatible IDX Batteries | DUO-CP, Imicro-P, ZEN-CG, SB-UPD, SL-FPD, HV B-Mount |
| Included USB-C Cables | 2 × USB-C PD3.1 cables, up to 240W, approximately 39.37 inches each |
| Operating Temperature | 32°F to 77°F |
| Operating Humidity | 20% to 80% RH |
| Dimensions | 2.834 W × 2.842 H × 1.224 D inches |
| Weight | 0.55 lb |
| Warranty | 2 years |
What is the IDX UC-PD5 used for?
The IDX UC-PD5 is a multi-port USB power charger for compatible IDX batteries and common USB-powered devices. It provides three USB-C Power Delivery ports plus one USB-A Quick Charge port with up to 165W total output.
How much power can USB-C1 deliver?
USB-C1 supports PD3.1 and can deliver up to 140W when connected to a compatible device. Its listed output profiles include operation up to 28V/5A.
Can the UC-PD5 charge three USB-C devices at once?
Yes. With all three USB-C ports in use, the charger supports simultaneous output up to 65W plus 65W plus 30W. Actual charging power depends on each connected device and its supported USB PD input profile.
Which IDX batteries are compatible with the UC-PD5?
IDX lists DUO-CP, Imicro-P, ZEN-CG, SB-UPD, SL-FPD, and HV B-Mount battery families as compatible with the UC-PD5. Charging performance depends on the USB PD input supported by the connected battery.
Does the UC-PD5 include USB-C cables?
Yes. The UC-PD5 includes two USB-C PD3.1 cables rated for up to 240W. Each cable measures approximately 39.37 inches long.
What warranty comes with the IDX UC-PD5?
The IDX UC-PD5 includes a 2-year manufacturer warranty. Coremicro is an authorized IDX System Technology dealer and can assist with compatibility questions before purchase.
Ready to Add the IDX UC-PD5 to Your Production Kit?
Coremicro is an authorized IDX System Technology dealer for the IDX UC-PD5 USB-PD charger. Contact our team for UC-PD5 price, availability, battery compatibility, and USB-C charging guidance for broadcast, live events, and field production.
