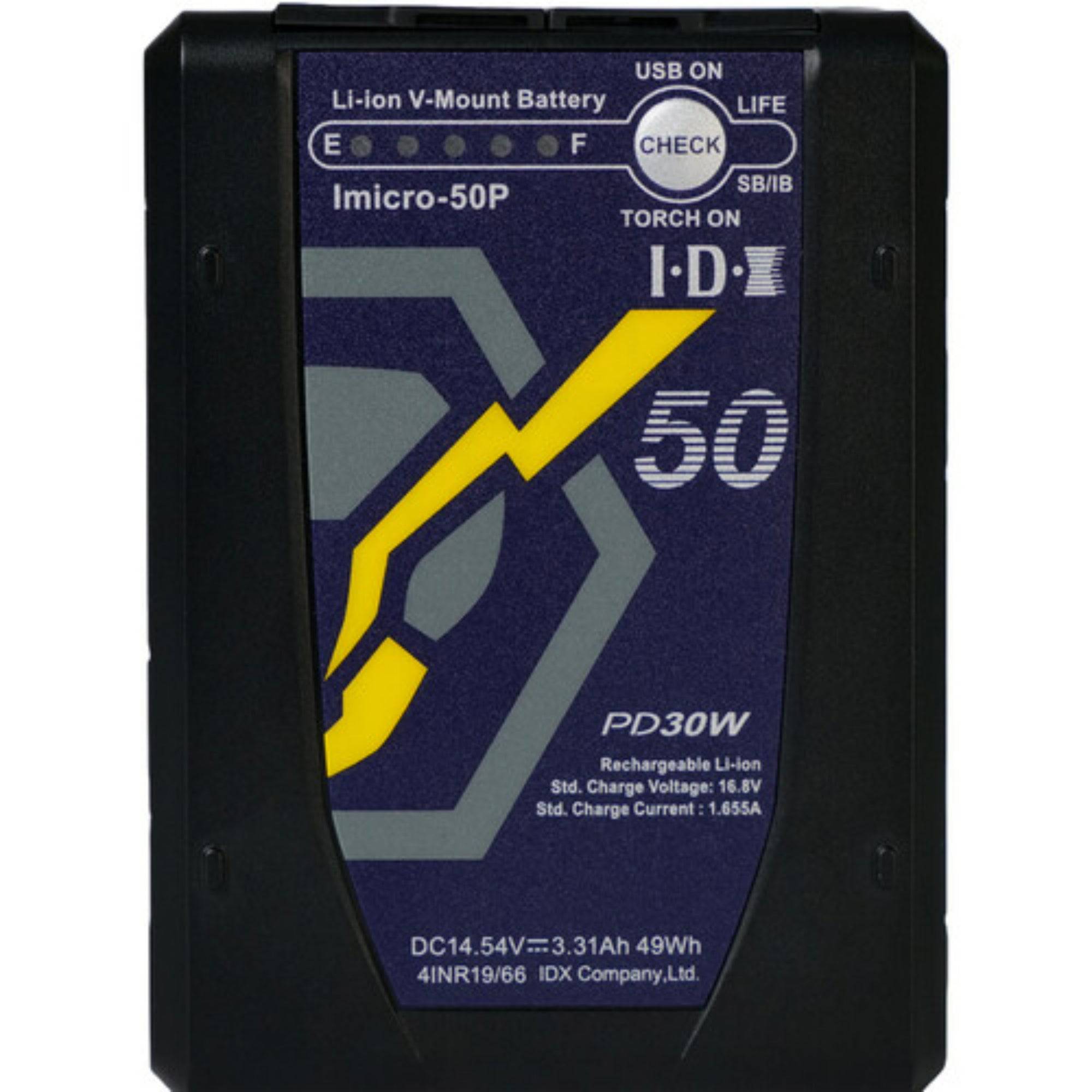

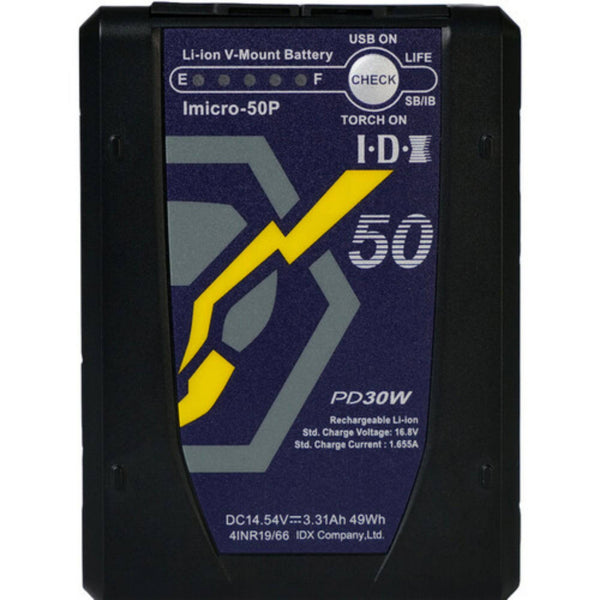

IDX System Technology Imicro-50P 49Wh High-Load Lithium-Ion Mini V-Mount Battery

IDX iMicro-50P is the smallest capacity option in the Mini V-Mount lineup, built for lighter camera builds and controlled power demands. This compact battery offers a 49Wh capacity and 14.54V DC output, supporting a 10A draw while remaining perfectly sized for lightweight rigs.

Highlights

• 49Wh lithium-ion Mini V-Mount battery
• Rated up to 10A at 14.54V DC
• USB-C output plus D-Tap / P-Tap output (11.2–16.8 VDC)
• 5-stage LED capacity indicator
• Integrated V-Torch LED for low-light battery swaps

Quick Specs & Uses

• Battery type: V-Mount
• Capacity: 49Wh
• Output voltage: 14.54 VDC
• Power I/O: 1x USB-C output, 1x D-Tap / P-Tap output
• Dimensions: 100 × 73 × 39.5 mm
• Weight: approximately 380 g

Why It Helps

On compact rigs, battery size directly affects balance and handling. The iMicro-50P keeps the footprint controlled so it doesn’t overwhelm smaller camera builds, while still providing stable V-Mount output for lighter loads.

Because both USB-C and D-Tap outputs are built in, accessory power can be handled directly from the battery without adding extra distribution hardware. Fewer plates and fewer adapters generally mean fewer failure points in the field.

The 5-stage LED gauge allows quick checks before rolling, and the integrated V-Torch makes swapping batteries easier when working in darker studios or backstage environments.

System Characteristics

• Battery chemistry: Lithium-Ion
• D-Tap / P-Tap output range: 11.2–16.8 VDC
• Designed for lighter draw setups up to 10A
• Limited 2-year manufacturer warranty

What’s In The Box

IDX System Technology iMicro-50P 49Wh High-Load Lithium-Ion Mini V-Mount Battery

Trusted Seller

Coremicro supports professional production systems and can help confirm battery fit for your camera body and accessory load requirements before deployment.
