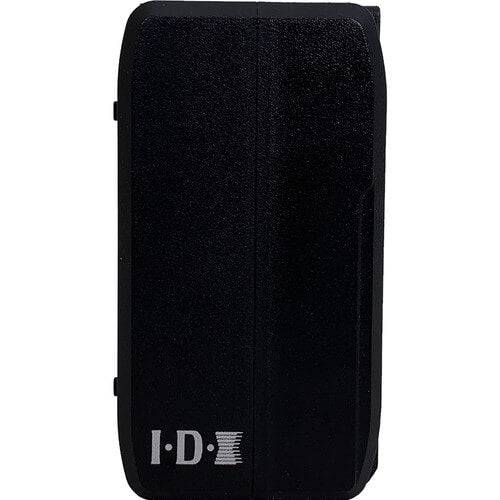

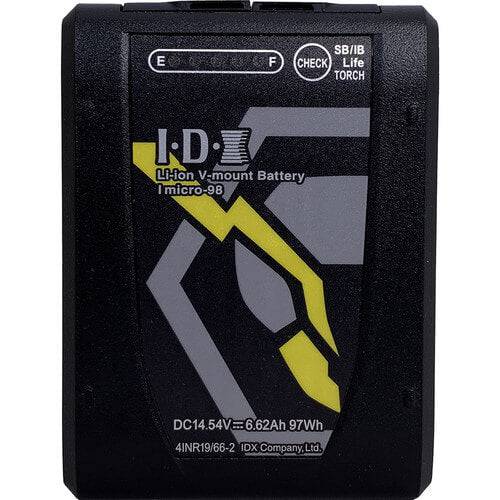

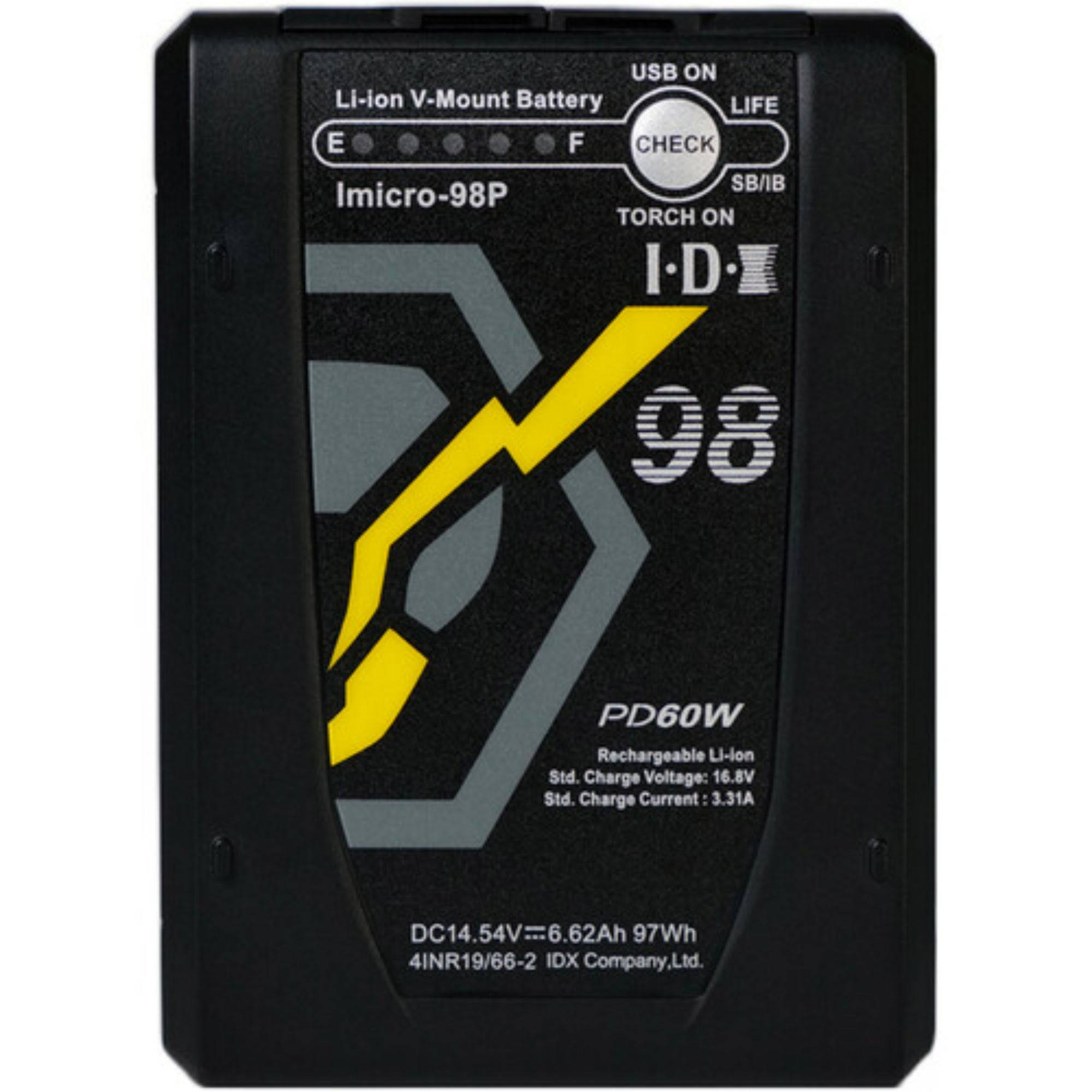

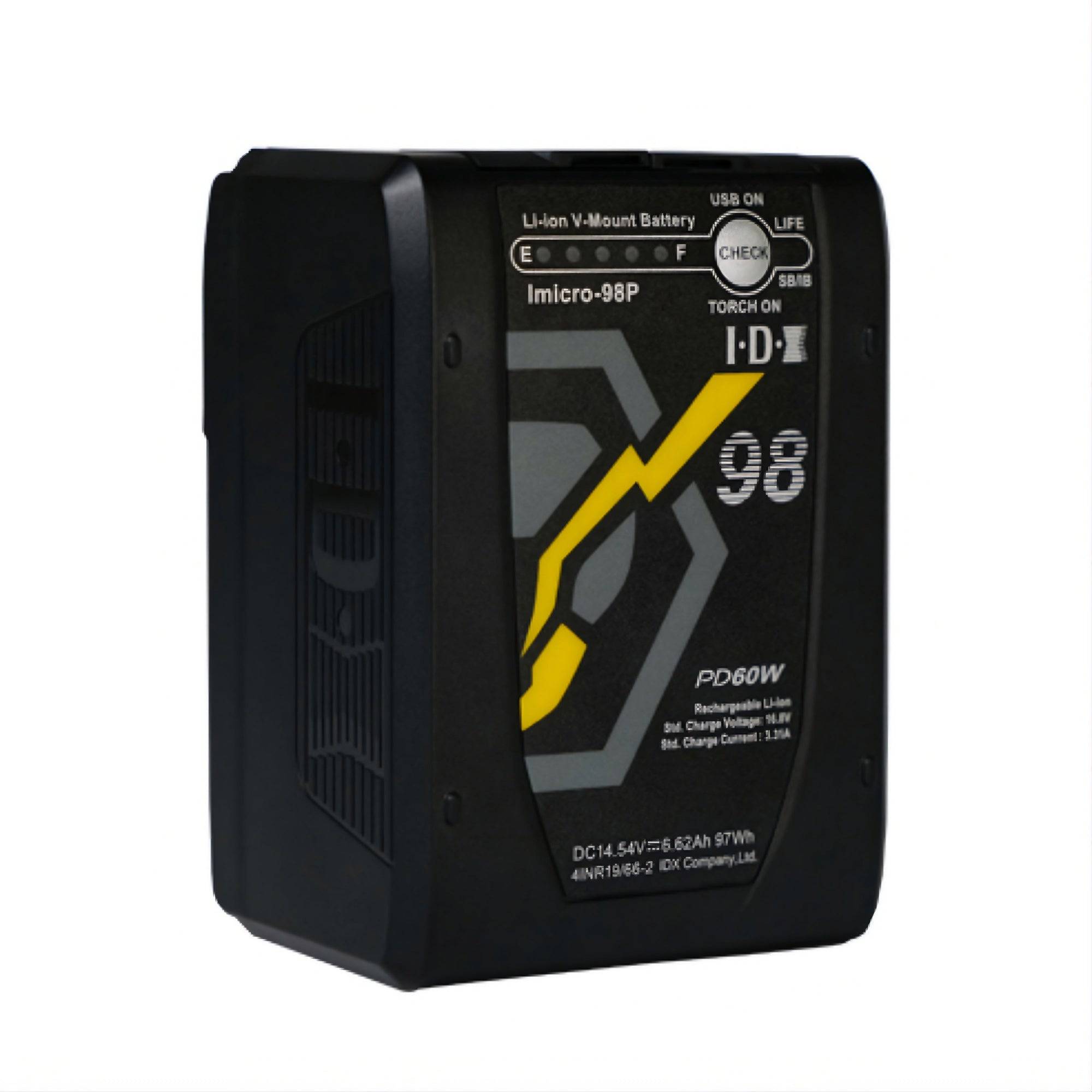

IDX System Technology Imicro-98P 97Wh High-Load Lithium-Ion Mini V-Mount Battery

IDX iMicro-98P is a compact 97Wh lithium-ion Mini V-Mount battery built for rigs where size matters but power demand still needs to be taken seriously. It outputs 14.54 VDC and supports up to 13.1A draw, so it can sit on smaller builds without feeling like a compromise.

Highlights

• 97Wh Mini V-Mount lithium-ion battery in a compact form factor
• Supports up to 13.1A draw with 14.54 VDC output

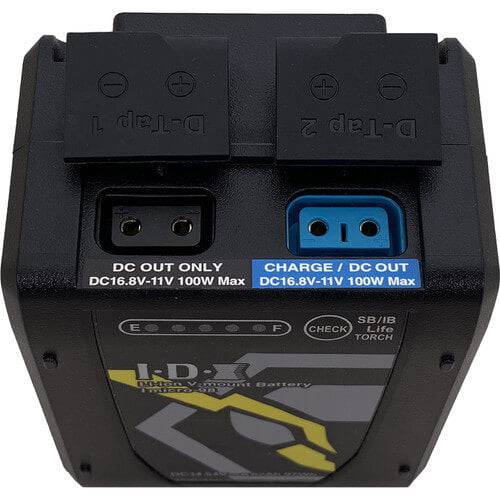

• USB-C output plus D-Tap / P-Tap output for accessory power

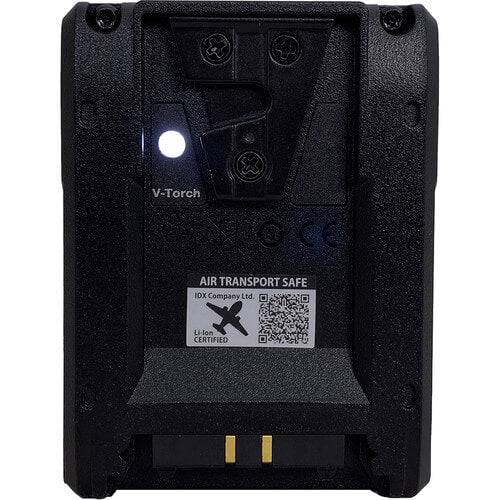

• Built-in V-Torch and 5-stage LED capacity indicator
• Compact size: 100 x 73 x 39.5 mm; weight: 380 g

Quick Specs & Uses

• Battery type: V-Mount
• Capacity: 97 Wh
• Output voltage: 14.54 VDC
• Power I/O: 1x USB-C output, 1x D-Tap / P-Tap output (11 to 16.8 VDC)
• Dimensions: 100 x 73 x 39.5 mm; weight: 380 g

Why It Helps

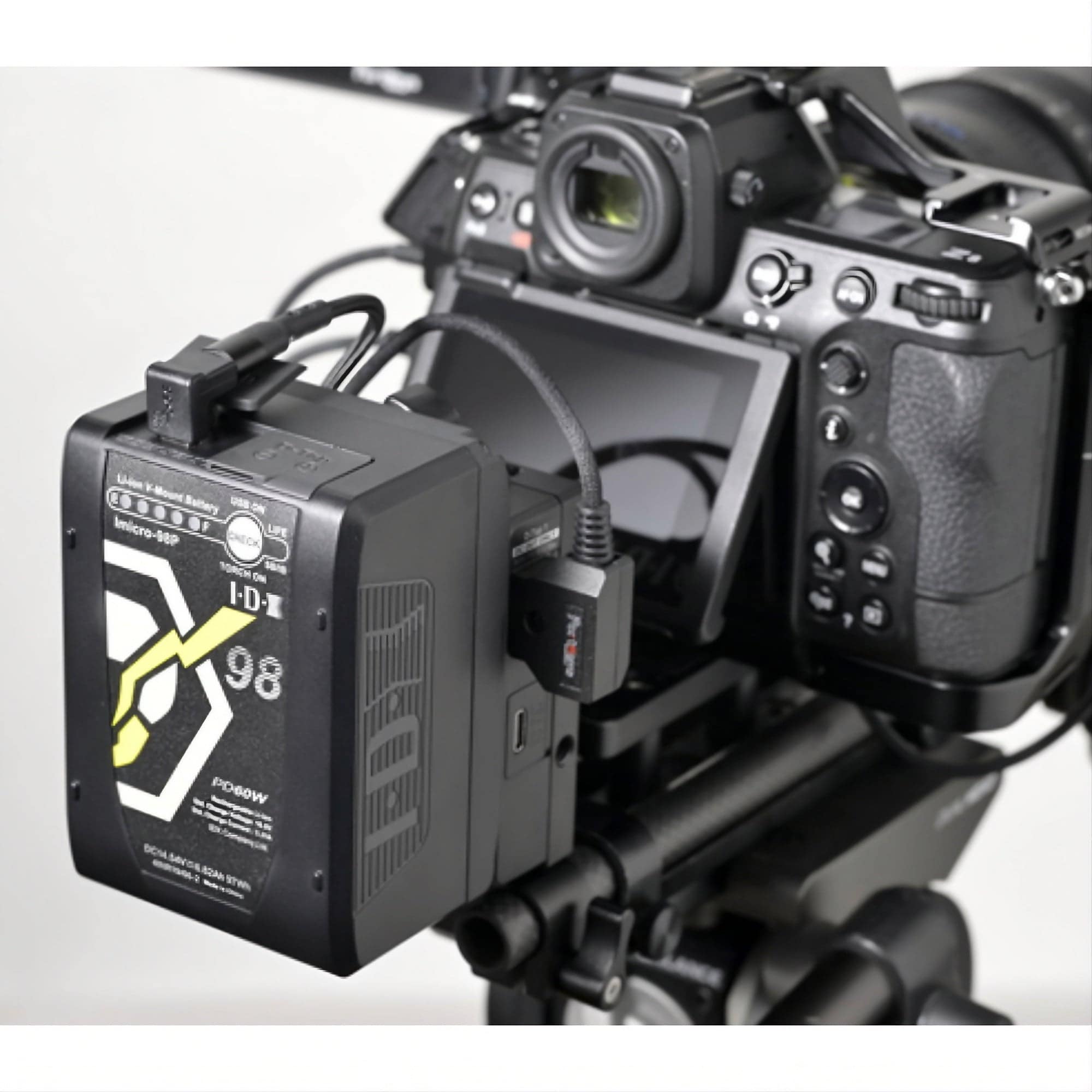

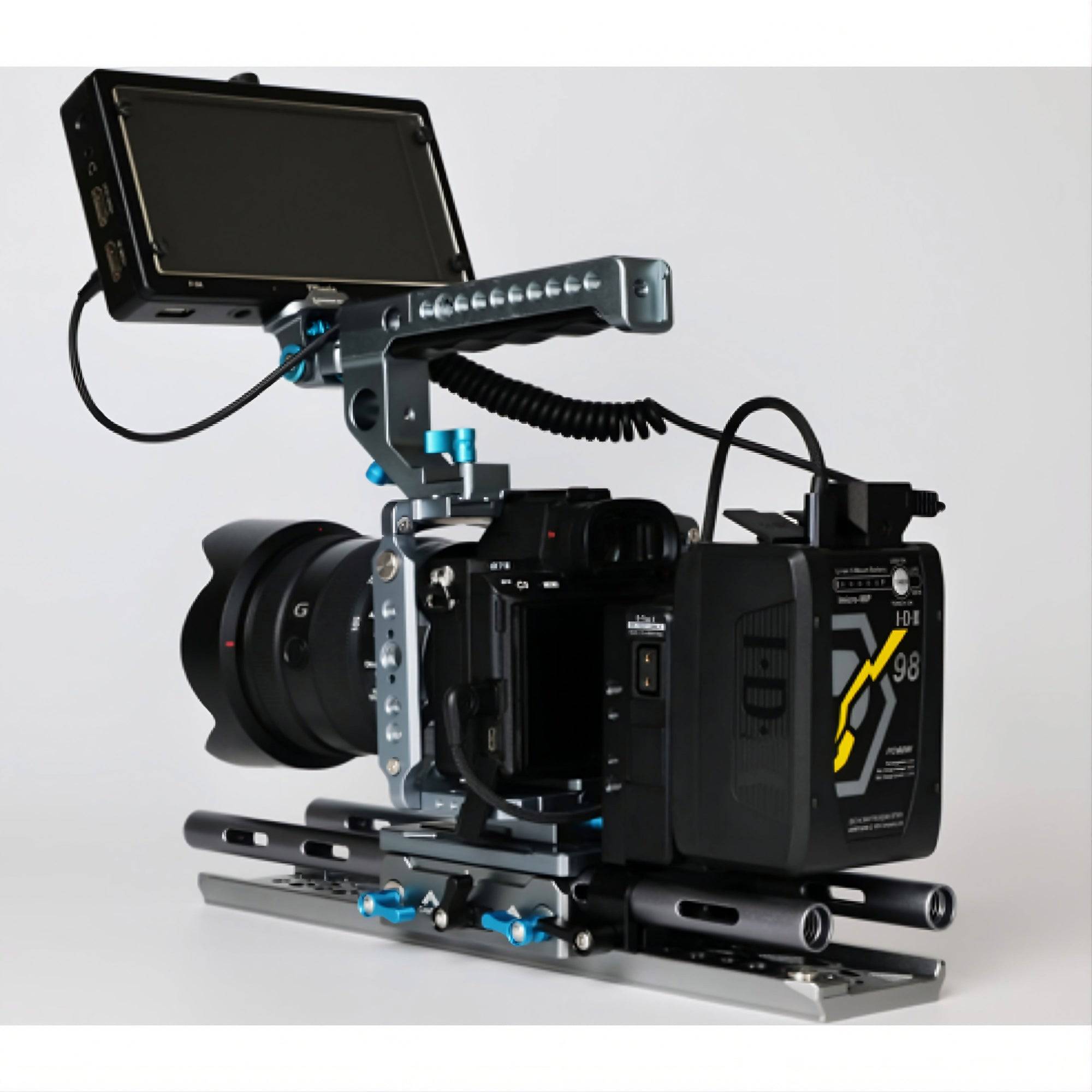

On compact camera builds, the battery affects more than runtime. It changes balance, center of gravity, and how clean the power layout stays when accessories get added. The iMicro-98P keeps the physical footprint small while still offering the current headroom needed for higher-draw setups.

Having both D-Tap / P-Tap and USB-C output means you can power accessories without stacking extra distribution hardware. Fewer adapters and fewer extra connections usually translate to fewer surprises in the field. The 5-stage LED gauge makes quick checks easy, and the built-in V-Torch is handy when swapping batteries in darker environments.

System Characteristics

• Battery chemistry: Lithium-Ion
• Operating conditions: 0 to 40°C
• Storage conditions: -20 to 50°C
• Limited 2-year manufacturer warranty

What’s In The Box

IDX System Technology iMicro-98P 97Wh High-Load Lithium-Ion Mini V-Mount Battery
