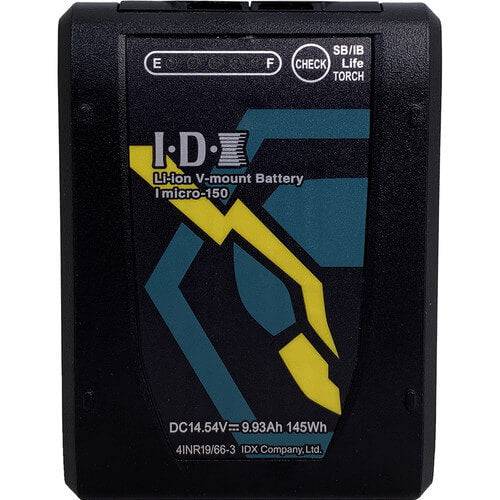

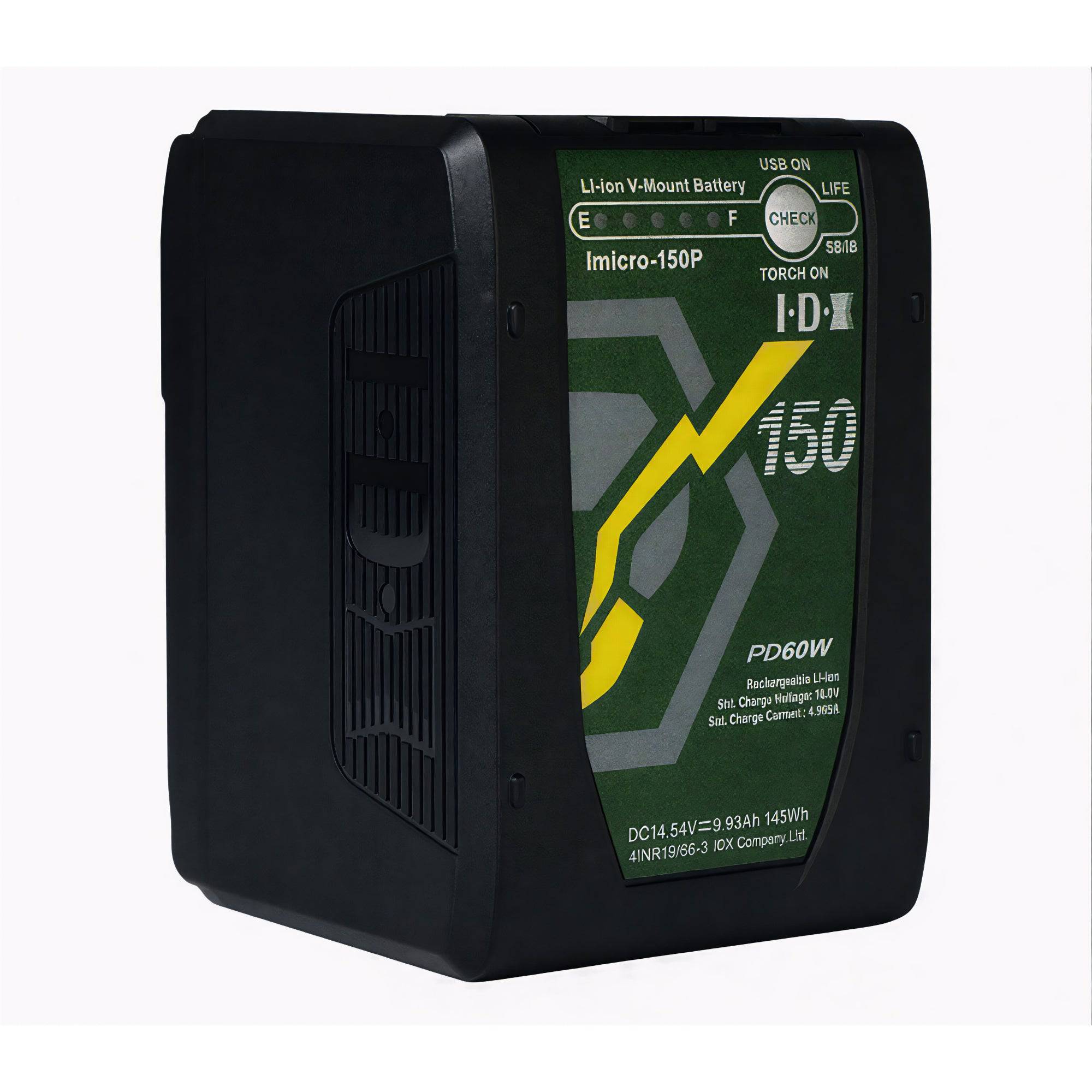

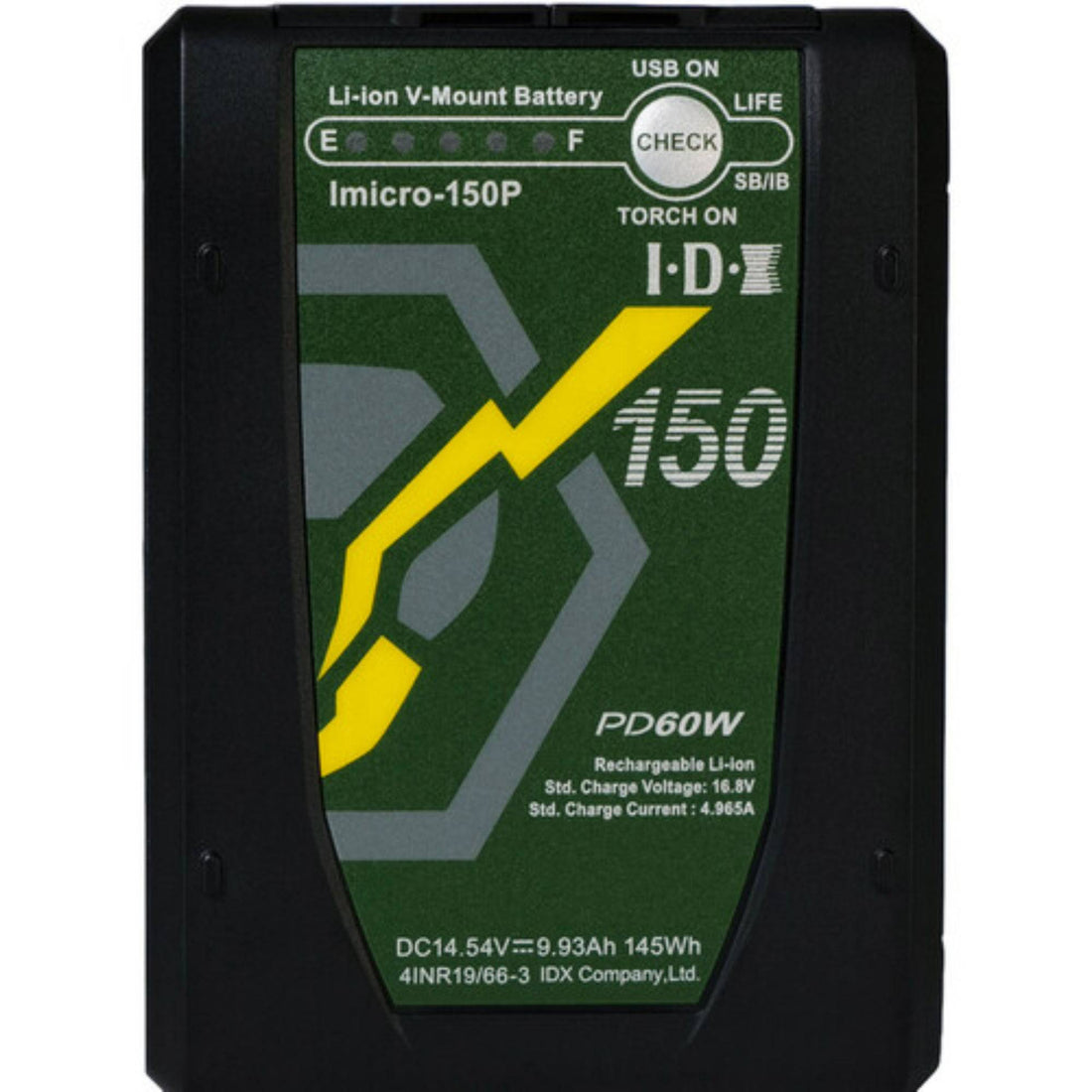

IDX System Technology Imicro-150P 145Wh High-Load Lithium-Ion Mini V-Mount Battery

IDX iMicro-150P is a compact 145Wh lithium-ion Mini V-Mount battery built for production rigs that still need serious output headroom. It delivers 14.54 VDC and supports up to 14A draw, so it fits higher-load camera builds while staying easier to balance on smaller setups.

Highlights

• 145Wh Mini V-Mount lithium-ion battery in a compact form factor
• Supports up to 14A draw with 14.54 VDC output
• USB-C PD and D-Tap outputs for accessory power

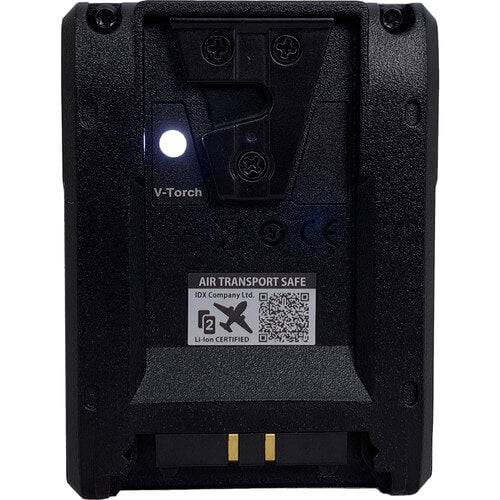

• Built-in V-Torch and 5-stage LED capacity indicator
• Digital communications support to display information on a camera viewfinder

Quick Specs & Uses

• Battery type: V-Mount
• Capacity: 145 Wh
• Output voltage: 14.54 VDC

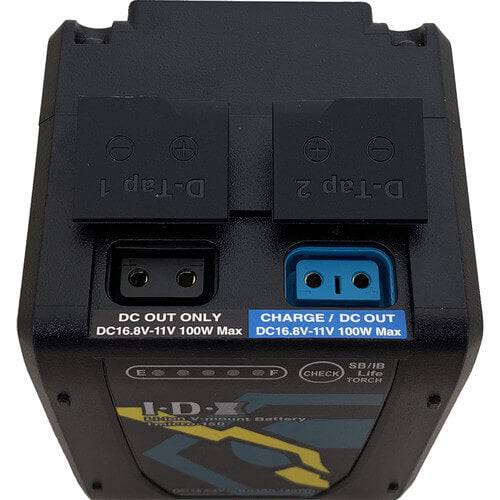

• Outputs: USB-C PD and D-Tap
• Dimensions: 100 x 73 x 39.5 mm; weight: 380 g

Why It Helps

Smaller rigs do not have the space to waste, but they still need stable power. The iMicro-150P keeps the footprint compact while supporting higher draw loads, and it gives you practical outputs for both traditional accessories and newer USB-C powered devices. The 5-stage LED gauge makes checks quick, and the V-Torch helps when you are swapping batteries in darker environments.

System Characteristics

• Battery chemistry: Lithium-Ion
• Power I/O: 1x D-Tap/P-Tap output (11.2 to 16.8 VDC)
• Internal protection: over-charge, over-discharge, and thermal circuit protection
• Limited 2-year manufacturer warranty

What’s In The Box

IDX System Technology iMicro-150P 145Wh High-Load Lithium-Ion Mini V-Mount Battery
