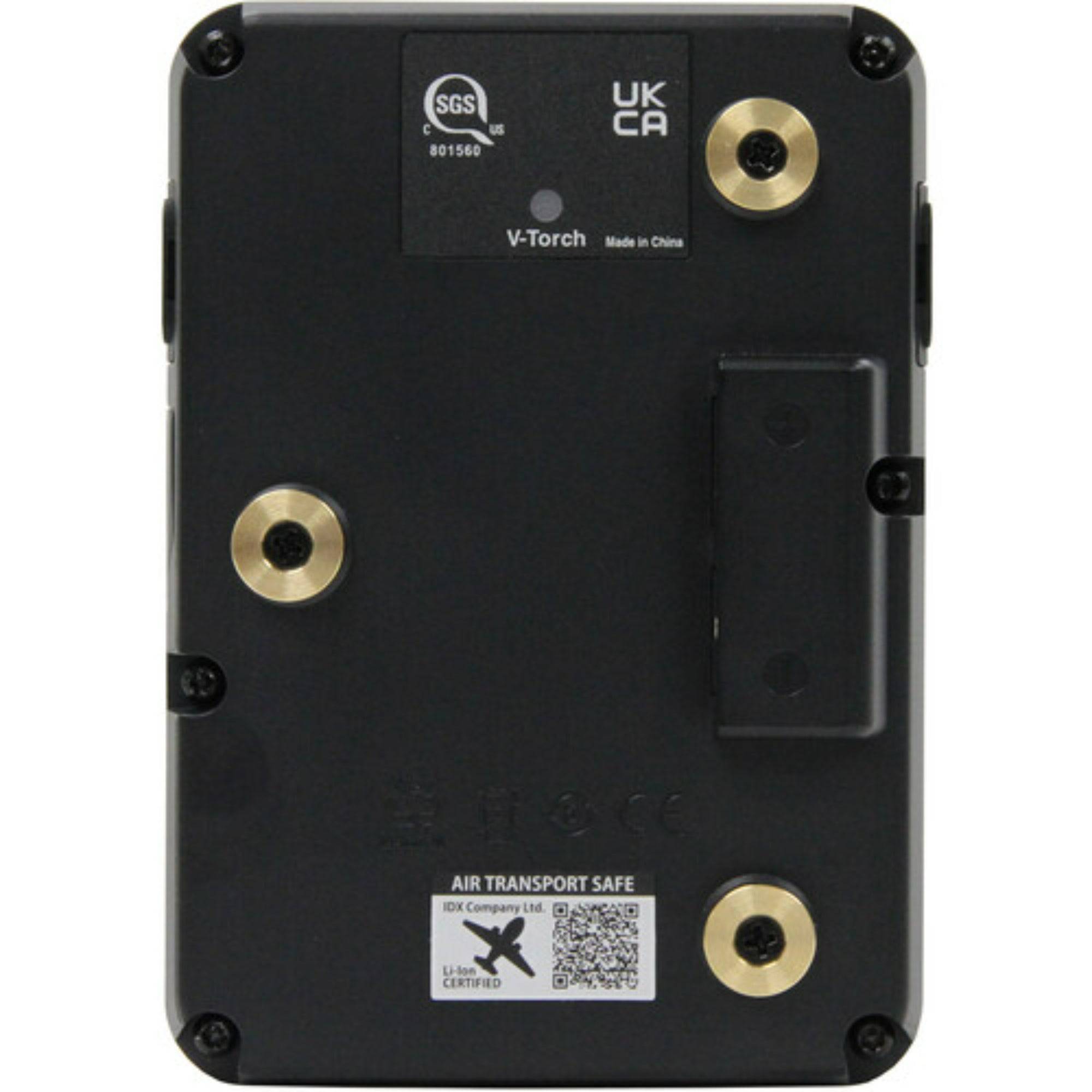

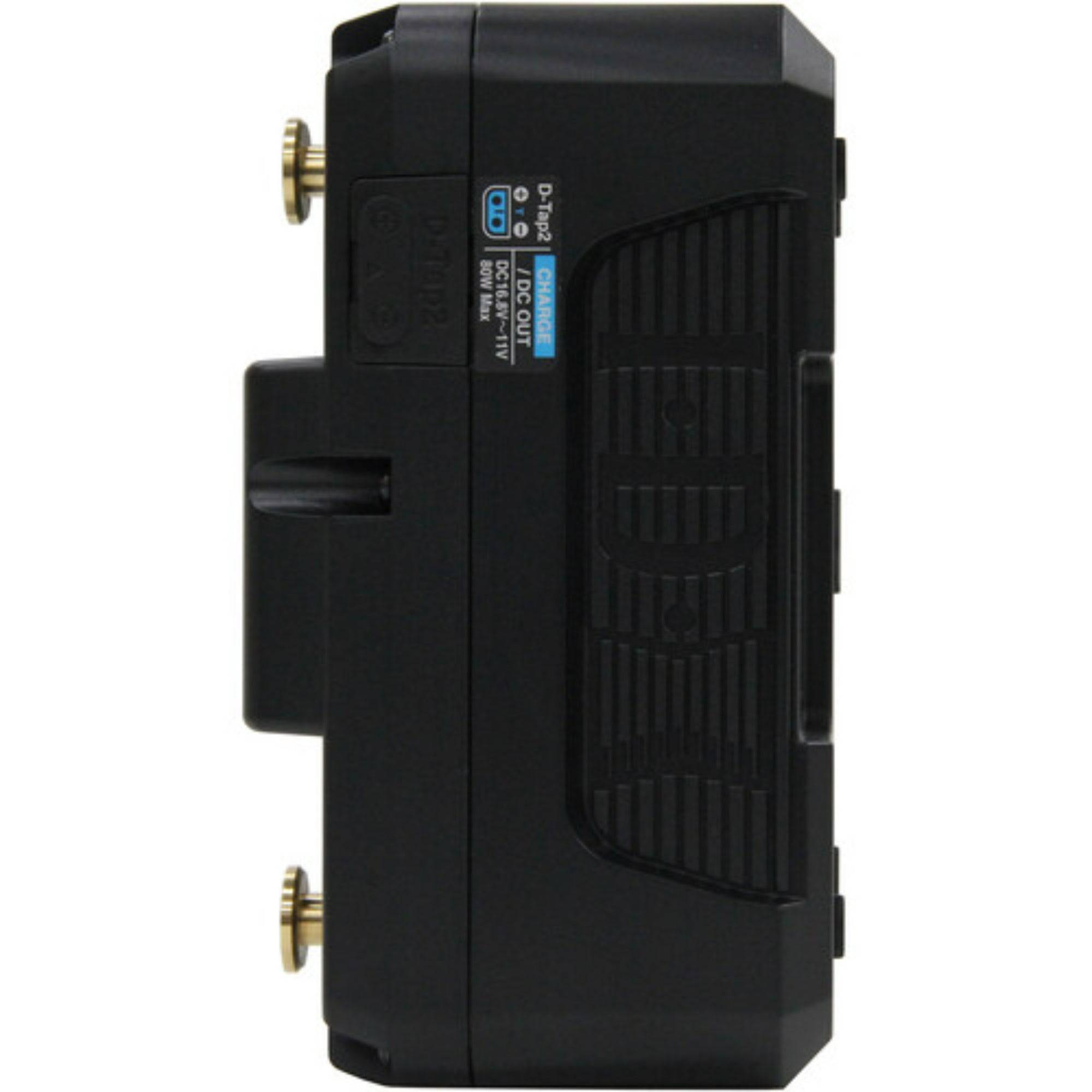

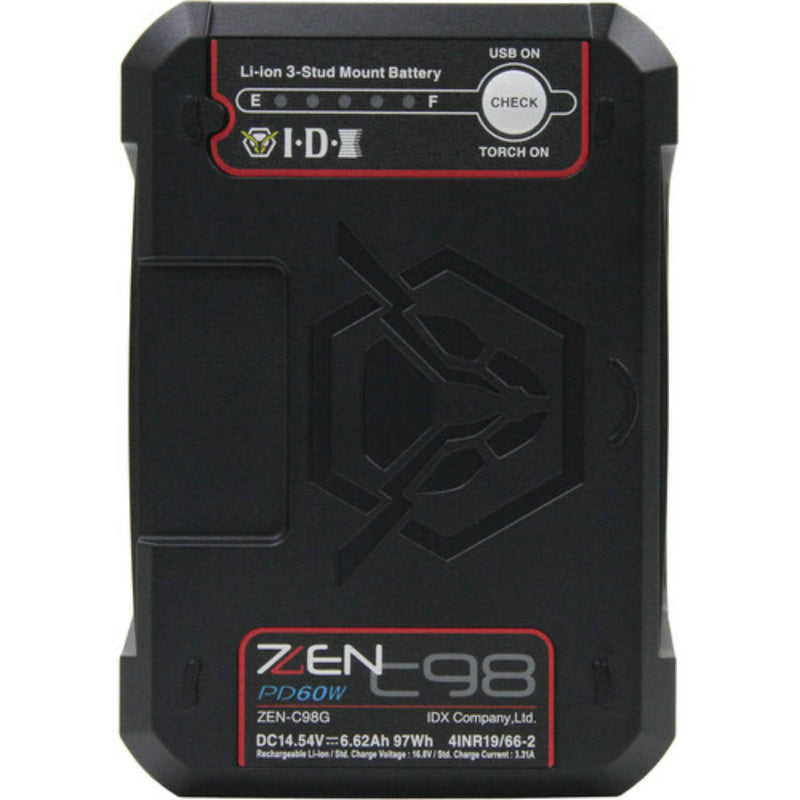

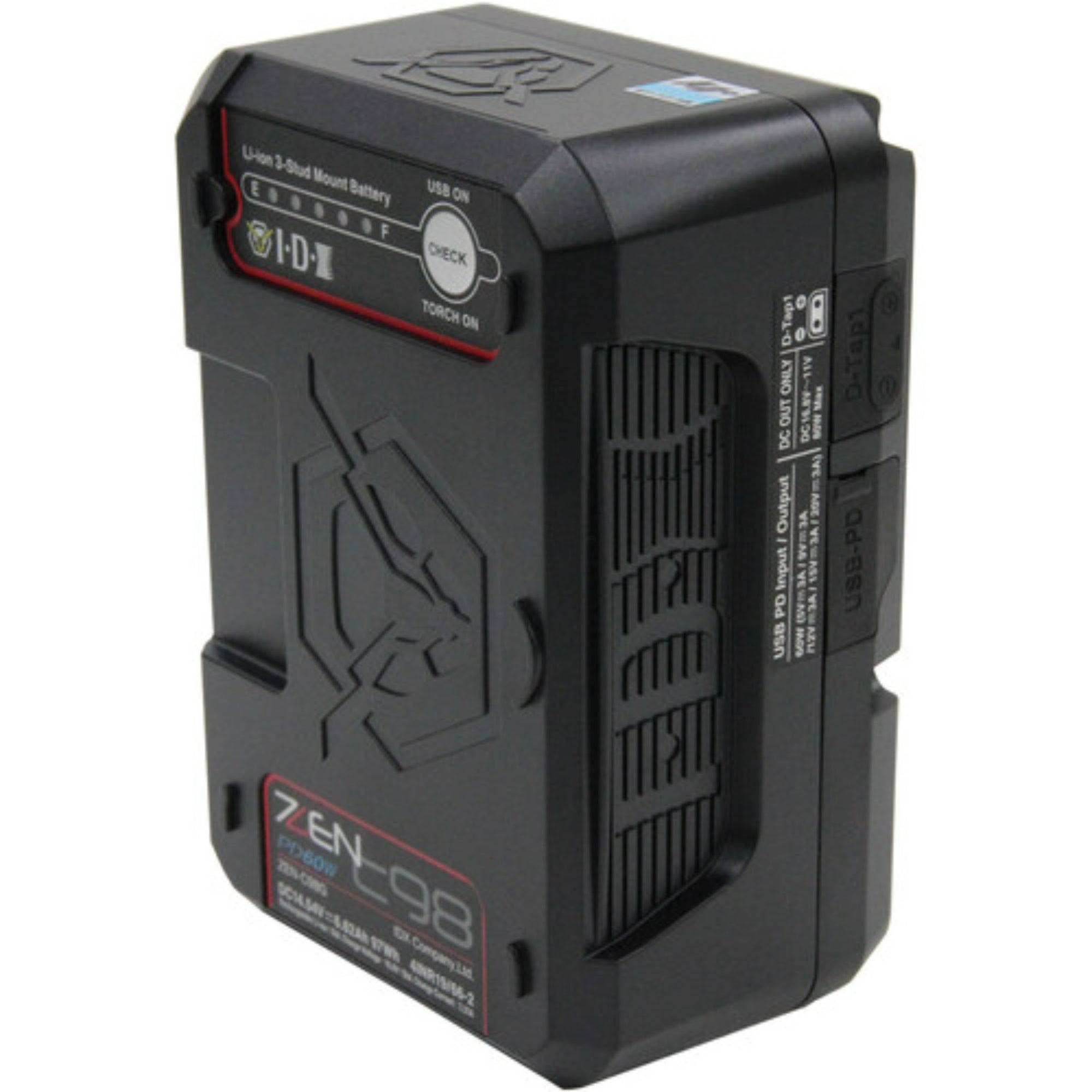

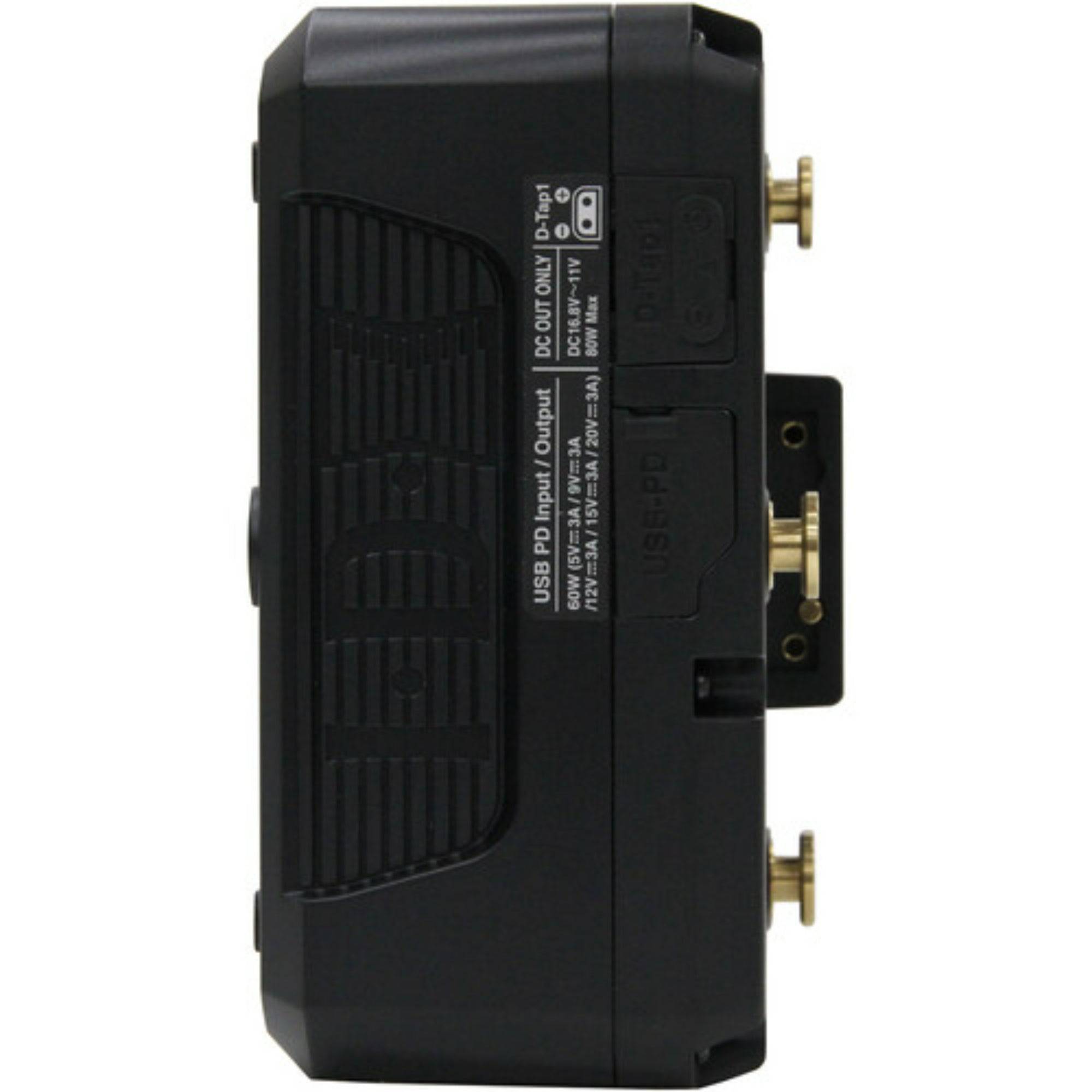

IDX System Technology ZEN-C98G 97Wh 14.5V 3-Stud High-Load Lithium-Ion Battery with 2x D-Tap and USB-C Port

IDX ZEN-C98G is a 3-stud, high-load 97Wh lithium-ion battery built for production days where the camera is not your only power draw. Along with the main output, you get two D-Tap ports (80W each) for accessories and a USB-C PD port that supports up to 60W input or output, which is handy for fast top-ups or powering compatible gear on set.

Highlights

• 97Wh (14.5V / 6.6Ah) capacity for practical runtime without jumping to oversized packs
• High-load design with 12.7A max discharge for demanding camera builds
• 2x D-Tap outputs rated up to 80W each for monitors, wireless, and accessories
• USB-C PD supports up to 60W input/output (5V to 20V profiles)
• Cube-style body intended for a cinema camera rig fit and balance

Quick Specs & Uses

• Capacity: 97Wh (14.5V / 6.6Ah)
• Nominal voltage: 14.54V DC; Max output: 16.8V DC; End voltage: 11V
• Max discharge current: 12.7A
• Outputs: 2x D-Tap (80W each) + USB-C PD up to 60W input/output
• Operating envelope: discharge -4°F to 113°F (-20°C to 45°C)

Why It Helps

This is the kind of battery that cleans up power planning on a rig. Instead of stacking splitters or hunting for separate power bricks, you can feed the camera and still have dedicated taps for on-board accessories. The USB-C PD port adds flexibility for modern field workflows, especially when you are moving between cart, handheld, and travel setups.

System Characteristics

• Built-in protections include overcharge, overdischarge, and overcurrent protection.
• USB-C PD supports common voltage profiles from 5V through 20V (up to 60W)
• Compact form factor: 3.46 x 4.96 x 2.70 in
• Approximate weight: 24.64 oz (698.53 g)
• Charging temperature range listed from 32°F to 104°F (0°C to 40°C), with a recommended midrange window

What’s In The Box

IDX ZEN-C98G 97Wh 14.5V 3-Stud High-Load Lithium-Ion Battery and IDX 2 Year Limited Warranty.
