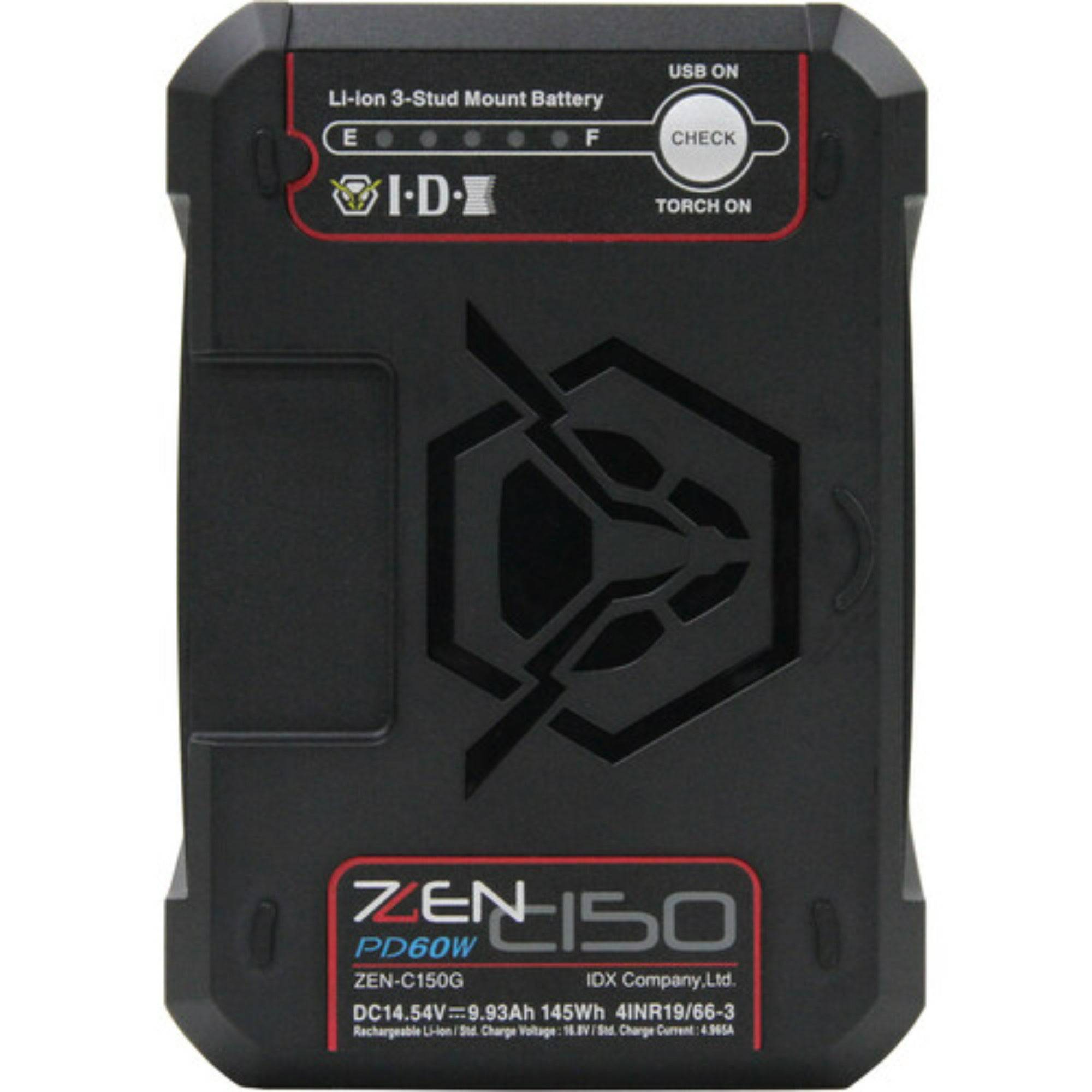

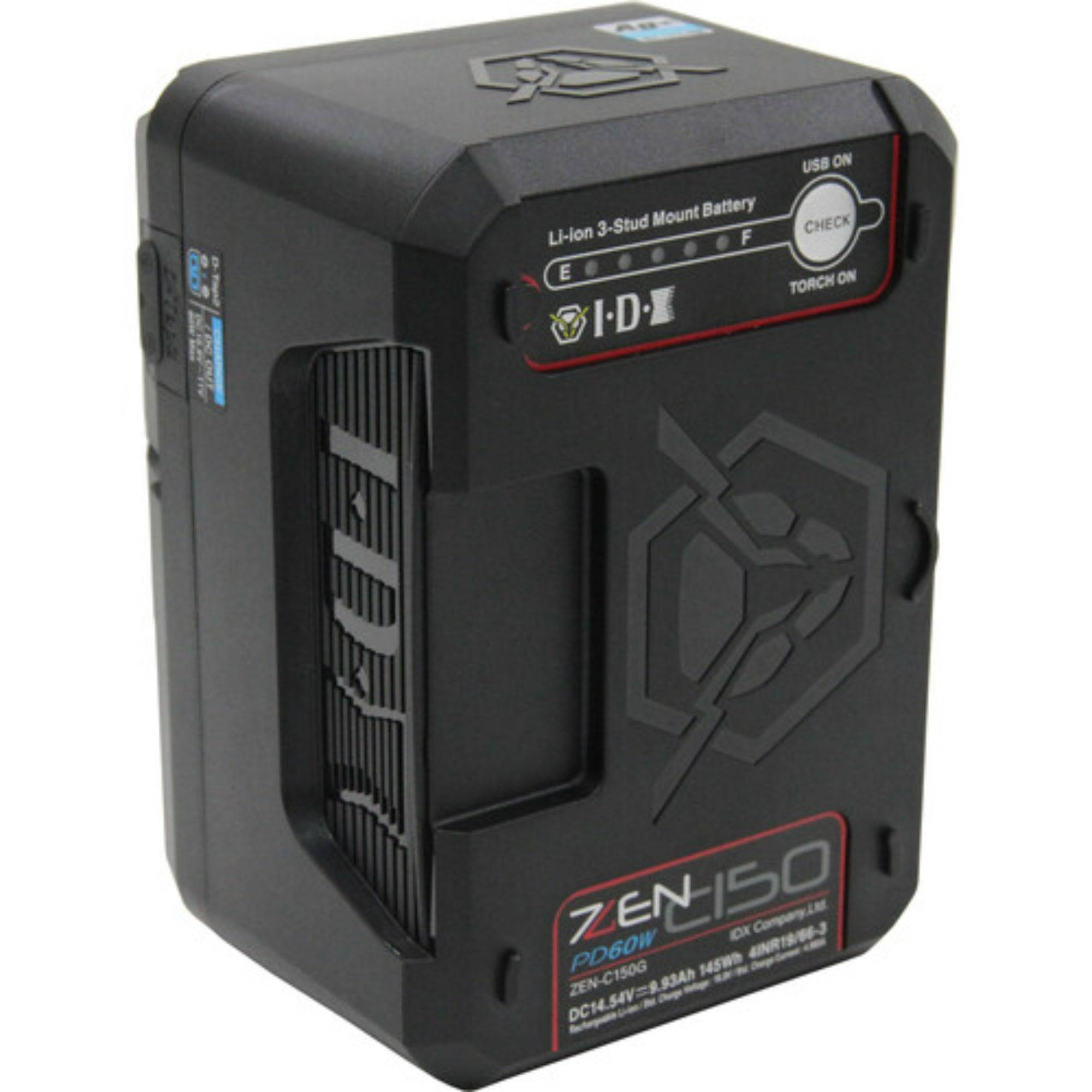

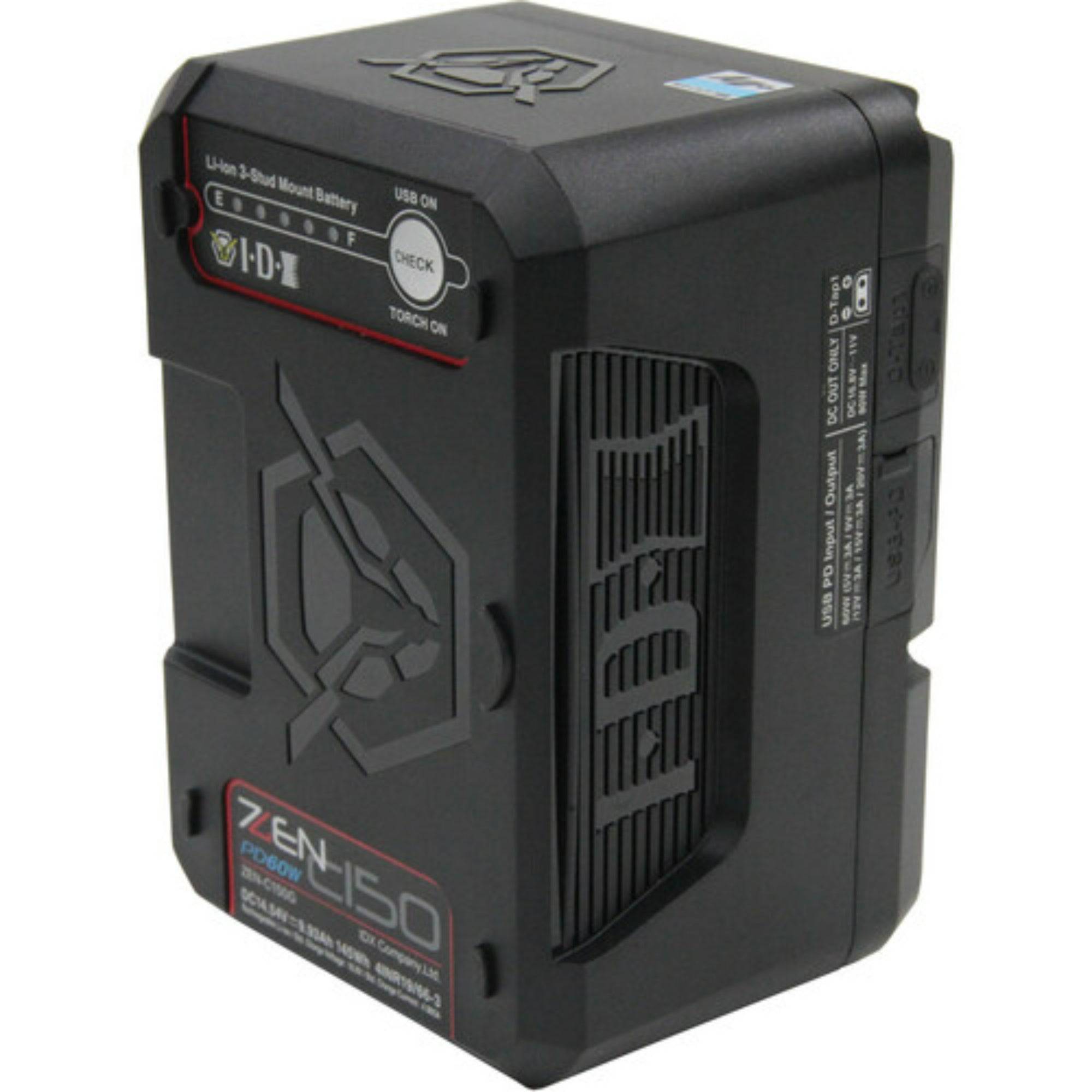

IDX System Technology ZEN-C150G 145Wh 14.5V 3-Stud High-Load Lithium-Ion Battery with 2x D-Tap and USB-C Port

IDX ZEN-C150G is a 145Wh 3-stud high-load battery made for camera builds that pull real current, not just a bare body on a tripod. You get two D-Tap outputs (80W each) for accessories and a USB-C PD port that can push or take up to 60W, so you can power modern add-ons or handle charging in a more flexible way.

Highlights

• 145Wh capacity (14.5V / 9.9Ah) for longer runtime on higher-draw rigs
• High-load output with 15.2A max discharge for demanding equipment
• Dual D-Tap power up to 80W each for monitors, wireless, and accessories
• USB-C PD supports up to 60W input/output (5V to 20V profiles)

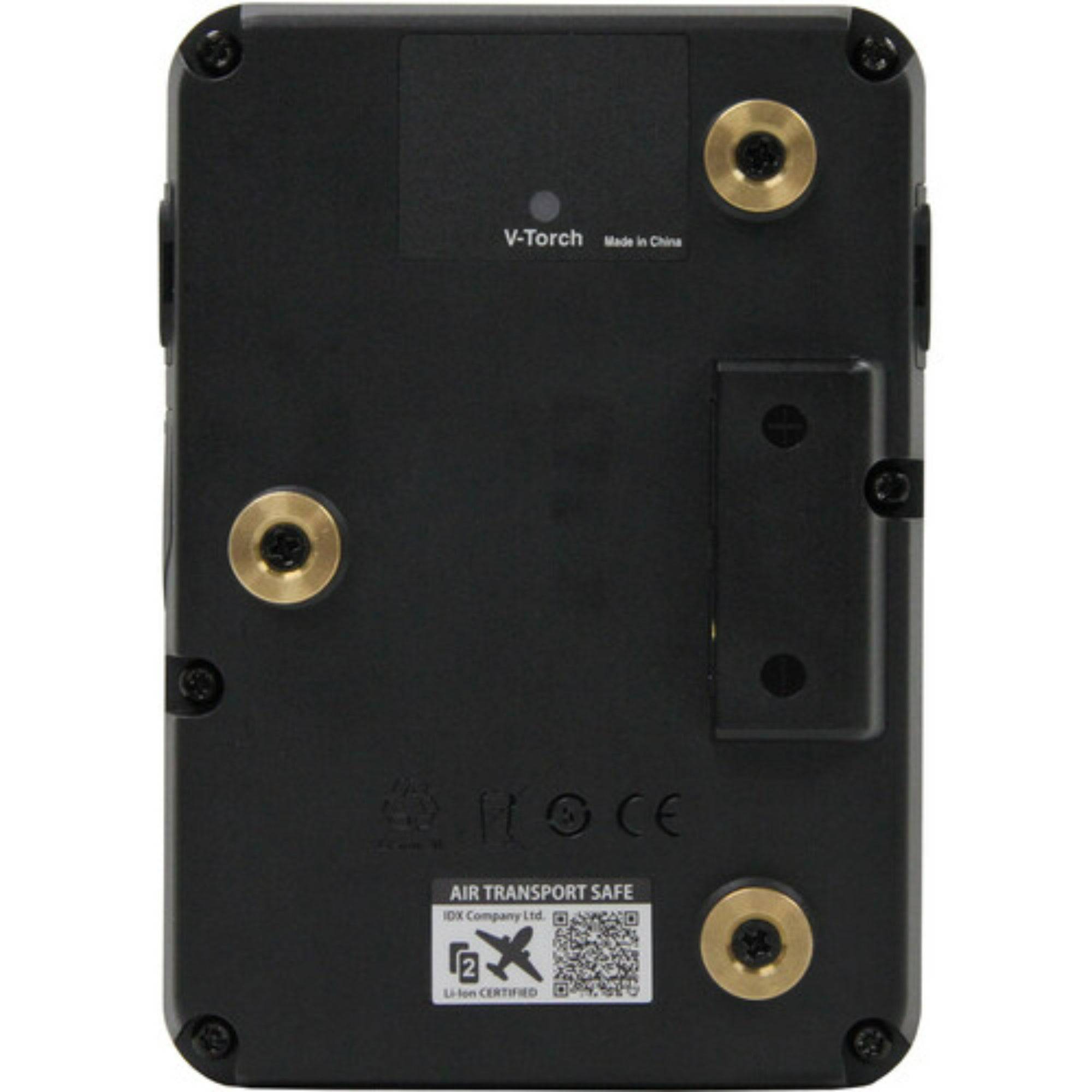

• 3-stud mount for broadcast-style battery workflows

Quick Specs & Uses

• Capacity: 145Wh (14.5V / 9.9Ah)
• Nominal voltage: 14.54V DC; Max output voltage: 16.8V DC; End voltage: 11V
• Max discharge current: 15.2A

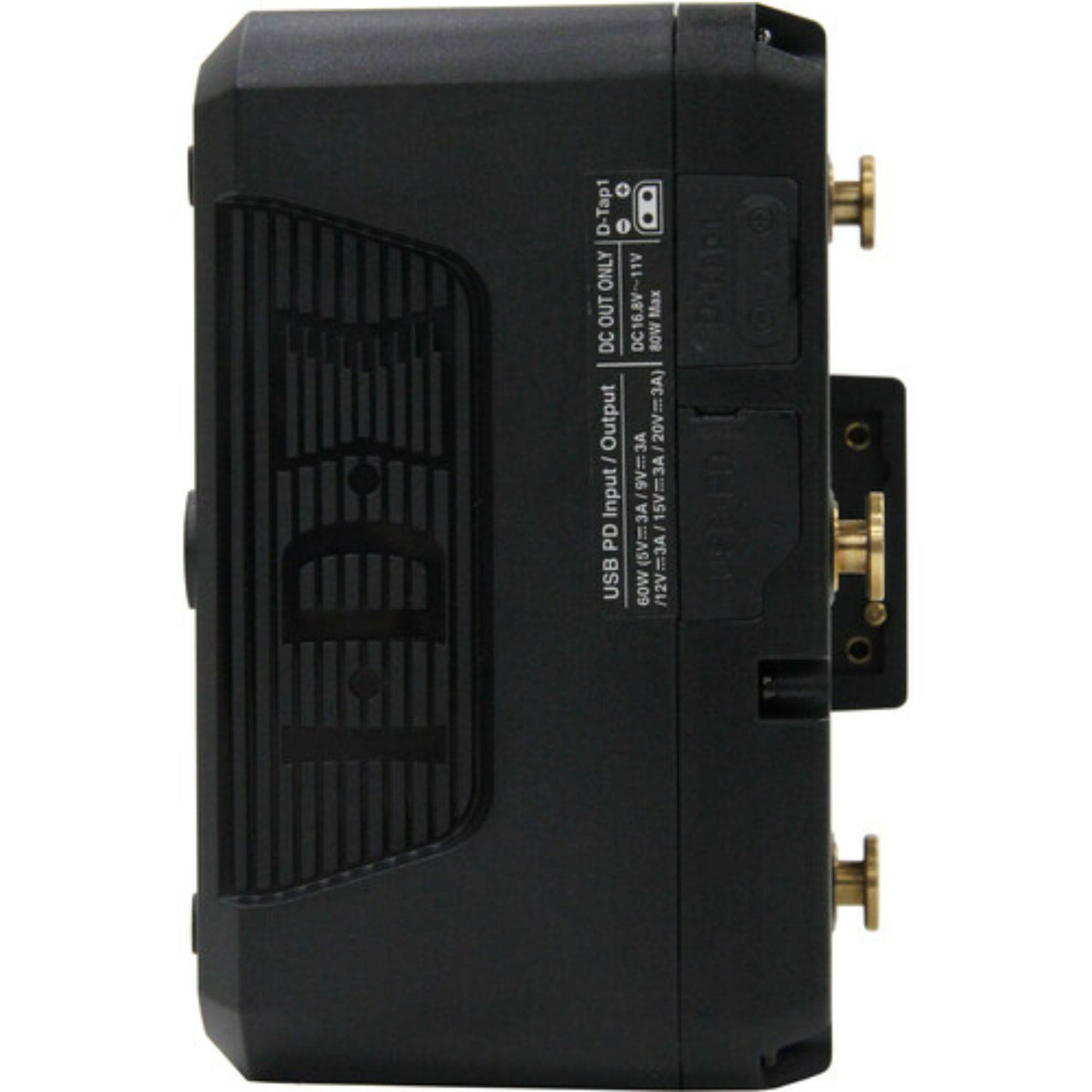

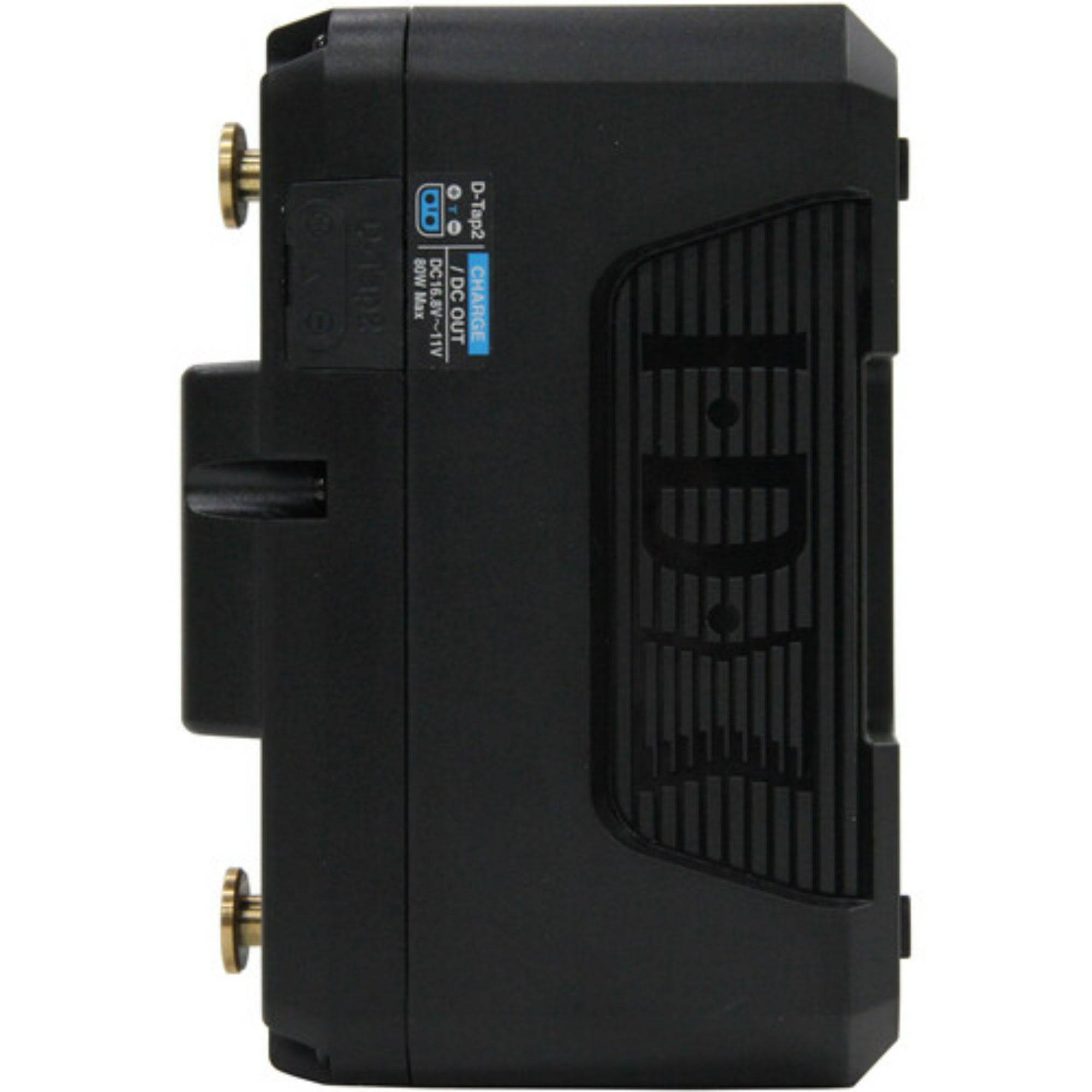

• Accessory outputs: 2x D-Tap (80W each) + USB-C PD up to 60W input/output
• Physical: 3.46 x 4.96 x 3.29 in; approx. 32.8 oz

Why It Helps

On a real shoot, the camera is only part of the load. Add a monitor, wireless video, timecode, or a control surface, and the power plan gets messy fast. The ZEN-C150G keeps it clean: one main battery, two D-Taps for your on-board accessories, and USB-C PD for modern workflows. Less clutter, fewer adapters, and fewer surprises when the rig ramps up.

System Characteristics

• USB-C PD supports 5V/3A, 9V/3A, 12V/3A, 15V/3A, and 20V/3A up to 60W
• Built-in protection includes over charge, over discharge, and over current
• Designed with a cube style body intended for cinema camera use
• Listed features include antiviral and antimicrobial body construction
• Charging notes and charger references are provided on the product page

What’s In The Box

IDX ZEN-C150G 145Wh 14.5V 3-Stud High-Load Lithium-Ion Battery and IDX 2 Year Limited Warranty.
