IDX System Technology ST-10 (ST-1 & VST-14 Kit - PROTECH )

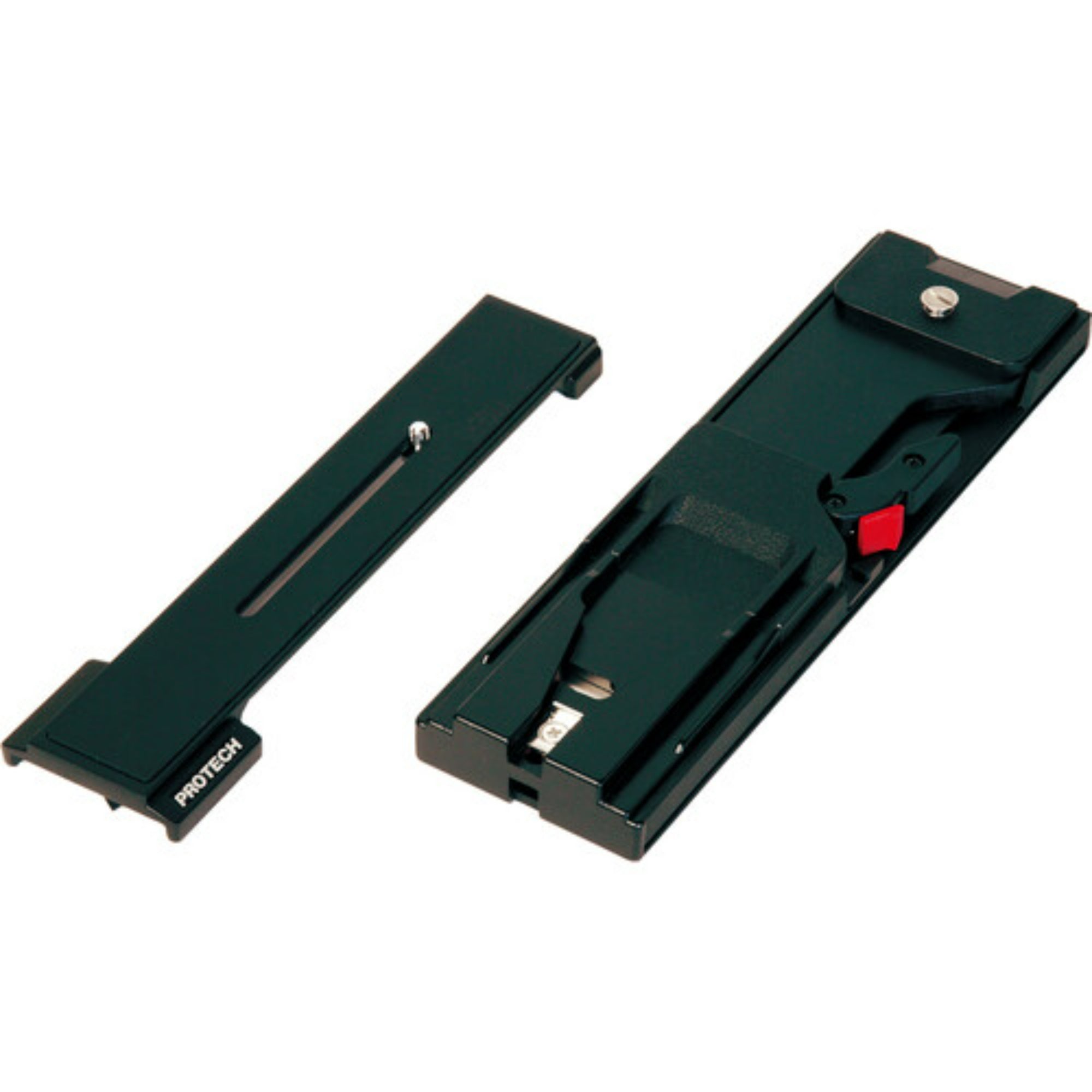

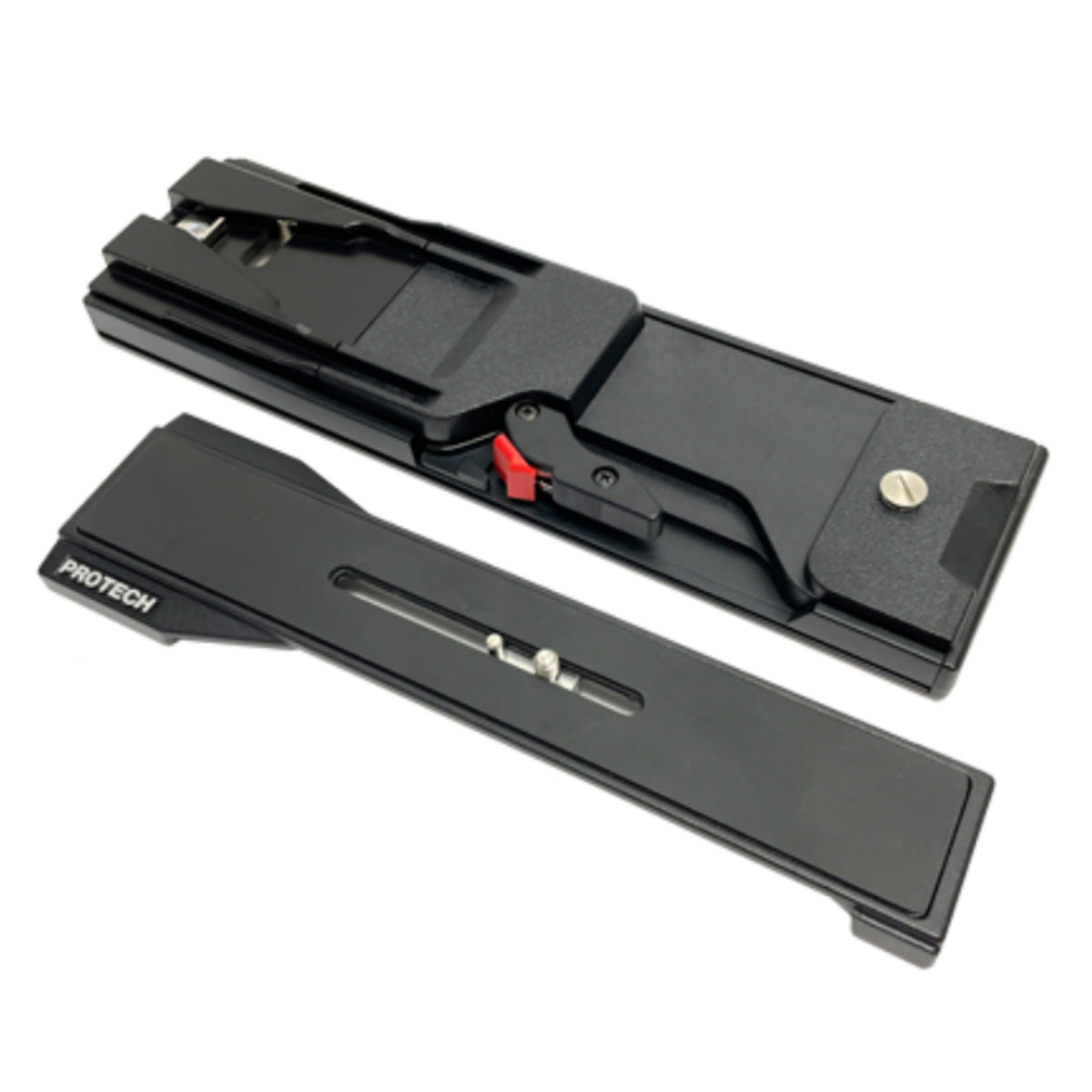

IDX ST-10 Tripod  ST-1 Adapter Plate and  VST-14 Tripod Base Plate Kit adapts your camera or camcorder and tripod to a VCT-14 style quick-release workflow. Mount the ST-1 adapter plate to your camera, install the VST-14 receiver plate on your tripod, and you get a secure, fast slide-on mounting system designed for repeatable setups from smaller cameras up through full-size ENG builds.

Highlights

• VCT-14 style quick-release workflow for faster ENG-style mount and release on a tripod
• ST-1 camera adapter plate mounts to the camera and interfaces with the receiver system
• VST-14 tripod base plate provides a VCT-style receiver with a spring-loaded latch and safety
• Balance-friendly slotted plate lets you trim fore-aft positioning to find a cleaner center of gravity.
• Broad mounting support for 1/4-20 and 3/8-16 configurations with or without a guide pin

Quick Specs & Uses

• Kit contents: ST-1 adapter plate for camera plus VST-14 receiver plate for tripod
• Compatibility target: VCT-14 style ENG quick-release mounting systems, compatible with VCT-14U plate workflows
• Tripod mounting threads: 11 total on the VST-14 (6 x 1/4-20 and 5 x 3/8-16)
• ST-1 plate size and weight: 9.69 x 2.56 x 0.59 in, 7.4 oz
• Operator workflow: slide the camera forward to engage, use the release lever plus the safety button to remove

Why It Helps

When you are bouncing between tripod work and ENG-style moves, the time loss usually comes from rebalancing and re-mounting. This kit makes the mount repeatable. The slotted ST-1 plate helps you trim balance, and the VST-14 receiver gives you a fast slide-in engagement with a safety release, so changeovers stay controlled instead of chaotic.

System Characteristics

• The ST-1 slotted design supports balance adjustment by shifting the camera position on the plate.
• ST-1 mounting hardware supports several 1/4-20 and 3/8-16 combinations with or without a guide pin
• VST-14 uses a spring-loaded release latch with a safety-release button for controlled removal
• VST-14 provides 11 tripod thread points to help you land the plate where the tripod balances best
• The basic operating method is slide-to-engage, then lever plus safety button to release

What’s In The Box

Includes the PROTECH Tripod Adapter Plate (with guide pin plate, tie-down screw, adapter bushing, and washers) plus the PROTECH VST-14 Quick Release Tripod Base Plate. Please refer to the Specifications tab for the exact list shown for this kit.
