IDX System Technology-IDX-NP-9X

IDX NP-9X 96Wh Li-Ion NP-Style Battery with 2 x D-Tap Ports is designed for audio equipment with an NP-1 battery mount. It provides a listed 96Wh capacity and adds two D-Tap outputs for powering accessories, including a D-Tap Advanced port that can also function as a charging input for the optional IDX VL-DT1 D-Tap charger.

Highlights

• NP-1 mount battery for audio equipment workflows
• 96Wh capacity with 14.4 to 16.8V output listed
• Two 50W D-Tap outputs for accessory power

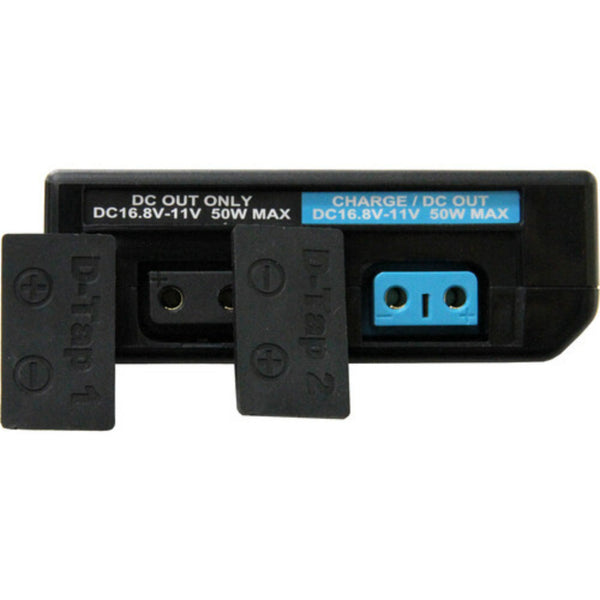

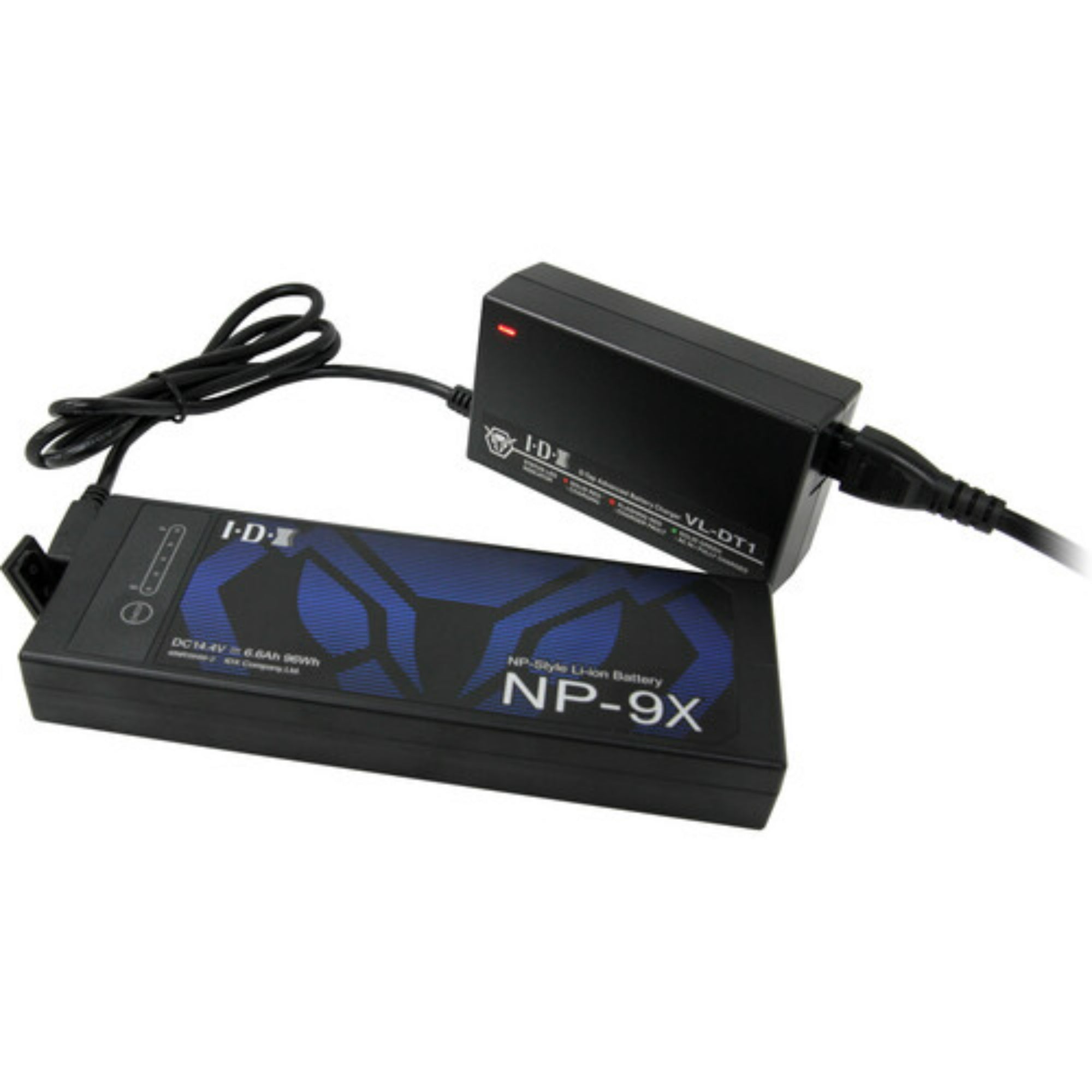

• D-Tap Advanced port supports charging input for optional IDX VL-DT1
• 5-LED power indicator plus battery circuit protection

Quick Specs & Uses

• Mount / series: NP-1
• Chemistry: Lithium-Ion
• Capacity: 6600 mAh / 96 Wh
• Output: 14.4 VDC (14.4 to 16.8V output listed)
• Accessory I/O: 2x D-Tap / P-Tap output, max load 50 W (D-Tap)

Why It Helps

NP-1 power is still the simplest way to keep a sound bag predictable. NP-9X gives you the capacity to plan longer runs and the D-Tap outputs to feed accessories, while the D-Tap Advanced port adds an optional charging path that can reduce the amount of separate charging hardware you carry.

System Characteristics

• Designed for audio equipment using an NP-1 battery mount
• Two D-Tap outputs are provided, each listed at 50W max load (D-Tap)
• One D-Tap port is D-Tap Advanced and can function as a charging input for optional IDX VL-DT1

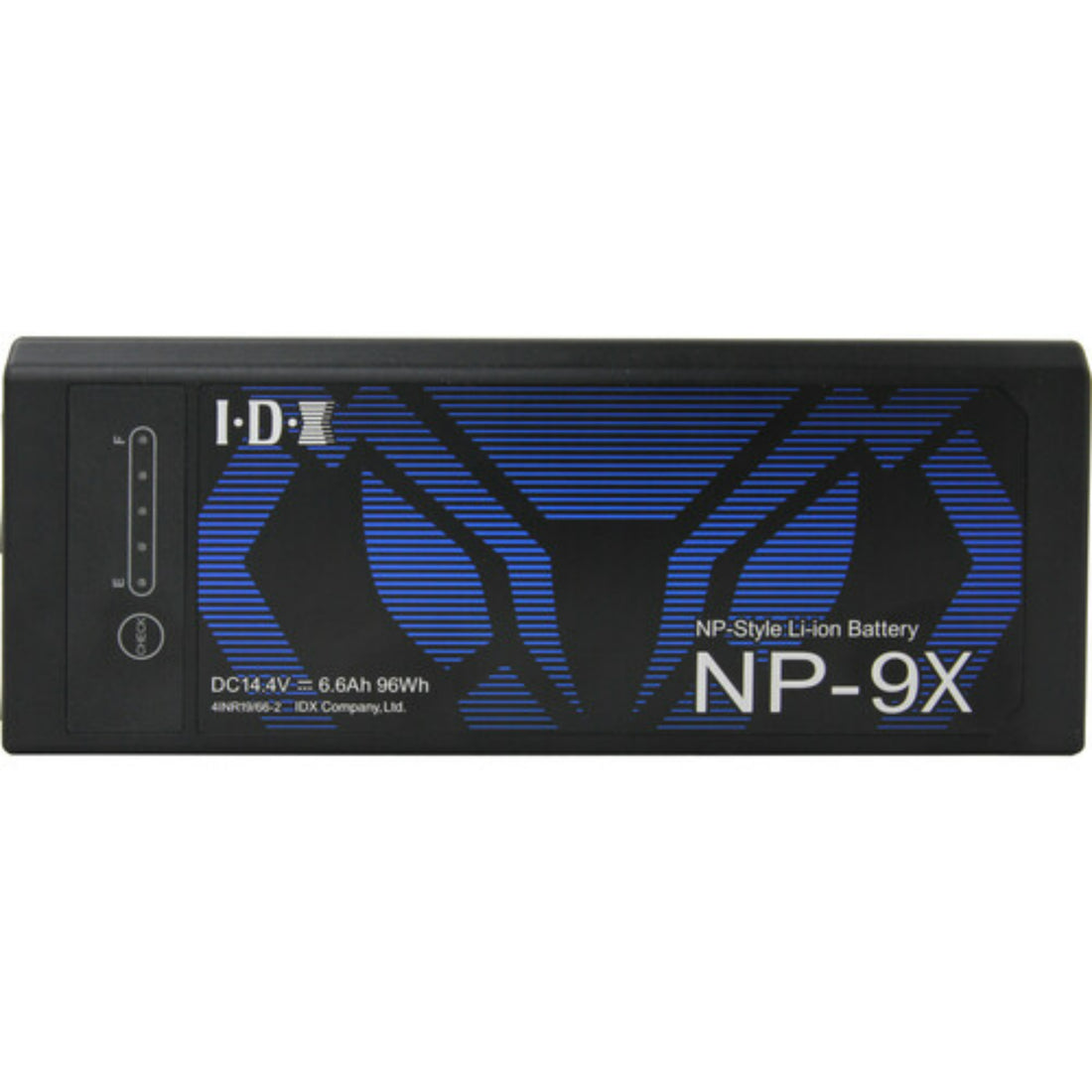

• 5-LED power indicator supports quick pre-roll checks
• Battery circuit protection is listed for overcharge, overdischarge, overcurrent, and high temperature exposure

What’s In The Box

IDX System Technology NP-9X 96Wh Li-Ion NP-Style Battery with 2 x D-Tap Ports and Terminal Cover
