IDX System Technology 2 x Imicro-150 Batteries & V-Mount Plate Kit

IDX M150VPK 2 x Imicro-150 Batteries & V-Mount Plate Kit is a compact V-mount power bundle for cameras and other V-mount powered devices. You get two 14.5V / 145Wh lithium-ion batteries (each rated for 14A draw) plus a V-mount battery plate for a clean, repeatable power path.

Highlights

• 2 x 145Wh batteries with a listed 14A draw
• 2 x D-Tap outputs, including D-Tap Advanced that can be used to charge the battery
• 5-LED gauge plus battery circuit protection
• V-Torch LED for working in dark environments
• SMBus support for battery info display via the viewfinder on select ARRI and RED cameras

Quick Specs & Uses

• Battery type: V-Mount
• Capacity: 145 Wh
• Output voltage: 14.5 VDC
• Dimensions: 3.82 x 2.8 x 2.72 in / 9.7 x 7.1 x 6.9 cm
• Environmental: Operating 32 to 104°F / 0 to 40°C; Storage -4 to 122°F / -20 to 50°C

Why It Helps

This kit is built for consistency. Two matched 145Wh packs plus a plate makes battery swaps predictable, while dual D-Tap (including a D-Tap Advanced charging option) supports accessory power and simplified charging workflows. The LED gauge, protection features, and SMBus reporting help you stay ahead of surprises mid-shoot.

System Characteristics

• Two Imicro-150 batteries are included, each listed at 14.5V / 145Wh and rated for a 14A draw
• Each battery provides two D-Tap outputs, including a D-Tap Advanced option that can be used to charge the battery
• 5-LED gauge supports fast battery status checks
• Circuit protection is listed for high temperature exposure, overcharge/overdischarge, and overcurrent
• V-Torch LED and SMBus support are included for low-light work and viewfinder battery info display on select ARRI and RED cameras

What’s In The Box

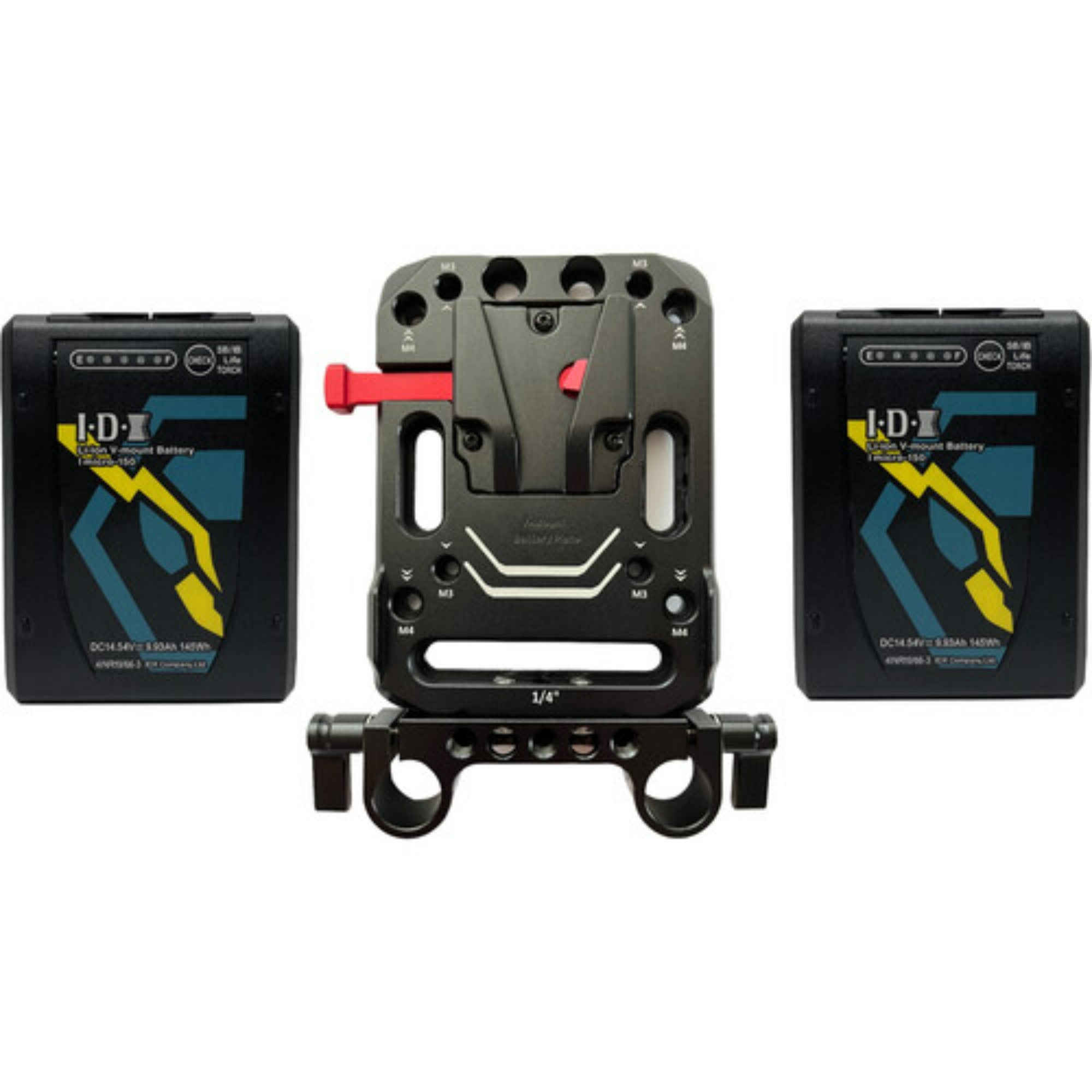

2 x IDX System Technology Imicro-150 14.5V 145Wh Li-Ion V-Mount Battery and V-Mount Battery Platey
