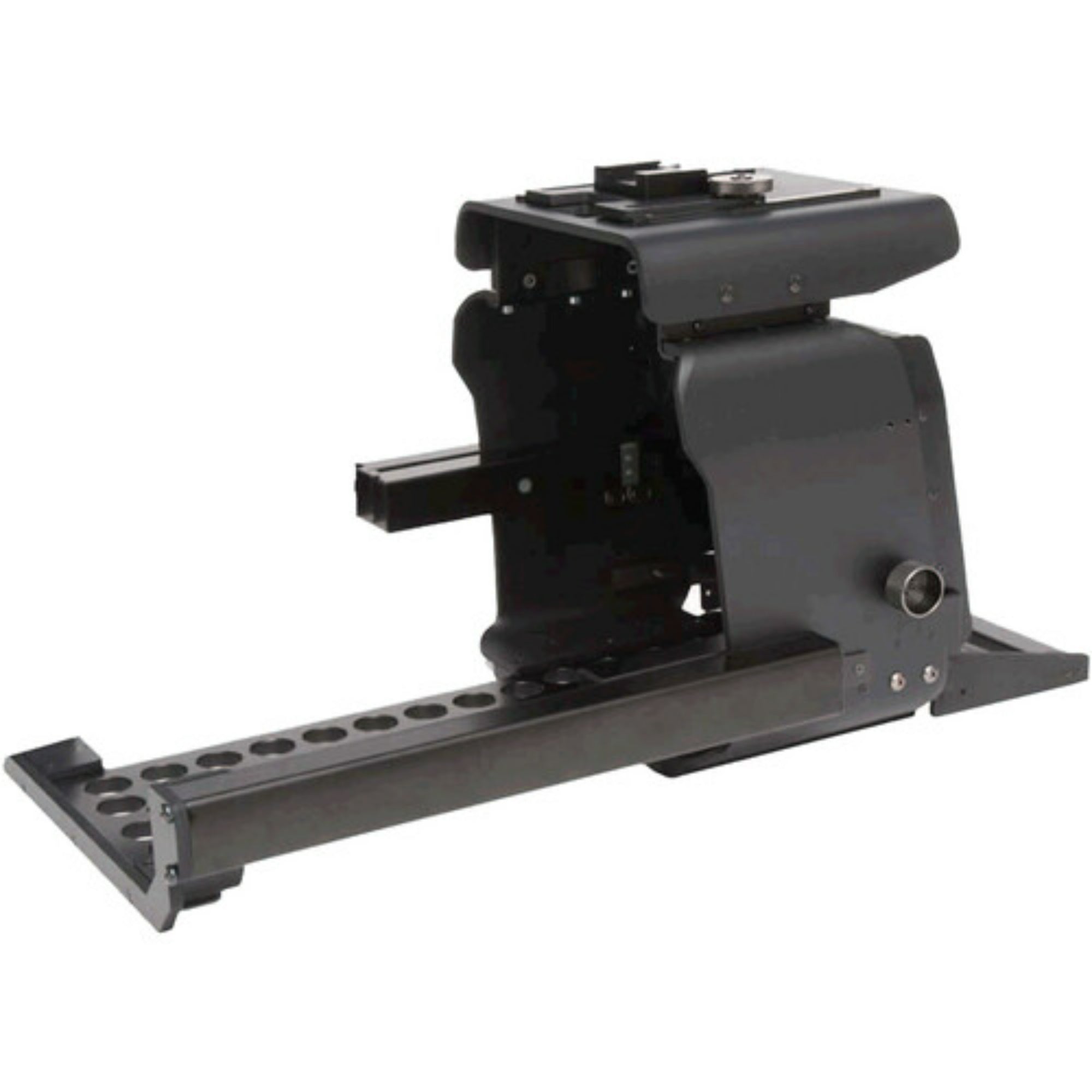

IDX System Technology HDS-300S Build-Up Rig- PROTECH

IDX System Technology HDS-300S Build-Up Rig- PROTECH helps adapt a small camcorder for ENG-style supports by adding cleaner signal routing and practical power distribution. It features HD-SDI in/out (BNC), a 6-pin IF (VF) input, and adds tally plus return switch functionality for studio/EFP-style workflows.

Highlights

• HD-SDI in/out on BNC for predictable SDI routing
• 6-pin IF (VF) input for viewfinder/IF connectivity
• Power input via V-mount battery or 4-pin XLR
• Power outputs include 4-pin XLR, D-Tap, and mini 4-pin (14.1/8.4 VDC)
• Tally output and return switch output for production-style integration

Quick Specs & Uses

• Video input: 1 x BNC (HD-SDI)
• Video output: 1 x BNC (HD-SDI)
• VF/IF input: 1 x 6-pin (IF/VF)
• Power: In via 4-pin XLR or V-mount battery; Out via 4-pin XLR, D-Tap, and mini 4-pin (14.1/8.4 VDC)
• Size / weight: 20 x 11.3 x 10.2 in; 11.7 lb

Why It Helps

This rig is for the moment a compact camcorder needs to behave like a field package. You get structured SDI routing, multiple power options for the camera and accessories, and tally/return connectivity that fits better in multi-camera environments.

System Characteristics

• HD-SDI is provided on BNC for both input and output
• A 6-pin IF (VF) input supports viewfinder/IF-style connectivity
• Power input supports either a V-mount battery or 4-pin XLR
• Power output provides 4-pin XLR, D-Tap, and a mini 4-pin output listed at 14.1/8.4 VDC
• Tally (BNC on/off) and return switch (4-pin) outputs support production workflows

What’s In The Box

• IDX System Technology HDS-300S Build-Up Rig
• 2 x BNC Cable
• 2 x 1/4"-20 Screw
• 3/8"-16 Screw
