IDX System Technology FR-F10 Manual Focus Remote Controller for Fujinon 12-Pin - PROTECH

IDX System Technology FR-F10 Manual Focus Remote Controller for Fujinon 12-Pin - PROTECH puts manual focus control where an operator actually wants it: on the tripod pan handle. It connects via a 6-pin HDS connector, uses the included 6-pin to 12-pin cable, and provides a reversible focus ring plus a direction switch so focus pulls feel natural on either handle.

Highlights

• Fujinon 12-pin lens focus control from the pan handle
• 6-pin HDS connector for connection to Fujinon Lens 12Pin
• Focus switch selects the rotating direction of the focus ring
• Reversible focus ring for smooth manual focus pulls
• Universal mounting for right or left tripod pan handle placement

Quick Specs & Uses

• Connector: 6-pin HDS (for connection to Fujinon Lens 12Pin)
• Controls: focus ring (reversible direction) and focus direction switch
• Mounting: attach to the right or left pan handle using the included bracket
• Operating: 32 to 104°F (0 to 40°C)
• Storage: -4 to 140°F (-20 to 60°C)

Why It Helps

When you need a clean manual pull, the simplest win is moving focus control to the handle so you are not reaching forward and shaking the shot. FR-F10 keeps focus control consistent, and the direction switch helps it stay intuitive even if you swap sides or operators.

System Characteristics

• Designed for Fujinon 12-pin lens control
• 6-pin HDS connector interface with included 6-pin to 12-pin cable
• Focus ring rotation direction is reversible and selectable via the focus switch
• Bracket mounts to either the right or left tripod pan handle
• Listed physical: main body 2.87 x 2.87 x 3.23 in; weights shown for body and bracket

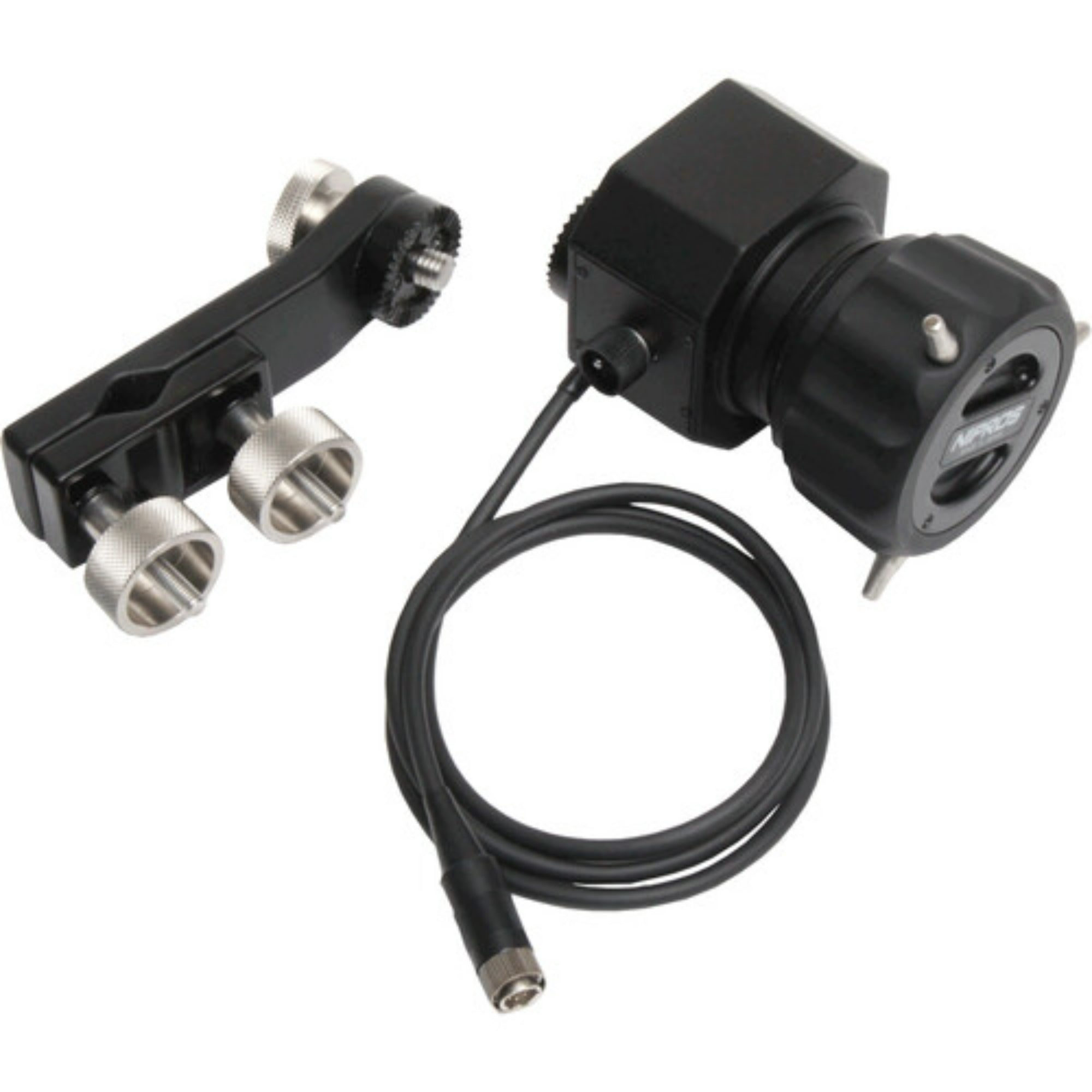

What’s In The Box

• IDX FR-F10 Manual Focus Remote Controller
• Universal Mounting Bracket
• 6-Pin-12-Pin Cable
