IDX System Technology BL-4SX B-Mount Battery 4ch Simultaneous Quick Charger

IDX System Technology BL-4SX B-Mount Battery 4ch Simultaneous Quick Charger is a 4-bay charger designed to charge up to four HV-160B or HV-320B 28V B-mount batteries at the same time. It provides charging at rates up to 3A and 100W with a listed 33.6V charging output, and it features a 3.5-inch LCD that displays charging progress, current, voltage, and battery cycle information. Each bay includes a large red/green LED for quick status checks, and the charger supports 90–240 VAC power for worldwide use.

Highlights

• 4-bay B-Mount charger for simultaneous charging
• Compatible with HV-160B and HV-320B batteries
• 33.6V charging output, up to 3A, up to 100W

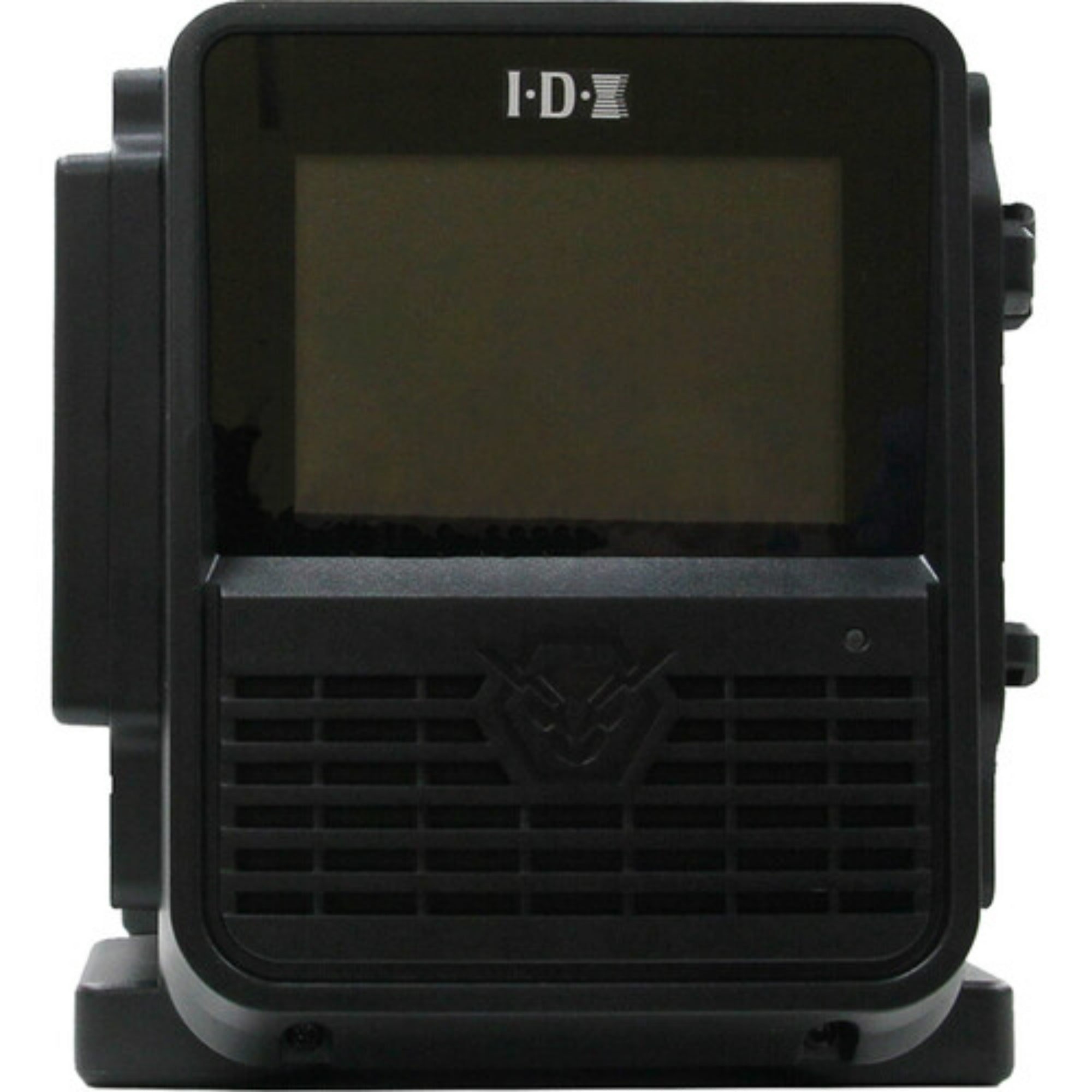

• 3.5-inch LCD shows progress, current, voltage, and cycle info
• 90–240 VAC input and a top carrying handle

Quick Specs & Uses

• Charger type: 4-bay B-Mount battery charger
• Battery support: up to four HV-160B or HV-320B 28V B-mount batteries
• Charging output: 33.6V, up to 3A, up to 100W
• Status + monitoring: 3.5-inch LCD plus red/green LED per bay
• Power input: 90–240 VAC for worldwide use

Why It Helps

This charger is built for multi-battery days. Four bays means less downtime between packs, the LCD provides meaningful electrical readouts, and the per-bay LEDs make it easy to verify readiness from a distance during prep or changeovers.

System Characteristics

• Simultaneous 4-bay charging supports fast battery rotation
• LCD readouts help techs verify charge behavior beyond simple status lights
• Large red/green indicators per bay improve visibility in busy workspaces
• 90–240 VAC input supports travel and mixed-power environments
• The top handle supports practical transport between the set, the truck, and the studio

What’s In The Box

• 1 x IDX System Technology BL-4SX 4-Bay Battery Simultaneous Quick Charger (B-Mount)
• 1 x AC Power Cord
