IDX System Technology A-HS30B B-Mount to B-Mount Hot-Swap Plate

IDX System Technology A-HS30B B-Mount to B-Mount Hot-Swap Plate is a dual B-Mount power plate designed to keep compatible cameras and accessories continuously powered while you swap batteries. The page notes a 120-second swap countdown on an LCD, a 200W maximum load, and a regulated 28V output intended for the ARRI ALEXA 35. It also supports a 22–33.6V power station input via an 8-pin connector.

Highlights

• Dual B-Mount plate designed for hot-swap battery operation
• 200W maximum load for high-draw camera setups
• Regulated 28V output for ARRI ALEXA 35
• 8-pin power station input accepting 22–33.6V
• Accessory outputs, including D-Tap, plus additional ports noted on the page

Quick Specs & Uses

• Battery mount: Dual B-Mount
• Max load: 200W
• Camera output: Regulated 28V (for ARRI ALEXA 35)

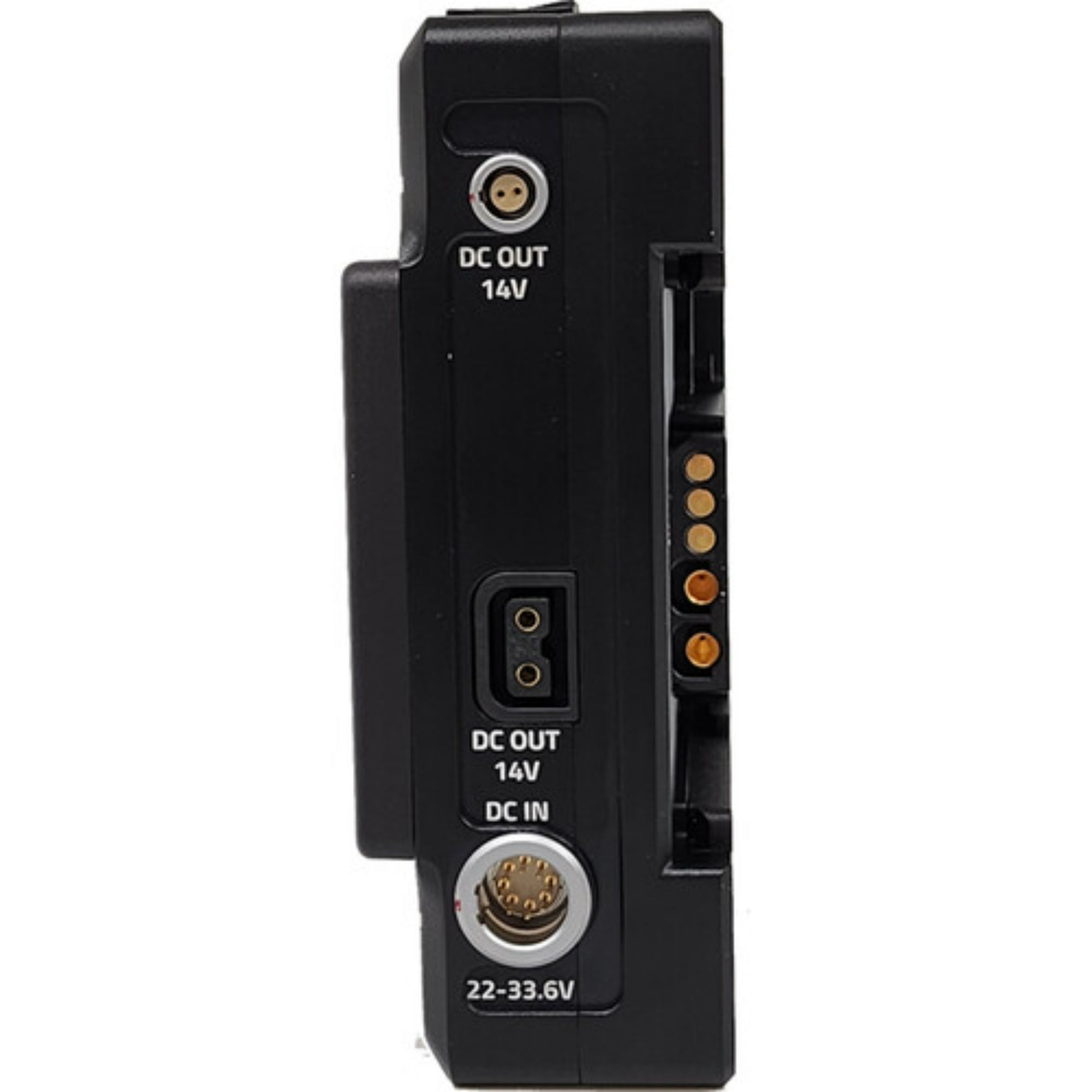

• Power station input: 1 × 8-pin, 22–33.6V

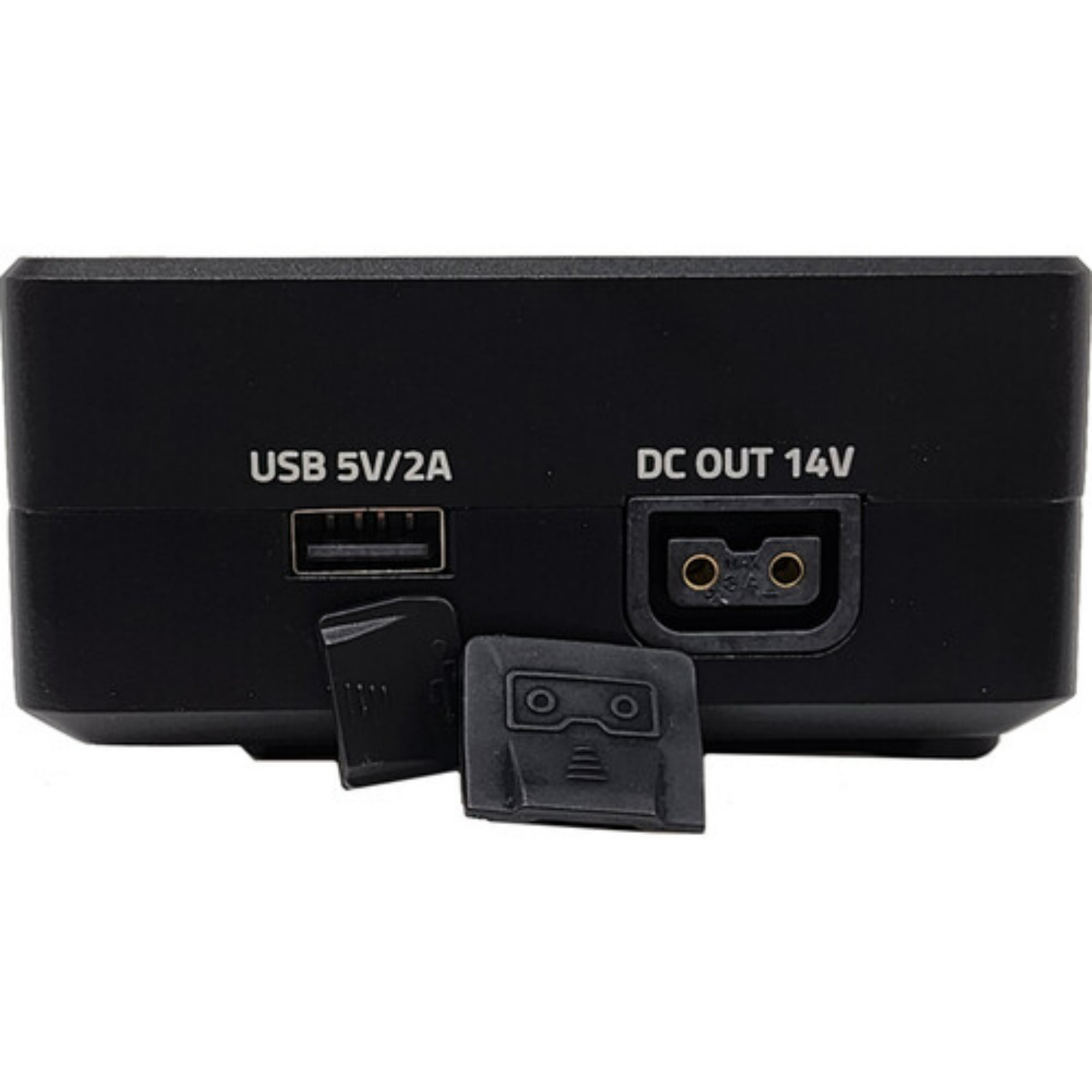

• D-Tap outputs: 2 × 14V/5A, 70W max

Why It Helps

This plate is built for uninterrupted operation. Run two B-Mount batteries and swap one as it depletes while the other maintains power. The LCD swap countdown gives a clear window for safe changeovers, and the accessory outputs help keep a compact, centralized power layout.

System Characteristics

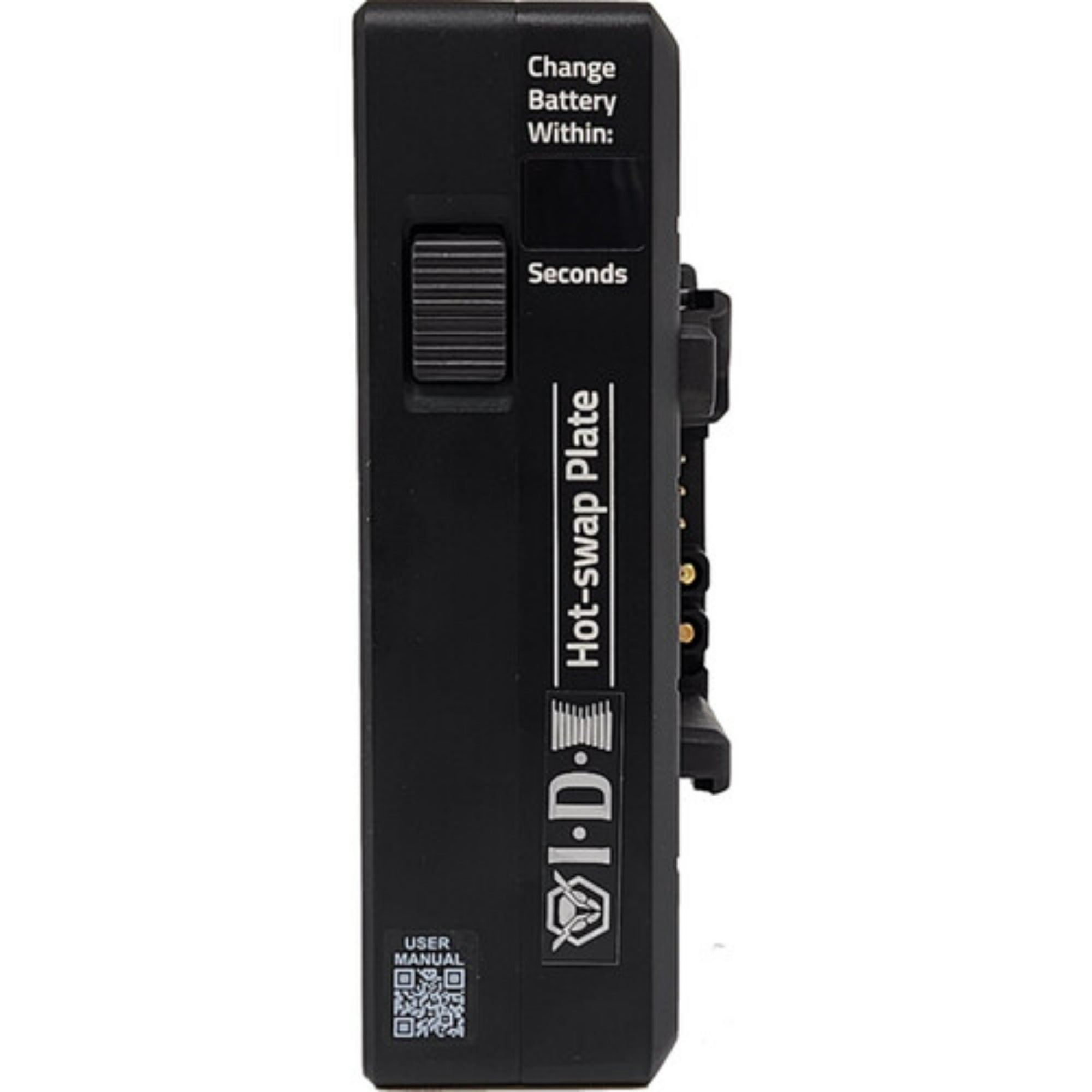

• Hot-swap workflow supported with a 120-second countdown indicator
• Regulated 28V output for high-end camera power requirements
• 200W max load rating supports higher-draw configurations
• Power station input can provide support during battery swaps
• Multiple circuit protections noted for multi-output power distribution

What’s In The Box

1 x IDX System Technology A-HS30B Dual-Battery Hot Swap Adapter (B-Mount)
