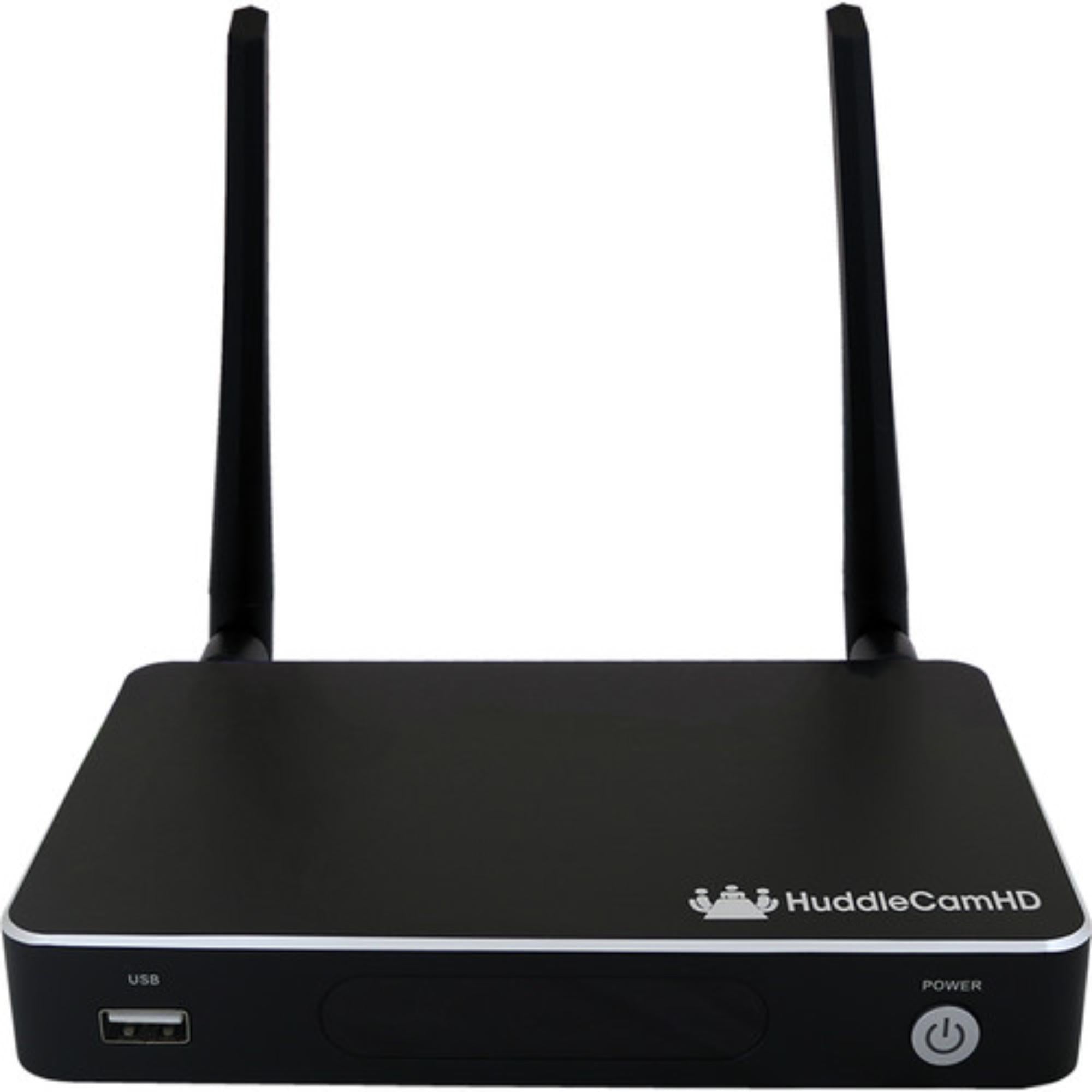

HuddleCamHD HuddleShare

HuddleCamHD HuddleShare is a wireless presentation and collaboration system designed to move content from computers and mobile devices onto a room display without making every presenter reconnect the AV system. It supports Mac, Windows, iOS, and Android devices, making it practical for meeting rooms, classrooms, training spaces, and other shared presentation environments.

The system accepts source resolutions up to UHD 4K60 and provides output up to 1920 × 1200. Network access is available through wired LAN or a 2.4/5 GHz Wi-Fi hotspot, while support for up to 14 simultaneous connections gives multiple users a way to stay available to the presentation system during a session.

Highlights

• Wireless presentation and collaboration – shares computer and mobile-device content with a connected display
• Cross-platform operation – supports Android, Mac, iOS, and Windows OS X devices as listed in the source
• UHD source support – handles input resolutions up to UHD 4K60
• Up to 14 simultaneous connections – keeps multiple users available within the same presentation environment
• Wired and wireless networking – supports LAN plus 2.4/5 GHz Wi-Fi hotspot operation
• Collaboration tools – includes Apple screen mirroring, mouse control, and file upload capability

Quick Specs & Uses

• Product type: Wireless presentation and collaboration system
• Compatibility: Android, Mac, iOS, Windows OS X
• Maximum source resolution: Up to UHD 4K60
• Maximum presentation output: 1920 × 1200
• Simultaneous connections: Up to 14
• Wireless networking: 2.4/5 GHz Wi-Fi hotspot
• USB I/O: 2 x USB-A female input/output
• Video input: 1 x DVI-I 1.4
• Video output: 1 x HDMI 1.4
• Audio input: 1 x 3.5 mm line input
• Audio output: 1 x 3.5 mm line output
• Screen sharing: Apple screen mirror
• Control: Mouse control
• File handling: File upload
• Wireless accessory: Pre-paired USB 3.0 dongle
• Antennas: 2 x detachable antennas
• DC input: 5 VDC at 2 A
• Maximum power consumption: 10 W
• Material: Aluminum, plastic
• Operating conditions: 0 to 40°C (32 to 104°F) at 20 to 90% humidity
• Storage conditions: -20 to 60°C (-4 to 140°F)
• Dimensions: 140 × 95 × 16 mm (5.5 × 3.7 × 0.6 in)
• Weight: 0.2 kg (0.44 lb)

Why It Helps

In a shared room, the difficult part is often not displaying a presentation but getting each person's device connected quickly enough to keep the session moving. HuddleShare gives users a common wireless presentation point, so content from supported computers, phones, and tablets can be brought into the room workflow without constantly changing the physical display connection.

The ability to maintain up to 14 simultaneous connections is particularly useful when several people may need to present during the same meeting. Instead of rebuilding the connection every time the speaker changes, multiple devices can remain associated with the HuddleShare system and ready for use.

For integrators, the combination of wired LAN, dual-band Wi-Fi, USB, video output, and analog audio connections gives the unit several ways to fit into an existing room. The included pre-paired USB 3.0 dongle and detachable antennas also reduce the amount of setup needed before deployment.

System Characteristics

• Multi-platform presentation supports users working from computers and mobile devices
• High-resolution source handling accepts content up to UHD 4K60
• Multi-user connectivity allows up to 14 devices to remain connected during collaborative sessions
• LAN and dual-band Wi-Fi provide options for wired or wireless network deployment
• Integrated collaboration functions include screen mirroring, mouse control, and file upload
• Compact chassis makes the appliance easier to place behind a display, inside AV furniture, or near a presentation system

What's In The Box

• 1 x HuddleCamHD HuddleShare Wireless Presentation Device for Mac/PC/iOS/Android
• 2 x Antenna
• 1 x USB 3.0 Dongle
• 1 x 5 VDC Power Adapter
• 1 x US, EU, UK, AUS Plug Adapter Set
