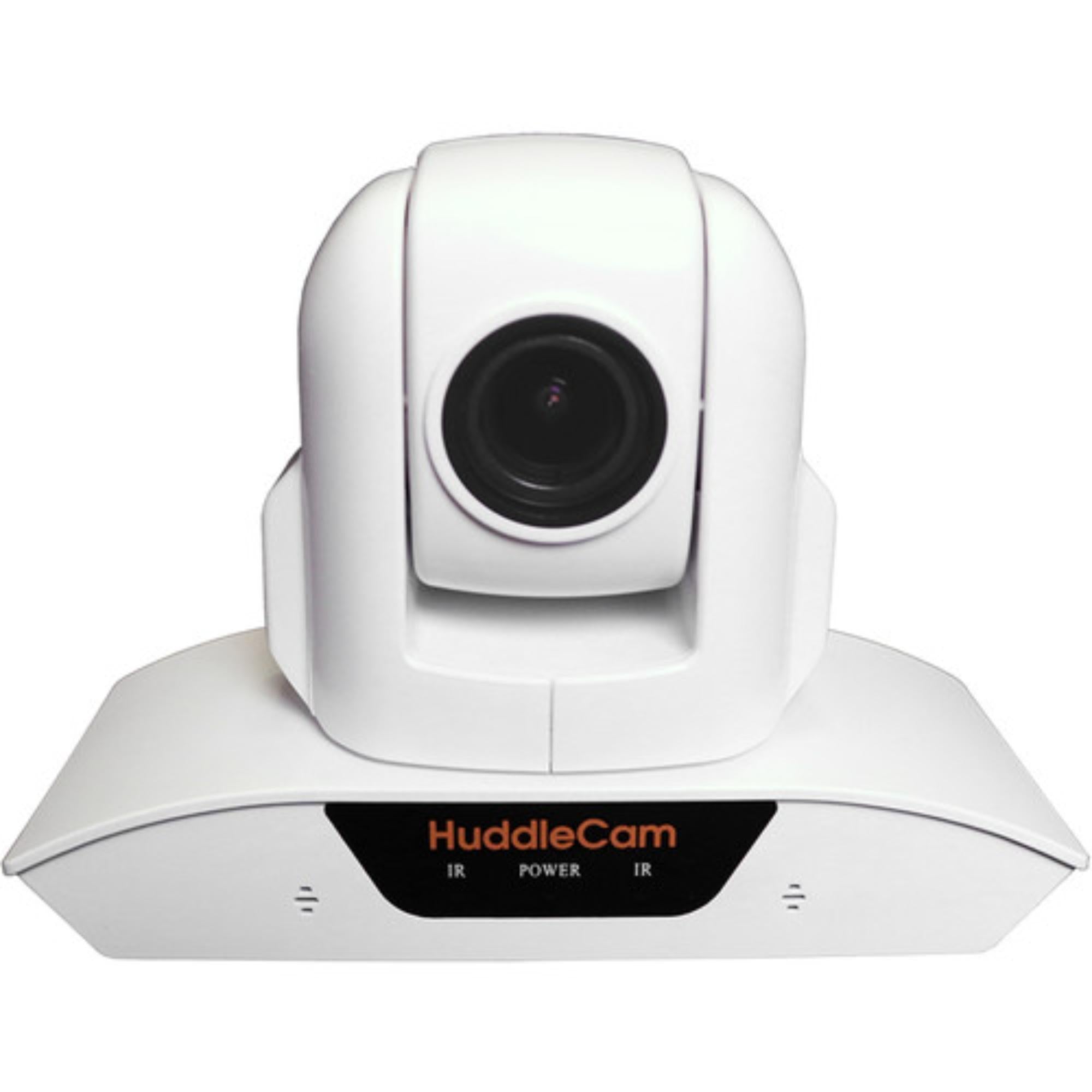

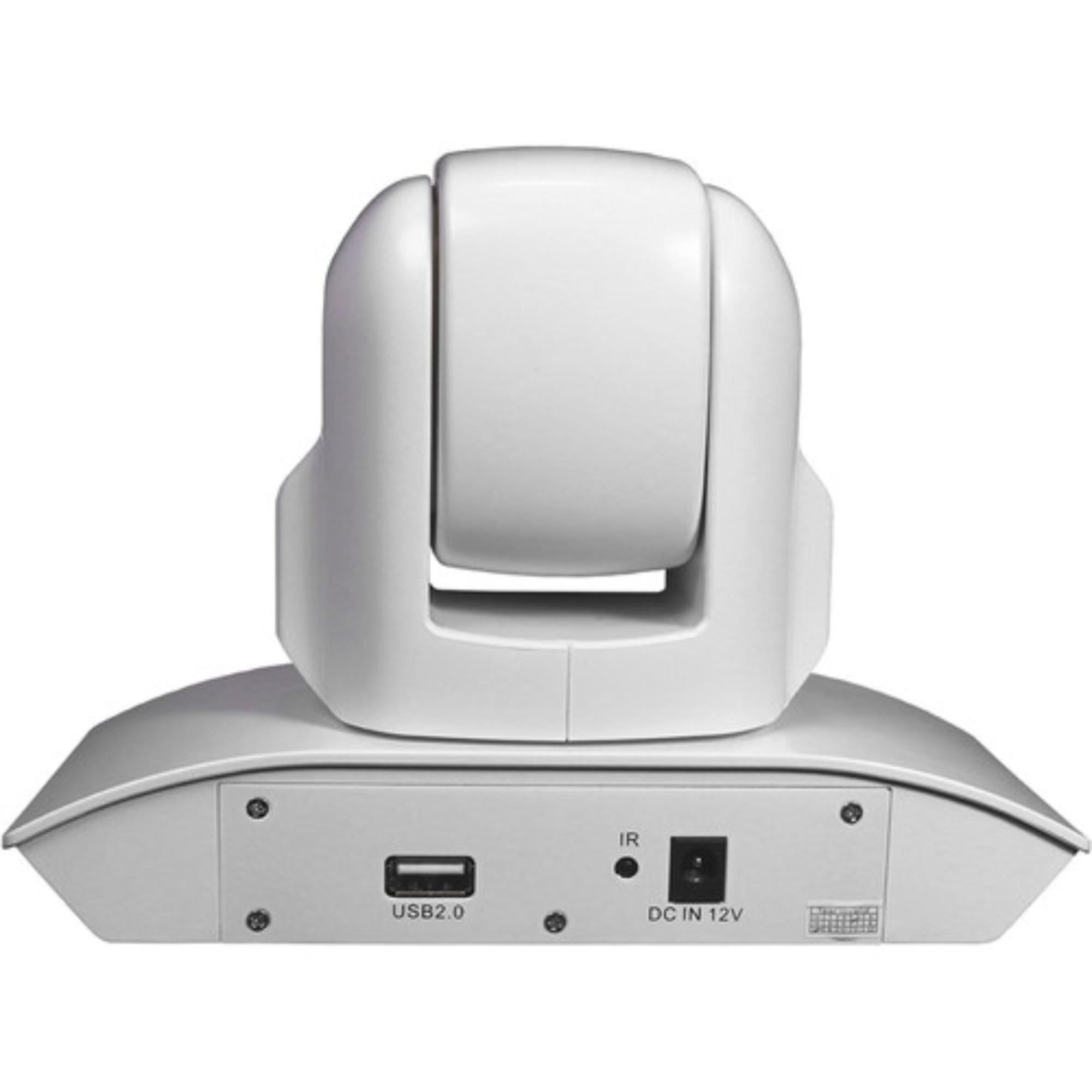

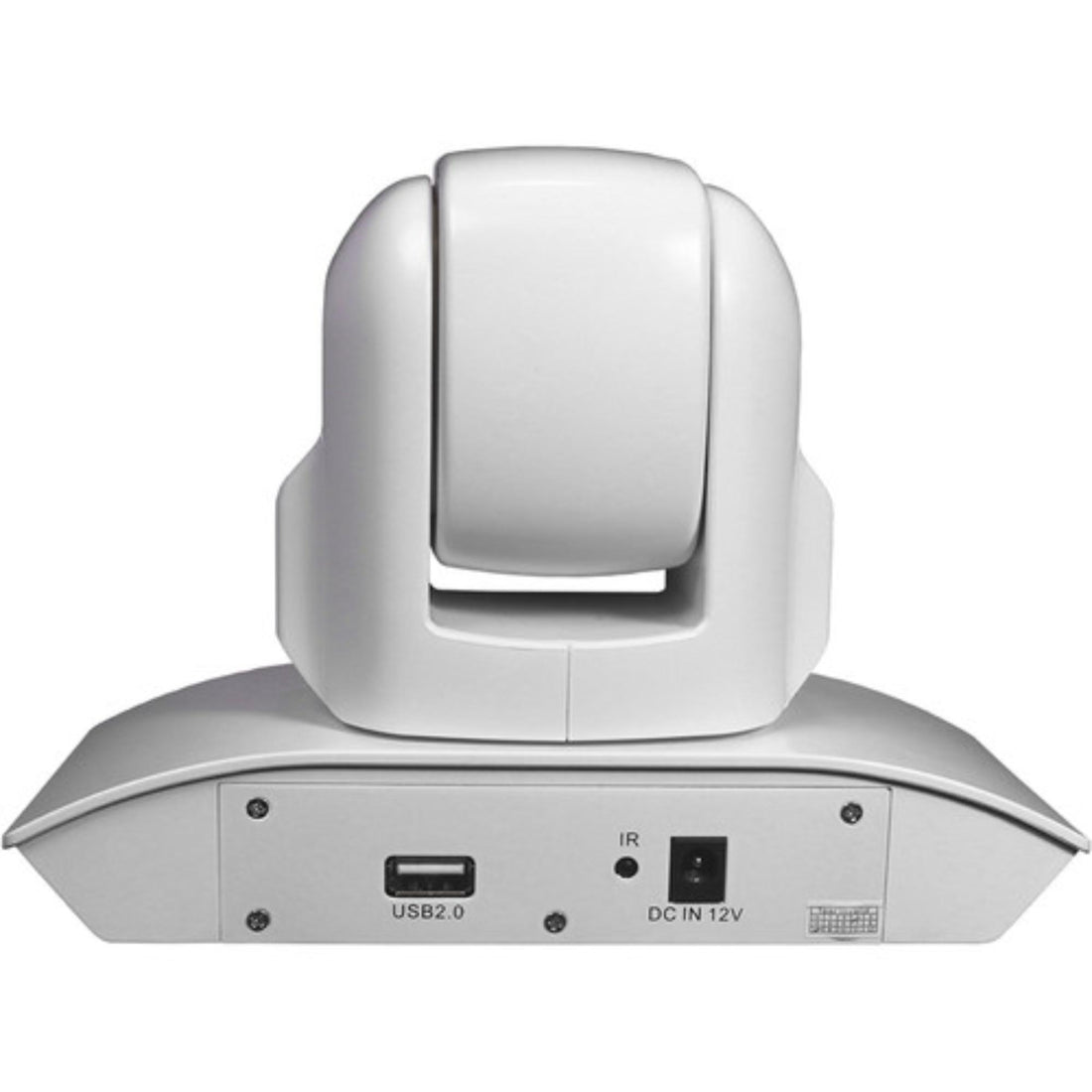

HuddleCamHD 3XA 3X Camera With Built In Audio (White)

The HuddleCamHD 3XA 3X Camera With Built In Audio (White) is a Full HD PTZ camera designed for small to medium-sized meeting rooms where video, camera movement, and room audio need to stay in one compact system. A 2.1-megapixel CMOS sensor supports 1920 × 1080 video at 25 or 30 fps, while the 3x optical zoom lens gives operators useful framing control without complicating the installation.

The 3 to 10 mm lens covers a 36° to 74° field of view, making it practical for anything from a wider conference-table shot to a tighter presenter frame. Two front-mounted microphones handle built-in audio capture, while 64 camera presets, IR remote operation, and RS-232 control over USB provide repeatable positioning for installed conferencing and presentation workflows.

Highlights

• 2.1-megapixel CMOS image sensor
• Full HD 1920 × 1080 output at 25/30 fps
• 3x optical zoom with 3 to 10 mm focal length
• 36° to 74° field of view
• Fast f/1.4 maximum aperture
• Two front-mounted built-in microphones
• 64 programmable camera presets
• IR remote and RS-232 control over USB

Quick Specs & Uses

• Sensor Resolution: 2.1 Megapixels Effective
• Video: 1920 × 1080 at 25/30 fps; 720p; SVGA; VGA
• Optical Zoom: 3x
• Focal Length: 3 to 10 mm
• Field of View: 36° to 74°
• Maximum Aperture: f/1.4
• IR Cut Filter: Yes
• Presets: 64
• Built-In Microphone: Yes
• Typical Uses: Conference rooms, meeting spaces, presentations, web conferencing, and computer-based streaming

Why It Helps

The 3x optical zoom provides enough range to move between room-wide coverage and a tighter subject shot without relying on digital enlargement. For installed meeting spaces, that gives the operator more control over composition while keeping the camera package relatively simple.

Preset recall is especially useful when the same room is used by different presenters or seating arrangements. With 64 available positions, frequently used shots can be stored and recalled instead of manually rebuilding pan, tilt, and zoom framing every time the room is used.

Built-in audio also reduces the number of separate components required for straightforward conferencing setups. The two front-mounted microphones keep basic room audio and video together, while IR remote and RS-232 control over USB provide practical options for local operation and system integration.

System Characteristics

• Sensor Resolution: 2.1 Megapixels Effective
• IR Cut Filter: Yes
• Precise Scan Rate Control: No
• Focal Length: 3 to 10 mm
• Maximum Optical Zoom: 3x
• Field of View: 36° to 74°
• Maximum Aperture: f/1.4
• Presets: 64
• Tally Light: No
• Built-In Microphone: Yes
• Power Supply: 10.5 to 14 VDC at 2 A
• Power Consumption: 15 W
• Operating Conditions: 0 to 45°C (32 to 113°F)
• Tripod Mounting Thread: 1 x 1/4"-20 Female
• Materials: Aluminum; Plastic
• Certifications: ISO9001
• OS Compatibility: Windows 7 or Later / macOS
• Security Lock Support: No
• Dimensions: 180.3 × 140 × 78.7 mm (7.1 × 5.5 × 3.1 in)
• Weight: 0.64 kg (1.41 lb)

What's In The Box

• 1 x HuddleCamHD HC3XA USB 2.0 PTZ Conferencing Camera with 3x Optical Zoom, 1920 × 1080p, 74° FOV Lens (White)
• 1 x 12 VDC, 2 A Power Supply
• 1 x Wall Mount
• 1 x USB Cable

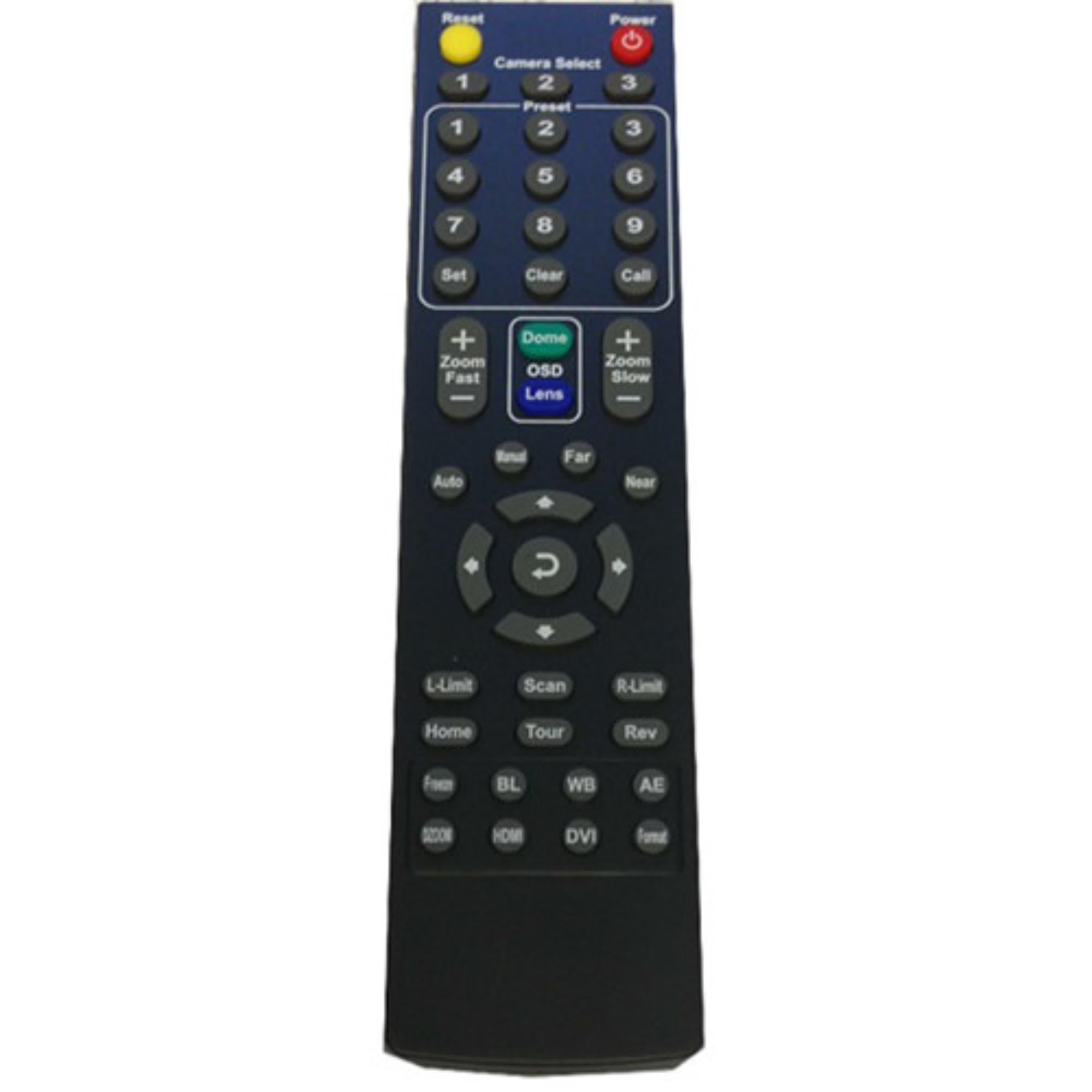

• 1 x IR Remote
