Hollyland Walkie-Talkie Converter-K

Hollyland Walkie-Talkie Converter-K is made for production teams that need to connect walkie-talkie users into a 4-wire intercom system. Based on the source image, the unit includes a DC power interface, walkie-talkie transceiver connection, 4-wire audio input and output over XLR, and a 4-wire RJ45 audio interface.

In real production use, this converter helps tie radio users into the main comms workflow. That is useful when floor crew, security, runners, or venue staff are on walkies while the production team is using 4-wire intercom. Instead of keeping those conversations separate, the Converter-K gives both sides a cleaner bridge point.

Highlights

• Walkie-talkie converter box for 4-wire intercom integration
• XLR 4-wire audio input and output for production audio connection
• RJ45 4-wire audio interface for system-level communication workflows
• 12V DC power support with low power consumption under 1W
• Compatible with devices using a 4W interface for flexible comms integration

Quick Specs & Uses

• Product type: Walkie-talkie converter
• Power interface: DC interface
• Transceiver interface: Walkie-talkie connection
• 4-wire audio OUT interface: XLR
• 4-wire audio IN interface: XLR
• 4-wire audio interface: RJ45
• Power supply: DC 12V
• Power consumption: <1W with VOX switch set to ON
• VOX threshold: >-23dBu
• Signal-to-noise ratio: >55dB
• Frequency range: 100Hz–20kHz
• Max input level: 18dBu
• Gain from 4-wire interface to walkie-talkie: -40dB
• Gain from walkie-talkie to 4-wire interface: 4dB
• Distortion: <1%
• Dimensions: 144.8mm x 75.5mm x 36.5mm
• Compatibility: Devices with 4W interface

Why It Helps

Comms systems are not always built from one brand or one format. Some users may be on walkie-talkies, while the production crew is tied into a 4-wire intercom system. The Walkie-Talkie Converter-K gives those two paths a practical way to meet without rebuilding the entire communication setup.

The VOX threshold and gain values matter in this kind of interface. They help manage voice-triggered behavior and level matching between the radio side and the 4-wire side, so the converter can sit in the middle of a real production workflow instead of acting like a simple passive adapter.

System Characteristics

• Radio-to-intercom bridge connects walkie-talkie users into a 4-wire communication system
• XLR and RJ45 interface support gives the unit practical connection options
• Low power draw makes it easy to add into an existing comms rack or control position
• VOX threshold support helps manage voice-triggered communication behavior
• Compact converter format fits small production setups and comms utility racks

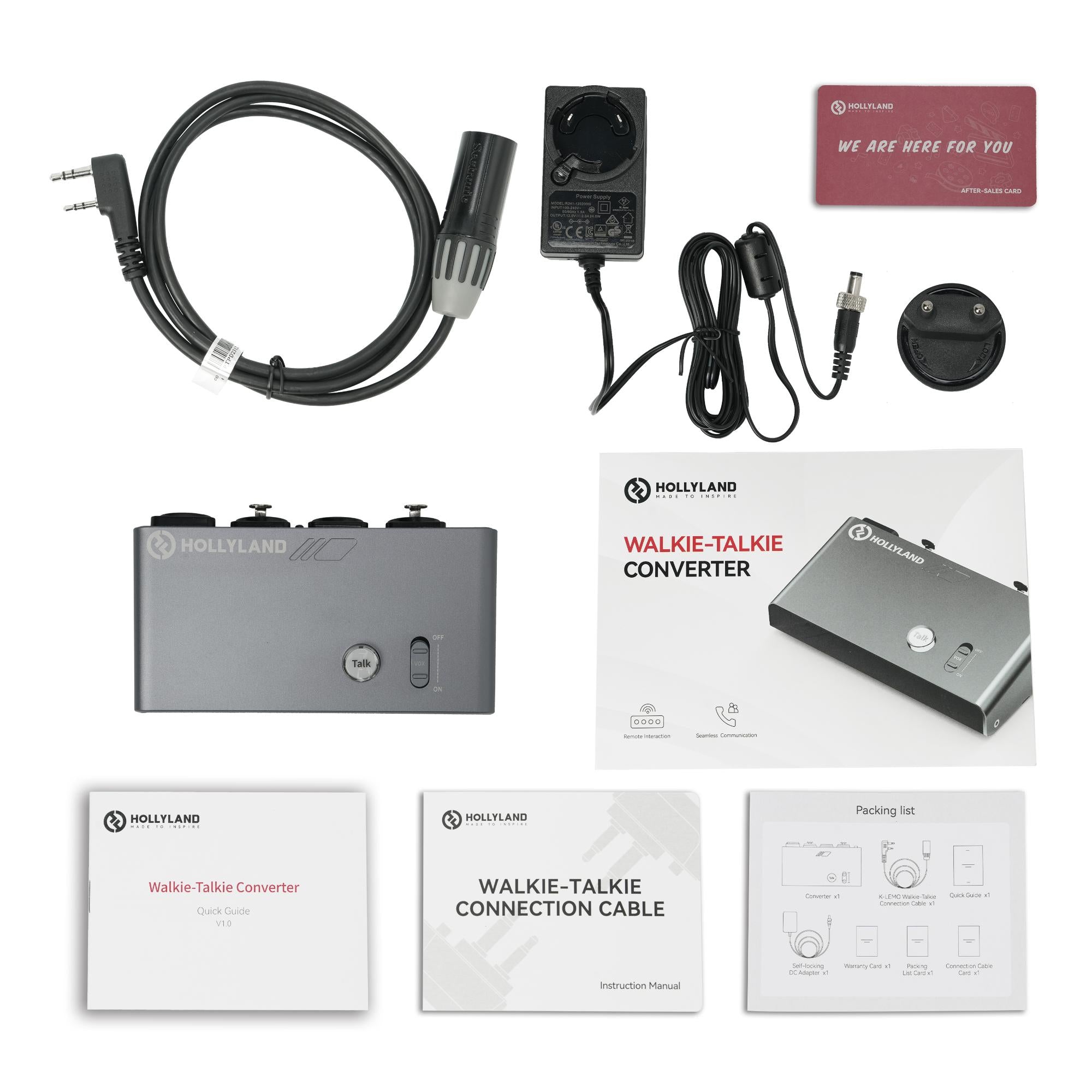

What’s In The Box

• 1 x Walkie-Talkie Converter-Box
• 1 x K-LEMO Walkie-Talkie Connection Cable
• 1 x 12V/2A DC2.1 Power Adapter
• 1 x User Manual
• 1 x Warranty Card
• 1 x Connection Cable Card
