Hollyland Walkie-Talkie Converter-8C

Hollyland Walkie-Talkie Converter-8C is designed for production teams that need to connect walkie-talkie communication into a 4-wire intercom workflow. Based on the source image, the unit includes a DC power interface, walkie-talkie transceiver connection, 4-wire audio input and output over XLR, and a 4-wire RJ45 audio interface.

In real production use, this converter helps bridge two communication paths that often need to work together. Some crew members may stay on walkie-talkies, while the production team uses a 4-wire intercom system. The Converter-8C gives both sides a cleaner connection point instead of forcing the crew to monitor separate comms workflows.

Highlights

• Walkie-talkie converter box for 4-wire intercom integration
• XLR 4-wire audio input and output for production audio connection
• RJ45 4-wire audio interface for system-level communication workflows
• 12V DC power support with low power consumption under 1W
• Compatible with devices using a 4W interface for flexible comms integration

Quick Specs & Uses

• Product type: Walkie-talkie converter
• Power interface: DC interface
• Transceiver interface: Walkie-talkie connection
• 4-wire audio OUT interface: XLR
• 4-wire audio IN interface: XLR
• 4-wire audio interface: RJ45
• Power supply: DC 12V
• Power consumption: <1W with VOX switch set to ON
• VOX threshold: >-23dBu
• Signal-to-noise ratio: >55dB
• Frequency range: 100Hz–20kHz
• Max input level: 18dBu
• Gain from 4-wire interface to walkie-talkie: -40dB
• Gain from walkie-talkie to 4-wire interface: 4dB
• Distortion: <1%
• Compatibility: Devices with 4W interface

Why It Helps

Not every crew position uses the same communication system. Security, runners, floor crew, or venue staff may be on walkie-talkies, while the production team works through a 4-wire intercom system. The Walkie-Talkie Converter-8C gives those two sides a practical way to communicate through one production workflow.

The VOX threshold and gain structure are useful in this kind of setup. They help manage voice-triggered behavior and level matching between the radio path and the 4-wire intercom path, so the converter is doing more than simply passing signal from one connector to another.

System Characteristics

• Radio-to-intercom bridge connects walkie-talkie users into a 4-wire communication system
• XLR and RJ45 interface support gives the unit practical connection options
• Low power draw makes it easy to add into an existing comms rack or control position
• VOX threshold support helps with voice-triggered communication behavior
• 4W compatibility supports use with compatible production intercom environments

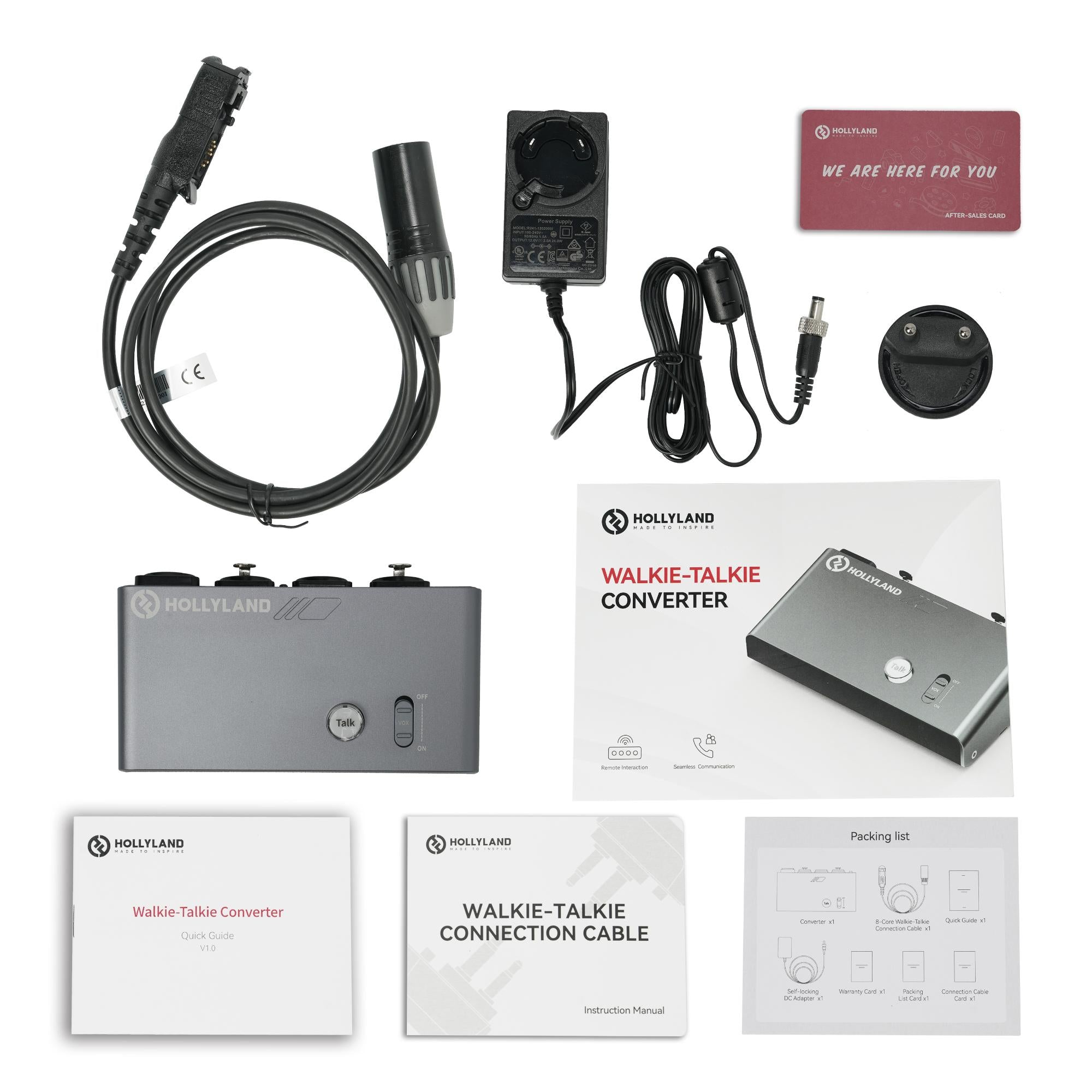

What’s In The Box

• 1 x Walkie-Talkie Converter-Box
• 1 x 8-Core Walkie-Talkie Connection Cable
• 1 x 12V/2A DC2.1 Power Adapter
• 1 x User Manual
• 1 x Warranty Card
• 1 x Connection Cable Card
