Hollyland Video Transmission & Monitoring Kit (5.5-Inch）

Hollyland Video Transmission & Monitoring Kit (5.5-Inch) is designed for production crews that need a complete wireless video workflow with a compact field monitor. Based on the source images, the kit includes a Pyro 5 wireless transceiving monitor, Pyro S wireless video transmitter, Pyro S wireless video receiver, antennas, monitor hood, mounting accessories, power adapters, SD card, shoulder strap, and a Pyro ecosystem hard-shell case.

From a broadcast engineering standpoint, this kit covers the core wireless video chain in one package. The Pyro S transmitter handles the camera-side send, the Pyro S receiver handles the monitor-side return path, and the Pyro 5 adds a compact 5.5" touchscreen with 1920 x 1080 resolution and 1500-nit brightness. That makes the kit practical for camera teams, directors, video assist, livestream crews, and compact field production setups.

Highlights

• Complete wireless video kit with transmitter, receiver, and 5.5" transceiving monitor
• 1500-nit touchscreen monitor supports bright field viewing
• HDMI 1.4b and 3G-SDI workflow support for mixed production setups
• Dual-band wireless operation across 2.4GHz and 5GHz frequency ranges
• Transport-ready package includes power accessories, monitor hood, shoulder strap, and hard-shell case

Quick Specs & Uses

• Product type: Wireless video transmission and monitoring kit
• Included monitor: Pyro 5 wireless transceiving monitor
• Included transmitter: Pyro S Wireless Video Transmitter
• Included receiver: Pyro S Wireless Video Receiver
• Screen size: 5.5" touchscreen
• Screen resolution: 1920 x 1080 pixels
• Color gamut: Rec.709
• Aspect ratio: 16:9
• Screen brightness: 1500 nits
• Contrast ratio: 1000:1
• Input port: Transmitter mode HDMI 1.4b + 3G-SDI; receiver mode /
• Output port: Transmitter mode loop-out HDMI 1.4b; receiver mode HDMI 1.4b
• Antenna: SMA male
• Power input: DC input, 2.0mm core socket
• Headphone jack: 3.5mm
• Upgrade port: USB-C USB 2.0 OTG / SD card slot
• Power input voltage: NPF 6V–16V; DC-in 10–18V DC
• Power consumption: Transmitter mode <16.5W; receiver mode <14W
• Operating frequency: 5.150–5.250GHz, 2.412–2.484GHz, 5.250–5.350GHz, 5.470–5.600GHz, 5.600–5.725GHz, 5.725–5.850GHz
• Transmit power: Transmitter mode <23dBm
• Receiver sensitivity: Receiver mode unicast -85dBm; broadcast -80dBm
• Transmission latency: ≈60ms, tested in a laboratory environment with 1080p60 signal transmission
• Bandwidth: Unicast 20MHz; broadcast 40MHz
• Operating temperature: -10°C to 45°C
• Storage temperature: -40°C to 45°C

Why It Helps

For production crews, this kit is useful because it brings the main pieces of a wireless video workflow together: a transmitter, a receiver, and a compact monitor. That means fewer individual purchases to coordinate and a cleaner path for building camera monitoring, director viewing, video assist, or livestream monitoring setups.

The Pyro 5 gives the kit a smaller monitoring point that still stays bright enough for field work. With a 1500-nit display, HDMI/SDI workflow support, wireless transceiving, and included power accessories, the package is practical for crews that need mobility without giving up production-focused monitoring tools.

System Characteristics

• End-to-end wireless video workflow includes monitor, transmitter, and receiver
• Compact 5.5" monitoring point fits camera-side and mobile production use
• Mixed HDMI/SDI support works across common camera and production setups
• Dual-band wireless operation gives flexibility in changing RF environments
• Hard-shell case package keeps the kit organized for transport and storage

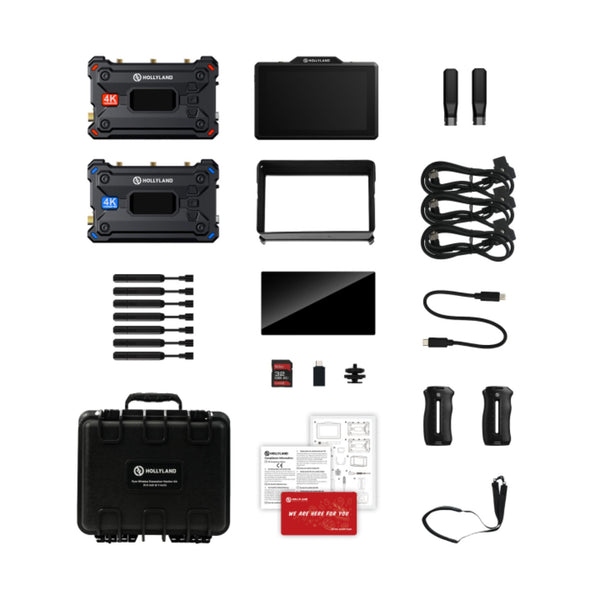

What’s In The Box

• 1 x Pyro 5 Wireless Transceiving Monitor
• 2 x Easy-Install Short Antenna
• 1 x Pyro 5 Monitor Hood (5-inch)
• 1 x Pyro 5 Monitor Hood Mount
• 1 x Pyro 5 Tempered Glass Screen Protector
• 1 x Pyro 5 Quick Guide
• 1 x Warranty Card
• 1 x HL Side & Bottom Mounted Aluminum Handle
• 1 x Hollyland Ecosystem Leaflet
• 1 x Pyro S Wireless Video Transmitter
• 1 x Pyro S Wireless Video Receiver
• 7 x Paddle Antenna (2.4GHz & 5GHz)
• 1 x Hot Shoe Adapter
• 1 x D-Tap to Locking DC Power Adapter Cable
• 1 x USB-C OTG Adapter
• 1 x 12V 2A Power Adapter (Main Unit with Interchangeable Plug)
• 1 x 12V/2A DC Power Adapter (EU Standards)
• 1 x SD Card
• 1 x Shoulder Strap
• 1 x Outer Color Box
• 1 x Pyro Ecosystem Hard-Shell Case
