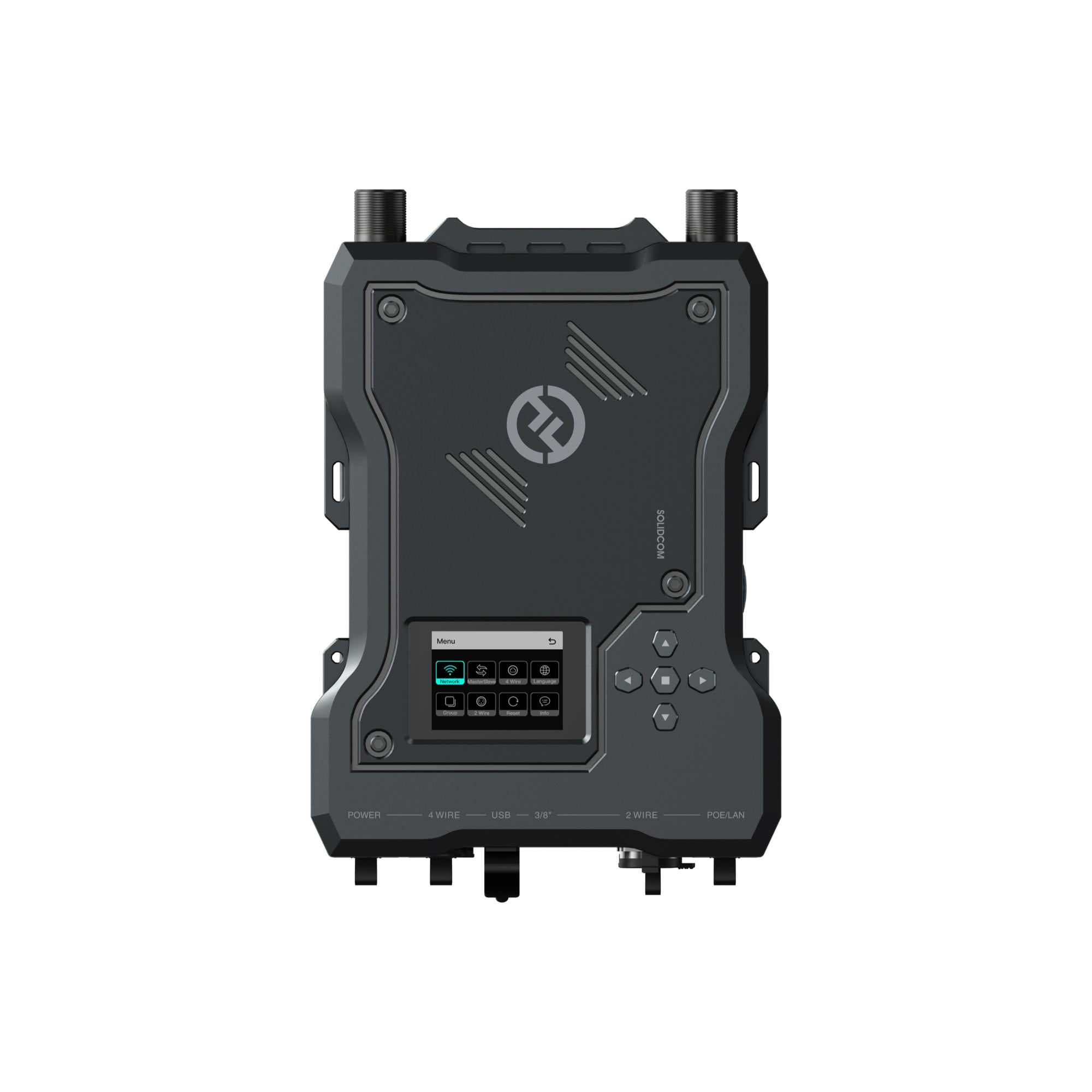

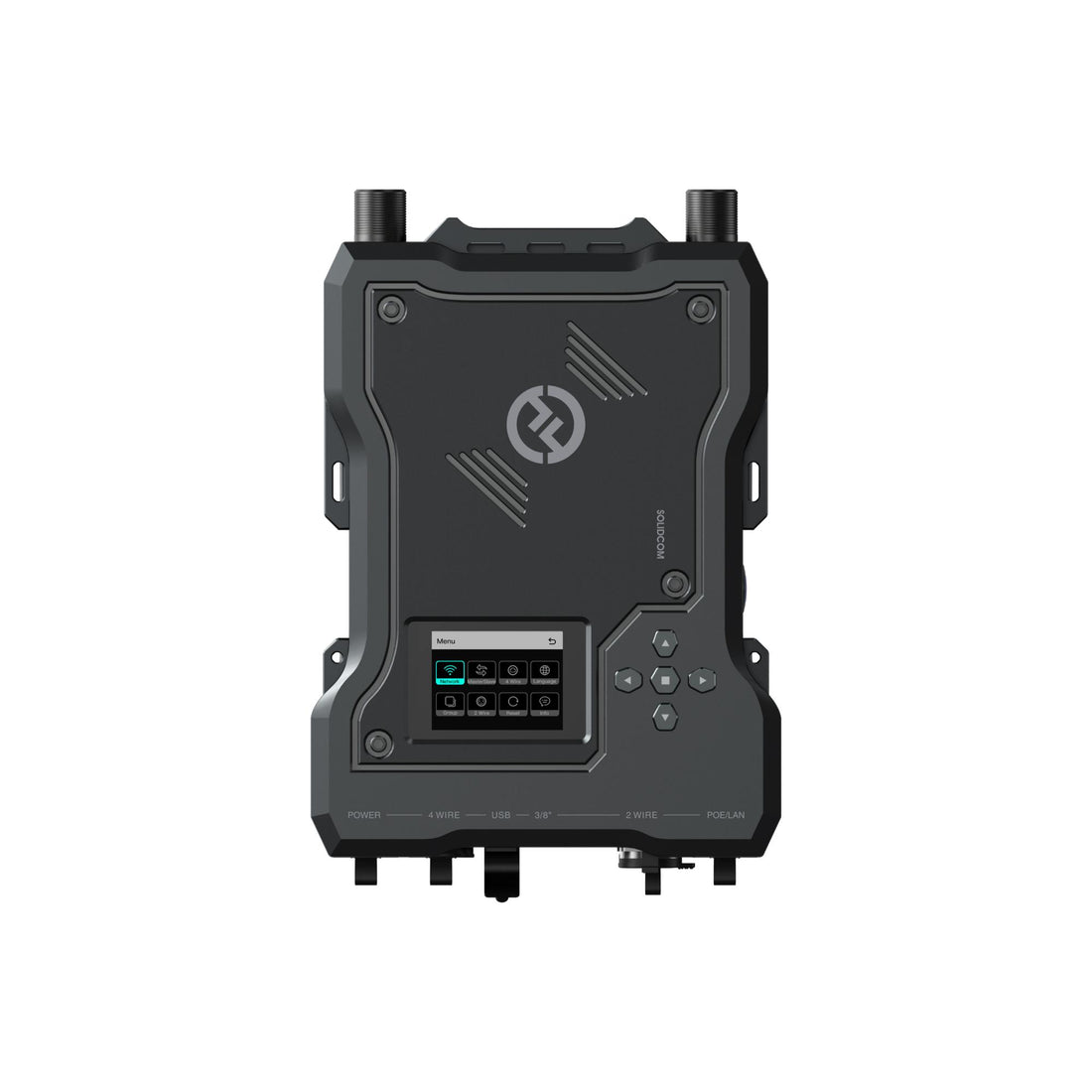

Hollyland Solidcom M1 Wireless intercom system Base station

Hollyland Solidcom M1 Wireless Intercom System Base Station is the control point for a Solidcom M1 wireless comms setup. It gives production teams the main interface for headset communication, power, wired audio integration, and system control. For event crews, broadcast teams, and field production work, it helps keep the intercom side of the job organized from one central base.

Highlights

• Base station for Solidcom M1 wireless intercom systems
• Supports POE, power supply, USB, 4-wire audio, and 2-wire audio interfaces
• 1,300 ft / 400 m LOS transmission range
• 2406–2472MHz frequency band for Indonesia SRD operation
• POE power supply and NP-F battery support

Quick Specs & Uses

• Product type: Wireless intercom system base station
• Interfaces: POE Interface (RJ45), Power Supply Interface (RJ45), 4-Wire Audio Interface, USB Interface, 2-Wire Audio Interface
• Power supply: POE Power Supply, NP-F Battery
• Frequency response: 200Hz to 7kHz
• Signal-to-noise ratio: >50dB
• Distortion: <1%
• Transmission range: 1,300ft (400m) LOS
• Frequency band: 2406–2472MHz: Indonesia (SRD)
• Modulation mode: GFSK
• TX power: Maximum 21dBm
• RX sensitivity: ≤-93dBm
• Frequency bandwidth: 1.728MHz
• Power consumption: <3W
• Dimensions: 255.5 x 180.4 x 48.5 mm (10 x 7.1 x 1.9 in)
• Weight: 1.56 kg (3.44 lbs)
• Use cases: Broadcast production communication, live event intercom, field crew coordination, and studio floor communication

Why It Helps

A base station keeps the comms system anchored. This Solidcom M1 unit gives the crew wired audio options, POE power support, NP-F battery support, and wireless coverage for larger production spaces. It is useful when the team needs a cleaner way to manage wireless beltpack communication while still tying into other audio or intercom infrastructure.

System Characteristics

• Multiple interface options help connect the base station into different production setups
• POE and NP-F battery power give crews flexible powering choices
• 1,300 ft LOS range supports larger event and field environments
• GFSK modulation matches the listed wireless system specification
• Low power consumption helps keep the base station efficient during operation
