Hollyland Pyro Wireless Transceiver Monitor Kit (5.5-Inch & 7-Inch)

Hollyland Pyro Wireless Transceiver Monitor Kit (5.5-Inch & 7-Inch) is designed for production crews that need two wireless monitoring points in one field-ready package. Based on the source images, the kit includes a Pyro 7 wireless transceiving monitor and a Pyro 5 wireless transceiving monitor, along with antennas, monitor hoods, screen protectors, mounting accessories, D-Tap power cables, manuals, and a hard-shell case.

From a broadcast engineering standpoint, this kit gives crews a flexible monitoring workflow without stacking separate wireless boxes everywhere. The Pyro 7 provides a larger 7-inch viewing surface, while the Pyro 5 gives operators a more compact monitor for camera-side use, handheld monitoring, or a secondary viewing position. Both are built around practical field monitoring, wireless video handling, and mixed HDMI/SDI production workflows.

Highlights

• Dual wireless transceiving monitor kit with 7-inch and 5.5-inch monitor options
• 1500-nit screen brightness supports viewing in bright production environments
• HDMI and SDI workflow support for mixed camera and production setups
• Dual-band wireless operation across 2.4GHz and 5GHz frequency ranges
• Complete field package includes antennas, hoods, screen protectors, power cables, manuals, and hard-shell case

Quick Specs & Uses

• Product type: Wireless transceiver monitor kit
• Included monitors: Pyro 7 wireless transceiving monitor and Pyro 5 wireless transceiving monitor
• Pyro 7 screen size: 7" touchscreen
• Pyro 5 screen size: 5.5" touchscreen
• Pyro 5 screen resolution: 1920 x 1080 pixels
• Color gamut: Rec.709
• Aspect ratio: 16:9
• Screen brightness: 1500 nits
• Contrast ratio: 1000:1
• Input port: Transmitter mode HDMI 1.4b + 3G-SDI; receiver mode /
• Output port: Transmitter mode loop-out HDMI 1.4b; receiver mode HDMI 1.4b
• Antenna: SMA male
• Power input: DC input, 2.0mm core socket
• Headphone jack: 3.5mm
• Upgrade port: USB-C USB 2.0 OTG / SD card slot
• Power input voltage: NPF 6V–16V; DC-in 10–18V DC
• Power consumption: Transmitter mode <16.5W; receiver mode <14W
• Operating frequency: 5.150–5.250GHz, 2.412–2.484GHz, 5.250–5.350GHz, 5.470–5.600GHz, 5.600–5.725GHz, 5.725–5.850GHz
• Transmit power: Transmitter mode <23dBm
• Receiver sensitivity: Receiver mode unicast -85dBm; broadcast -80dBm
• Transmission latency: ≈60ms, tested in a laboratory environment with 1080p60 signal transmission
• Bandwidth: Unicast 20MHz; broadcast 40MHz
• Operating temperature: -10°C to 45°C
• Storage temperature: -40°C to 45°C

Why It Helps

On a production day, monitoring needs can change quickly. One operator may need a compact camera-side monitor, while the director or video assist station may need a larger screen. This kit gives crews both sizes, so the monitoring layout can be built around the job instead of forcing every position to use the same display.

The transceiving design is the practical advantage here. Instead of treating each monitor as only a screen, the Pyro monitors can support wireless video workflows as part of the signal chain. That can reduce extra hardware, simplify rigging, and keep the setup cleaner for livestreams, field production, video assist, event coverage, and compact production carts.

System Characteristics

• Two-monitor wireless workflow supports camera, director, and video assist setups
• Mixed monitor sizes provide both compact and larger viewing options
• Transceiving monitor design reduces the need for separate wireless video boxes
• Bright touchscreen displays support field viewing in demanding environments
• Hard-shell case package keeps the kit organized for transport and storage

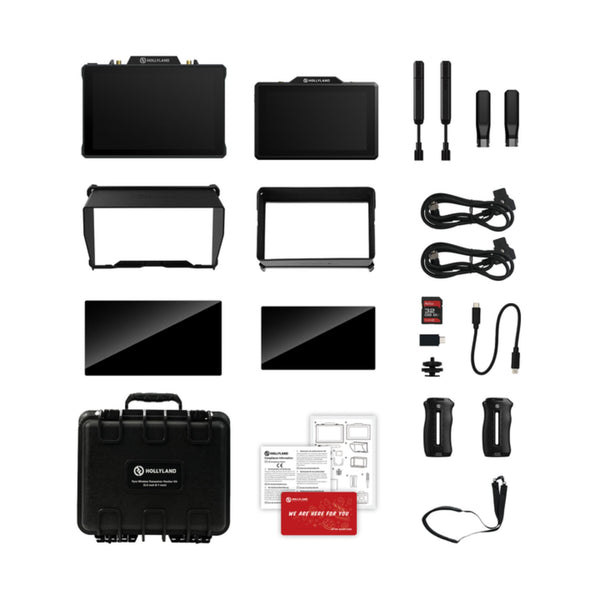

What’s In The Box

• 1 x Pyro 7 Wireless Transceiving Monitor
• 1 x Pyro 7 Tempered Glass Screen Protector
• 3 x Paddle Antenna (2.4GHz & 5GHz)
• 1 x Monitor Hood (7-Inch)
• 1 x Cold Shoe
• 1 x USB-C OTG Adapter
• 1 x Pyro 5 Wireless Transceiving Monitor
• 2 x Easy-Install Short Antenna
• 1 x Pyro 5 Monitor Hood (5-Inch)
• 1 x Pyro 5 Monitor Hood Mount
• 1 x Pyro 5 Tempered Glass Screen Protector
• 2 x HL Side & Bottom Mounted Aluminum Handle
• 1 x Pyro 5 Quick Guide
• 1 x Pyro 7 User Manual
• 1 x Warranty Card
• 1 x Hollyland Ecosystem Leaflet
• 2 x D-Tap to Locking DC Power Adapter Cable
• 1 x SD Card
• 1 x Pyro Ecosystem Hard-Shell Case
