Hollyland Pyro Ultra Transmitter

Hollyland Pyro Ultra Transmitter is designed for production crews that need a dedicated camera-side wireless video transmit point with HDMI, SDI, and local loopout support. Based on the source images, it supports HDMI 2.0 input, HDMI 2.0 loopout, 3G-SDI input, USB-C 2.0, and SMA male antenna connections, making it practical for camera rigs, video assist, director monitoring, and production review workflows.

From a broadcast engineering standpoint, this is the transmit side of the Pyro Ultra wireless video workflow. It supports both 5GHz and 2.4GHz operating bands, with TX power listed at <23dBm. Focus Mode latency is listed at 1080p25 ≥20ms, giving crews a responsive wireless monitoring path when timing matters on set.

Highlights

• Wireless video transmitter for Pyro Ultra production workflows
• HDMI 2.0 input and loopout for source connection and local monitoring
• 3G-SDI input supports professional camera and production sources
• Dual-band operation across 5GHz and 2.4GHz frequency ranges
• Battery and DC power support for field and camera-side use

Quick Specs & Uses

• Product type: Wireless video transmitter
• DC input: 2.0 barrel connector
• HDMI input: HDMI 2.0
• HDMI loopout: HDMI 2.0
• SDI input: 3G-SDI
• Type-C: USB 2.0
• Antenna: SMA male connector
• Battery power input: 6.8V–8.4V
• DC power input: 6V–16V
• Power consumption: Non-broadcast 11W; broadcast 14W
• Net weight: 320g
• TX power: <23dBm
• RX sensitivity: /
• HDMI input/output formats: 720p50/59.94/60, 1080p23.98/24/25/29.97/30/50/59.94/60, 4K 3840 x 2160p23.98/24/25/29.97/30/50/59.94/60
• SDI input formats: 720p50/59.94/60, 1080i50/59.94/60, 1080p23.98/24/25/29.97/30/50/60
• 5GHz operating frequency: 5.150–5.250GHz, 5.250–5.350GHz, 5.470–5.725GHz, 5.725–5.850GHz
• 2.4GHz operating frequency: 2.412–2.484GHz
• Transmission latency: Focus Mode 1080p25 ≥20ms
• Bandwidth: 20MHz; broadcast 40MHz

Why It Helps

On the camera side of a wireless video setup, the transmitter needs to connect cleanly, power reliably, and keep local monitoring available. The Pyro Ultra Transmitter gives crews HDMI input, SDI input, and HDMI loopout, so the wireless feed can be sent while a local monitor path stays available near the camera.

The dual-band wireless support is useful when RF conditions change from set to set. With 5GHz and 2.4GHz operation, battery and DC power support, and a compact 320g body, the transmitter is built for practical field deployment rather than a fixed rack-only workflow.

System Characteristics

• Camera-side transmit workflow supports wireless video from HDMI or SDI sources
• HDMI loopout path keeps local monitoring available while transmitting
• 4K HDMI format support gives more flexibility for higher-resolution signal paths
• Broadcast mode power profile supports higher-demand wireless operation
• Included antennas and cold shoe support setup out of the box

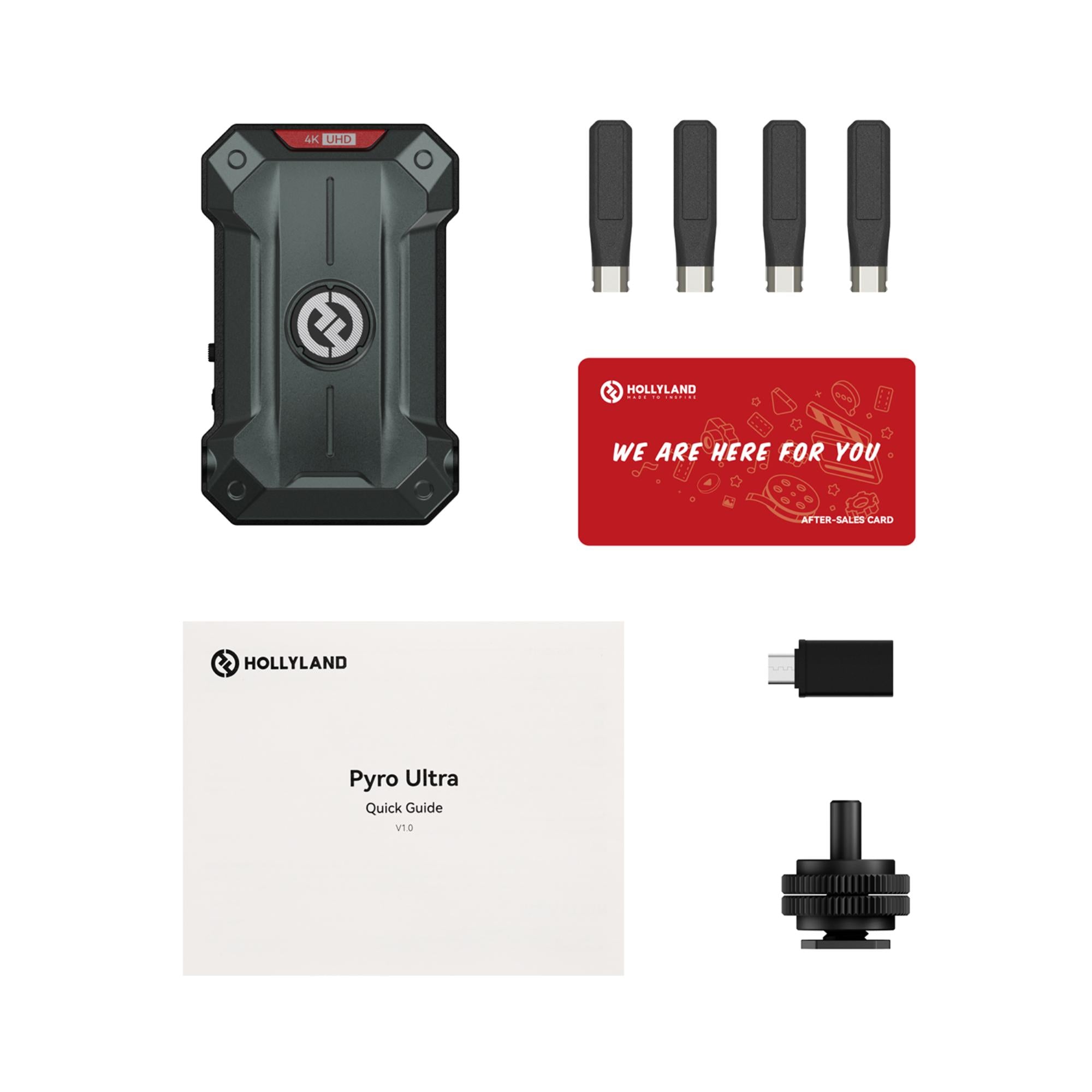

What’s In The Box

• 1 x Transmitter
• 4 x Easy-Install Short Antenna
• 1 x USB-C OTG Adapter
• 1 x 1/4" Cold Shoe
• 1 x Quick Guide
• 1 x Warranty Card
