Hollyland Pyro Ultra Receiver

Hollyland Pyro Ultra Receiver is designed for production crews that need a dedicated wireless video receiving point with HDMI, SDI, and USB-C connectivity. Based on the source images, it supports HDMI 2.0 output, 3G-SDI output, USB-C 3.0, and SMA male antenna connections, making it practical for director monitors, video village, production carts, and field monitoring stations.

From a broadcast engineering standpoint, this is the receiver side of the Pyro Ultra wireless video workflow. It supports both 5GHz and 2.4GHz operating bands, with receiver sensitivity listed at -85dBm in non-broadcast mode and -80dBm in broadcast mode. HDMI output supports up to 4K, while SDI output supports common production formats up to 1080p60.

Highlights

• Wireless video receiver for Pyro Ultra production workflows
• HDMI 2.0 and 3G-SDI outputs for flexible monitor and routing setups
• USB-C 3.0 interface supports modern connection and update workflows
• Dual-band operation across 5GHz and 2.4GHz frequency ranges
• Battery and DC power support for field, cart, and monitoring station use

Quick Specs & Uses

• Product type: Wireless video receiver
• DC input: 2.0 barrel connector
• HDMI output: HDMI 2.0
• SDI output: 3G-SDI
• Type-C: USB 3.0
• Antenna: SMA male connector
• Battery power input: 6.8V–8.4V
• DC power input: 6V–16V
• Power consumption: 7W
• Transmit power: /
• Receiver sensitivity: Non-broadcast -85dBm; broadcast -80dBm
• HDMI output formats: 720p50/59.94/60, 1080p23.98/24/25/29.97/30/50/59.94/60, 4K 3840 x 2160p23.98/24/25/29.97/30/50/59.94/60
• SDI output formats: 720p50/59.94/60, 1080i50/59.94/60, 1080p23.98/24/25/29.97/30/50/60
• 5GHz operating frequency: 5.150–5.250GHz, 5.250–5.350GHz, 5.470–5.725GHz, 5.725–5.850GHz
• 2.4GHz operating frequency: 2.412–2.484GHz
• Transmission latency: Focus Mode 1080p25 ≥20ms
• Bandwidth: 20MHz; broadcast 40MHz

Why It Helps

On the monitor side of a wireless video setup, the receiver needs to land the signal cleanly and give the crew usable output options. The Pyro Ultra Receiver provides both HDMI and SDI output, so it can feed a production monitor, video village display, switcher input, or downstream routing path depending on the build.

The receiver sensitivity and dual-band operation are useful in real RF environments. With support for 5GHz and 2.4GHz bands, plus broadcast and non-broadcast sensitivity ratings, the unit gives crews a practical receiving point for changing venue, studio, and field conditions.

System Characteristics

• Monitor-side receiving workflow supports wireless video landing points
• HDMI and SDI output support fits mixed monitoring and production setups
• 4K HDMI output support gives more flexibility for higher-resolution monitoring paths
• Low 7W power consumption keeps the receiver practical for mobile and battery-powered use
• Included antennas and power adapter support setup out of the box

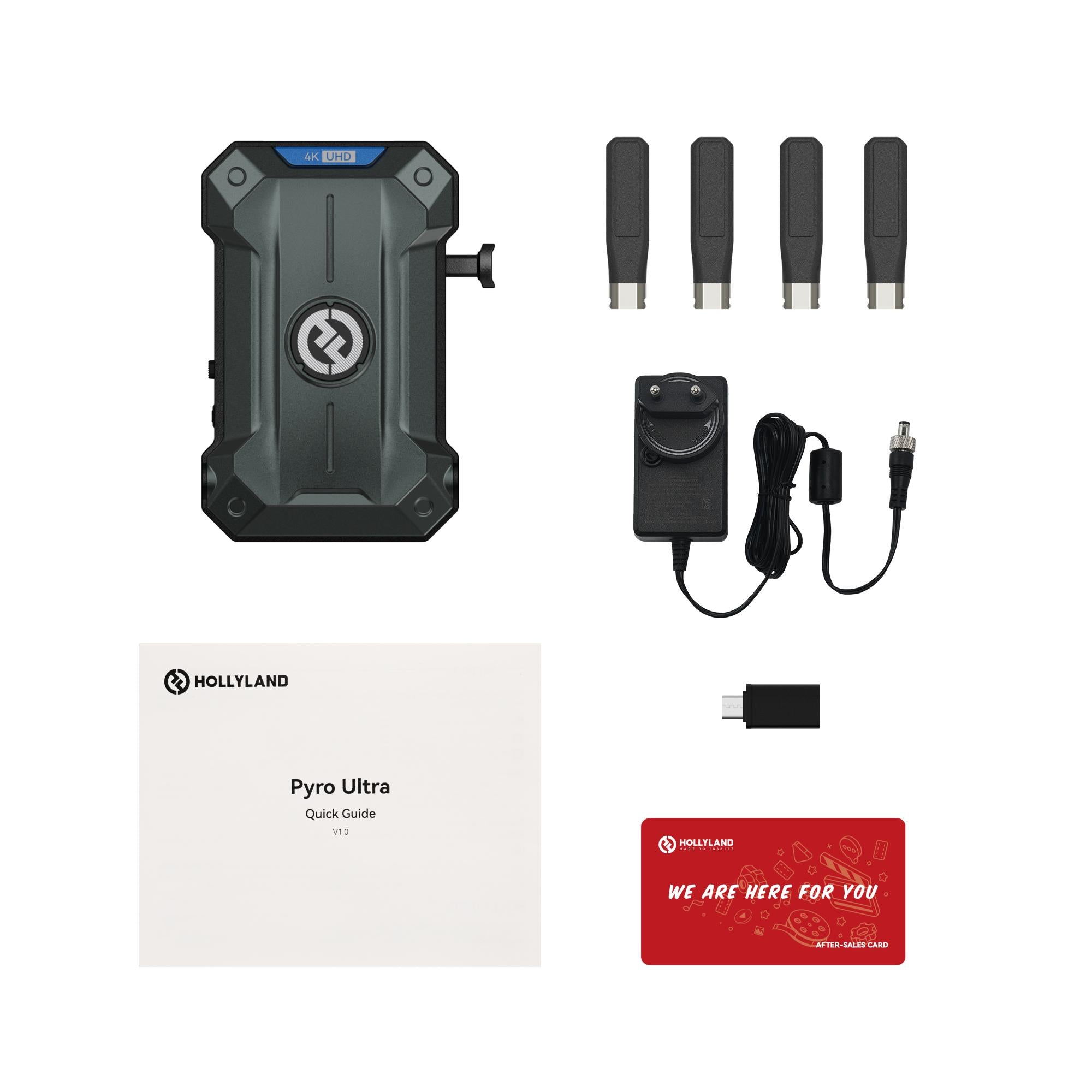

What’s In The Box

• 1 x Receiver
• 4 x Easy-Install Antenna
• 1 x USB-C OTG Adapter
• 1 x 12V/2A DC Power Adapter
• 1 x Quick Guide
• 1 x Warranty Card
