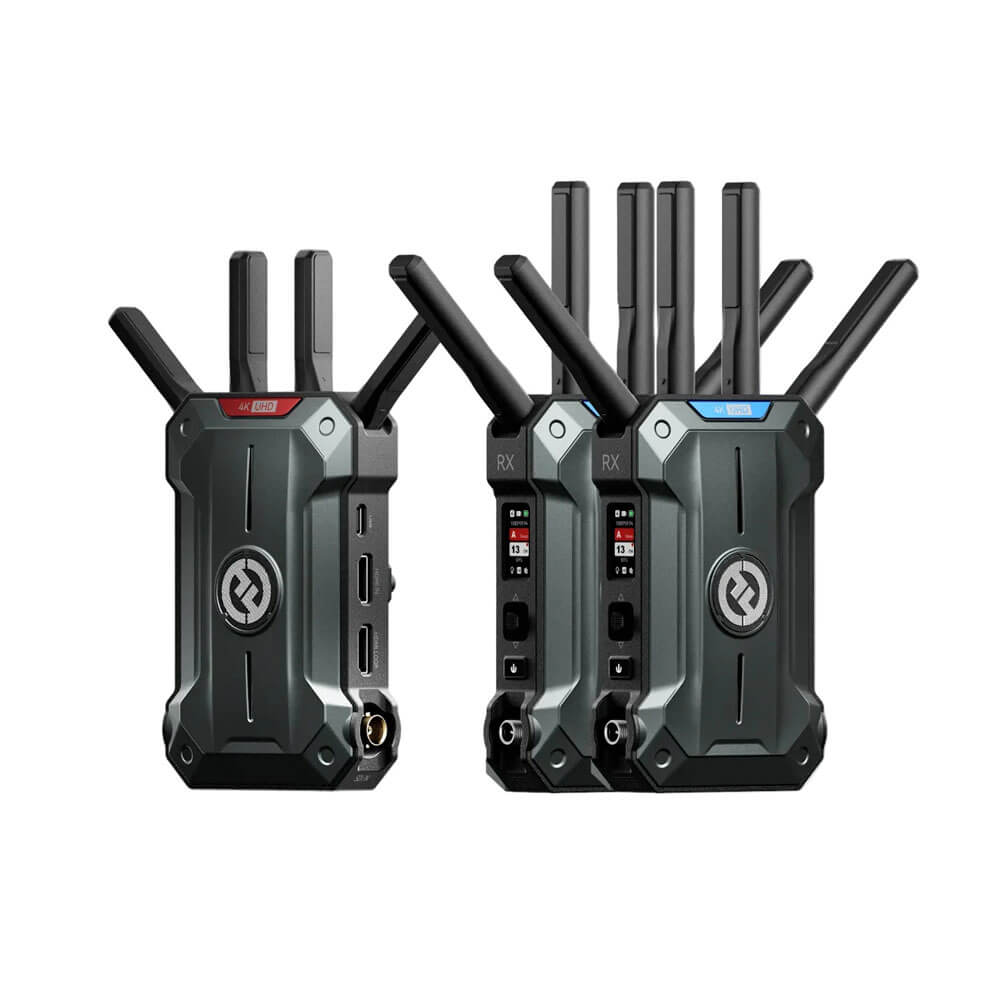

Hollyland Pyro Ultra 1TX & 2RX Wireless Video Transmission System

Hollyland Pyro Ultra 1TX & 2RX Wireless Video Transmission System is designed for production crews that need one wireless transmit point feeding two receiving points. Based on the source images, the kit includes 1 transmitter, 2 receivers, easy-install antennas, a 12V/2A DC power adapter, USB-C OTG adapter, double ball head with cold shoe mount, D-Tap to locking DC power cable, quick guide, and warranty card.

From a broadcast engineering standpoint, this system is practical when one camera or source feed needs to be monitored in two places. The transmitter supports HDMI 2.0 input, HDMI 2.0 loopout, and 3G-SDI input, while each receiver provides HDMI 2.0 output and 3G-SDI output. That makes it useful for director monitoring, video village, production carts, client viewing, and field review setups.

Highlights

• 1TX and 2RX wireless video system for multi-monitor Pyro Ultra workflows
• HDMI 2.0 and 3G-SDI support for mixed camera and production setups
• HDMI loopout on the transmitter keeps a local monitor path available
• Two receiver package supports separate monitoring positions from one source
• Dual-band operation across 5GHz and 2.4GHz frequency ranges

Quick Specs & Uses

• Product type: Wireless video transmission system

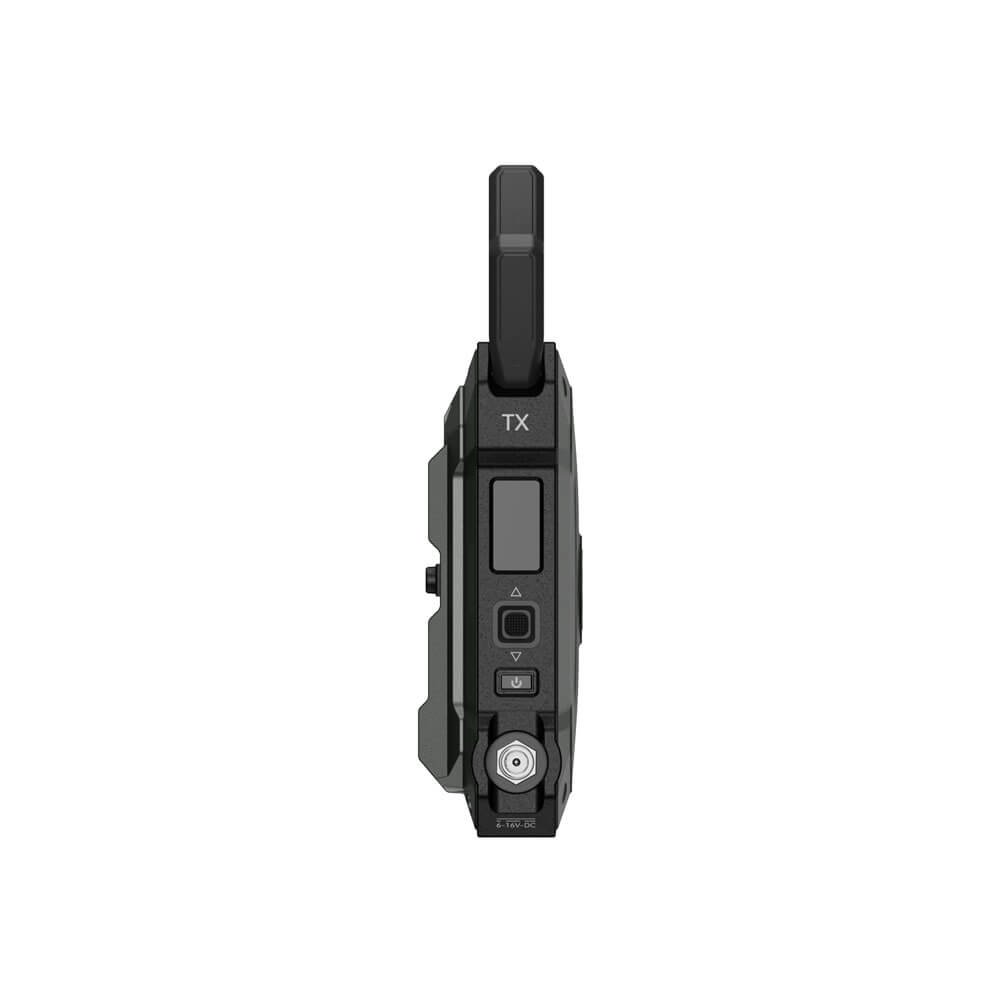

• Included units: 1 transmitter and 2 receivers
• Transmitter DC input: 2.0 barrel connector
• Transmitter HDMI input: HDMI 2.0
• Transmitter HDMI loopout: HDMI 2.0
• Transmitter SDI input: 3G-SDI
• Transmitter Type-C: USB 2.0
• Receiver DC input: 2.0 barrel connector
• Receiver HDMI output: HDMI 2.0
• Receiver SDI output: 3G-SDI
• Receiver Type-C: USB 3.0
• Antenna: SMA male connector
• Battery power input: 6.8V–8.4V
• DC power input: 6V–16V
• Transmitter power consumption: Non-broadcast 11W; broadcast 14W
• Receiver power consumption: 7W
• TX power: <23dBm
• Receiver sensitivity: Non-broadcast -85dBm; broadcast -80dBm
• HDMI input/output formats: 720p50/59.94/60, 1080p23.98/24/25/29.97/30/50/59.94/60, 4K 3840 x 2160p23.98/24/25/29.97/30/50/59.94/60
• SDI input/output formats: 720p50/59.94/60, 1080i50/59.94/60, 1080p23.98/24/25/29.97/30/50/60
• 5GHz operating frequency: 5.150–5.250GHz, 5.250–5.350GHz, 5.470–5.725GHz, 5.725–5.850GHz
• 2.4GHz operating frequency: 2.412–2.484GHz
• Transmission latency: Focus Mode 1080p25 ≥20ms
• Bandwidth: 20MHz; broadcast 40MHz

Why It Helps

In a live production or field monitoring setup, one camera feed often needs to go to more than one destination. The Pyro Ultra 1TX & 2RX kit gives crews a transmitter for the camera side and two receivers for separate viewing points, helping reduce long cable runs across the set or venue.

The HDMI loopout on the transmitter is a practical detail for camera-side monitoring. It allows a local monitor feed to stay available while the wireless signal is sent to two receiver positions, such as a director monitor and video village display.

System Characteristics

• One-source, two-receiver workflow supports multiple monitoring positions
• HDMI and SDI flexibility fits mixed camera and production environments
• Local HDMI loopout helps keep camera-side monitoring available
• Dual-band operation gives crews more flexibility in changing RF conditions
• Included mounting and power accessories support field setup out of the box

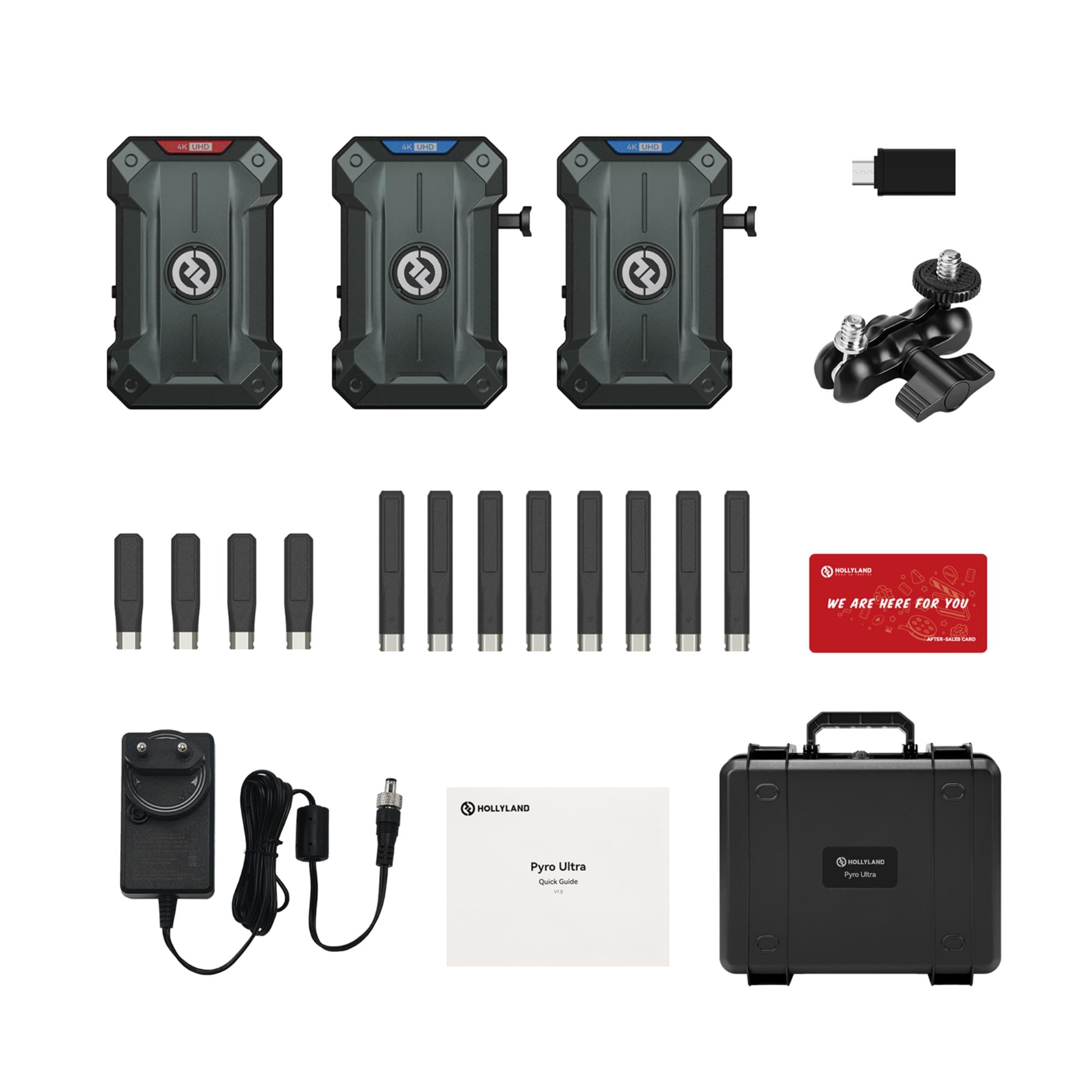

What’s In The Box

• 1 x Transmitter
• 2 x Receiver
• 4 x Easy-Install Short Antenna
• 8 x Easy-Install Antenna
• 1 x 12V/2A DC Power Adapter
• 1 x USB-C OTG Adapter
• 1 x Double Ball Head with Cold Shoe Mount
• 1 x D-Tap to Locking DC Power Cable
• 1 x Quick Guide
• 1 x Warranty Card
